Stainless steel pressure gauge Original export Y100BF-ZT 16BAR G1/2B Material 316L Steam meter | Инструменты

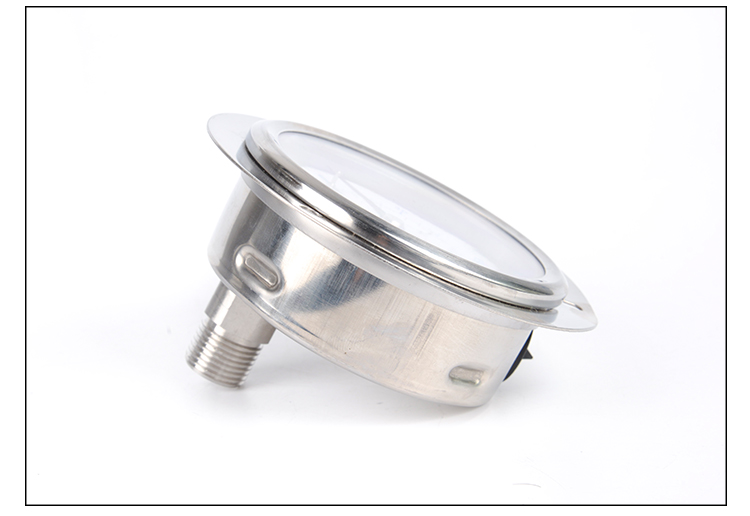

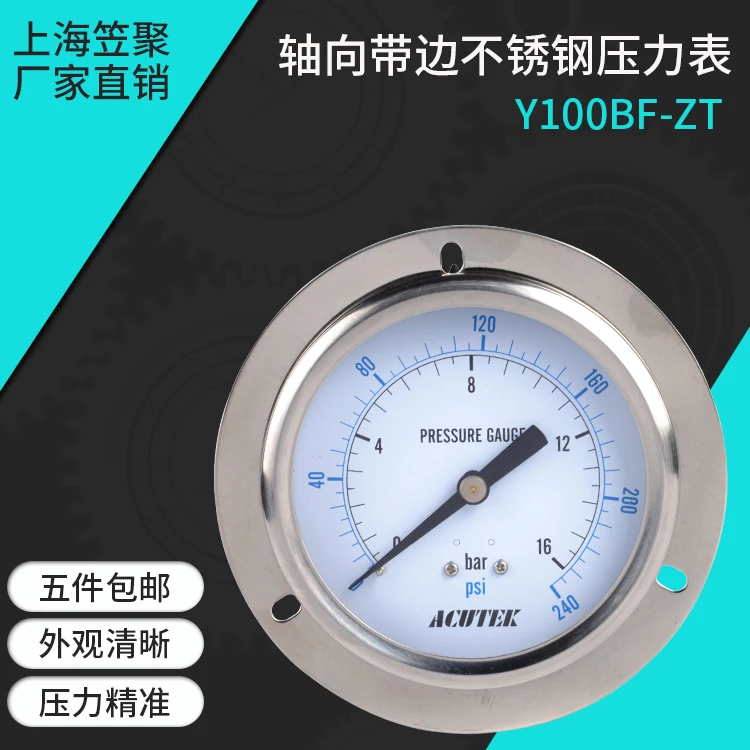

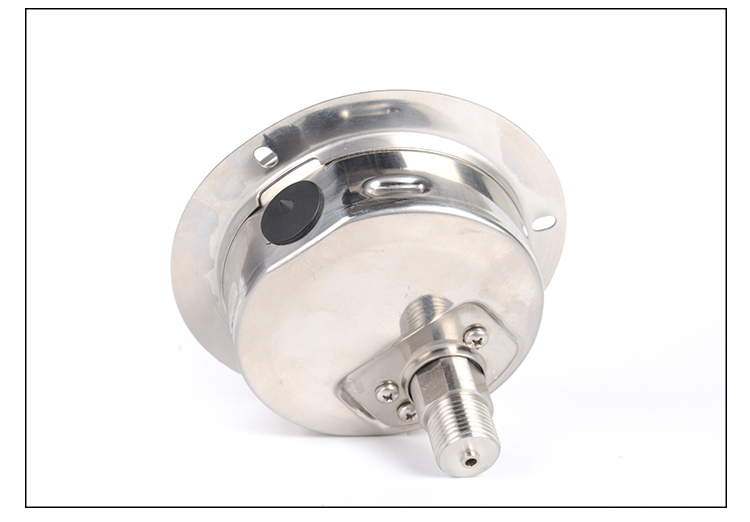

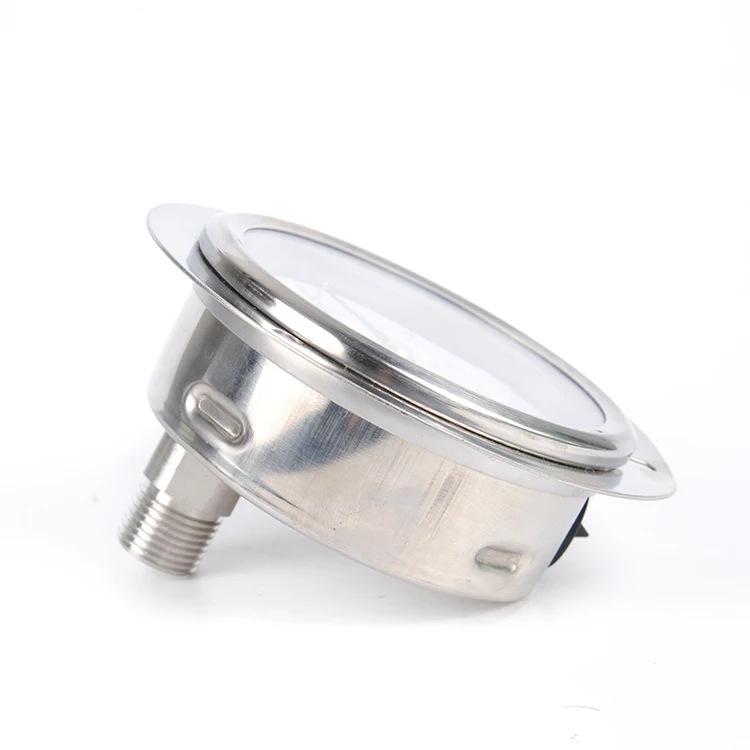

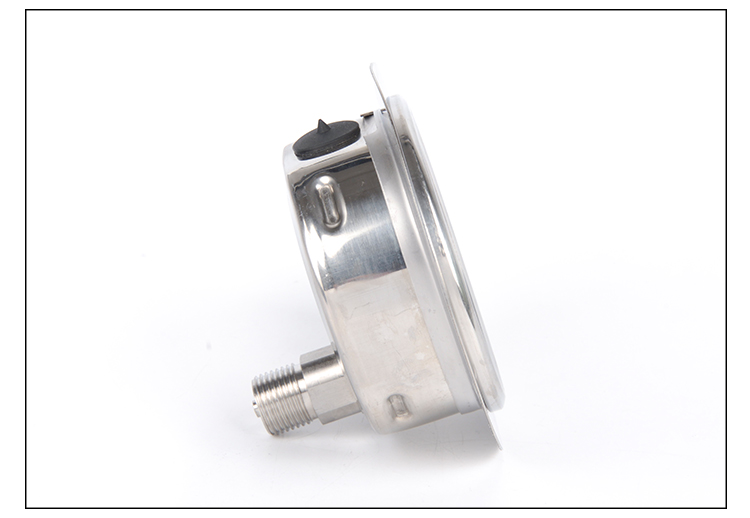

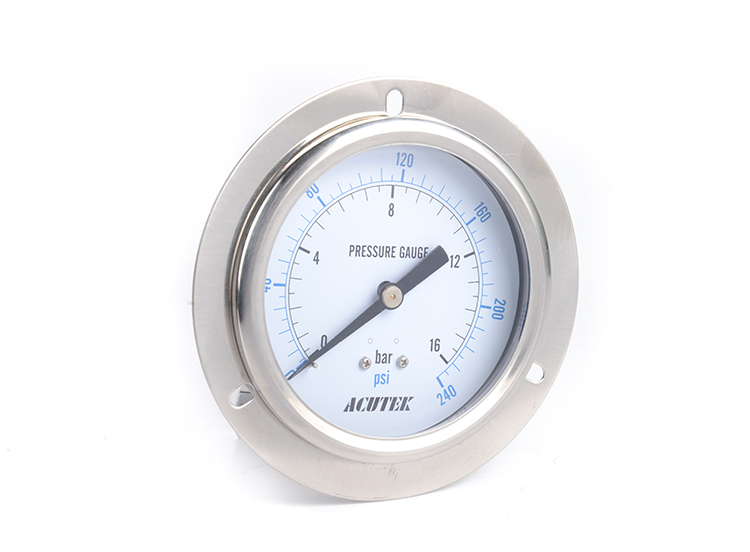

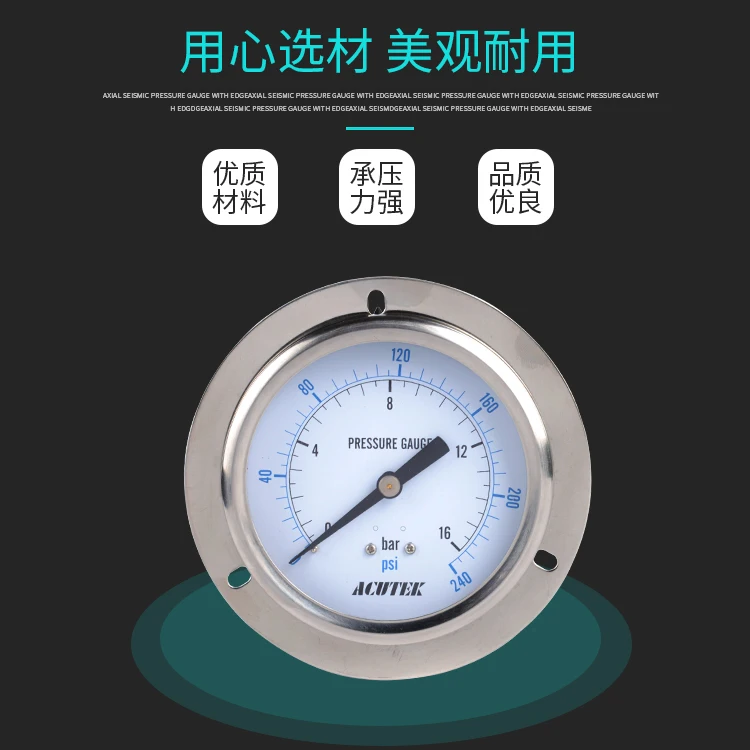

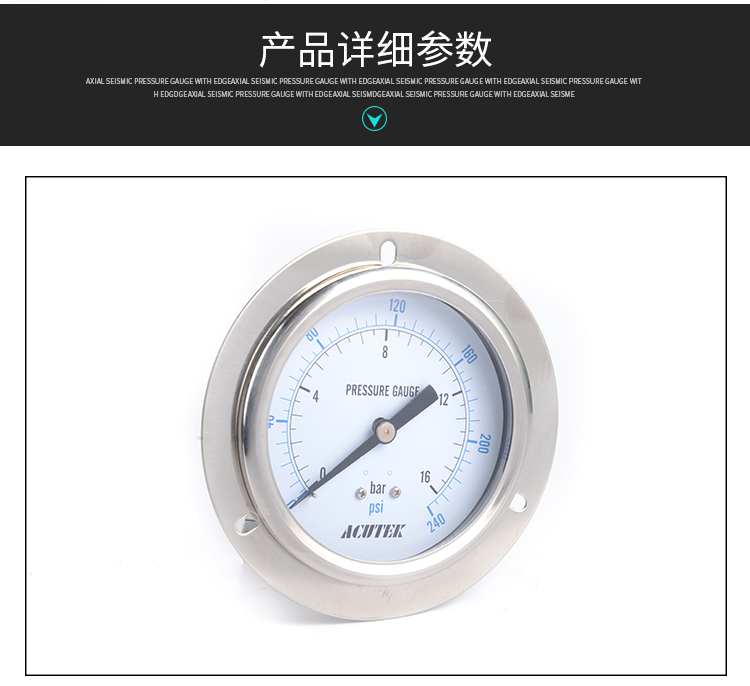

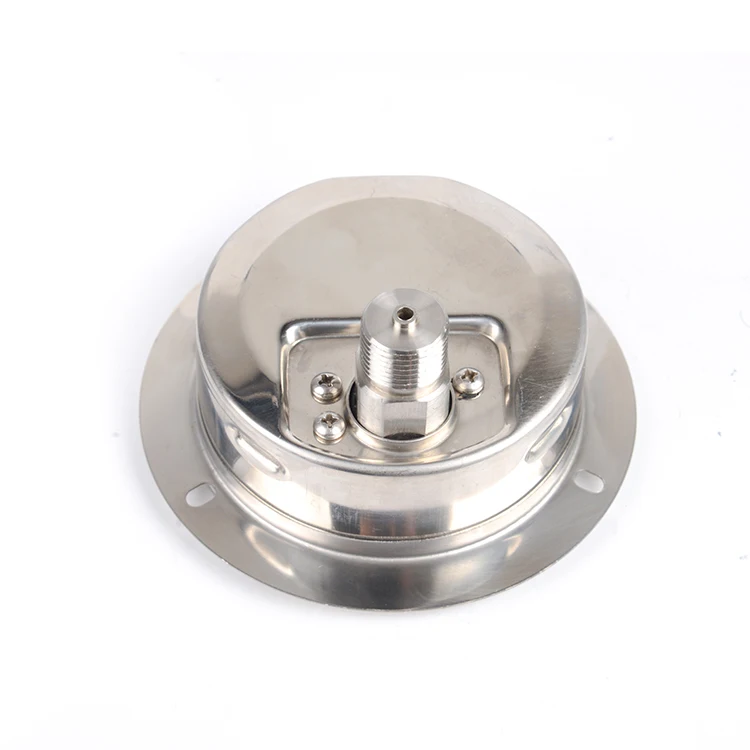

Stainless steel pressure gauge Original export Y100BF-ZT 16BAR G1/2B Material 316L Steam meter Product specification classification: -1-24bar -1-15bar -1-9bar -1-5bar -1-3bar -1-1.5bar -1-0bar 600bar 400bar 250bar 160bar 100bar 60bar 40bar 25bar 16bar 10bar 6bar 4bar 2.5bar 1.6bar 1bar   Product Name: Stainless Steel Pressure Gauge Product model: Y100BF-ZT axial belt edge Product diameter: 100mm Product thread: 20*1.5 Product material: stainless steel 316 shell, thread, 316L movement, 316 spring tube Product accuracy: 1.6 Filling solution: glycerin Operating temperature: -10 ° - 180 °, relative humidity 85% Pressure conversion: 1mpa=10bar=9.8kg=142.2psi=1000kpa Other threads: PT 1/2, NPT 1/2, M20*1.5, etc. Mpa: 0.1, 0.16, 0.25, 0.4, 0.6, 1, 1.6, 2.5, 4, 6, 10, 16, 25, 40, 60, 100, -0.1-0 , -0.1-0.3, -0.1-0.15, -0.1-0.3, -0.1-0.5, -0.1-0.9, -0.1-1.5, -0.1-2.4 Bar: 1, 1.6, 2.5, 4, 6, 7, 10, 16, 25, 40, 60, 70, 100, 160, 250, 400, 600, 700, 1000, -1-0, -1- 1.5, -1-3, -1-9, -1-15, -1-24 Product application: widely used in petroleum, chemical, chemical fiber, electric power, etc.
