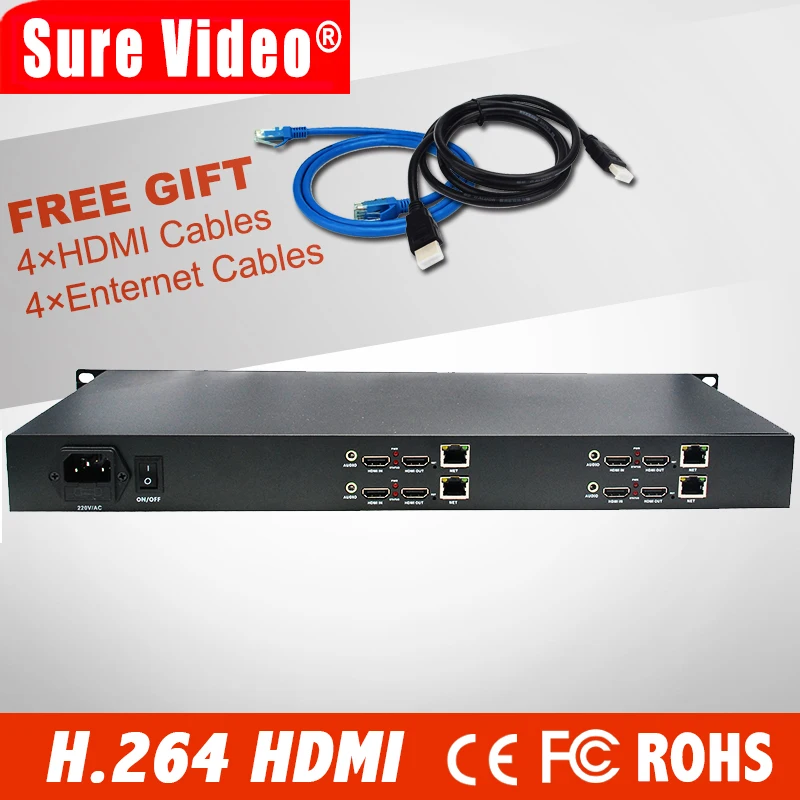

HD H.264 MPEG-4 AVC 1U 4 Channels hdmi ip encoder for Live Broadcast with HTTP RTSP RTMP HLS | Электроника







                                 http://bit.ly/2Dch5PP                                                        //youtu.be/-ia6PHmG5rk









​

Model MT4-HDMI-1U4           Video Video Input 4 Channels HDMI (Audio Build-in)   Video Resolution 1920*1080_60I /60P, 1920*1080_50I, 1280*720_60P, 1280*720_50P ect,.   Video Output 4 Channels Ethernet Port (RJ45) Video Video Encoding H.264 /AVC High Profile Level 4.0(HD)   Code Rate 16Kbps to 12Mbps   Code Rate Control CBR /VBR   GOP Structure IBBP   Video pre-processing De-interlacing, Noise reducing & Sharpening       Audio Audio Encoding AAC, MP3, G.711 Sampling Rate Auto Bit-Rate 32K, 44.1K, 48K, 4K,96K, 128K, 160K, 192K Sampling Accuracy 24 Bit Audio Data-Rate 64Kb/s~384Kb/s     Network RJ45 100M Interface Program Streaming HTTP, UTP, RTSP, RTMP, ONVIF protocol Control Panel WEB Panel (Chinese & English Version, Language Customizable) Firmware Update Enable by uploading files to dashboard       General Dimension 310 * 210 * 50 /mm Gross Weight 4KG /Pcs Temperature 0 to 45(For Working), -20 to 80(For Storing) Input Voltage 220V Power Consumption 5W /Channel





1.    H.264 /H.265 baseline /main /high profile encoding

2.    MPEG1 audio Layer2 audio coding

3.    16Kbit/s to 12Mbit/s for CBR /VBR code rate controlling

4.    Network interface full-duplex mode with 100M speed

5.    Up to 720P, 1080P HD video input

6.    TS dual-stream output

7.    Support HDCP and HD blue-ray

8.    HTTP, UDP, RTSP, RTMP, ONVIF, RTP

9.    English WEB operating interface & Language customizable

10.  A wide area network remote management (Web control panel)

11.  Image and text parameter settings

12.  Different protocol  transmission for the main stream & second stream

13.  Stream resolution setting

14.  MP3 and AAC and G.711 audio format selection

15.  GOP frame rate settings

16.  A click to restore the default configuration

17.  Decoding the set-top box

18.  Low-power design

19.  4, 8, 16 channels 1U /3U Structure

1.  Login Into The Web Control Panel Of Video Encoder

2.  Menu Of The Control Panel Of Video Encoder

(1).  Status Display Of The Input Video And Output TS Dule-stream

(2).  Networking Setting Of The Video Encoder

(3).  Mainstream Encoding Setting

(4).  Secondstream Encoding Setting

(5).  CVBS Stream Encoding Setting

(6).  Audio Setting Of The Output TS Stream

(7).  System Setting Of The Encoder



(1).  Status Display Of The Input Video And Output TS Dule-stream

(2).  Networking Setting Of The Video Encoder

(3).  Mainstream Encoding Setting

(4).  Secondstream Encoding Setting Is The Same As Mainstream Setting

(5).  CVBS Encoding Setting Is The Same As Mainstream Setting

(6).  Audio Setting Of The Output TS Stream

(7).  System Setting Of The Encoder



Video signal transmission products such as high-definition HDMI, DVI, SDI, VGA that developed and produced by the company utilize cables, network and optical fiber as transmission mediums, providing long distance transmission solution of high-quality media signals for the majority of customers. Now these products have widely used in many fields such as track traffic, security monitoring, big screen(splicing screen)display, multimedia teaching, LCD and industrial control.   At the same time, HDMI, DVI, SDI, VGA high-definition video codec that lately developed by Mita has provided a stable, clear, reliable front-end acquisition device for IPTV, video conference, live telecast, recording and playing and monitoring. Today Mita electron will continue to adhere to service purpose and philosophy of “the technology centering on the needs of people” .

Q1 How fast can I get the quotation?  A: We usually quote within 24 hours after we get your inquiry.   Q2 Can I get a sample to check the quality of product? A: Yes. We can send you samples to check the quality within 3-5days.   Q3 Do you offer guarantee for the products? A: We offer 1 year guarantee for the goods. Same Q'ty good encoders compensation against same Q'ty bad ones.   Q4 What is your terms of delivery?  A: We accept EXW, FOB, L/C, etc. You can choose the one which is the most convenient or cost effective for you.   Q5 When is your lead time?  A: 3-7 days after for production comfirmation of order   Q6 Are you accept Paypal? A: Yes, we are.   Q7 Can we do OEM project? A: Yes, no problem. Custom logo and custom packing will be no problem for us.    Additional Information Our factory provide product brochure on paper for free. You also don't need to pay for the shipping fee. If you are interested in it, please write these information for us: 1. Your name (full name) 2. Your address and phone number 3. You email address 4. Skype/ Wechat/ WhatsApp etc. (non-necessary)





1). If you prefer to use other payment method (Paypal, TT, West Union ect,.), please contact us.

2). If you are worried about Too Much Custom Dues, please contact us.

3). If you want to know More Product Details, please contact us.
