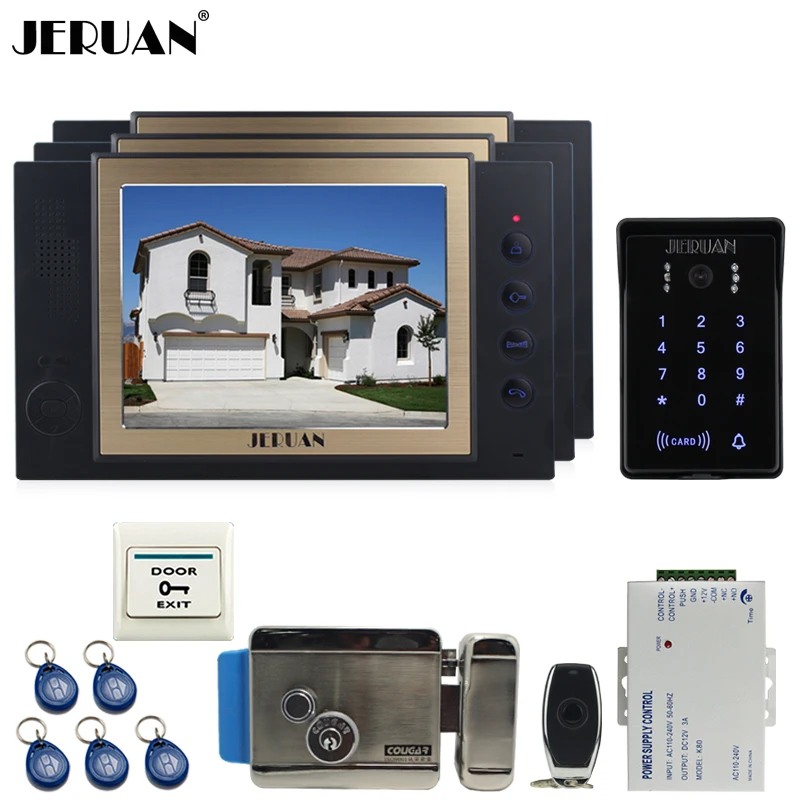

JERUAN Wired 8`` video doorphone Record intercom system kit 3 monitor New RFID waterproof Touch Key password keypad Camera 8G SD |

LUXURY 8 INCH COLOR LCD  VIDEO RECORD INTERCOM SYSTEM 700 TVL Camera, Clearer Video! Unlock via Code, RFID cards, Remote control and unlock button PhotoTaking / Video Recording FREE 8GB SD CARD

The item you are watching is our new arrival video door phone system with recording function, it will record video automatically when someone press ring the bell. This allows you can see who visited your house when you are not at home or when you missed the call, if the visitors leave a message via the outdoor unit, you can also get more information via the video when you come back.
The monitor is equipped with 8" high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design. There is an important function compared to old version, this kit supports video recording, it can record a video automatically and it has a micro SD card slot supports Max. 32GB SD card.  It is a good choice for your home security and intercom.

This new released outdoor unit has a code keypad, it supports to unlock via password or RFID card, very convenient to unlock. Besides, it is fully waterproof, supports outdoor working.

Features:

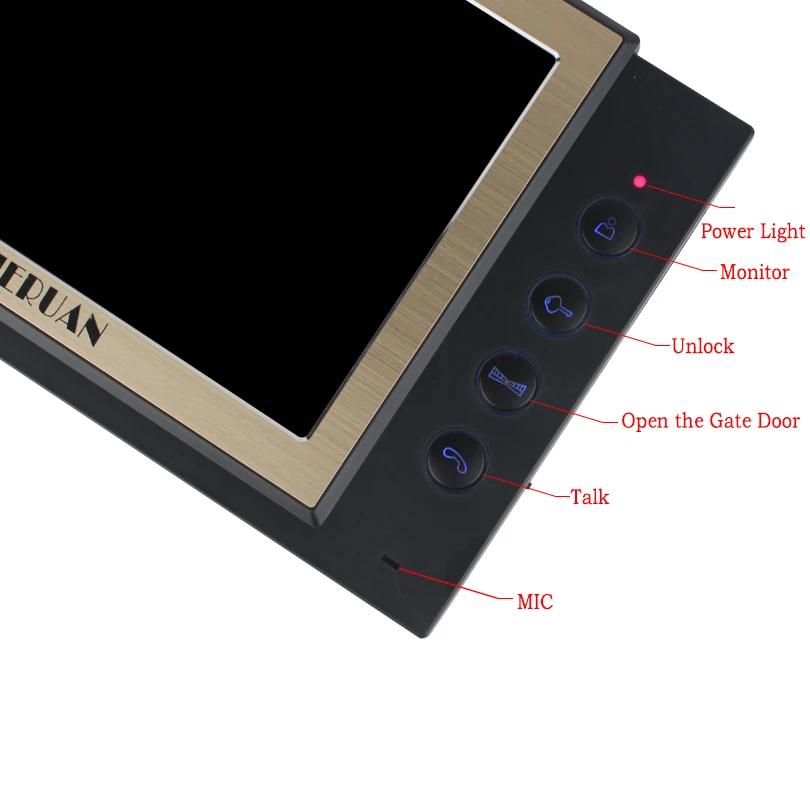

Monitor unlock control; Dual-way intercom; Show outdoor image manually. 10 melodies for ringing selection; 8" TFT digital color LCD; Support Max. 32GB SD card Video Recording and Photo Taking Function Touch sensor button keypad and RFID reader, blue back-light , beautiful design. With micro-processing technology, auto-remote control, excellent performance and high Reliability. Fully waterpoof, support outdoor working. Supports one password, you can unlock via code or RFID card Support maximum 2000 rfid keyfobs Comes with 5 RFID keyfobs, a push release button switch. Ring cancel function, do not disturb mode. Brightness, chroma and volume adjustable Hands-free intercommunication. TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480. Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.



Photo/Recording:

The unit is with build in 2M memory(can store 50pcs photos),also you can insert external memory card into the system for photo/ recording ,It will photo automatically and make a 15S video once the visitor pressing the outdoor camera call bottom .

if the memory is full , The new file will overwrite the earlier file automatically(Note: the item should be installed with TF card in advance).



Power supply:



This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

It controls electric lock directly.   Can reduce the load of access controller, save wiring to reduce the hidden trouble  Based delay control circuit, lock time can be in 0-15 seconds   Automatic protection function, unexpected situations such as when the power supply short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off  Operative device: E/M Lock, Access Controller, Exit Push Button

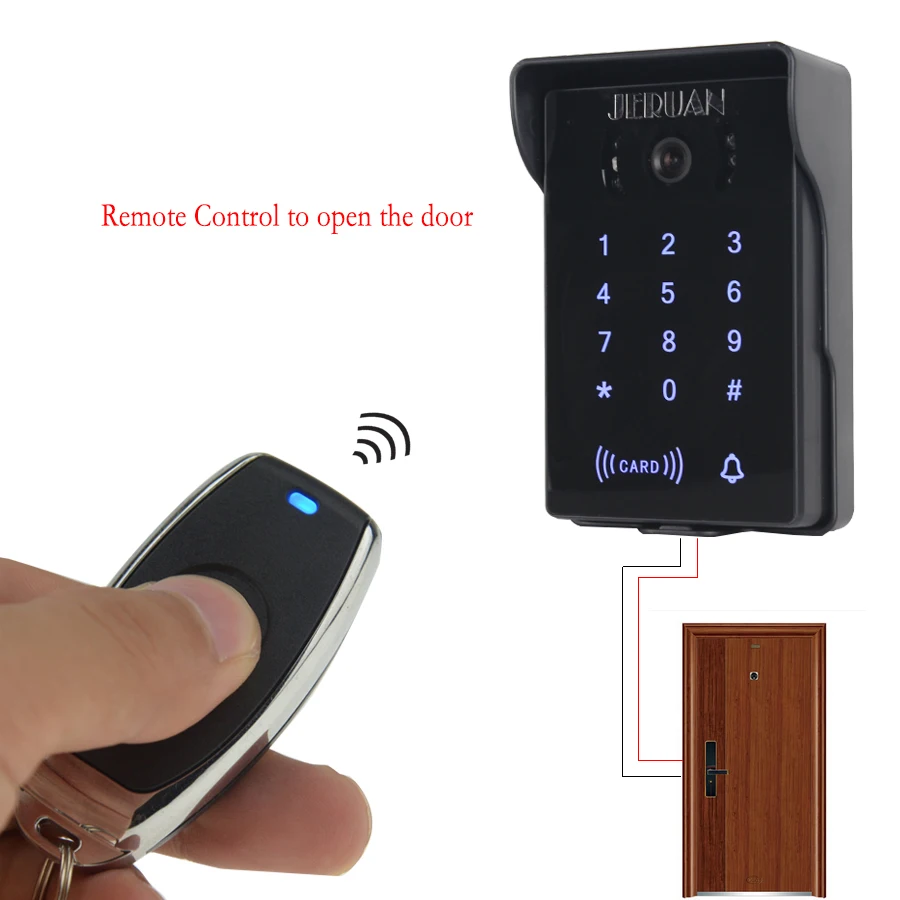

Remote Control:

when you want to go out, you just need to click this Remote control, then you can go out:

NOTE:The remote control without batteries

Electric Control Lock:

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

NO Mode - (Locked while power is off); Material: Stainless Steel; Authority Certification: CE & MA Approved Application: wood/iron doors; Working Voltage: 12VDC Working Current: 0.2-0.45A Weight: 1500g; Dimension (Face Plate): 120mm x 105mm x 35mm Center distance: 60mm Door distance: 35-55mm

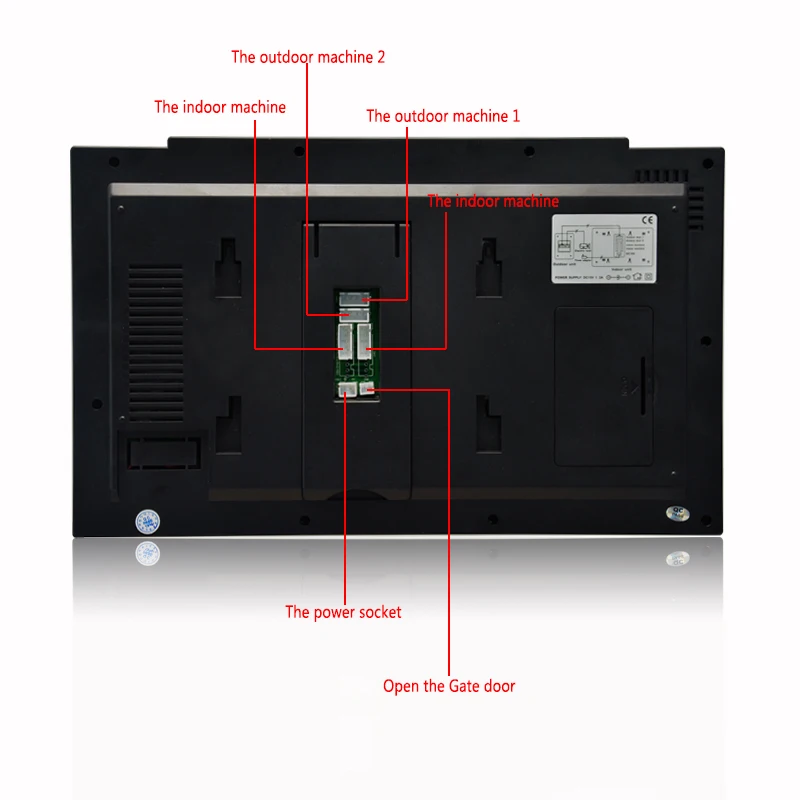

Note: The cables are very easy to be found in your local market as they are international standard. We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound. The total length of the connection cables can NOT exceed 100 meters. If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.   Indoor Unit Specification: Screen size: 8`` (4:3 display) Resolution:  digital:800(RGB)×600Pixel  Visual angle: up 50 degree, down 70 degree, left or right 70 degree Brightness: 200cd/centiare Ringtone: 24 chorded polyphonic ringtone Sensitivity: 56db Signal system:  PAL/NTSC (optional) Input voltage: AC 100V-240V ~ 50Hz/60Hz Overall Power Consumption: ≤6W(400mA) Stand-by Power Consumption: <1.1W Power Adapter Specifications: DC 15V 1000-1500mA  Talk Time Delay:  120S±10% Monitor Time Delay:  40S±10% Effective distance: 200M(4×0.75mm⊃2;) Operating Temperature :-20~+60 degree Relative humidity: 10%~90%(KH) Size: 274mm*170mm*23mm(L*W*H) support:Photo Taking / Video Recording Weight: 570g Model:801B Installation: Wall mounted Indoor unit installation method: wall-mounted type

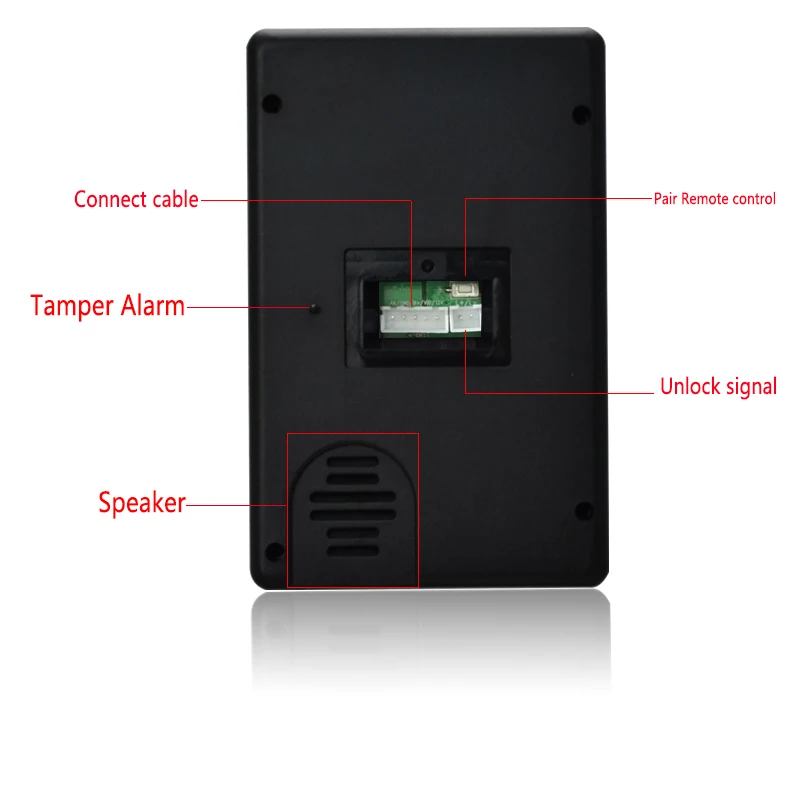

Outdoor Unit Specification: Infrared lamp lighting distance: approximate 4 meters Gain control: auto Resolution: 700 TVL Lens: 2.3mm Talk time delay: 120S±10% Image transmission distance: approximate 200 meters Visual angle:  92 degree KW: <2W Power: DC 15V (provided by the extension phone directly) Camera : High definition and colorful CMOS/CCD(optional) Outdoor infrared night vision function: 10 LUX infrared Operating Temperature:-20~+60 degree Material: ABS Size: 145mm*95mm*50mm(L*W*H) Model: D6k Outdoor unit installation method: embedded or wall-mounted type
