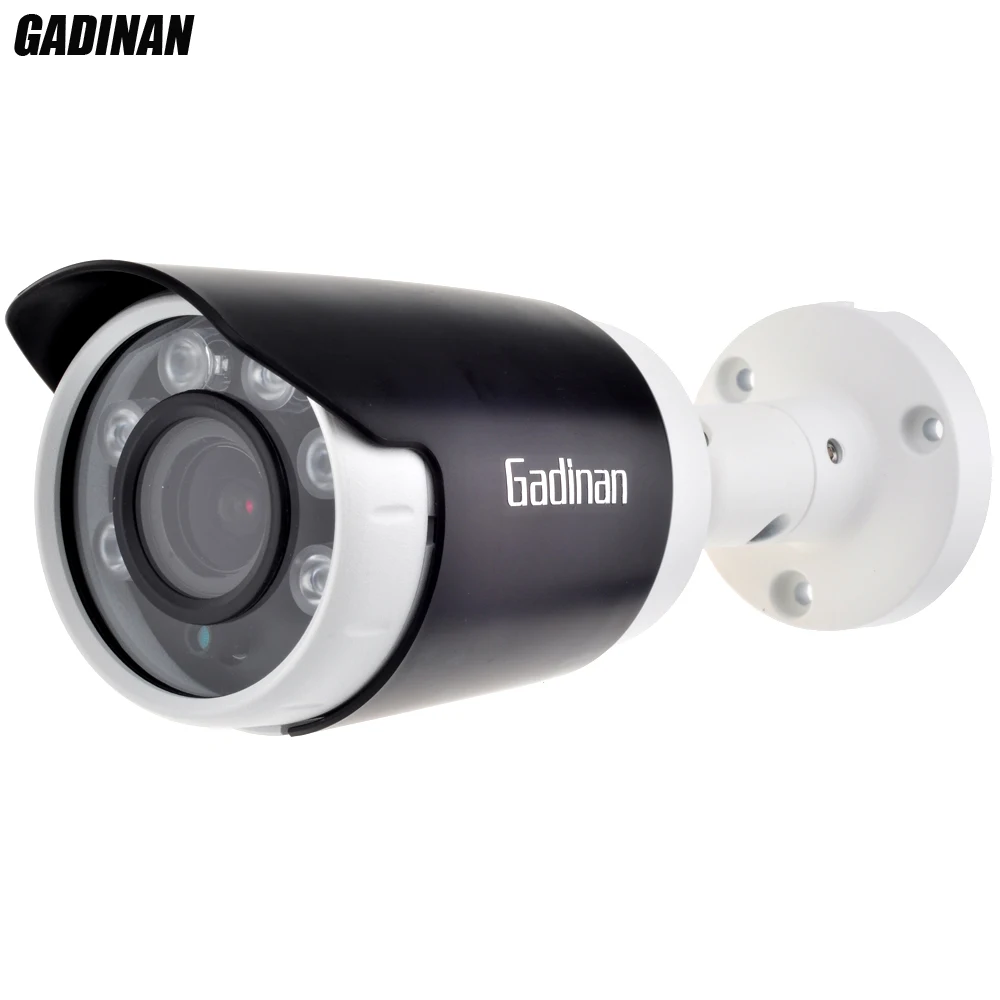

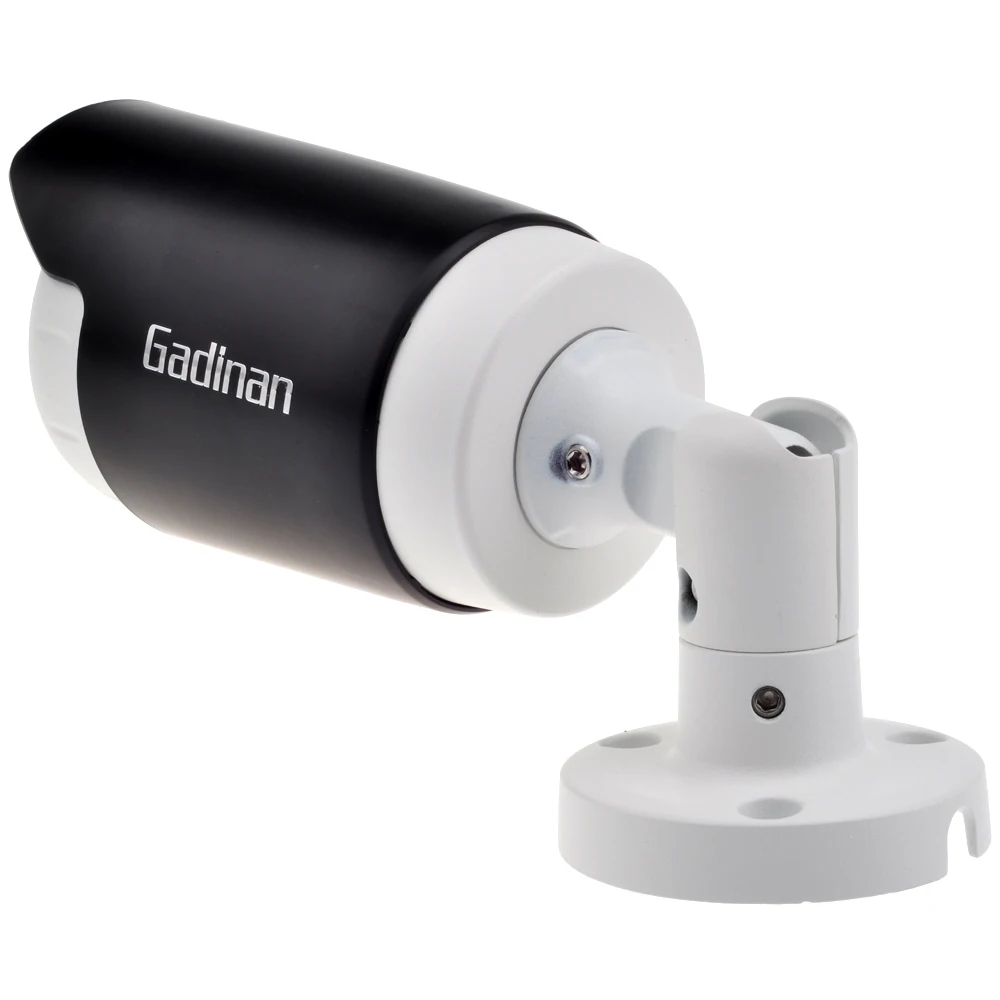

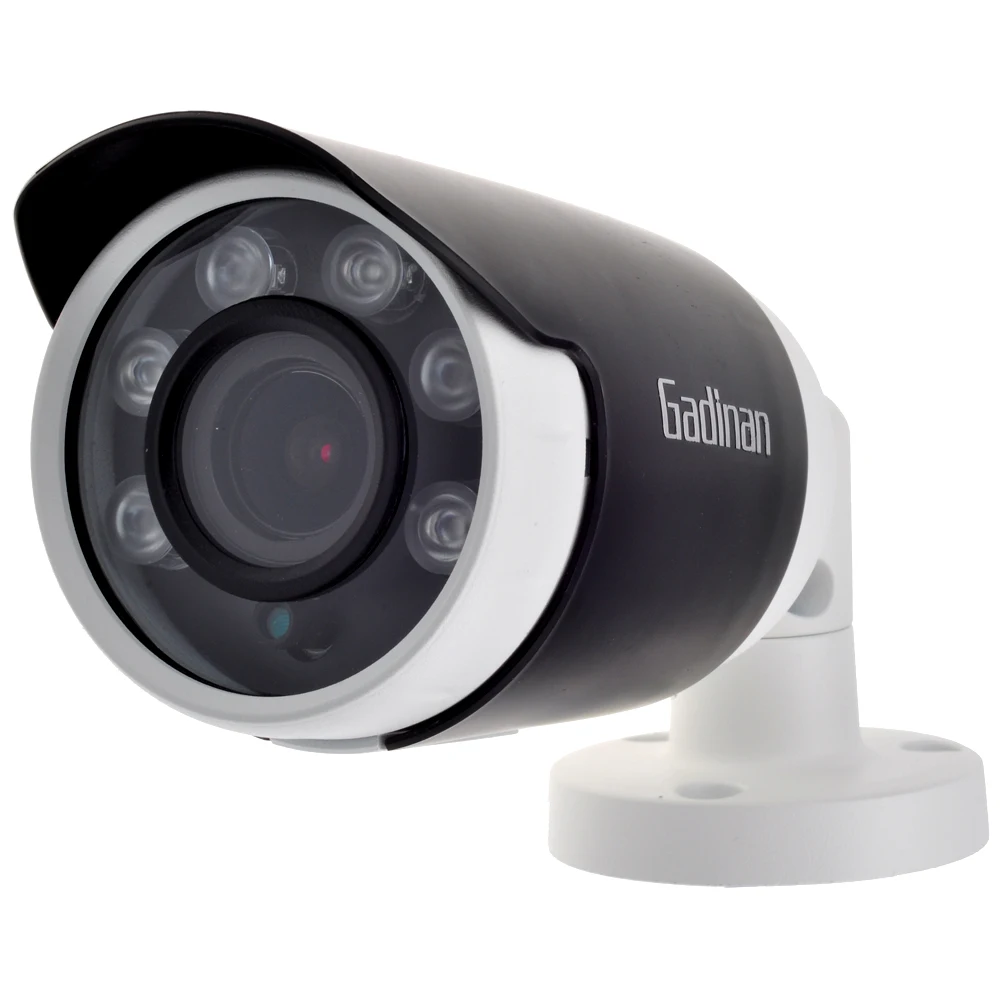

GADINAN 4MP 25FPS 2.8-12mm Auto-zoom Lens 4x Zoom Hi3516D+OV4689 IP66 Waterproof Outdoor ONVIF H.265/H.264 IP Camera IPC | Безопасность

What is H.265 ? H.265 is a new generation video compression standard, a successor to H.264, also known as High Efficiency Video Coding (HEVC)   Why we need H.265 now ? With the explosive increasing of camera resolution from D1 to 720p,1080p, then 4K in the future , the H.264 compression capacity is far left behind the market need .    How to transfer and store UHD images effectively without increasing storage device and internet expenses ? People do need a more efficient compression format . Then H.265 comes just at the right time.   H.265 advantages 1. It is approximate 2 times as effective as H.264. 2. Reduces file size up to 50% with the same quality. 3. Supports resolution up to 7680 × 4320 (8K). 4. Reduces video noise and increases dynamic range. 5. Extend far greater video quality experience compared to H.264





  Camera Features: 1,4MP、3MP HD resolution,clear and fine images; 2,DSP(Hi3516D)+1/3'' CMOS OV4689 sensor 3,Lens:4Xzoom 2.8-12mm auto focus 4,6pcs array IR leds night vision 5,High Quality Vandal-proof Waterproof IP66 Case 6,Support 2D/3D noise reduction,digital wide dynamic; 7,Advanced H.265/H.264 video compression; 8,low illumination；color 0.01Lux'F1.2,black/white 0.001Lux'F1.2; 9,Support cloud technology,easy to achieve network penetration,fro in-line and alarm information pushed 10,Support ONVIF 11,Provide web、CMS、center platform management software MYEYE

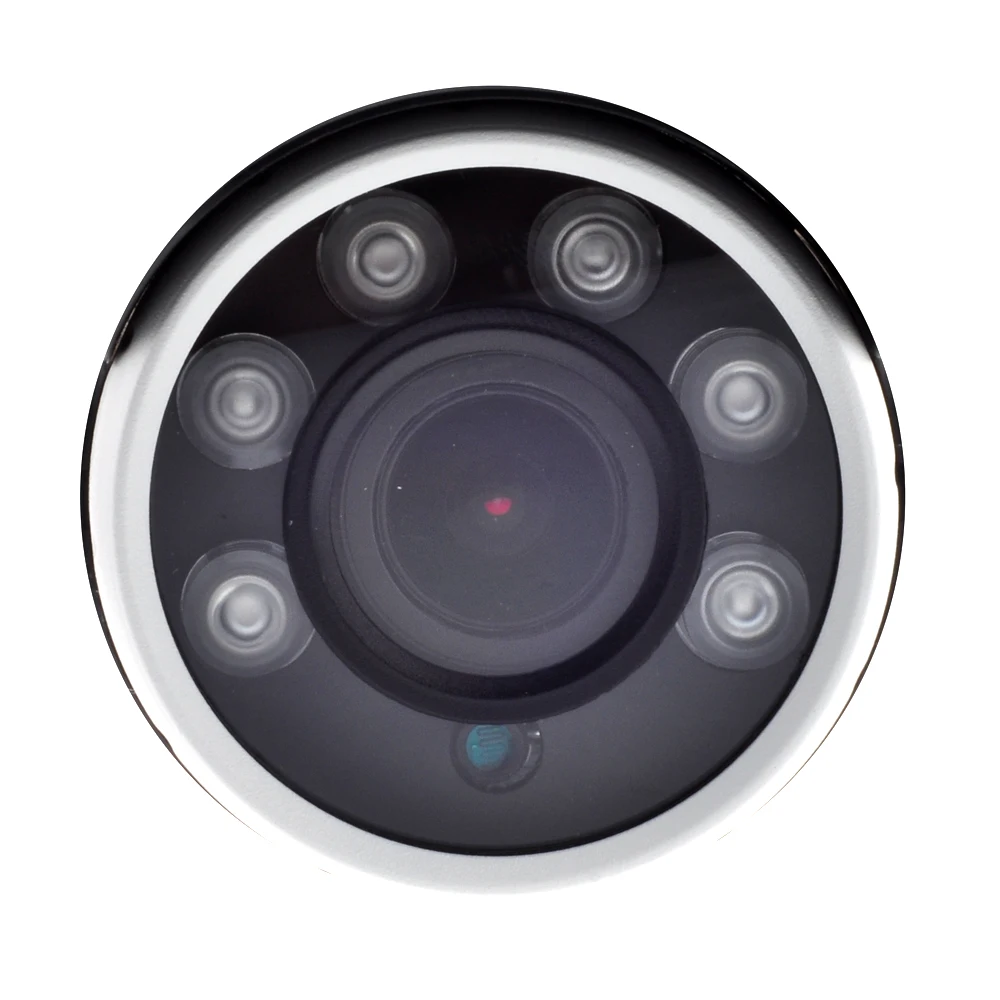

Specifications:

Package included:

  1 x 4MP IP Camera   (Does not include Power Adapter) Note: Please use  12V 2A power supply, packaging does not include the power supply.   If the camera not 25FPS 4MP,tell us,we can give you the firmware to upgrade.     ​ Q & A 1, IP camera default IP address:192.168.1.10 User name:admin,password:empty(null) If there is a problem with "Can not find the Device", it is the default ip address is not in the same network segment as your router. Please click "Edit Device" to change the camera's ip address, For example, if your router's ip address is 192.168.0.1, then you need to change the camera's ip address to 192.168.0.XX. "DeviceManage" It can find and change the IP address, upgrade the firmware. 2, P2P website: "www.xmeye.net" ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese . then please input your P2P ID,user name and password to login and preview. Access to the IPC through the web, only one screen can be displayed.  There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)  3,The camera's port information. ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port  25; SLL protocol Port 465. 4,Does the cameras can be compatible with other manufacturers NVR? Please confirm whether other manufacturers NVR support onvif protocol. Our camera's onvif protocol is onvif Profile S, does not support HTTPS protocol; Auto focus camera, other manufacturers NVR can only zoom, can not focus. 5, The camera all supports Motion Detect,FTP,Email alarm, RTSP. A,How to set up motion detection? Access to IPC via IE (or CMS software), device configuration - alarm function - motion detection - on and save. B, About FTP FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload. We suggest the Sever-U and FileZilla FTP Server to upload the video or image. C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) . D, RTSP URL for VLC media Player : RTSP port: 554 rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream Example: rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)      If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set 6, About DDNS Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80) Note: The two ports in the network settings can be viewed, can be modified What domain names are supported? - CN99 / DynDns / Oray / NO-IP / MYQ-SEE

About 2.8mm

About 12mm





1,View via PC

Install the CMS(CMS for Windows,VMS for Mac)  ( Software in the CD ,or can download online,need contact us )

You can select the language(18 languages)

How to watch via CMS:

How to find "Serial ID" (very important)





2,View via web:

Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)







3,View via Phone(iOS and Android):

Find "XMEye" in Apple APP or Android Market



 Horizontal screen:
