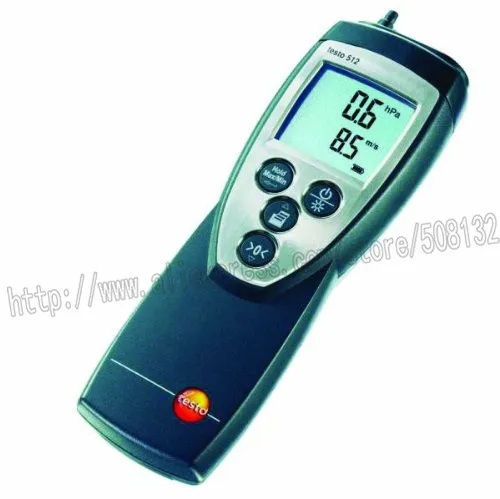

testo 512 Differential pressure meter for 0-200 hPa 0560 5128 | Инструменты



The testo 512 differential pressure meter is available as four different models. This model has a measuring range from 0…200 hPa and is ideal for measuring pressure differences at filters and for carrying out pitot static tube measurements in air ducts at air flow speeds between 10 and 100 m/s.

Product benefits: 8 measurement units to choose from: psi, kPa, hPa, Pa, mm H2O, mmHg, inch H2O, inch Hg 2 air flow units to select from: m/s, fpm Integrated density compensation Backlit display, min/max values, hold function Product description



testo 512 shows pressure and flow velocity simultaneously in an easy-to-read, large, backlit display. Measurement data is printed on site with date and time as well as minimum and maximum values. testo 512 has two switchable units for flow: m/s and fpm. Eight units can be set for pressure: kPa, hPa, Pa, mmH2O, mmHg, psi, inch H2O, inch Hg.
Adjustable damping for sliding mean calculation, density compensation is built-in. The displayed actual value can be frozen in the display by pressing the HOLD button. The measured minimum and maximum value can be displayed and stored in the meter.
TopSafe protects the measuring instrument in the field from impact, dirt and splash water.



Scope of delivery

testo 512 differential pressure meter (measuring range 0 to 200 hPa), calibration certificate, batteries.

Differential Pressure - Piezoresistive Technical data

Measuring range

0 to +200 hPa
+10 to +100 m/s
1970 to 19690 fpm

Accuracy

0.5 % fs

Resolution

0.1 hPa
0.1 m/s
0.1 fpm

Overload

±2000 hPa

Top General technical data Technical data

Warranty

1 year

Measuring medium

All non-corrosive gases

Seceltable units

hPa, Pa, mmH2O, inH2O, inHg, mmHg, kPa, psi, m/s, fpm

Battery type

9V block battery, 6F22

Battery life

120 h

Display type

LCD

Display size

2 lines

Storage temperature

-10 to +70 °C

Weight

300 g

Dimensions

202 x 57 x 42 mm

Operating temperature

0 to +60 °C





NOTICE

The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!



Shipping:



We will ship all items within 1-3 working days upon receipt of payment,our goal is: ship it as fast as we can.

Standard Shipping: To USA by ePacket ,need 7-15 working days.orther by China post or Singapore post about 10-45 working days

Expedited/Standard Int'l Shipping by Fedex,DHL,TNT and EMS courier: To USA,need 3-6 business days,To other countries,need 4-8 business days normally.But sometimes int'l delivery is highly depended on the courier company and local customs/duties.

Import duties and taxes are not included in the item price or shipping charges.These charges are the buyer responsibility.



Warranty&Reture Policy:



We encourage all customers to communicate with us through eBay messages. If you have any questions or comments whatsoever regarding our products or listing, we are waiting to hear from you

A 1 year warranty is offered for this product.If the product malfunctioned under proper usage per instructions

manual within the warranty period, please contact us to obtain shipping instructions and send it back at your shipping costs.

30 days evaluation and investigation takes placed after receiving your return item.A brand new replacement unit will be sent to you at our shipping costs if it meets our warranty requirements.
