Description:

Features:



Power supply: AC220V

Product Description: the QS-2008 vacuum suction pen, can easily get surrounded by pin dual in-line IC.IC from the pull dedicated.

Artificial patch pen is an important tool for manual surface mount technology, it is mainly the mouth of the artificial simulation of the patch of the patch pen, air pressure generated by artificial patch document (reverse vacuum) will chip components from material with a direct suction from the components placed in the corresponding PADS, and then through artificial, artificial patch pen sorptivity is less than the adhesion of the solder paste (plastic patch) by adjustment of air pressure suction, components automatically placed corresponding PADS.

Artificial patch pen is more stable than conventional tweezers and efficient. Artificial patch pen to take material directly from the strip to avoid wastage of components and there is no component positive and negative direction, make the patch more efficient artificial patch pen directly inhaling the back of the components, to avoid forceps $ device side, destroy the pad bit, to avoid solder balling, and even welding and solder bridges phenomenon. Moreover, the use of suction pen put the IC on the back, etc., to avoid the IC pin skew may be caused by false welding, and even welding phenomenon.

Artificial patch pen with automatic SMT production lines with the use of shaped components pick and place, to improve the efficiency of the whole production line is of great significance. And with the automatic SMT production lines, a good alternative to small batch production or testing, and production is tight.

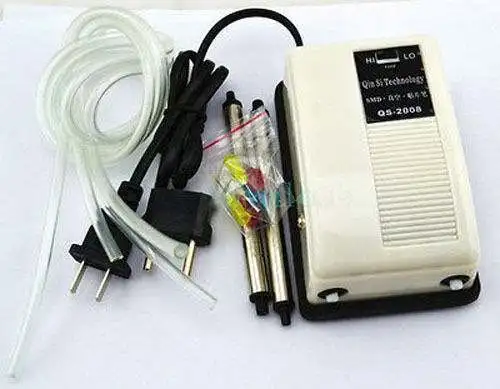

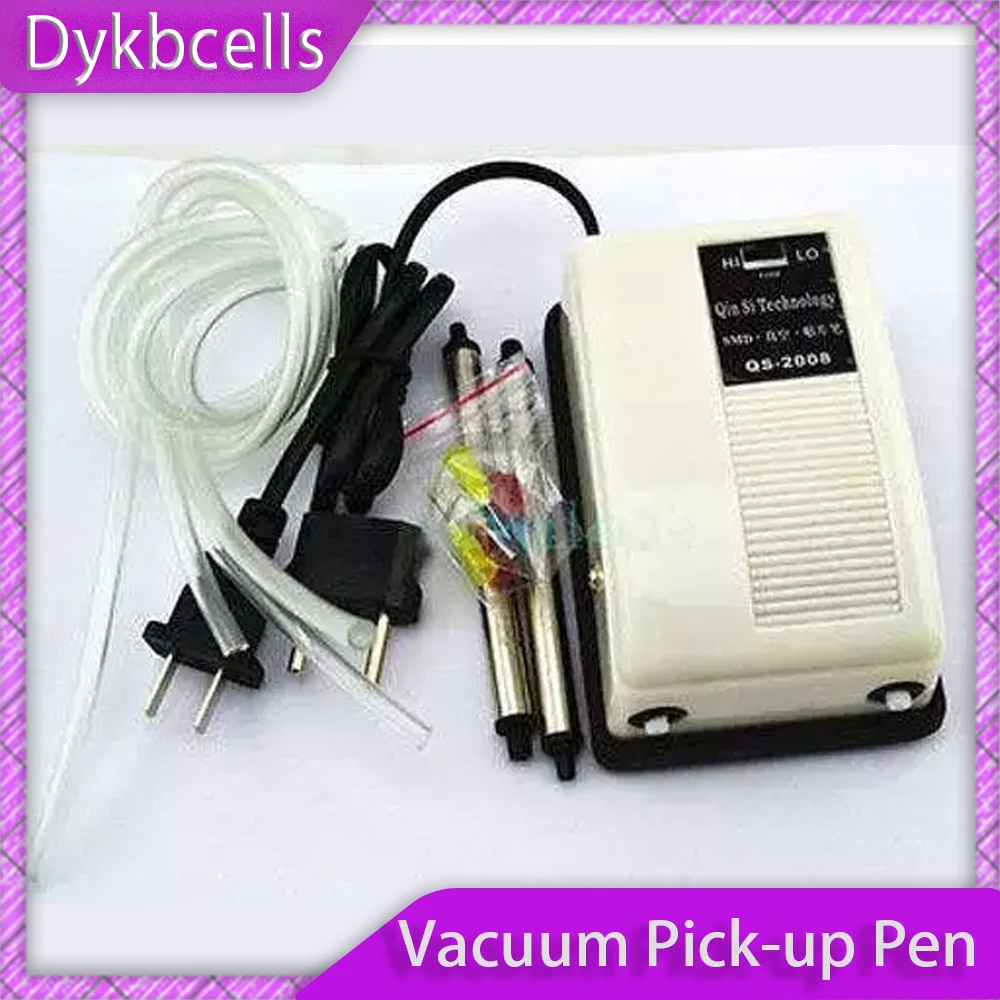

Package Contents

100% Brand New

1xVacuum machine

2xHose

2xStainless steel pen tube

1x0402 nozzle

2x0603 nozzle

1x1206 nozzle

2x8mm IC nozzle

2X10mm IC nozzle

1 x Plug adapter
