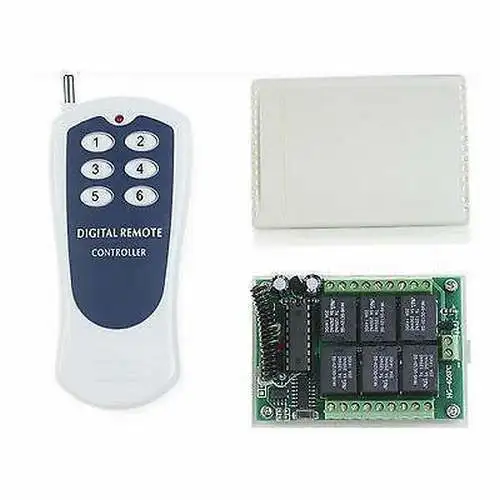

DC 12V 6 Channel Wireless RF Remote Control Radio Controller / Home Switch System Receiver & Transmitter | Электронные







    Description: Features:


Control Lights, TV, Motors, Fans, Cameras, Video Signals, Audio Signals, Electric Doors/Locks/Windows/Curtains/Cars or Other Appliances with voltage AC 110~240V or DC 0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place, the wireless signal can pass through walls, floors, and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bits code.
One/several transmitters can control one/several receivers.
If you use two or more receivers in same place, you can set them with different codes.
Transmitting Frequency: 315MHz.

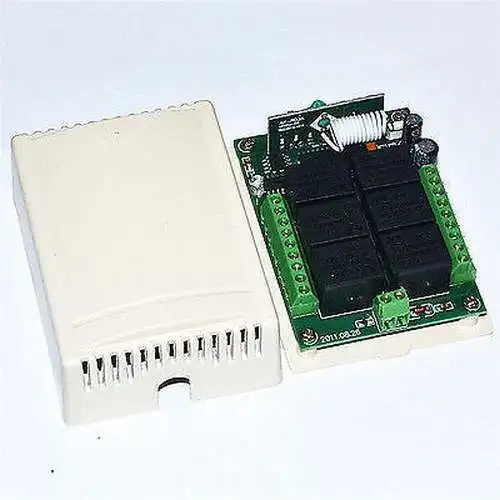

Specification of receiver:

Control Switch System:
Operating Voltage: DC6~12V
Operating Frequency: 315MHz
Receiver Sensitivity: -90dBm
Maximum Load: 5A
Encoding Type: Learning code
Size: 95 x 55 x 17mm / 3.7 x 2.16 x 0.66in(L x W x H)
working way : jog .inter-lock ,self-lock (can be changed randomly)

Channel: 12 CH channel
output/working way : jog , inter-lock . self -lock (can be change on yourself )
Jog-----press one button is "ON" . loosen your finger on the same button is"OFF".need one channel switch and one buttons remote control )
Self -lock------ press one button for one time is "ON" .press the same button again is "OFF" .(need one channel switch and one buttons remote control
Inter-lock ------- press one button is"ON",press another button is "OFF" . (need one channelswitch and 2 buttons remote control

please note that : it is the control system in set here .you just can choose jog or self-lock working/output way here .for there are 12CH and 12buttons .

Decode: Learning code (it can learn serveral remote control and the working way can sbe changed )

How to learn changed the output /working way

Adjust output/working way
A. jog/signal non-lock ——press the No.2 button to learn
B.self-lock press the No.4 button to learn (each channel is independent .they won't interfere with each other
C inter-lock ——press the No.1 button to learn (1-4button inter-lock. 5-8button interlock ,9-12button inter-lock ),
D . self-lock and jog together,1-6 button is self-lock .7-12 button is jog .----press the No.8 button to learn

Channel: 12buttons/keys
Remote control distance: 1000m-3000M(ft)
Encode: Fixed code, Soldering
Size: 125mm x 49mm x 20mm
Power Supply: 1 x 23A-12V battery included



  Package Contents

100% Brand New



Batteries not included
