 the highest cost-effective USB decoder, a good voice is not necessarily to be compared to the price to get.

1 under,This equipment is specifically connected to the computer, notebook, some customers must be connected to the mobile phone, some evaluation, some evaluation not. This is phone OTG interface and output current and mobile phone is built-in drive, must be connected to the user's mobile phone please ask before buying whether appropriate.

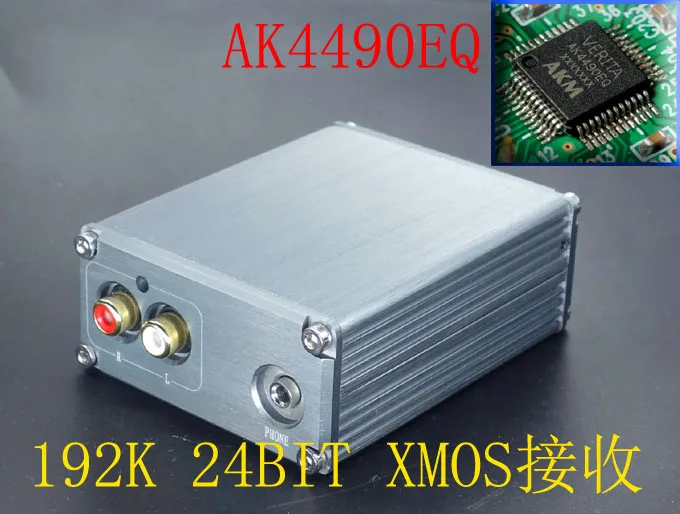

AK4490 is the latest generation of AKM decoding, better than AK4399 and AK4495 indicators and listen to a sense, more than WM8741 PCM1794 and no less. Transparent, delicate, broad.

-112dB THD+N:
DR, 120dB S/N: (mode: 123dB Mono)
Format: 24/32bit MSB justified I/F 16/20/24/32bit, LSB justified,

Buy finished board warranty for half a year, the whole machine warranty for 2 years, the whole picture a little 1-2 days upload

Products do not contain USB line, because many customers have their own, do not increase their costs, you need to be able to shoot the independent


=========================== support system ====================

Support WINXP WIN7 WIN8 WIN8.1 support Apple system support platform (such as mobile phone, ANN were required to buy the OTG data line)

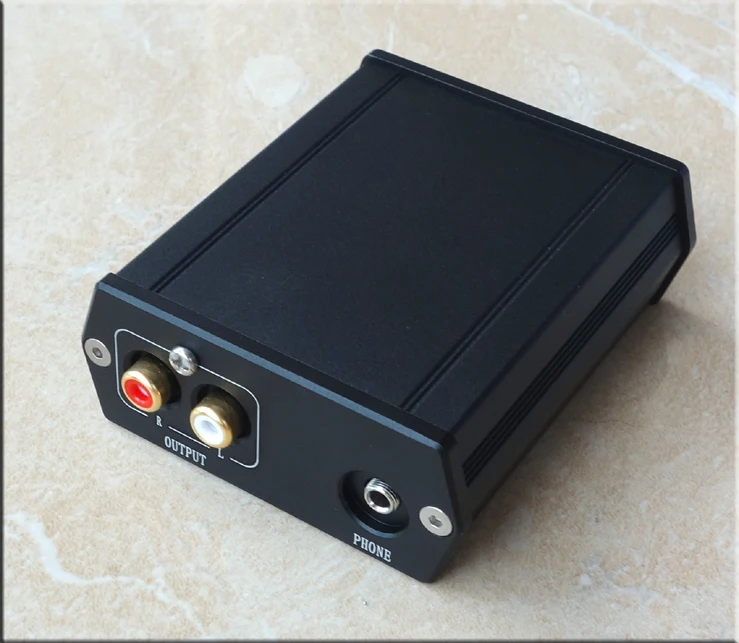

Headphone output support: support 16-300 European headphones

Line output support: Active Speaker Amplifier Amp external etc.

The following is the drive connection, any choice of 1 installation, if your home computer installed driver wizard, with the driver wizard can also be

yun.baidu.com/share/link? Shareid=2148280091&uk=155645262?

WIN7 WIN8.0 WIN8.1 supports WINXP with complete functions (such as Samsung, Anne Chuo mobile phone SONY mobile phone)

The latest XMOS 2.26 driver

yun.baidu.com/share/link? Shareid=1612015194&uk=155645262?

Economy program that the economy

XMOSTheU8audio USBAsynchronous receive program, is so far recognized as the most outstanding asynchronousUSBOne audio program. By the vast number of high-end manufacturers have been used, almost aUSBAudio high end application of the fact standard.

XMOSThe core of a strong, internal8A micro core, working in500MHzThese processing capabilities are used to deal withUSBThe audio data is overkill, which guarantees theUSBSmooth and smooth communication. There will be no other low-endUSBThe emergence of sonic boom scheme.Jitter can be as low as 4.6ps

PCM:/44.1 16-32bit, 48, 88.2, 96, 176.4, 192kHz

Analog output:
RCA output level: 2.5 0dBFS Vrms
Frequency response: Hz +/-0.15dB 20-20K

Power consumption: < 2W

=========================== use =======================

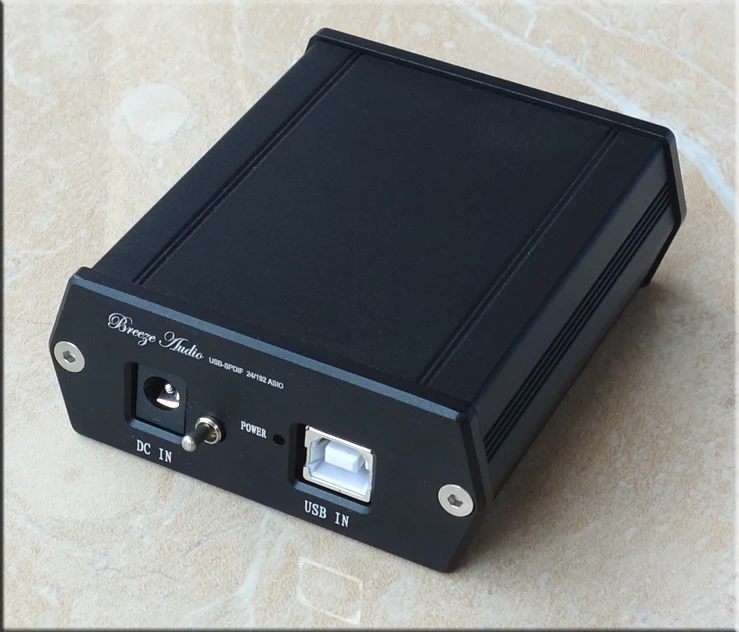

1 connect the power adapter, and then turn on the power switch, USB wire connected to the computer USB port, then the power adapter from green to red

2 install the driver, you can install the attached attached to the 2.19 driver or 2.23 driver, the implementation of the EXE file will be automatically installed

3 right click on the lower right corner of the computer window of the small speakers, select USB XMOS as the default player

This can be played directly.

FB2000 settings similar. We provide the complete version of the plugin FB2000 provide installation, installation remember all the plug-ins Da Shanggou, this compatibility.

On the WIN8.1 to drive the installation, you can refer to the following steps:

The program may also have some bug, the following I put the installation process of some of the problems that appear to you, you can give feedback to the program designers, may be useful to him:

Uninstall the original driver, seal off the windows8.1 program mandatory signature mechanism, plug in the Xmos, I began to install, the process of the two error report:

1 to execute the specified program error: c:userstqliAppDataLocalTemppft7D86.tmpsetup.exe (I note: do not know how to execute this program)

2 USB Xmos drive Chinese integration: the content is: can not execute the command line



There the two error reporting frame after, I think and Lionel Messi in the, but look carefully, X icon appear in the lower left corner of the status bar, is click to see the content, on the screen appeared again a installation dialog box, I looked and found that program is installed only really started dialog said the characteristics of the new program, sure it is installed, and software installation really began, appeared in the middle of two because it could not find the manufacturers, are advised not to install the dialog, I twice choose continue to arrange. Finally installed successfully.



Open foobar2000, open the "feature selection", open the "play", the player has more than two choices:

1 USB ASIO:XMOS 3 ST Audio

2 DS: speaker (Audio XMOS 64)

I choose second, foobar can not work, where to stop. (may also have some problems not resolved), and later chose the first, foobar work is very normal, one night without any Caton.
