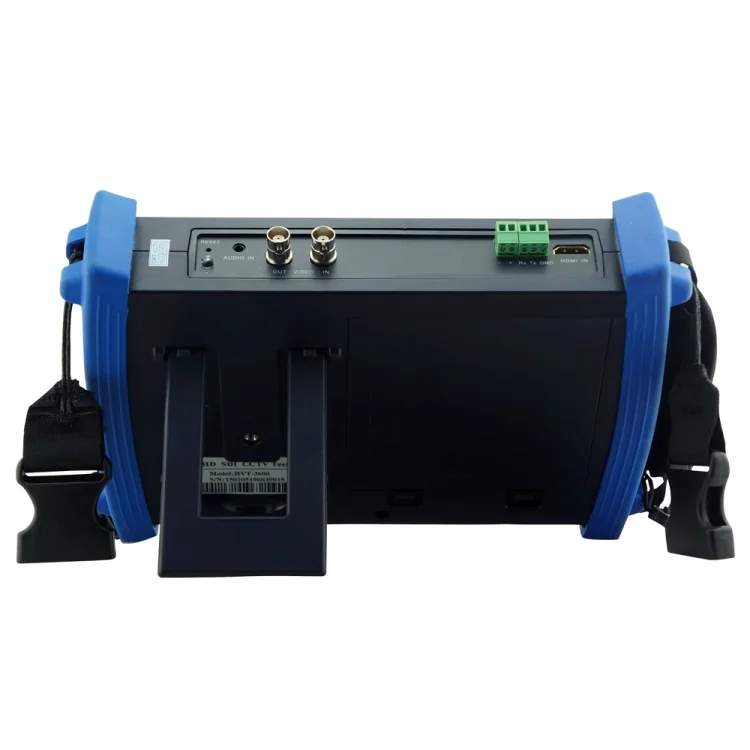

HVT-3600M CCTV 7-inch TFT-LCD Tester Monitor for Analog Camera Support 1080P HDMI VGA Multimeter - EU Plug HVT-3600M CCTV 7-inch TFT-LCD Tester Monitor for Analog Camera Support 1080P HDMI VGA Multimeter - EU Plug Description: Built in PTZ control, PING testing, IP address scan, Port flashing, TDR cable tester, DC12V /2A output power, Audio test, Cable search, Color bar generator, Video level meter, SD card, etc, it is necessary tools for analog monitor, fiber and integrated wiring construction. Features: English/Chinese and other languages optional 7 inch LCD screen display, 1024*600 resolution VGA signal input display, convenient to DVR / NVR setting DC12V 2A power output for camera USB 5V 2A power out, as a power bank LED Lamp, easy to operate at night Micro SD card moveable User-defined shortcut keys (F1 and F2) LCD screen brightness/contrast/color Saturation adjustable Automatically adapts and displays the video format of NTSC/PA Enhanced color bar generator, by receiving the video color bar to test the video channel whether transmit normally 10xzoom, video image can be magnified to view the details, easy to use (only for analog video test) Video record and playback (only for analog video test) Snapshot and save the current image as JPG file in the SD card (only for analog video test) PING testing, test IP camera or other network devices’ Ethernet port whether work normally, and the IP address whether right Video signal level test PEAK video signal level, SYNC signal level, COLOR BURST chroma level measurement IP address scan, quickly search the IP address for the connected IP camera and other network devices POE voltage measurement, test the PoE switch’s voltage to IP cameras, wireless AP device and other PD devices Device Port flicker, easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency. Link monitor; check the setting IP address whether occupied. PTZ address scan, search up the ID of PTZ camera. Network cable and Telephone cable testing, display the sequence of connection and the NO of the LAN cable Support RS232/RS485/RS422, Rate 600 ~ 115200bps adjustable Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D, SAMSUNG PTZ protocol analysis, control protocol command displays to check RS485 transmission whether is normal, easy to find the fault device PTZ control. Pan/tilts the P/T unit, zooms in/out the lens, adjusts the focus, aperture and sets and the preset position Audio input test, test the audio signal from pickup devices Lithium Ion Polymer Battery .The device employs advanced power control and protection circuit. It can last 17 hours for normal use after charging for 7 -8 hours With retail package Specifications: Model HVT-3600  HDMI digital Video Signal digital Signal in 1 channel HDMI in, support 1080P, 720P Video Test Signal mode NTSC/PAL (Auto adapt) Video Output Mode 1.0 Vp-p Display 7inch TFT-LCD, 1024(RGB)×600 resolution LCD adjustment Brightness, Contrast, Saturation adjustable Video IN/OUT 1 channel BNC Input & 1 channel Output VGA input display VGA input display Receive DVR, NVR VGA signal Video Level test Level test Video signals measured in IRE or mV DC12V 2A power output DC12V power output Output DC12V/2A power for camera 5V power output Power output Output 5V power for phone as power bank  Audio input test Audio input test test the pickup and other audio equipments on the front-end PTZ controller Communication Support RS232 and RS485 PTZ Protocol Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. Baud Rate 600, 1200, 2400, 4800, 9600, 19200,57600,115200bps Video Signal Generation Color bar generator Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green, blue, white and black color ) UTP Cable tester UTP cable test Test UTP cable connection status and display in the screen. Read the number of the test box. RS485 /232data analysis Data Monitor Captures and analyzes the command data from controlling device 10x Zoom Image Image 10x zoom 10x zoom image display and video out  Photograph, Video record, Record playback Photograph snapshot and save the current image as JPG file  Video record Video record and storage the file Record playback To view the storage file in the SD card Port flicker Port flicker Find the connected POE port quickly.  IP scan, Link monitor, PING test IP scan Find out the connected IP camera or the other network equipment IP address quickly. Link monitor Check the IP address whether is occupied PING testing Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address  Cable scan  Cable scan Search the cable by the audio signal  PoE test PoE test Display the power supply voltage and cable connection states Digital Multimeter AC/DC Voltage 0-660V auto/manual range, the min resolution is 0.1mV AC/DC current 660.0uA,  6.600mA, 66.00mA,  660.0mA, 10.00A Resistance 660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ, 6.600MΩ, 66.00MΩ Capacitance 6.6nf ~ 66000uF,  the min resolution is 1pf Diode 0 ~ 2V forward voltage, the min resolution is 1mV Data hold Hold and display the measured value Relative measurement Display the relative power value Continuity testing Built-in buzzer will sound, if resistance is lower than 30Ω Testing speed 3 times/ seconds Data range -6600 ~ +6600 Power range(dBm) -70 ~ +10dBm Sensitivity(nW) 0.001nW Connector type FC/PC Data hold Hold and display the measured value Relative measurement Display the relative power value POWER Power Adapter DC 5V (2A) Battery Built-in 7.4V Lithium polymer battery, 6500mAh  Rechargeable After charging 6-8 hour, working time lasts 17 hours Low Consumption Energy saving technology, the battery icon real-time display Parameter Operation setting English/Chinese and other languages OSD menu Auto off 5-60 (mins) Keystone On/Off General Working Temperature -10°C ~ +50°C Working Humidity 30% ~ 90% Dimension/Weight 256mm x 173mm x 50mm / 1.2kg Package included: 1 x HVT-3600M CCTV 7-inch TFT-LCD Tester Monitor 1 x Power Adapter 1 x Lanyard for the Device 1 x BNC Cable 1 x RS485 Cable 1 x Audio Input Cable 1 x User Manual 1 x Multimeter Pen Probe
