7" Touch LCD Monitor Wired Video Door Phone Intercom Doorbell with 5 PCS RFID Keyfob/Password/Remote control support CCTV |

7" Touch LCD Monitor Wired Video Door Phone Intercom Doorbell with 5 PCS RFID Keyfob/Password/Remote control support CCTV |

The funtions mainly include hands-free monitor,  two-way intercom, high-definition visibility, lock control, infrared  night-vision outdoor station, adjustable intercom volume and screen color of  the product. More details are shown as follow.

Pressing the unlock button on the screen;

Pressing the password;

Using  wireless remote control;

using the RFID keyfobs.

Ultra-thin design indoor unit, fashionable and luxury.

7" TFT LCD screenwith no radiation, low power consumption and high definition.

IR Camera with Night Vision.

Electric lock-control function.

Hand-free intercom function.

Mute indoor intercom function.

Monitoring the outside of the door.

16 kinds of doorbell rings.

Volume, brightness and contrast adjustable.

The camera could be high definition

Monitor, intercom, unlock, wireless control, code unlock, hand free, monitors talks to monitor

Support 500 ID cards

Wireless unlocks distance: 5-10m.

Suitable most of the electronics lock, with delay unlocks functions

Easy installation by yourself with adapter and cable we provided in this kit.

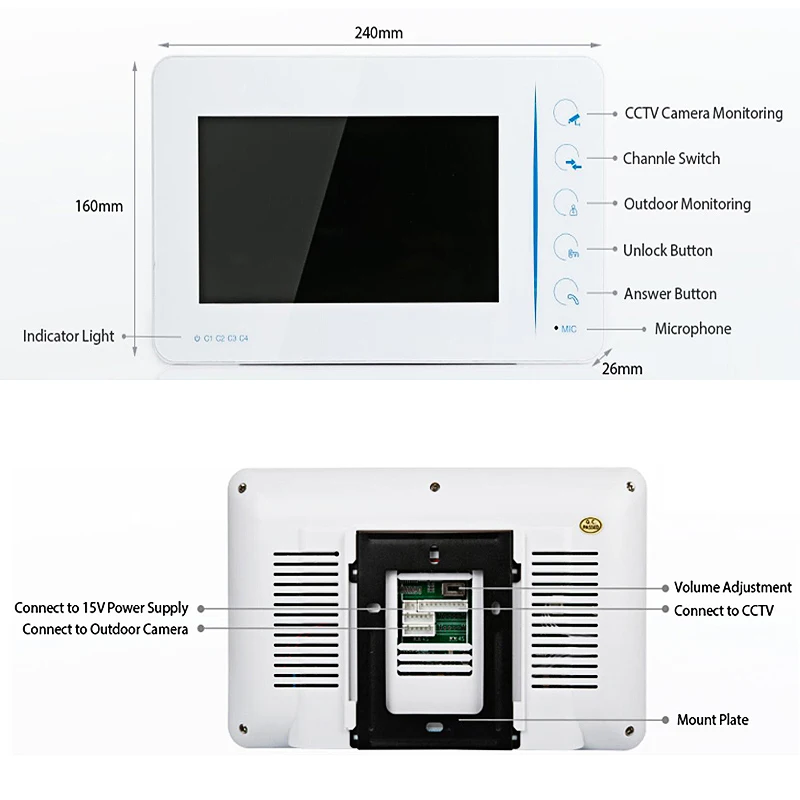

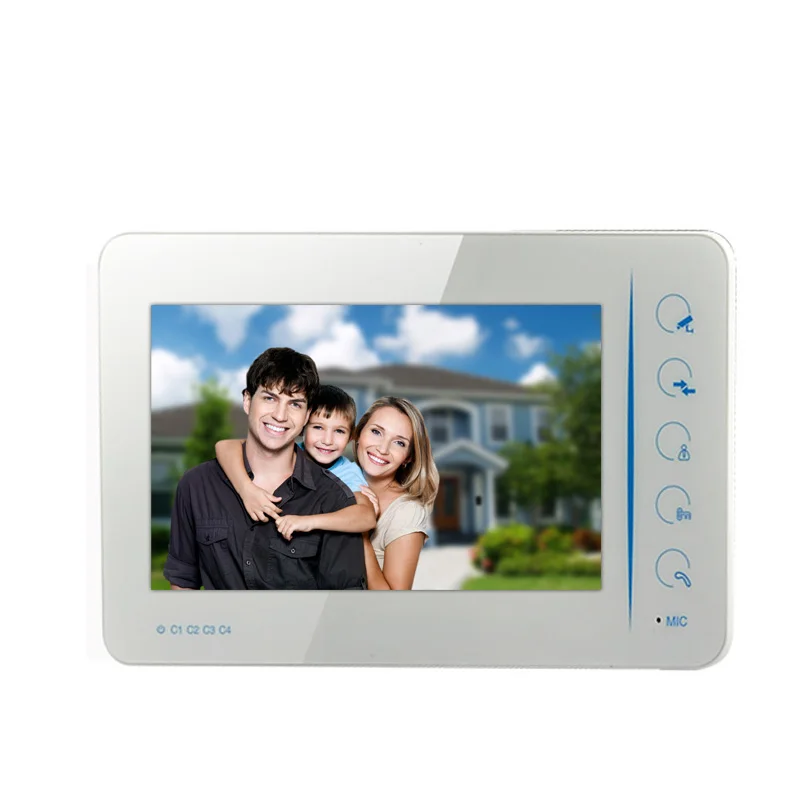

With the large 7'' color LCD, the display image in the monitor is very clear for viewing or monitoring.

When someone press the call button on outdoor unit, it will active the indoor monitor, monitor will turn on, ring and show the video outside. So you can see who is outside, a postman? a neighbor? a salesman? an old friend? or a burglar? Then you can press the response button on monitor to talk with the people outside, unlock the lock and press the response button again to end the conversion. When the monitor in standby mode, you can see what's going on outside by press monitoring button.

Added card:

This card can authorize the ordinary RFID card to open the E-lock and the operations are shown as follow:Brushing

the Added card on the camera then brushing the ordinary RFID card, Brushing the Added card on the camera again at

last. At this time, the ordinary RFID card can be used for opening the door lock.

Deleted card:

This card can be used for canceling the authorization of open the E-lock and the operations are shown as

follow:Brushing the Deleted card on the camera then brushing the ordinary RFID card on the camera again at

last. At this time, the ordinary RFID card is not to open the door lock.

Pressing the unlock button on the screen;

Pressing the password;

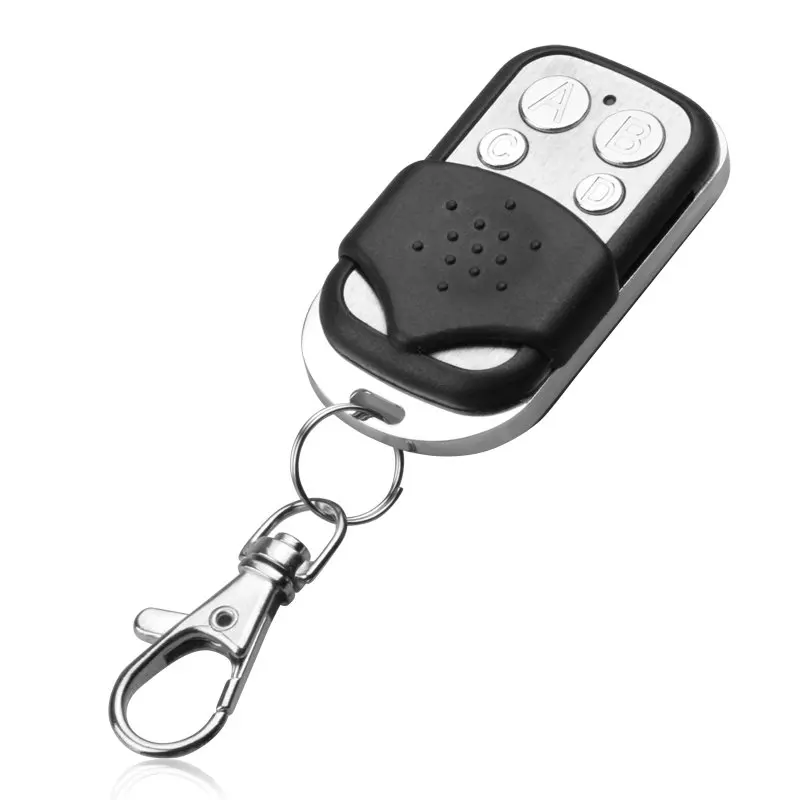

Using  wireless remote control;

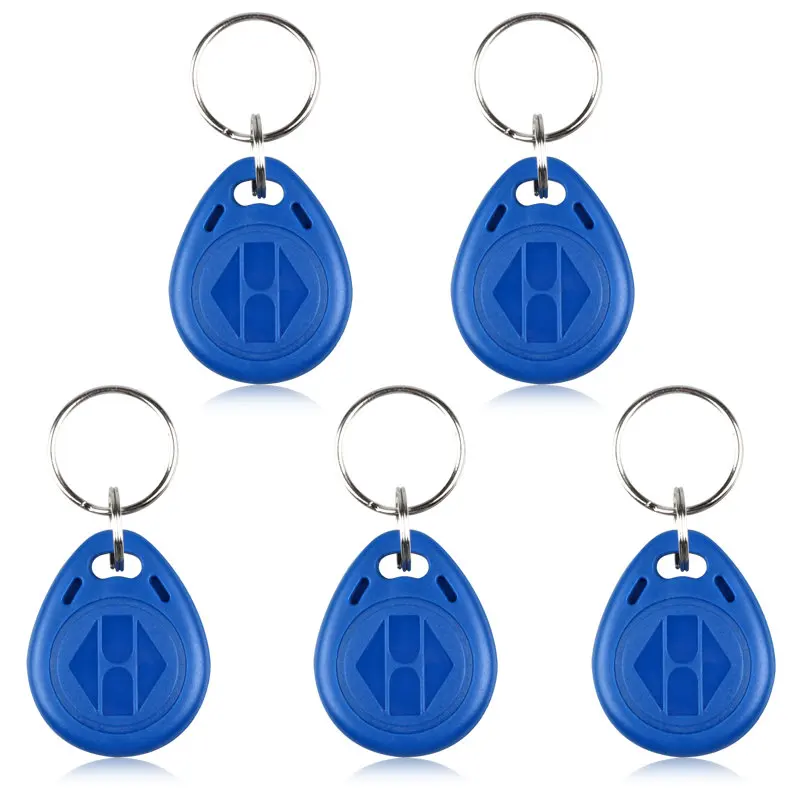

using the RFID keyfobs. this item comes with 5 RFID keyfobs(including added keyfob and deleted keyfob).

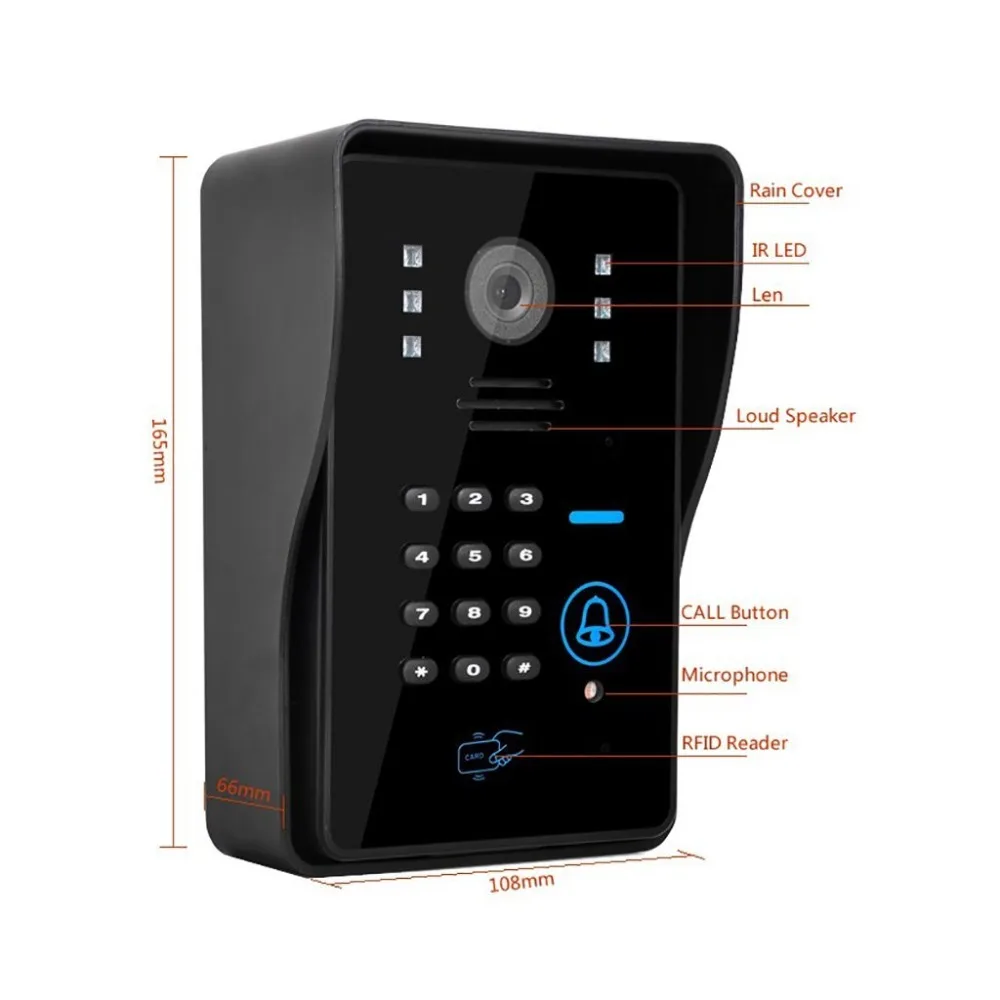

This video door phone adopts a different design. The outdoor unit embeds in a intelligent IR sensor and 6 led lights, the IR sensor can control the leds according to illumination intensity. At night or at low light status, the 6 led lights will turn on automatically and allows you can still see color image at night. At daytime, the 6 led lights will not turn on. It is a brilliant design.

* The outdoor camera is attached with a rain proof cover to prevent the water and protect the outdoor camera from damage. But, we still suggest you do not install youroutdoor camera the place where is easily expose to the heavy rain.

( This electric lock is not included, if you need please feel free to contact us. )

Specifications:

Screen: 7" TFT

Resolution: 960 * 480

Camera: 1/4" CMOS

Camera lens: 3.6mm

Camera viewing angle: 92 degrees (adjustable)

Call duration time: 120 Seconds

Monitor duration time: 60 Seconds

Power consumption: Static state <0.5W, calling <10W

Power input: AC 100V-240V 50/60 Hz

Power output: DC15V

Indoor monitor: 24 * 16 * 2.6cm

Outdoor camera: 155 * 95 * 55mm

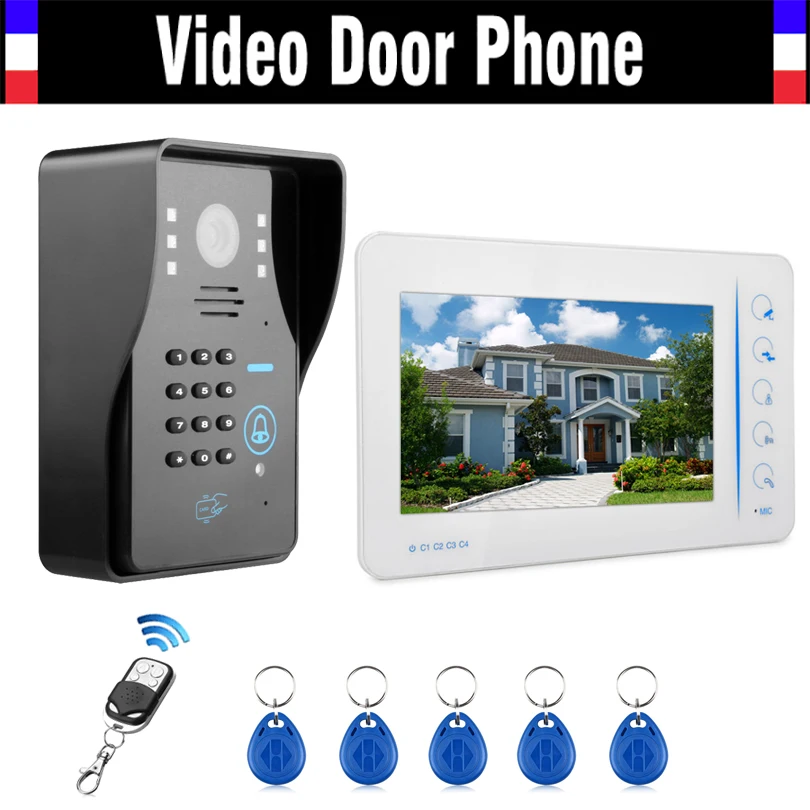

Packing includes:

1 * Outdoor camera

1 * Indoor monitor

2 * AC adapter

1 * 6-core Connection cable

1 * 2-core Connection cable

5 *  ID card1

1 * Remote control

1 * Package of screws

1 * User manual – English

This item comes with 5 RFID cards(including added card  and deleted card). If you need more RFID card, you can add the quantity of the  RFID card as you like.The function of the added card and delete card (the  added/delete card can not unlock the door lock)

FAQ

Q:  Can I use cat4/cat5/cat6 cable to do the connection?

A: Yes, you can use these network cable. But, the total length cannot exceed 30m.

Q:  Is the outdoor unit waterproof?

Q:  What is the max distance this system supports?

A: We suggest you use it within 100m.

Q: Can I add more cameras or monitors?

A: You can use max 2 outdoor units and 6 indoor monitors in one system.

Q: Can I connect two locks to this kit?

A: Yes, it can work with two locks. But you need use the 12V power supply module.
