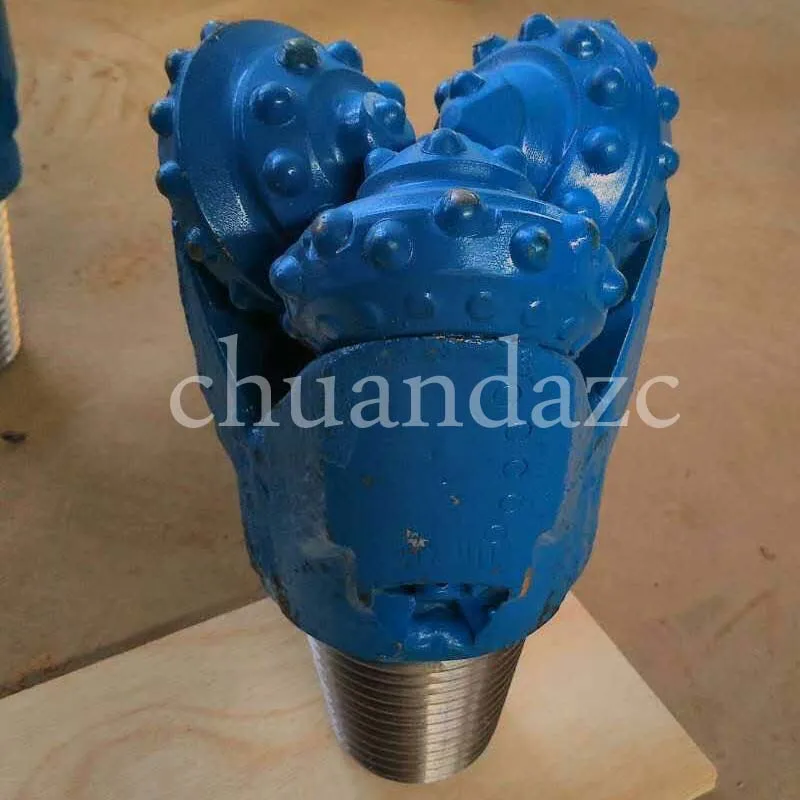

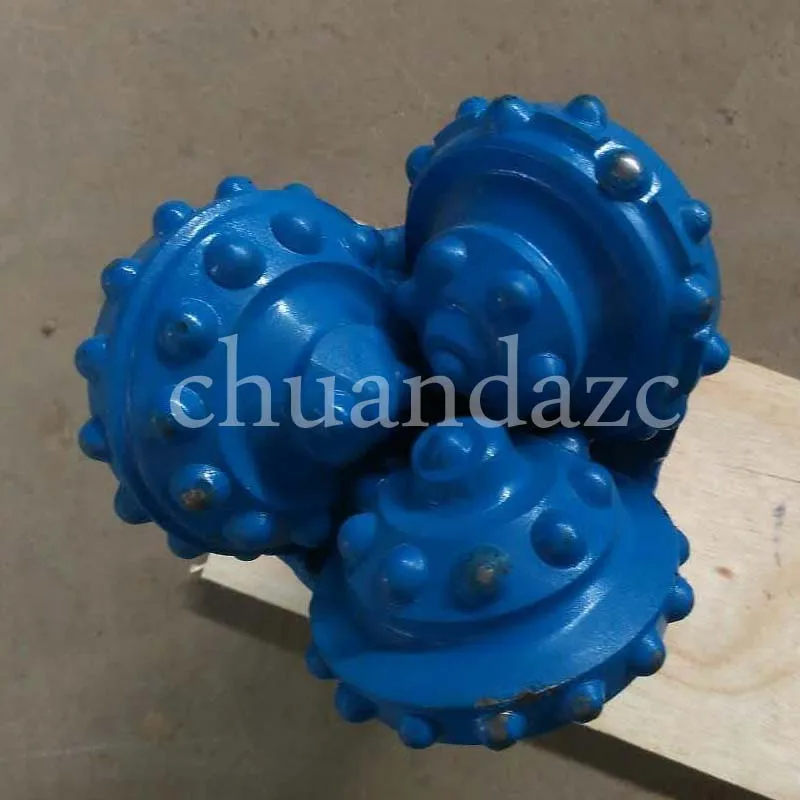

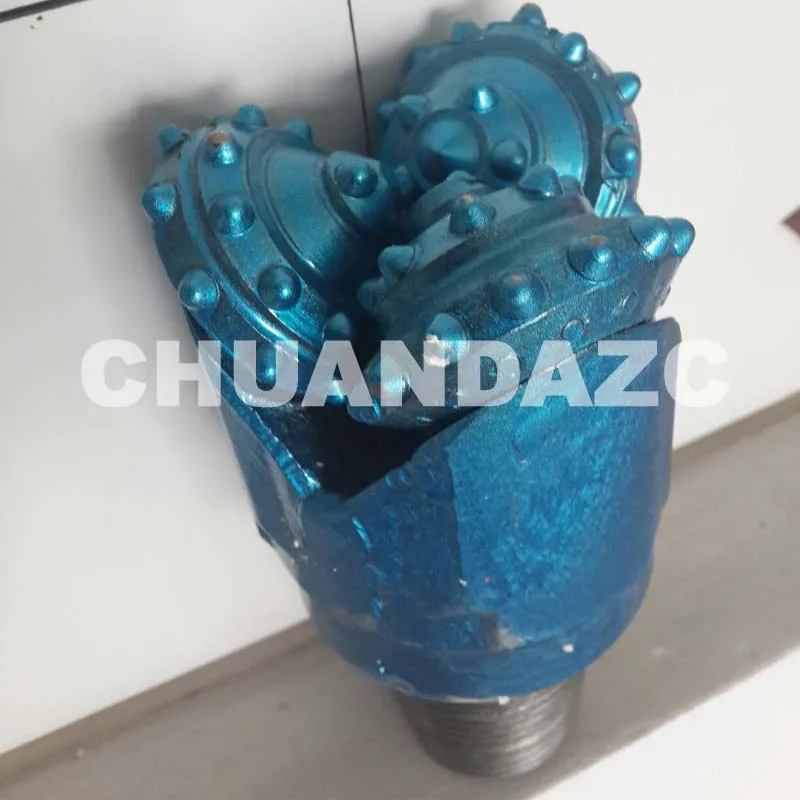

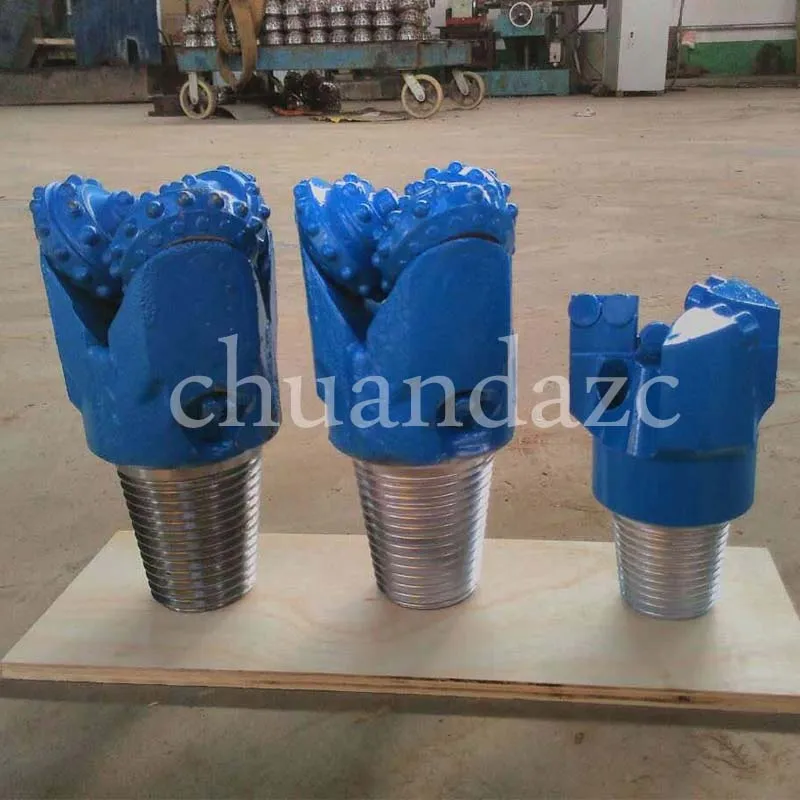

Model

TCI Tricone drill bit

IADC Code

537

Available size

98MM

Thread Connection

2 7/8REG

Material

15CrNi4Mo

WOB(KN/MM)

0.70~1.20

RPM(r/min)

70~40

Advantage

Most favorable price and best quality

Bearing type

Sealed and non-sealed bearing

Use

Water well ,oil well and mining drilling,underground exploration

Formation

Hard formation

Nozzles

1pcs

Packing

Fumigation free wooden case

Delivery time

3-7 days

Delivery terms

By sea or by air

Payment term

T/T ,L/C, Papyl

Market

USA,Middle east,Canada,Africa,etc.

1.Features of  tci bits
1.Size:2 7/8" (70.0mm)~26" (660.4mm)
2.Cover all all IADC code
3.Reliable quality and best price
4.tungsten carbide insert tricone bit
5.certified by ISO,API
6.high efficiency
2.Advantages of  tci bits
1.Suitable for medium to medium hard formation of high Crushing Resistance
(hard shale,sands,etc.)
2.Bit bearing is non-sealed roller bearing.
3.Hardfacing is applied on the shirttail,and carbide inserts for gage protection
are pressed into the head OD.
4.Cone gage surface is reinforce with carbide compacts.
5. Partial top spoon shaped inner row of teeth, the wedge outer row of teeth is not equidistant
teeth, in the back cone tooth and the outer row of teeth between adds a row of trimming gear
6. High compressive strength, hard and abrasive high formation, such as limestone, dolomite,sandstone, chert and other

IADC

WOB
(KN/mm)

RPM
(r/min)

Applicable Formations

114/116/117

0.3~0.75

180~60

Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, etc.

124/126/127

0.3~0.85

180~60

Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.

134/135/136/137

0.3~0.95

150~60

Soft to medium formations with low compressive strength and high drillability, such as medium soft shale, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.

214/215/216/217

0.35~0.95

150~60

Medium formations with high compress strength, such as medium soft shale, hard gypsum , medium soft limestone, medium soft sandstone, soft formation with harder interbed, etc.

227

0.35~0.95

150~50

Medium hard formations with high compressive strength, such as abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble,etc

Note: The upper limits of WOB and RPM in above table should not be used simultaneously.

IADC

WOB
(KN/mm)

RPM
(r/min)

Applicable Formations

417/437/
447/415/435

0.35~0.9

150~70

Very soft formations with low compressive strength and high drillability, such as clay, mudstone, chalk, gypsum, salt, soft limestone, etc.

517/527/515

0.35~1.0

140~60

Soft formations with low compressive strength and high drillability, such as mudstone, gypsum, salt, soft limestone, etc.

537/547/535

0.45~1.0

120~50

Soft to medium formations with low compressive strength, such as medium, soft shale, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds, etc.

617/615

0.45~1.1

90~50

Medium hard formation with high compress strength, such as hard shale, limestone, sandstone, dolomite. etc

637/635

0.5~1.2

80~40

Hard formations with high compressive strength, such as sandstone, limestone, dolomite ,hard gypsum, marble, etc.

Note: The upper limits of WOB and RPM in above table should not be used simultaneously.

FAQ:
1. How to make an order
When you make an order, please provide the follow datas:
1)Inform the rock condition and drill machine model;
2)Confirm the bit series;
3)Supply the specfications and thread sizes;
4)If Samples, drawings, we can produce as all requested.
