Free shipping Wellness Model:WS-AH80-C Portable air driven oil pressure test pump unit for wellhead industry |

Free shipping model : WS-AH80-C   64 Mpa high pressure air driven high pressure oil system ,portable high pressure oil system Unit ,Burst pressure test bench ,Manual liquid system Air driven liquid Pump System include WS-AH80-C Model is complete hydraulic unit ready for connection which are provided for generating operating pressures up to 64MPa.It is suitable for powering a variety of medium, such as oil, water or corrosive liquids. As the pressure will be generated by means of a pneumatically operated pump.The electric connection will not be necessary. To operate this system, the air driven liquid pump have to be equipped with the air control unit combined filter and water seperator, pressure-regulating valve, pressure control gauge as well as manual relieve valve. In this operation, the pump will be mounted to the stainless steel tank in the stainless steel frame in a compact and space saving manner. high Pressure gauges,  air presssure gauge ,Air reglator valve ,uploading valve The desired operating pressure can be attained by adjusting the driving air pressure. When the driving air pressure and the output pressure reach the balance, the pump stops filling pressure and the output pressure stays at the preset value. This hydraulic unit can be used for all kinds of pressure testing and test tools for research and test institutes or for other functions requiring a determined pressure.   The configuration of the systems include :    air pressure gauge , outlet pressure gauge ( On the first line of the Panel ) The hand ball ( For control the on/ff the system ) , air pressure regulator valve ( for control the air pressure  ) Uploading needle valve ( For releasing the high pressure ) ,it is on second line  and also include 1 set AH80 air driven liquid pump , 4 Liters hydraulic tank  inside of the cabinet  and related pipelines

Technical parameters

Type

WS-AH80-C

Air drive pressure

3-8bar

Max. outlet pressure

(at air drive pressure of 8bar)

64Mpa

Generation of pressure

air drive liquid pump Model :AH80

Pressure ratio

80:1

Air consumption

0.6-1.2 m3/min

Operating medium

Oil, water, non-corrosive liquids

Driving medium

Compressed air

Oil /Water tank capacity

4L or 13 Liters ,can be optional

Dimensions (W x D x H)

500x450x450mm



AH80 model ,Maximum filling flow rate is around :4-4.44 Liter per Min ,when pressure increase ,the flow rate comes down



Specification of the AH80  Pump as bellow for reference ,this is also for Liquid system







 Technical data of pump Inside cabinet





Air driven pressure 7 Bar Pump working performance  Model

Maximum output

 Pressure  (Bar )

   Maximum output liquid pressure 1Mpa=10 Bar=10kg/CM2 0 20 40 70 100 150 200 300 400 450 500 550 600 700   900   1200 1700  2350   Liquid flow Maximum L/Min AH16 132  24.84  18.5  14.7  11.2  9.05  0                         AH20 160  16.2  13.9 12.8  10.09 8.63  0                         AH28 232 12.8  11.9  9.4  8.9  7.1  6.4  0                       AH40 531.2 10.7 9.37 8.03 6.53 5.22 4.98 4.12 0                     AH64 498 5.51 5.17 4.74 3.53 3.34

2.82

2.51 2.10 1.29                   AH80 640 4.44 3.95 3.26 3.23 2.82 2.62 2.32 2.13 1.63 1.43 1.23 1.04 0           AH100 830 3.93 3.47 3.01 2.73 2.65 2.51 2.37 2.01 1.75 1.62 1.51 1.37 1.25 0         AH130 1079 2.48 2.44 2.41 2.36 2.31 2.18 2.04 1.90 1.7 1.6 1.53 1.45 1.31 1.12 0       AH170  1411  1.82  1.8  1.78  1.76  1.73  1.71  1.66  1.61  1.50  1.46  1.35  1.20 0.97  0.85  0.79  0     AH240  1992  1.57  1.55  1.54  1.51  1.48  1.45  1.43  1.42  1.38  1.37  1.14  0.92  0.81  0.76  0.57  0.34  0   AH300  2490  1.23  1.12  1.05  0.98  0.85  0.76  0.64 0.61  0.58  0.55  0.52 0.48  0.45  0.41  0.37  0.22  0.18  0 AH400  3200  0.98  0.85  0.63  0.62 0.52  0.41  0.3  0.29  0.28  0.27  0.26  0.25  0.24  0.23  0.21  0.18  0.1



Applications

Hydrostatic and pressure tests for valves, pipe and tubes, pressure vessles, pressure switches,tanks, hoses, pipes and tubing, pressure gauges, cylinders and etc. Hydrostatic and dynamic tests for aircraft components

  Drawing of the Liquid pump system

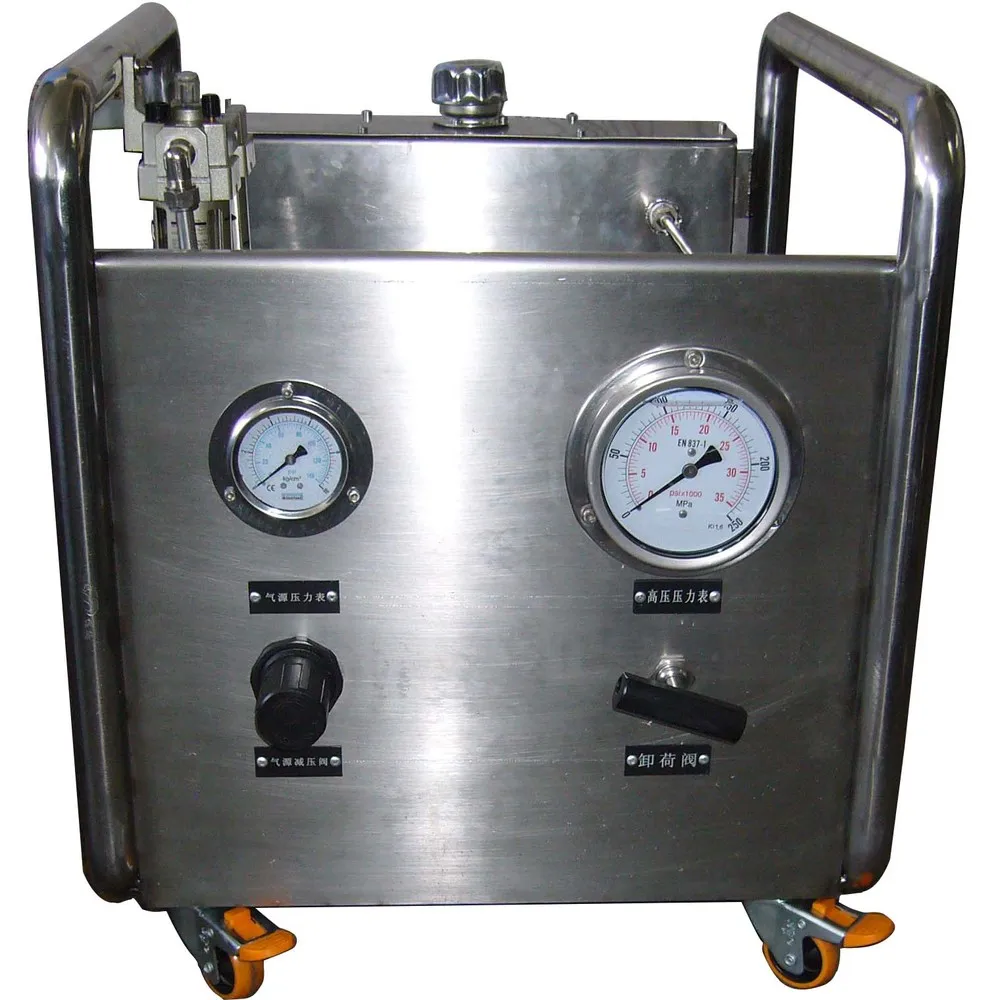

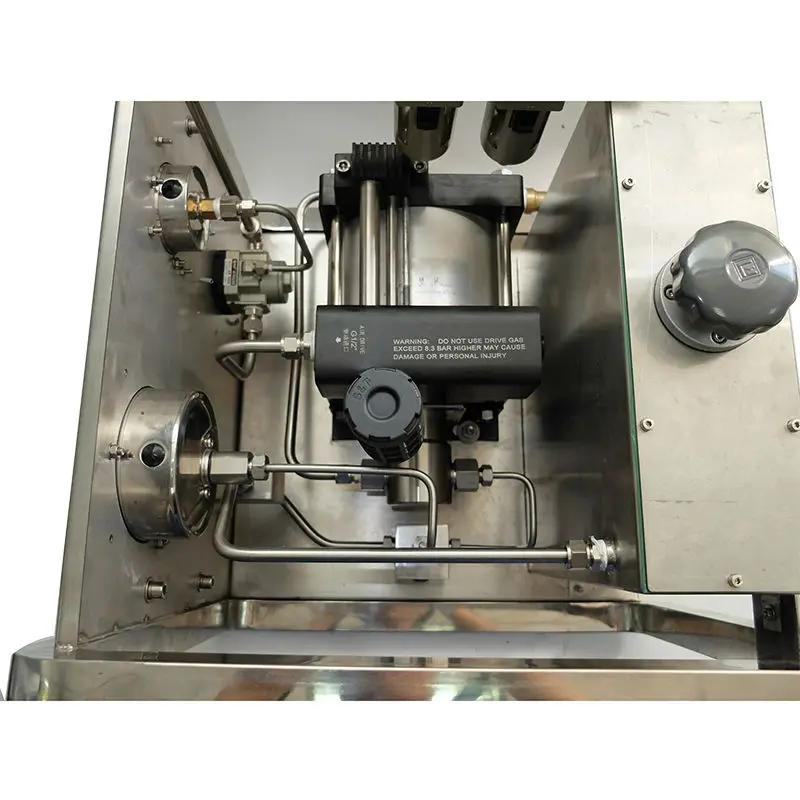

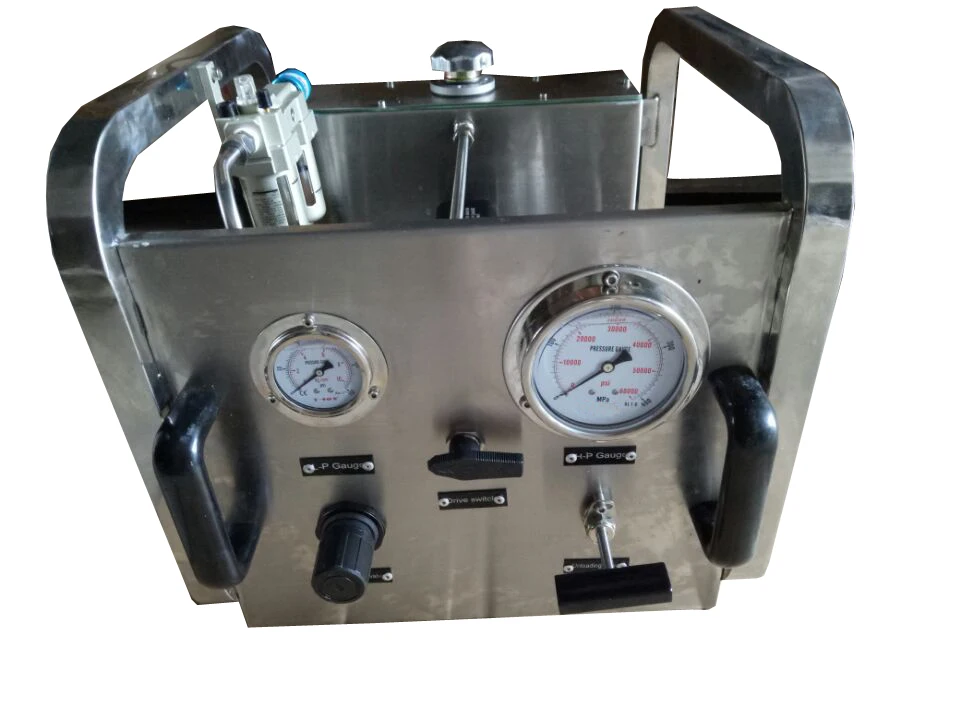

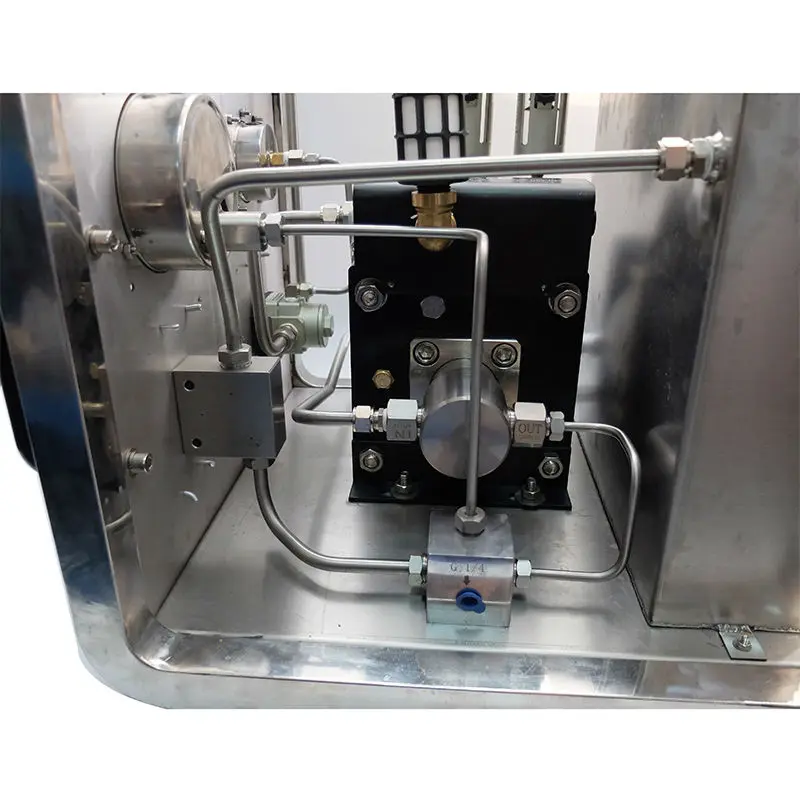

  Real  pictures of the liquid pump system
