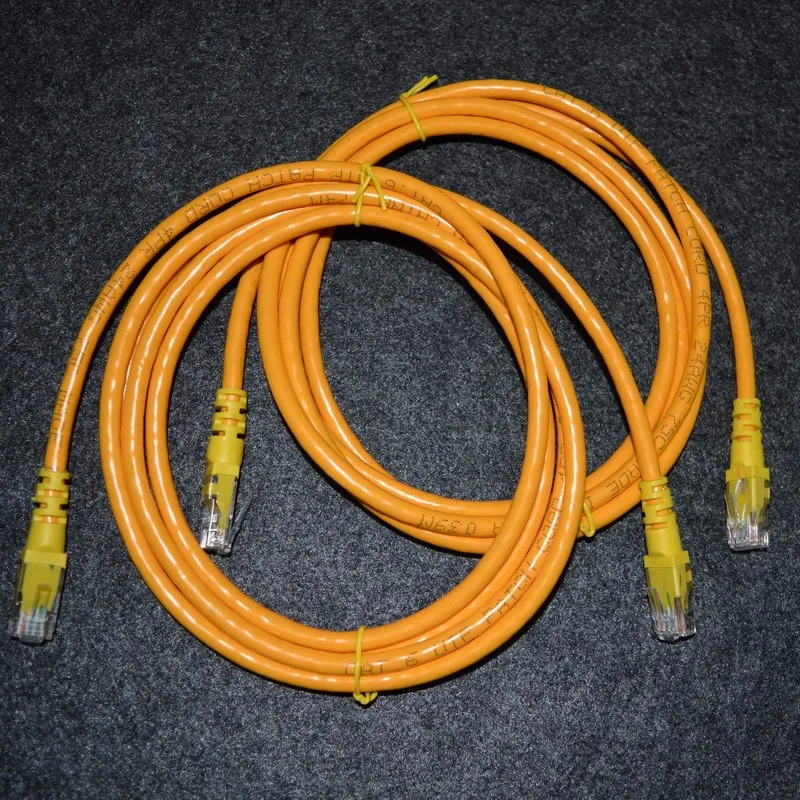

200 шт./лот 5FT UTP CAT6 кабель RJ45 сети твердого Чистая медь витая пара патч Панель

If you need more bulk purchasing, after place order please do not rush to pay, we will give you more discount This product can be customized Product Name:   CAT6 GigE Ethernet cable Carrier-class Patch Pannel patch cord

CAT.6 American standard adopted fluke test. GB OFC utp patch cord Engineering Quality

Product Features: Ultra high performance Category 6 cable, providing superior network connectivity and the most high-speed large-capacity data transmission error-free performance for your high-end network applications. Provide the largest bandwidth and avoid signal crosstalk, to your audio and video streams as well as large-scale data transmission to provide a stable, high speed transmission speed and bandwidth. Very suitable for high-speed Internet applications, multi-user online games, continuous video / audio streaming and SOHO networking applications.

Benefits:

• Modular stress elimination devices: and PVC overmolding and difficult to break, durable, ensure error-free data transmission • RJ-45 connector gold-plated copper contacts: to provide the best conductivity, no data loss • The data wire twisted pair ("impedance matching"): minimize the data line signals cross harassed, to ensure error-free data transmission speed.

Four pairs of unshielded UTP 0.5 m -90 meters can be customized. Network cable CAT.6 UTP

UTP cable 100 ohm four-wire twisted pair conductors have conventional copper, copper clad steel, copper clad aluminum different materials meet the quality requirements of different countries, the sheath is PVC / LSZH material Conductor General Specifications:  CONDUCTOR: 7 / 0.20MM CU (OR CCA / CCS) OD 5.5MM CONDUCTOR: 7 / 0.16MM CU (OR CCA / CCS) OD 5.0MM Crystal head gilded: 1U, 3U, 15U, 30U,50U     The following are detecting copper conductors: Maximum DC resistance: 9.38Ω / 100m   Impedance: 100 (+/-) 15Ω Maximum DC resistance unbalance line: ≤5% Maximum Capacitance: 5.6nF / 100m  Maximum working capacitance unbalance (line pairs and ground): 330pF / 100m NVP: 69% Standards compliant ANSI / TIA / EIA568B.2, Cat.5e ISO / IEC11801: 2002, CLASS D Support Application: 10Base-T, 100Base-TX, 1000Base-T, 155 / 622Mb / s ATM Based on the standard UTP cabling future applications: Install the minimum bend radius (mm): 30, maximum tension (N): ≤90, operating temperature: -20 ~ 60 Celsius, installation temperature: 0 Celsius~ 60 Celsius Packing: Neutral PE bags; Purpose: Digital communication horizontal twisted pair cables used in building cabling system Workspace communication leads to patch panel cabling between the terminal and the transfer between and residential cabling system leads to end-user communication between the patch panel cabling , to meet the 155MHz data communication, using double-shielded, so that the whole channel anti-interference ability, to ensure the correct transmission of high-intensity electromagnetic interference environment data information. Suitable for military, hospitals, banks and other financial system with special high-performance requirements of the environment. Standard wiring length of 90 meters, using T568A or T 568B wiring termination mode, the terminals using shielded parts and grounded to ensure transmission channel link under the protection of the shield. According to ANSI / TIA / EIA-568-B standard color coding color. 1000BASE-T Ethernet (1000Mbps) 155MbpsATM, 100MbpsTP-PMD, 100Mbps Ethernet (100BASE-T) and other transfer rate up to 622Mbps system applications 4Mbps and 10Mbps Ethernet 16Mbps token ring networ
