Description:

The flow sensor mainly use for detecting Liquid Viscosity. Just as milk, honey, paint, coconut, beverages and other concentration slightly larger than water quantitative filling, packaging, etc.

How it works: Set up quantitative value and press to start, when the value reach to the quantitative value, the system will close the solenoid valve. Total flow value, instantaneous flow rate, liquid temperature, quantitative measurement can read directly from LCD display screen.

Flow sensor Specification:

Measurable fluid

Water ,kerosene ,light oil, heavy oil

Accuracy

+/- 2% RS

Maximum operating pressure

0.5Mpa with a fluid temperature of 20 degree C

Ambient operating temperature

-10 to 70 degree C (Freezing must be avoided)

Flow range

0.3-0.8mPa.s—5.50L/h

0.8-2mPa s—3.50L/h

2-5mPa s—1.50L/h

5-200mPa s—0.5.50L/h

Pulse unit

0. 46Ml/p

Power supply

3-12V DC

Output signal

Pulse Voltage

Connection

R1/4(Male thread)

Main materials

Rotor and case

PPS Resin

O-ring NBR

Shaft SUS304

Weight

100g

Digital LCD screen flow meter specification:

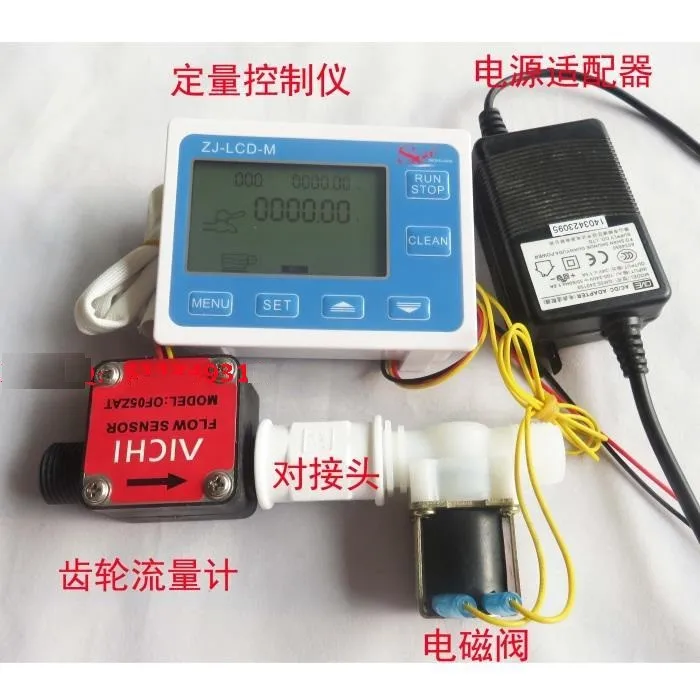

Package Included:

1 x flow sensor

1 x  Digital LCD screen flow meter

1 x solenoid valve

1 x power adapter
