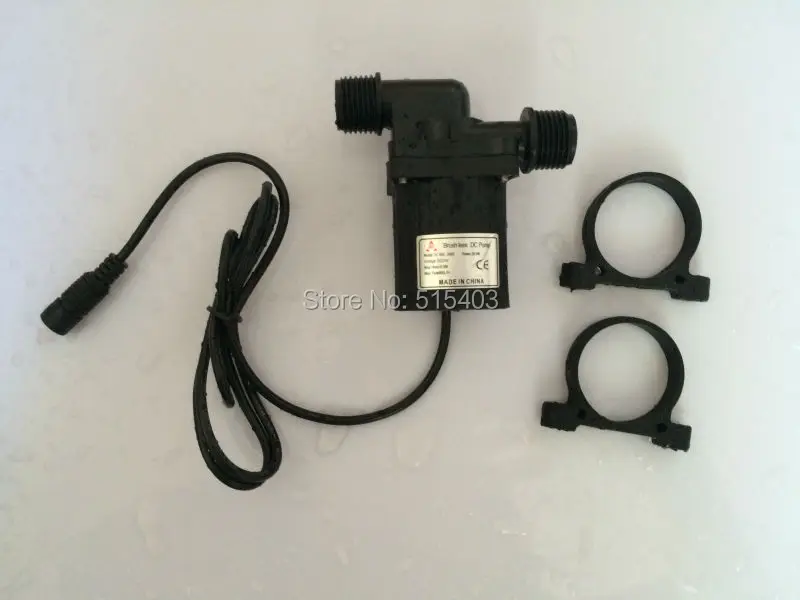

3pcs/ Lot 24V DC Micro Brushless Water Pump, Submersible Small Electric Pump, magnetic, DC40C-2460 upgrade model, more powerful

Features

Small size, high efficiency, maintenance-free, low consumption, strong anti-jamming ability, stable performance

Brushless with no pollution, adopts high-performance ceramics shaft and high-precisioncarbon fiber sleeve together (stainless steel shaft optional for reducing cost long life span)

Stator and control circuits are completely sealed by epoxy resin completely separated with rotor, waterproof, avoided water-leakage problem which long exists in normal DC motor pump products

Protection functions can be customized such as lock protection, dry-run protection and so on.

Reduced the mortality to 0.05% after long-time study by R&D Dep.

Lift of pumps can be doubled when contact the pump in series.

Can be installed submersible or outside water (should below water level)

Offer ODM serve for pump and other controller system

Specifications

Dimension and weight: 88.5mmx81.5mmx43.8mm; 235g

Installation dimension: 88.5mmx81.5mmx56mm;

External diameter of outlet: '1/2' threaded (M20mm)

External diameter of inlet: '1/2' threaded (M20mm)

Driving mechanism: Brushless, magnetic separation

Material of pump: shell ABS, PES/SPS/PPS/PA66+30%GF (Optional)

Condition of use: Can continuously work, submersible or land use (not self-priming)

Suitable medium: Water, oil, or normal acid/ alkaline liquids (Pre-test needed for specialliquid)

Max working temperature: 60

Power consumption: 2.5W~28.8W

Rated voltage: 24Vdc

Working voltage range: 24Vdc 5Vdc.

Max load current: 1.2A

Max horizontal flow rate: 15L/MIN

Max static lift: 6M

Noise class: <40dB

Waterproof class: IP68 (suitable for submersible installation)

Life span: Can be more than 30000hrs

Power supply: Suitable for solar panel, batteries, adapter or other power module

Protection function: Water protection, dry-run protection, stall protection, stuck protection

(functions are optional for customization)

Power regulation function: Speed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customizedfunction)

Applications

Products can be widely used in electric automotive cooling systems, auto matedequipment water cycle, water cooling and other electrical appliances, water dispenser,sanitary products, paper shredders, soilless cultivation, plumbing mattresses, air pump,aquarium fish tank, desktop crafts, foot bath, plumbing mattresses, water heaters, PC water cooling, water cooling fan devices, medical, pharmaceutical systems, chemical circulation systems, cooling system, water-cooled air-conditioning, water cooling fan, mobile bath, solar fountain, solar circulation system, water supply systems, small irrigation systems, water treatment systems, automobile circulation systems, automotive heating systems, machine tools, house hold appliances, kitchen appliances, bathroom products, hot water circulation system.

Package Included

1pcs x DC40C-2460 24Vdc Micro Brushless DC Pump
