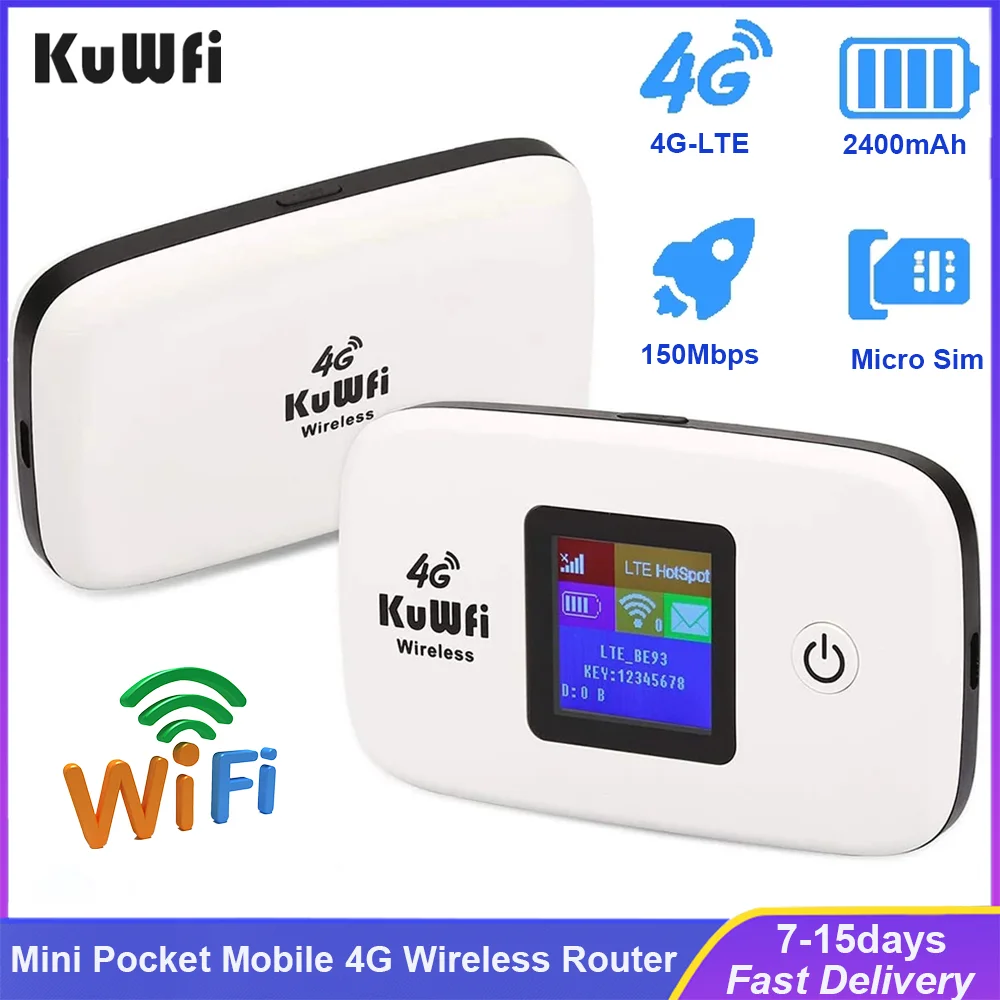

KuWfi 3G/4G LTE Мобильный роутер 150Mbps Карманный модем Мини Портативный для путешествий на открытом воздухе с аккумулятором 2400mAh Поддержка 10 устройств.

KuWfi 3G/4G LTE Мобильный роутер 150Mbps Карманный модем Мини Портативный для путешествий на открытом воздухе с аккумулятором 2400mAh Поддержка 10 устройств.

Model

L100

C920

MF906

MF904


Suitable for

Indoor

Indoor

Indoor

Indoor

SIM Card Type

Micro Sim Card

Micro Sim Card

Micro Sim Card

Micro Sim Card

Battery Capacity

2400mAh

2100mAh

1800mAh

2100mAh

Users

10

10

10

10

LTE UE-Category

Cat4

Cat4

Cat4

Cat4

4G WiFi Speed

Download: 150Mbps
Upload: 50Mbps

Download: 150Mbps
Upload: 50Mbps

Download: 150Mbps
Upload: 50Mbps

Download: 150Mbps
Upload: 50Mbps

Antenna

Built-in antenna

Built-in antenna

Built-in antenna

CRC9

Support SD Card

up to 32GB

up to 32GB

-

up to 32GB

Wifi Distance

3- 10m

3- 10m

3- 10m

3- 10m

Working Mode

WiFi Mode

WiFi Mode

WiFi Mode

WiFi Mode

Power Supply

Micro USB Charging

Micro USB Charging

Micro USB Charging

Micro USB Charging

IP Address

192.168.0.1

192.168.1.1

192.168.0.1

192.168.0.1

Frequency Band:

Version 1 :it was designed most of Asia
4G FDD:B1/B3(2100/1800mhz)
3G UMTS/WCDMA:B1(2100Mhz)

Version 2 :it was designed Asia and Some EU Country
4G FDD:B1/B3/B8(2100/1800/900mHZ)
4GTDD:B38/B39/B40/B41(2600/1900/2300/2500Mhz)
3G UMTS/WCDMA:B1(2100Mhz)

Version 3 :it was designed RU ,Asia, EU Middle East
4G FDD:B1/B3/B7/B8/B20(2100/1800/2600/900/800Mhz)
4G TDD:B38/B39/B40/B41(2600/1900/2300/2500Mhz)
3G WCDMA:B1/B8(2100/900MHZ)

US Version:it was designed United States, Canada, Mexico, etc.

4GLTE:B2(1900)/B4(1700/2100)/B5(850)/B12(1900)/B17(700)

3G WCDMA: B5(850MHZ)

Product Description

1.4G wifi Router support unlocked 3G/4G Sim card ,
Travel the world with this super-fast 4G mobile Wi-Fi a pocket-sized solution to low-cost travel Wi-Fi.

2.Wireless 4G Router designed for WIFI users to get access to internet via UMTS/HSPA/LTE.

3.In order to connect to high speed network easily and fast,it uses the battery powered ,use for indoor or outdoor without broadband place,put it into your pocket, enjoy WiFi anytime and anywhere

4.4G Router with a mini size , is suitable for travel with family and friends indoor or outdoor .

5.4G Router with screen display and With TF card slot and sim card slot
Support SD card (up to 32GB) .insert Tf Card,it can be a card reader also be one U disk.

6.mini 4g router Support Cat4 DL/UL 150/50 Mbps in max, High Speed more Stable,Enjoy 4G network life anytime and anywhere

7.Lithium battery 2400mAh(please charger more than24 hours when first time charger )

8.it is easy to connect and easy to carry in hand Sharing customer Up to 10 User

9. wifi hotspot devices can cover 3- 10M WiFi distance .

Product Detail

- Main Chip:ASR(Marvell)1802

- WIfi parameters: 802.11b/g/n

- Supported users: 10 users

- Antenna: Built-in 4G dual antenna

- Encryption: WPA/WPA2

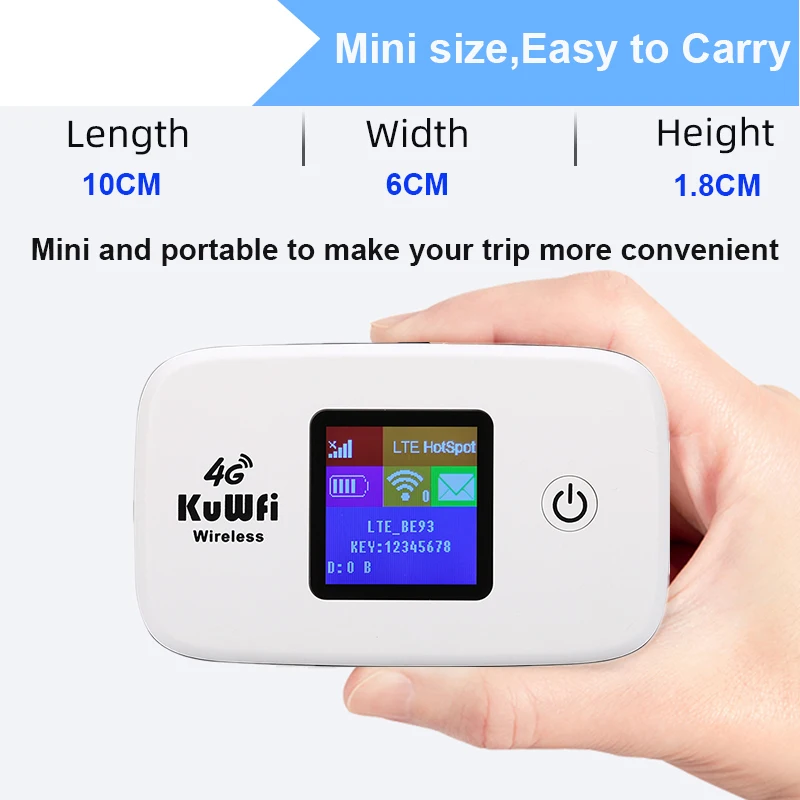

- Size: 96.5*58*17.5mm

- Network and the frequency band: TD-LTE、LTE-FDD、TD-SCDMA、WCDMA、GSM

- Transmission rate Peak rate: UL/DL:50Mbps/150Mbps

- The interface type: Micro USB 2.0

- Expandable memory card The biggest 32G

- The power adapter: Input voltage 5V，Input current 1A

- The battery specification: 3.7V/2400mAh

- Standby time: About 48 hours

- Work time: About 6.8 hours

- Charging time: About 2.4 hours

- Working temperature: -10°C～+45°C

- Storage temperature: -20°C～+70°C

Package Listing

1*4G Router
1*USB Cable
1*English Manual

How to use the router ?

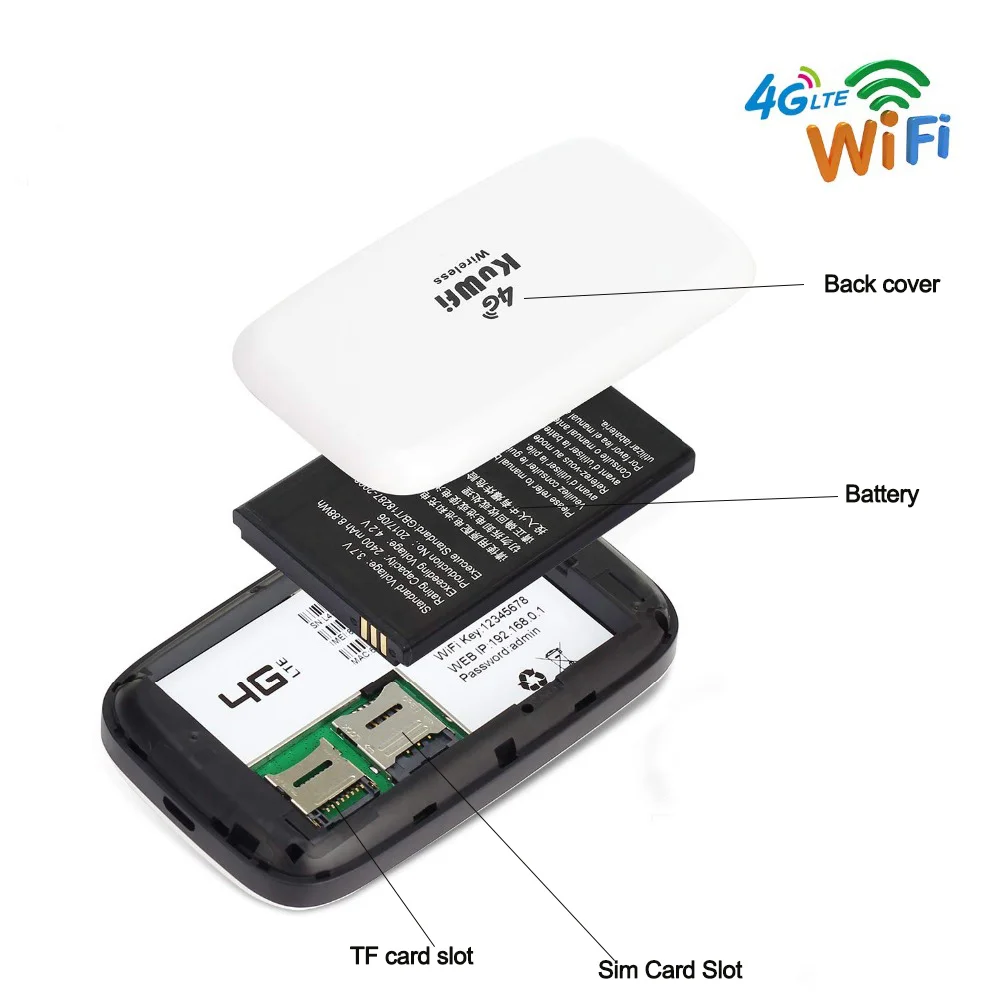

1 open the router Cover case ,then pulg in to Micro SIM Card to sim card slot

2.find the wifi list on PC or Mobile phone
connect the wifi SSID LTE-XXXXX Password is 12345678

how to Log in web interface
log in web UI 192.168.0.1, and see web interface show work Cellular Connection detail including Internet Connection

Network Operator and Cellular Network Mode. if sim card network band not support , it is show no service ,if show sim card name signal but cannot search internet or limited service, it mean that need to revise APN.

Shipping time and tracking

We use safe trackable shipping methods to ship parcels ,below is estimated delivery time for different countries :
Asian countries 7-10 days .
European countries 7-15 days .
United States 10-15 days .
American countries 15-25 days .
Brazil 15-45 days .

Warranty time and service

Customer service working hours:Beijing 9:30-18:30
Ship orders within 48 hours (except weekends)
The warranty period of the router is 1 year.

FAQ:

Q1:Why can't the device recognize the SIM card?

A1: Please insert Micro SIM card, if the SIM card is still not recognized, please replace another SIM card of another different carrier.

Q2:Why can't I use the internet when I insert a SIM card?

A2:Even if your SIM card is compatible with the product, it is not necessarily plug and play, you need to disable the SIM card PIN and modify the APN.

Q3:How do I modify the APN？

A3:Enter the router IP address: 192.168.1.1 and click Network - APN - Enable. Modify the APN. The APN of the SIM card can be found on the carrier's official website or on the mobile phone. Make sure the SIM card is activated.

Q4:The signal is unstable, how can I fix this problem?

A4:If the signal is unstable, you can also manage the settings page and lock the 4G or 3G network, which can effectively improve network stability.

Q5:All settings are correct, but the device still cannot connect to the network?

A5: please consider whether it is caused by the following problems:

Account got suspended for too much data usage.

Is the SIM card an IoT card?

the sim card have limited service ,not work with router or hotspot

some place did not cover the network Frequency band.
