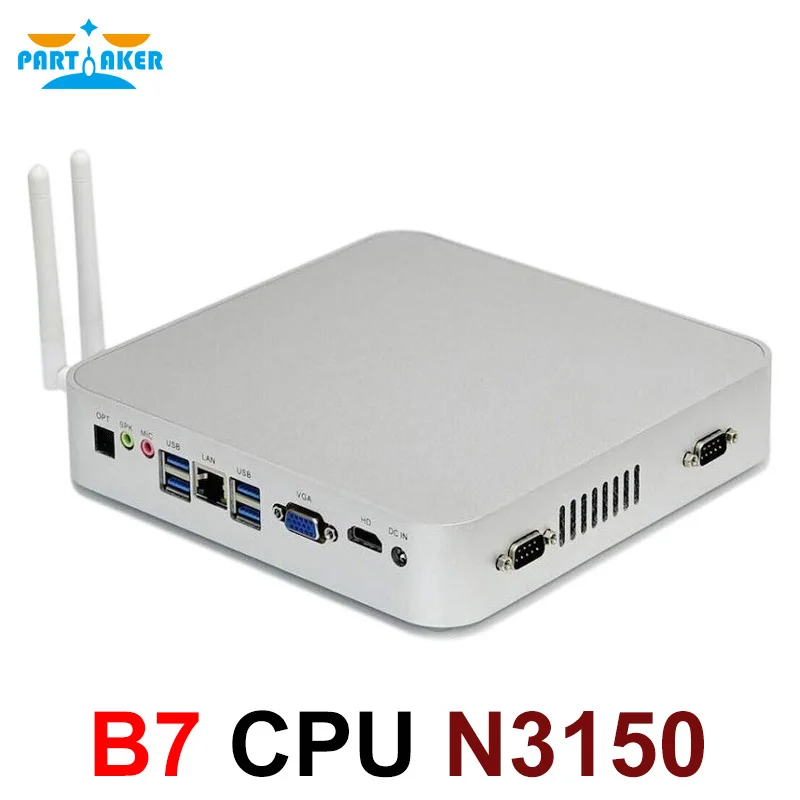

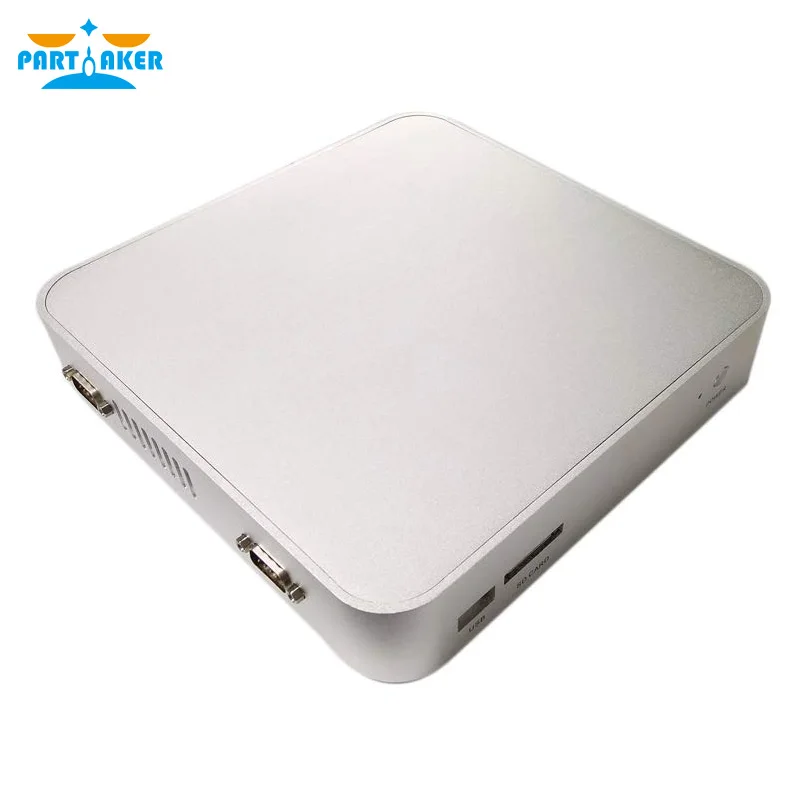

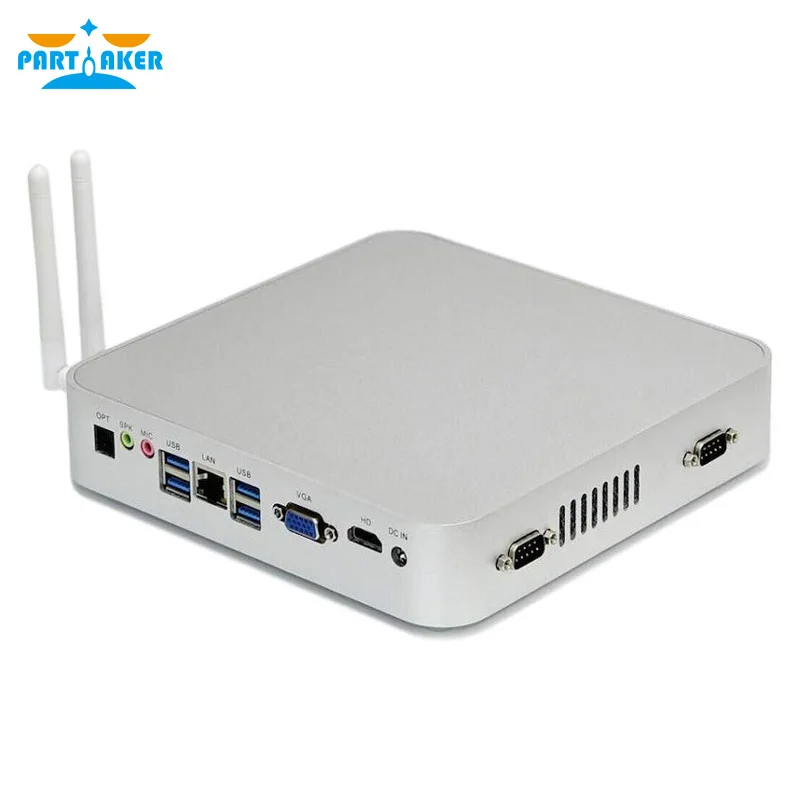

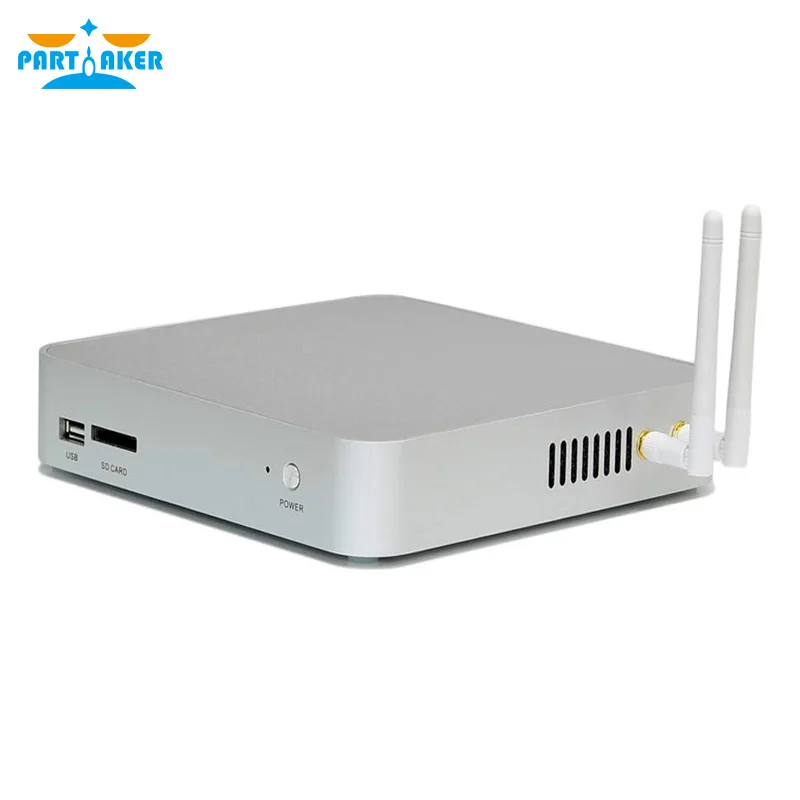

Partaker B7 Intel Celeron N3150 Quad Core Fanless Mini Industrial Desktop PC with 2*RS232 and 300M WIFI | Компьютеры и офис

Partaker B7 Intel Celeron N3150 Quad Core Fanless Mini Industrial Desktop PC with 2*RS232 and 300M WIFI | Компьютеры и офис

√ Key Features:
CPU:
Intel Celeron Processor N3150 (2M Cache, 1.6GHz, Burst Frequency 2.08 GHz), TDP: 6W
Intel HD Graphics, 320 MHz~640 MHz, Support full HD 1080P.

RAM:Support DDR3L 1600MHz, max expanded to 8GB DDR3L 1600MHz SODIMM SDRAM Notebook memory.
Storage:max expanded to 1*mSATA3 SSD and 1*2.5 inch laptop HDD SATA3, no limited on storage capacity.
Operating System:Default: Windows 10 Pro ; Optional: Windows 8.1 & Linux Ubuntu.
Wireless:300MB WiFi with 2 Antennas.

√ Warm Tips:
1.The Operating System is Windows 10 Pro;
This unit has been tested well before shipping. If any questions, please feel free to contact me, you will get a satisfied solution.

√ I/O:
4*USB 3.0
1*USB2.0
2*RS232 COM Port
1*HDMI
1*VGA
1*LAN Gigabit(RJ45)
1*Optical Audio Output
1*SD Card Reader
2*WiFi antennas
1*MIC, 1*SPK
1*DC IN

√ Internal ports:1*mSATA3.0, support 6Gb/s, 1*SATA3.0, support 6Gb/s, 1*mini-PCIE port (for WIFI)
HD Out put:1*HDMI+1*VGA, support HDMI to DVI and HDMI to VGA.
√ Application:
- Used as HTPC(home theater personal computer). Connect hdtv with the hdmi cable, enjoy education online and play internet movies or games.
- Used as personal computer, high configuration and fast speed, zero noise.
- Factory, bank, supermarket, manager rooms, library, reading room, hotel, training, call center.

Model Number: Partaker B7

Color: Silver

Material: Aluminum

CPU: Intel Celeron Processor N3150 (2M Cache, up to 2.08 GHz)

Graphics: Intel HD Graphics

Memory: 1* SO-DIMM DDR3L-1600, max. 8GB RAM

Storage: 1* Msata SSD+1* 2.5 Inch HDD

Expansion: 1 * MSATA3.0, 6Gb/s; 1 * SATA3.0 , 6Gb/s+ 1 * MSATA SSD, 1 * WiFi module

Audio Cards: 6-channel sound with ALC892 chip

Network Card: RTL8168/8111/8112 PCI-E 10/100/1000 Gigabit Ethernet NIC

WiFi: With dual antennas, 802.11.b/g/n, Built-in module with external antennas for boosting signal

Bluetooth: Optional (Default without this function, please do need to leave us message on the order, thank you)

I/0 Port: 2*COM+ 1*VGA+1*HDMI+ Optical+ 1*LAN+ 4*USB 3.0+ 2*USB2.0+ Mic+ Spk

Power: DC100-240V AC/50-60Hz, DC 12V/3A

Operating Temperature: 0°C~70°C Centigrade (32°F~140°F)

Storage Temperature: -20°C~80°C Centigrade (-68°F~176°F)

Relative Humidity: 10%~90% (non-condensing)

Mini PC Stand: Yes

Vesa Mount: Optional

Weight: 1.5kgs

Measurement: 197*197*36mm

Consumption: 6W

Motherboard Design: Fanless

Function: 1. Support diskless boot

2. Support power-on (Restore AC Power Loss)

3. Support RAID0

Warranty: 3 years

System Support: Windows 7/8/8.1/10,WES7/8,Linux Ubuntu,Vxworks etc;

System Default Option: Windows 10 pro as the default option;

ATTENTION: Barebone, Single RAM, Single SSD or SSD+HDD without any system.

​Linux ubuntu or other OS, Do need to leave us message on the order, thank you.
