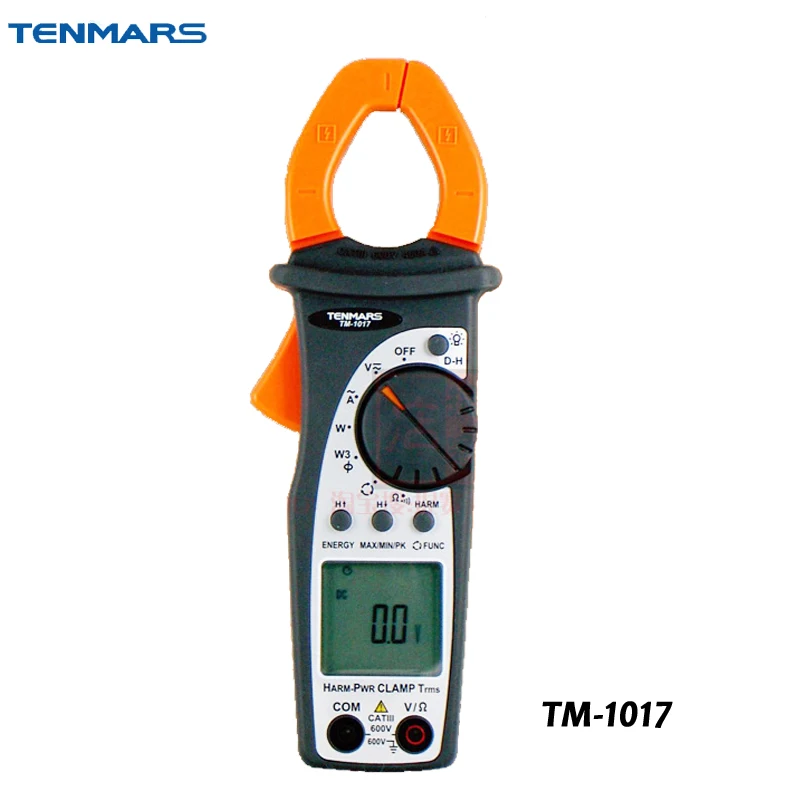

TENMARS Power Clamp Meter TM-1017 True RMS Clamp Tester

Product Description:

1.CAT III 600V
2.Maximum conductor size 30mm.
3.Display counts: 4000.
4.Measures: ACV, DCV, ACA.
5.Measures Phase Sequence.
6.Voltage/Current Harmonics to 25th with THD.
7.W3ø, HV, HA, Phase SEQ, Audible continuity tests.
8.Frequency to 400Hz.
9.Active, Reactive, Apparent power/ energy on.
10.Power Factor, cosø on Single/Three phase systems.
11.Phase sequence.

Specification:

Maximum Current

400 Amps

Display Counts

10000 (Backlit LCD display)

Maximum Conductor Size

30mm

AC Current Range

0.1A to 400A, (1.0% of rdg + 3 dgts)

AC Voltage Range

0.1V to 599.9V, (1.0% of rdg + 3 dgts)

DC Voltage Range

0.1V to 599.9V, (1.0% of rdg + 3 dgts)

Resistance

0.1 ohm to 1999 ohms (1.0% + 5 dgts)

Continuity Buzzer

Yes

Frequency

40Hz to 399.9 Hz (0.5% + 1 dgt)

Bargraph

Yes

Autoranging

Yes

Auto Power Off

Yes

Peak Hold

Yes

Data Hold

Yes

Min/Max

Yes

Power Supply

2 1.5V type \\\'AAA\\\' batteries

Dimensions

205mm (L) x 64mm (W) x 39MM (D)

Weight

280g approx. including batteries

-----------------------------------------------------------------------------------------------------------
