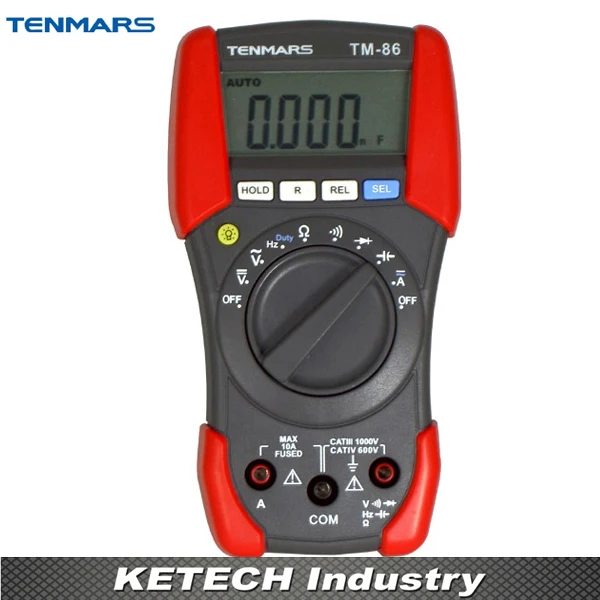

TM86 CAT IV 600V Digital Multimeter

Product Description:

1.CAT IV 600V
2.LCD Backlit Display, with maximum reading of 3999
3.AC voltage range: 0 to 600V.
4.DC voltage range: 0 to 600V.
5.AC Current range: 0.1A to 10A.
6.DC Current range: 0.1A to 10A.
7.Auto power off (15 minutes).
8.ACV, DCV, ACA, DCA, Resistance, Diode, Frequency, Capacitance, Duty Cycle, Continuity, Range Hold, Data Hold, REL.
9.Accessories.

Specification:

Overvoltage Category

CAT IV 600V, CAT III 1000V

LCD Display

3999 counts

Sampling Rate

2.5 times/second

Backlit

Yes

Auto Power Off

Yes

DC Voltage

0.1mV to 600V (0.8% of rdg + 1 dgts)

AC Voltage

0.001V to 600V (1.2% of rdg + 3 dgt)

DC Current

0.01A to 10A (1.2% of rdg + 3 dgt)

AC Current

0.01A to 10A (1.2% of rdg + 3 dgt)

Resistance/Accuracy

400, 4k, 40k, 400k, 4M, 40; (1.0% of rdg + 2 dgt)

Protection

600Vrms

Continuity Buzzer

Yes

Diode Test

Test voltage 1.5 volts

Frequency

0.01Hz to 99.99KHz

Duty Cycle/Accuracy

20% to 80% (1.0% of rdg + 5 dgt)

Capacitance/Accuracy

5nF, 50nF, 500nF, 5µF, 50µF, 100µF (3.0% of rdg + 5 dgt)

Range Hold

Yes

Data Hold

Yes

REL (Zero)

Yes

Accessories

Carrying case, Test Leads, Operating Manual,

---------------------------------------------------------------------------------------------
