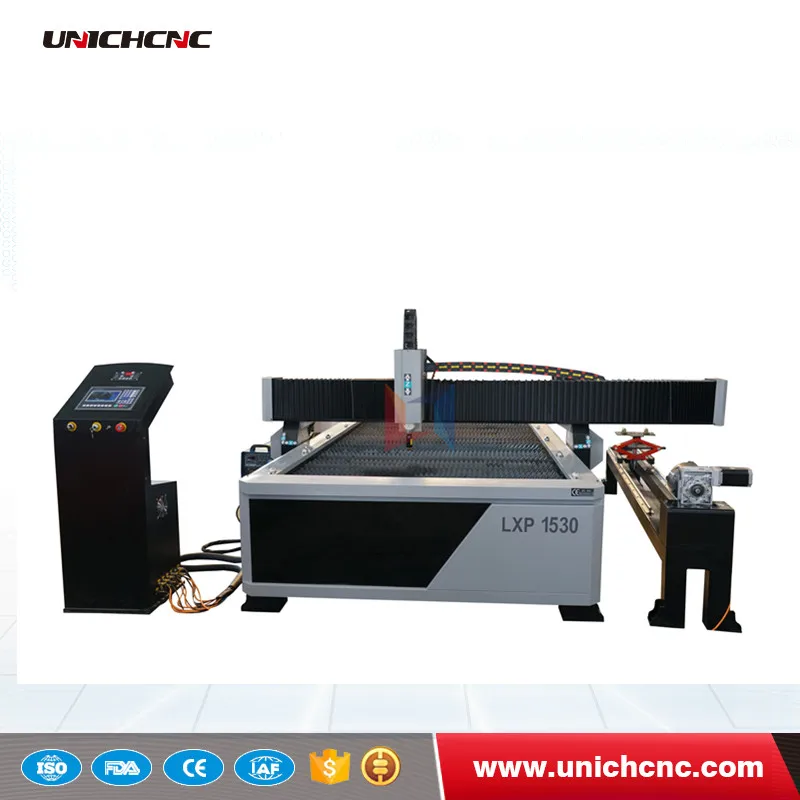

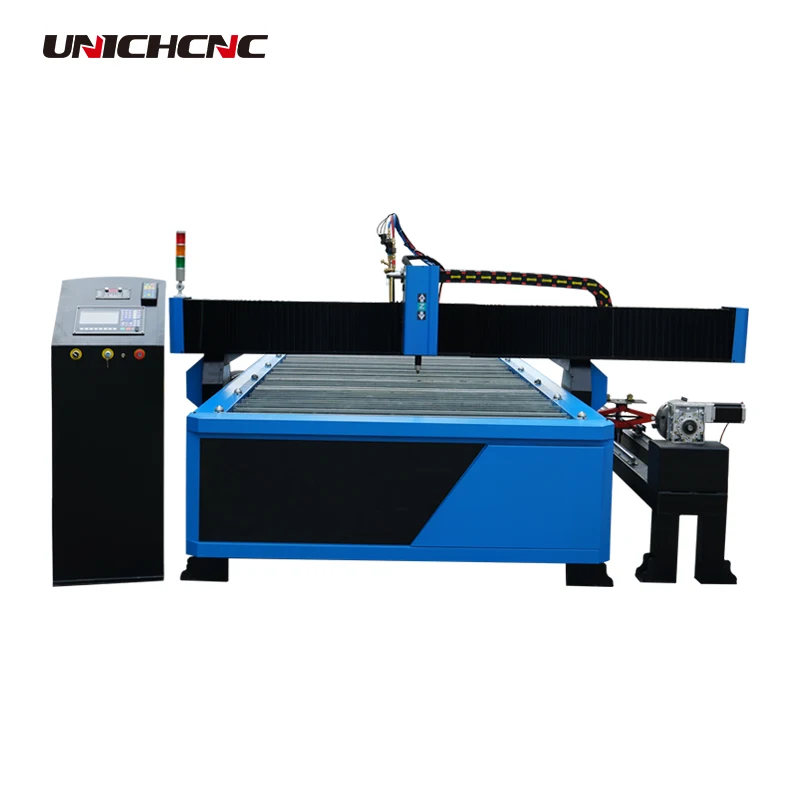

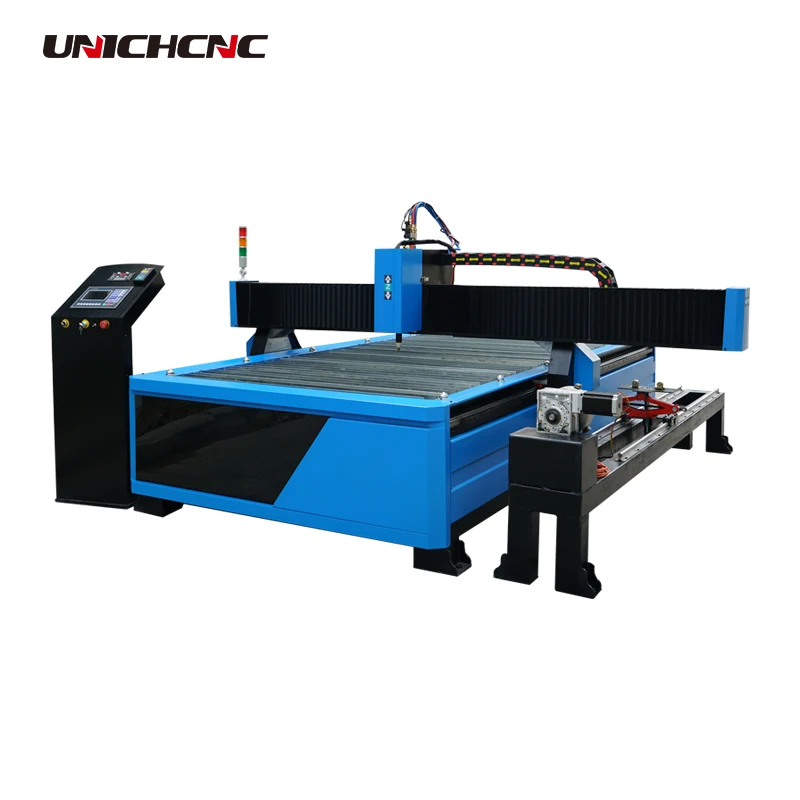

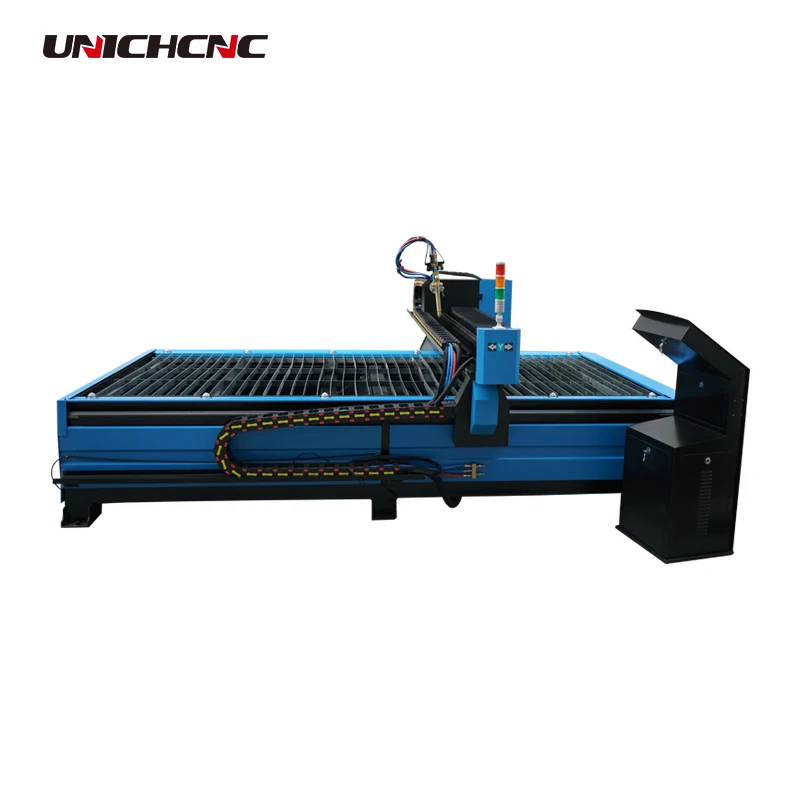

UNICHCNC pipe cutter high technology portable cnc plasma cutting machine

Plasma power cutting thickness

1.Plasma domestic Huayuan Power:

-63A cutting thickness: 0-6mm

-100A cutting thickness: 0-10mm

-160A cutting thickness: 10-15mm

-200A cutting thickness: 15-30mm

2.US Haibao  power:

-65A cutting thickness: 0-12mm

-85A cutting thickness: 0-16mm

-105A cutting thickness: 0-22mm

-130A cutting thickness: 0-30mm

Plasma parts:

1.)Power source

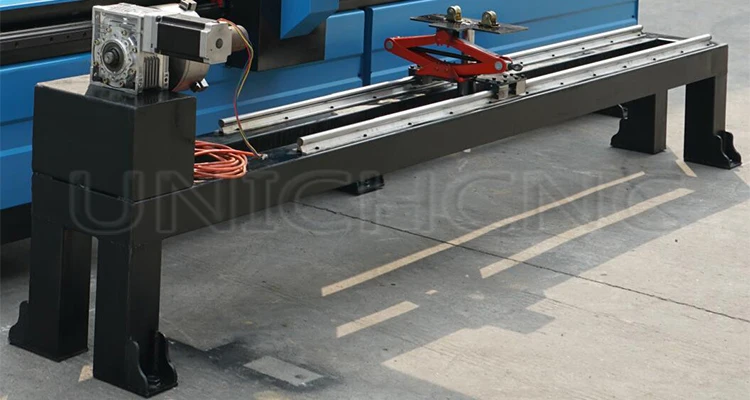

2.)Rotary

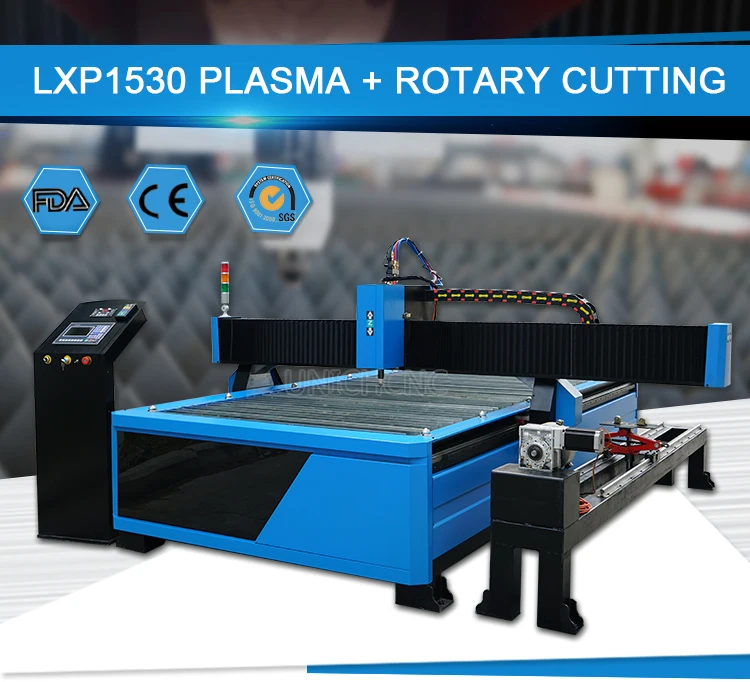

Rotary(Optional,Advantages:it could be customized for you,Diameter:50-600mm ).

3.)Water table

Water table(Optional,Advantages:it can keep thin metal sheet shape after cutting).

4.) Burning torch head:

5.) Starfire 3 axis control system: You could also choose shanghai Fangling control system.

Optional:

1, Different working size:1300X2500MM /1500X3000MM or other sizes according to customers' needs

2, Servo motors and drivers

3, Different power: 65A /100A /200A for different thickness cutting

4, Fangling control system

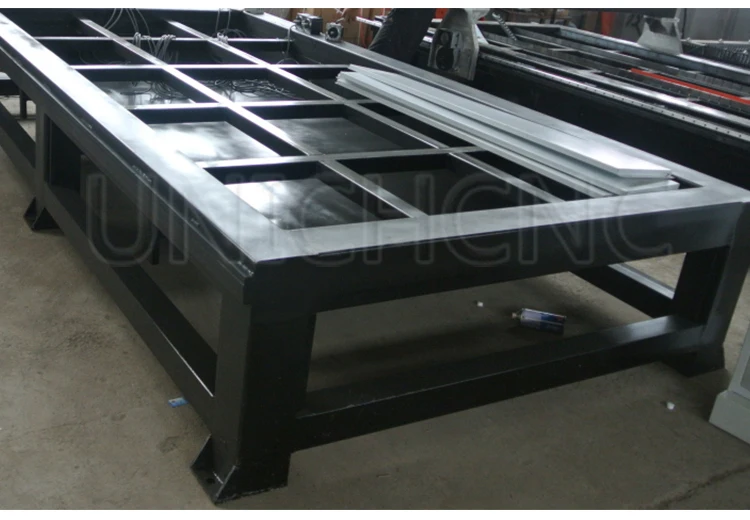

1. The beam uses light structural design,with good rigidity structure, light deadweight and small movement inertia.

2. The gantry structure, ,X,Y,Z axis all use straight rail that make the machine driving smoothly with high-precision.

3. Aiming at cutting three dimension LED character, trough metal panels and floor cutting, the accuracy can reach good indicators.If it equipped with United States  plasma source the machine can reach threshold.

4. Equipped with other advertise equipment (blister machine,engraving machine), forming the advertising word processing pipeline. Completely solve the traditional manual processing methods. Improve the efficiency of several times.

5. Cutting mouth is small, tidy,and avoid a second dressing processing.

6. It can apply to iron sheet, the aluminium sheet, the galvanized sheet, hundred steel plates ,metal plates and so on.

7. High cutting speed, high precision, and low cost

8. The numerical control system disposes high, the automatic striking arc, the performance is stable.

9. Support Wentai, Astronautics Haire, ARTCAM softwares, Type3 produce standard G code way document,also can change software to read AUTOCAD softwares produce DXF form documents. The control system uses the U-disk exchange processing document, easy to operate.

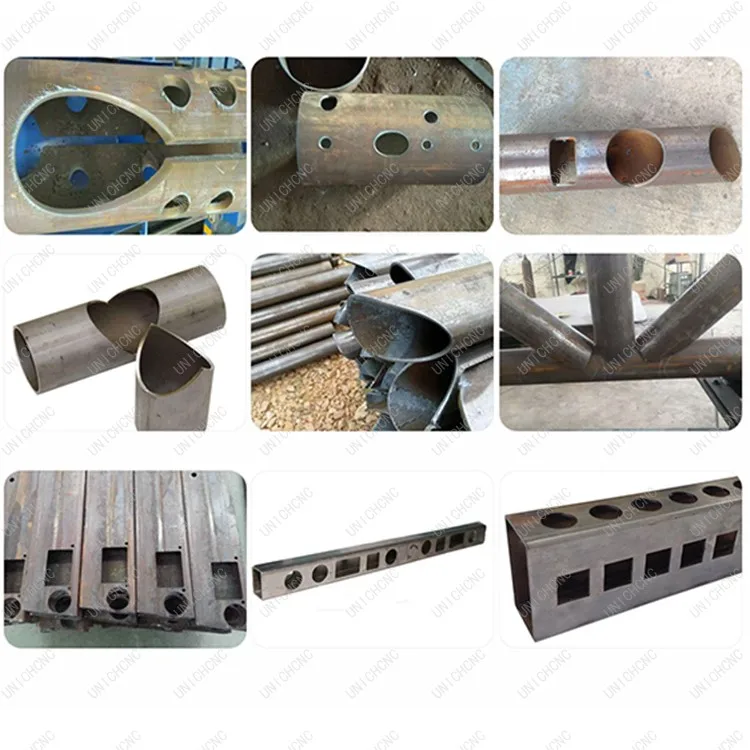

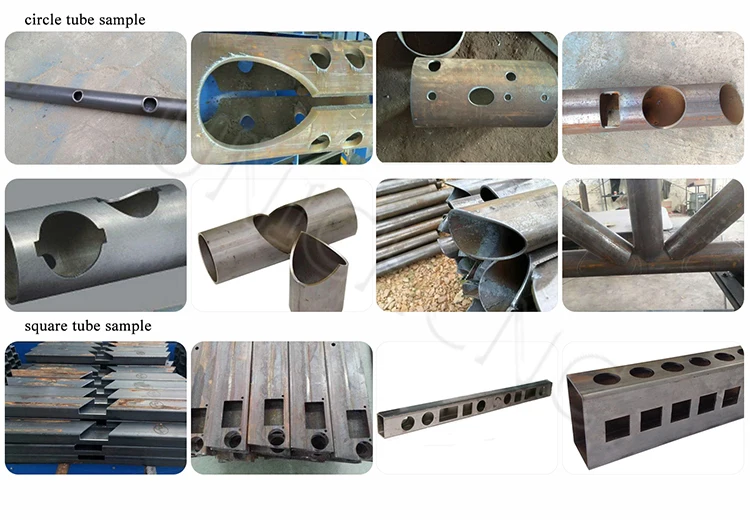

Processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting.

Effective Cutting Width (X axis)

1300mm optional

Effective Cutting Length (Y axis)

2500mm optional

Drive Mode

drive

Lifting body

1set

Plasma torch

1set

File transmission

USB transmission

Cutting shape

able to program and cut the steel plate parts with any plane shapes formed by straight lines and arcs;

software

Fastcam software

Plasma power source

Huayuan power source

Cutting thickness

0.3-30mm  optional

Height regulating device

Arc voltage height

Cutting speed

0-8000mm/min

Cutting precision

±0.5mm

Control accuracy

±0.01mm

Support software

Fastcut /Type3/autocad/pro/CAXA etc.

Working Temperature

-5~60°CRelative Humidity, 0-95%.

Power Supply Voltage

220V\380V±10%

  12 months for the whole machine.

 1. We offer life-long technical support by call, email.
 2.Our technicians & Me can give you remote guide online (Skype or MSN) if you have any        question.
 3. We can record videos of operating the machine.
 4. Free training course in our factory.
 5. Engineer available to service machinery overseas.
 6.Machine will be adjusted before it is divered , operation disk/CD was included.

1) You pay money to alibaba.

2) We prepare your machine production.

3) After your production,we would tell you timely,then you click the button"agree to ship".

4) We ship it.

5) After dispatch,we show documents to Alibaba,Alibaba would ask your agreements for money r     elease to our company.

6) After your agreement,Alibaba would pay your money to us.

JINAN UNICH MACHINERY CO.,LTD

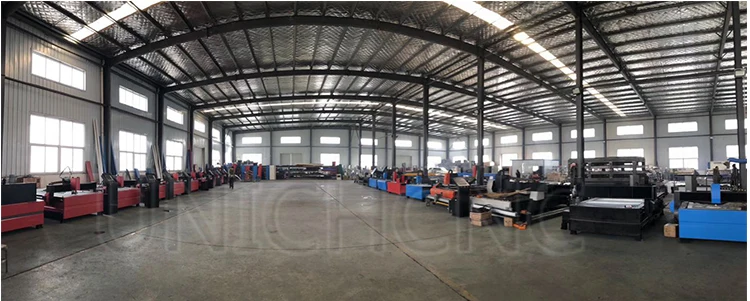

Is established in July 2004 ,owns more than 500 square meters of researching and office space,

more than 32000 square meters factory.All machines ,passed the European Union CE authentica-tion,American FDA certificate and are certified to ISO 9001. Products are sold to USA, South

east Asia,Europe,Canada, Australia,  Africa etc,more than 120 countries and areas, and supply

OEM service for more than 30 manufactures.

Our Products includes All kind of

1. Plasma cutting machine.

2. Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine.

3. Fiber cutting machine.

4. CNC knife cutting machine.

5. Cnc router machine.

6. Co2 laser machine and so on.

We can also customized non-standard assist equipment as your detailed work requirements.

Have you exported to our country?

We have been in this field for 12years,we have CE,CO,ISO,FDA,SGS certificates,have exported to

Europe,South America,Arab,Asia,Russia,Spain,Australia and many other countries.

2) If machine have any problem after I receive it, how can I do ?
12 months quality guaranty, the machine with main parts(excluding the consumables) shall be changed

free of charge when if there is any problem during the warranty period.

3) How about the documents after shipment?

A.If you need original bill of lading we will send original bill of lading and all information for customs clearance

including Packing List, Commercial Invoice, Bill of Landing, and other certificates as required by clients to you by DHL.

B.If you need electric bill of lading,I will send electric bill of lading and all information for customs clearance

including Packing List, Commercial Invoice, Bill of Landing, and other certificates as required by clients to your Email.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

please contact me:

Contact Maggie Meng

skype: export04_6/export04(@)unichcnc.com
Email: export01(@)unichcnc.com
Whatsapp: +8613218977181

Wechat:mqy7723
