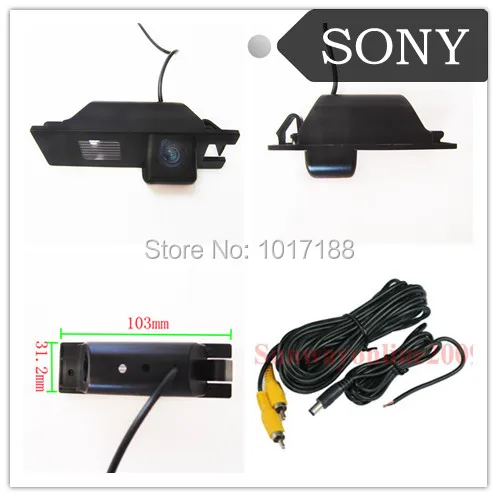

SONY CHIP CAMERA FOR  Vauxhall OPEL Astra Corsa Meriva Vectra Zafir

For Camera :

Image sensors: 1/4" color sony CCD Chip

TV System: NTSC default

Minimum illumination. <0.1

AGC: Auto

BLC: Auto

White Balance: Auto

Video Color: Colorful

Effective Pixels : 728x512

Resolution : 520TV lines (Normal CMOS/CCD/CMD camera is 420 TV Lines)

Video Output: 1.0Vp-p,75?

Electronic Shutter: 1/60(NTSC)-1/10000S, 1/50(PAL)-1/10000S

S/N ratio: Better Than 48db

Lens Angle: 170 Degree

Waterproof Class:Ip 68

Operation Temperature: -20°C+80°C RH95%

Storage Temperature: -30°C+80°C

Working Power (DCV): 12

Current consumption: 90mA Max

Main Features :

1,SONY CCD camera is higher clear, better quality than the Colorful CMOS and CMD and Sharp CCD.
2,170 degree view angle, very small, and easy for installing
3,Low illumination and fill light automatic, waterproof

4,Designed according to the license light hole install.
5,All you need is a screen and video input port.

Package:

1 x 5M video cable

1 x power supply cable

How to Connection:

Installation effectConnection(not included the above LCD monitor):

SONY car camera :

CCD car camear :

cmos car camera :

​

How to Install:

A.Take out your stock license plate light at the back of your car.

B.Fix the camera to where the stock license plate light was.

C.Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power

D.Connect the power of the camera to your car REVERSE lights - red wire to positive and black wire to negative.

E.Connect the video cable of the camera to the extension cord.

F.Connect the extension cord to your car monitor.

G.You will see the images when your car is in reverse shift.
