Packing List:

1pc 10A MPPT Solar Controller + 1pc Solar Cable + 1pc User's Manual

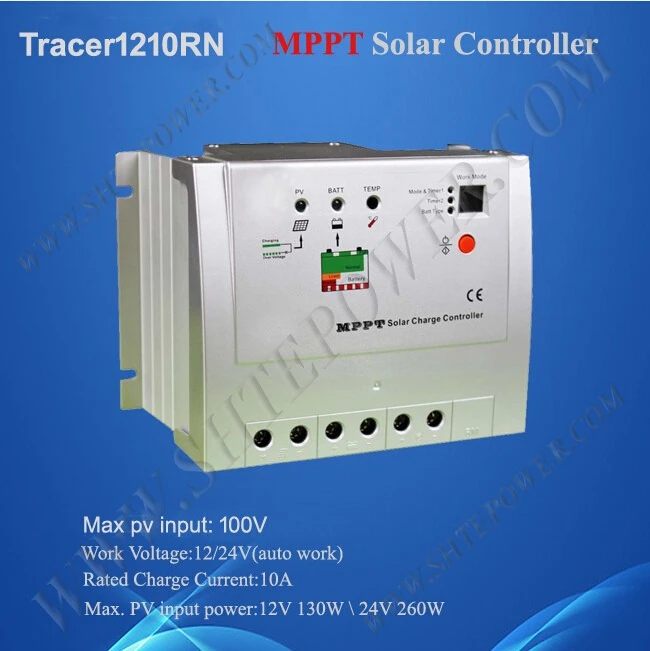

Main picture of 10a 12v ce solar controller

Introduction:

Tracer series controller adopts MPPT technology (Maximum Power Point Tracking). The advanced tracking algorithm make the solar module operate at ideal voltage which the solar modules can produce the maximum available power. Compared to conventional PWM controller, MPPT technology increase charge efficiency up to 30% and decrease the power of solar array needed. Tracer has the ability to step-down the higher voltage solar array to recharge a lower voltage battery bank. Max. 100VDC input. So it allows on grid solar modules or thin film modules to charge the off-grid battery. And the cable size can be reduced because of the small current from the solar array.

Key features:

·MPPT technology

·Peak conversion efficiency of 97 %

·High tracking efficiency of 99%

·Several seconds tracking speed

·Very fast sweeping of the entire I-V curve

·4- Stage charge with PWM output

·Excellent thermal design and nature air cooling

·Full power output in ambient temperatures up to 45°C

·Temperature compensation function

·Sealed, Gel, Flooded battery type optional

·Diversified load control: Manual, Dusk to Dawn, Dual timer, TEST

·RJ45 interface with optional remote meter

·Standard 2 years warranty

·CE certificate

Electronic protections

PV Array Short Circuit

PV Reverse Polarity

PV Overvoltage/Over current

Battery Reverse Polarity

Load Overload

High Voltage Transients

Load short circuit

Technical specification

 Mechanical Parameters

Model

Tracer 1210

Dimension

156mm x 97mm x 68mm

Mounting holes

147 x 60 / mm

Mounting hole size

Φ5

Terminal

4mm2

Electrical Parameters

Model

 Tracer 1210

System voltage

12VDC/ 24VDC auto work

Max. battery current

10A

Rated Load Current

10A

Battery voltage range

32V

Max. solar input voltage

100VDC

Max. PV input power

12V system130W 24V system 260W

Self-consumption*

<10mA(24V)

Charge Circuit Voltage Drop

≤0.26V

Discharge Circuit Voltage Drop

≤0.15V

Communication

TTL232 / 8pin RJ45

  Charging & discharging circuit close, LED indicator & tube OFF, remote meter disconnected.

Battery charging

Battery charging setting

Parameter setting

Charging mode

Four stages

Temp. compensation

-5mV/°C/2V(25°C)
