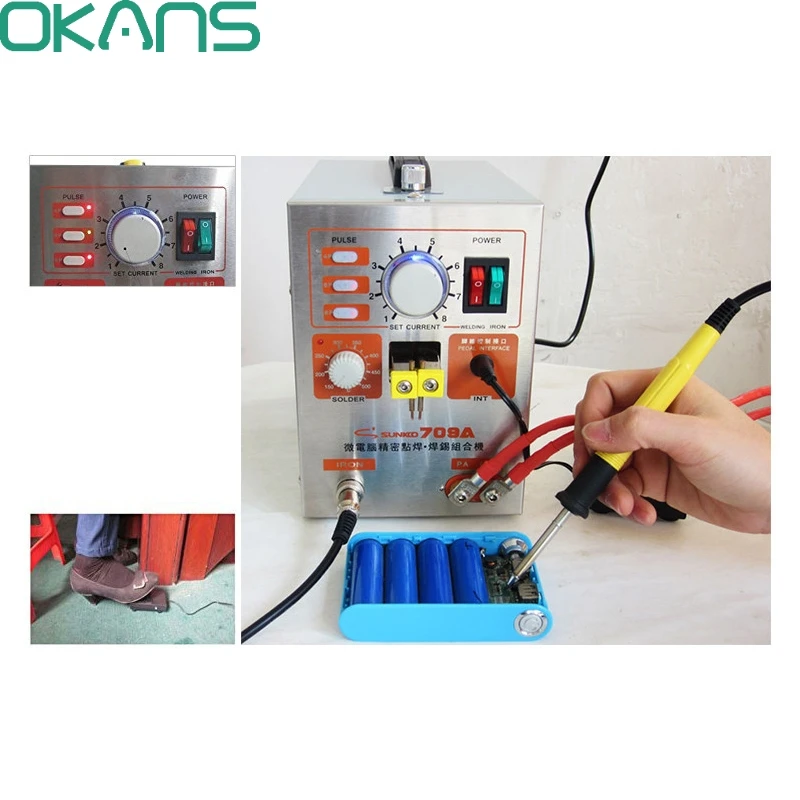

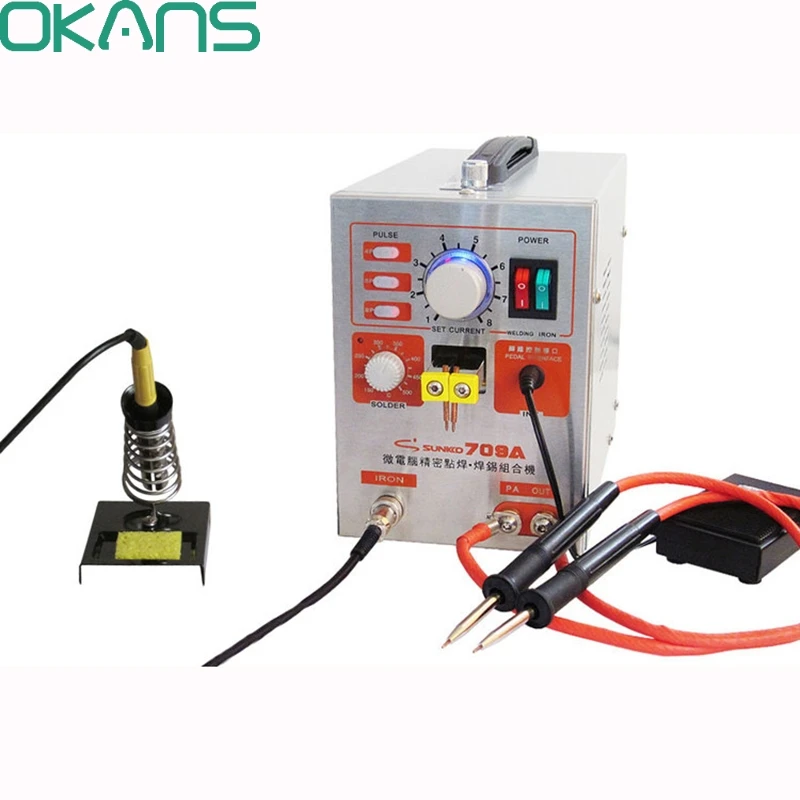

HOT Sale 709A High Power Battery Spot Welder & Soldering Station with Universal Welding Pen Power Battery Welding Machine

1.The machine is a combination of battery spot welding and Circuit board solder, that make your work more convenient.

2.fixed spot-welding head and mobile spot-welding pen are combined together in one machine,so that the welding will become flexible.

3.Possess the function of 2,4,6,8 welding pulses selection, make the solder joint reliable.

4.Possess welding current rapid regulator,selecting the current will become quick and efficient.

5.The anti-static soldering station which controls the temperature accurately ,it is suited for welding any intergrated circuit or wiring.

6.The removable footswitches can satisfy the reqirement of welding position or sophisticated technology.

7.The fixed spot-welding head has pressure regulating device which makes the solder connections more reliable.

Scope of application

Lead sheets of rechargeable battery can be welding rapidly.

The production,installation,welding of lithium battery or mobile power.

The welding of lead sheets and wires from metal parts.

Electrical data:

Soldering iron part:

Temperature: 150~450 degree celsius

Power: 50W

Output voltage: 20VDC

Spot-welder part:

Supply voltage: AC220V±20V

Power: 1.5KW (Instantaneous)

Current: 500A

Time of double pulse: 1 ~10ms (adjustable)

Time of four pulses: 2 ~20ms (adjustable)

Time of eight pulses: 8 ~80ms (adjustable)

Suitable Welding Thickness: 0.05 - 0.3 mm for Fixed Copper Head

                                          0.05 - 0.2 mm for Mobile Welding Pen

Electric leakage Switch Requirement: 60 A or more than 60 A

Attention:

1. This spot welder can be used to weld the nickel, nickel plated steel, nickel plated iron, iron and other alloys, but it can't be used to weld metal including copper and aluminum.

2. The voltage could be 110 V/60 Hz or 220 V/50 Hz (optional). By default, we will ship the product with voltage and frequency standard in the recipient's country. If you need something different, please send us a message.

3. For the requirement for electric leakage switch is more than 60 A, it is not recommended to use at home.

1 X Spot Welder 709A

2 X Fuse 20A

1 X Bent-handle spanner

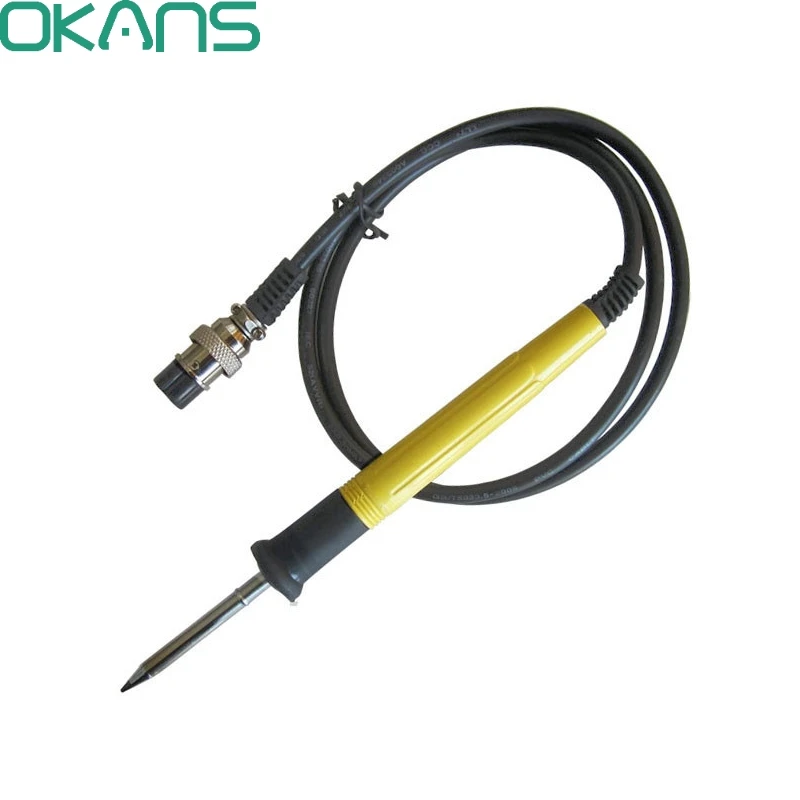

1 X T12 Iron

4 X Alumina copper welding needle

1 X Foot Switch

2 X Welding Pen
