1 pcs- Green high power laser dot crosshairs word line three effects are optional green positioning lights |

1 pcs- Green high power laser dot crosshairs word line three effects are optional green positioning lights |

Full 99 shippingEvent Date: 2014-12-26 00:00:00 --2015-03-26 23:59:59

Single orders over99Yuan, photographed free shipping(Note: Tibet, Gansu, Qinghai, Ningxia, overseas, Heilongjiang, Inner Mongolia, Xinjiang, Taiwan, Hong Kong, Macao, except)

Product Specifications

Model:ZLM100X532-22BD
Line width and length:Can be highly customized according to the customer to determine the installation(Please contact us)
Spot shape:Dot, word line, cross line (Choose one effect)
Optical lens:Optical coated glass lens
Operating Voltage:DC3.5-25V
Output Power:100mW
Size:22 × 110mm (can be customized 12 × 50mm, 16 × 70mm, 26 × 110mm optional)
Operating temperature :10 ~ 40
Storage temperature:-40 ~ 80
Laser class:Class B (5-500mW)
Features:Imported laser diode + lens + metal + quality + wire constant power circuit board or plug wire
Package contains:Laser lights, special mounting bracket, dedicated power adapter
Light type, wavelength, power and size, can be customized according to customer requirements

feature of product

1,Product appearance designed to22 × 110mm (diameter × length)The large size of the metal housing enclosure with heat sinks, more adequate internal laser diode cooling, making it more stable life than ordinary products increased by more than 50%. Interior filled with cooling gel and AB glue, both to ensure adequate cooling, but also shock and drop.
3,Internal circuit boards (PCB), the use of IC smart with constant power driver circuit board, can filter current impact, effectively protect the internal light emitting die, making it more stable and longer life.
4,An optical port plus windows, fog can effectively waterproof, dustproof, greatly improve the life of the product.
5,Point spot size adjustable, using the word screw front end of the recess, the spot size can be adjusted as needed.

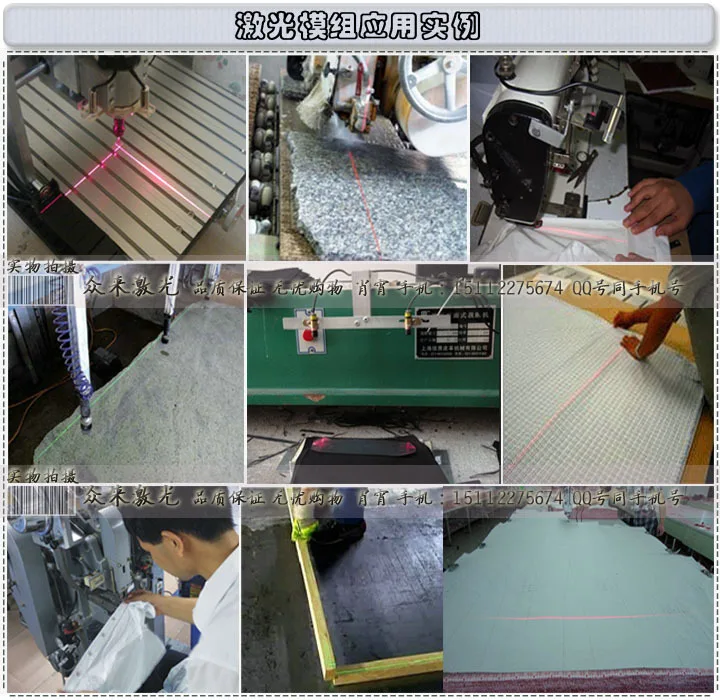

Dot laser is a convenient and practical positioning tool, it can be widely used laser marking machine, button sewing machine positioning, riveters, glass drilling machine, clothing nail button point light source is positioned, positioning precision instruments and other industries. Convenient, intuitive and practical, can greatly improve efficiency.
6,Green word line is positioned to play a red light on the target, it is a stable, spot uniformity, high collimation, low power consumption, long life industrial grade semiconductor lasers.
Green word line positioning lights are a convenient and practical positioning tool, can be used in stone cutting, woodworking machinery, cutting cloth cutting cloth auxiliary marking, laser marking positioning garment hem, four locator, printing machine dedicated laser marking, spreading machines, tire building machine positioning. Convenient, intuitive and practical, can greatly improve efficiency.
7,Green crosshair laser lines clear, compact, easy to install, can be installed in vertical or horizontal mechanical plane, making it a visible crosshairs in the whole production process. The process of positioning line guide the operation of non-contact, with easy production operations and improve production efficiency advantages. The laser line can be arbitrarily fine-tuning in the three-dimensional space, we have reached the best results.
Green Cross positioning light is a convenient and practical positioning of marking tools can be widely used in woodworking machinery, cutting cloth cutting cloth auxiliary marking, a number of areas laser marking positioning garment hem, printing machines for laser marking, etc. ?? Convenient, intuitive and practical, can greatly improve efficiency.
8,Product tail connected to the dedicated plug wire of 1 to 1.2 meters, 1.5 meters long power cable, you can use the total cable length of 2-3 meters, makes installation more flexible, without adding with strip, effectively reduce costs. To plug the power connector using internationally accepted standards (5.5 × 2.1mm), most of the power can be generic, economical, practical and environmentally friendly.

Contact information:

Plant / company produces laser laser products, fast delivery, excellent quality, low price, good after-sale, is your best choice on bulk purchases! We will be the most sincere geocentric to make the broad masses of customers and friends!
Shenzhen City Public Technology Co., Ltd. to
Contact: Xiao Xiao (women)
Mobile: 15112275674
Phone: 0755-84528255-812
Fax: 0755-84528390
QQ: 1910990514
E-mail:kf179163.com
