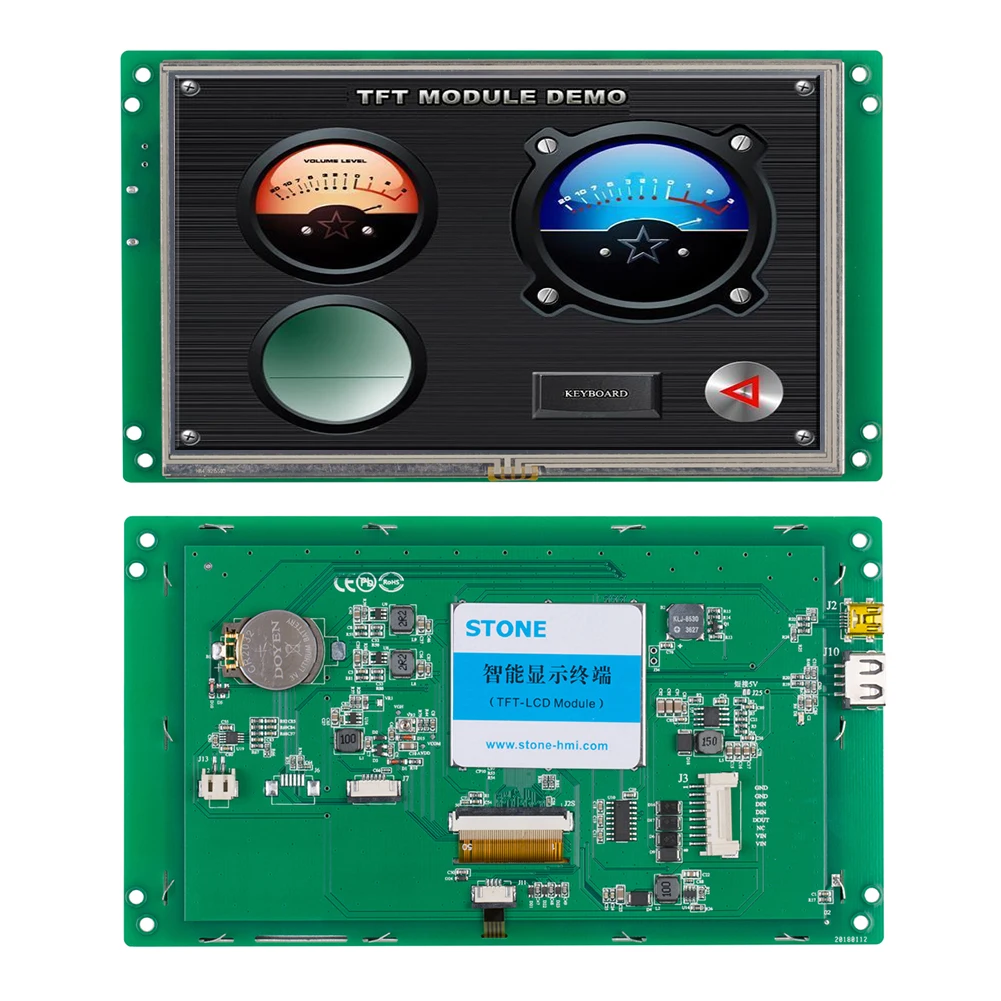

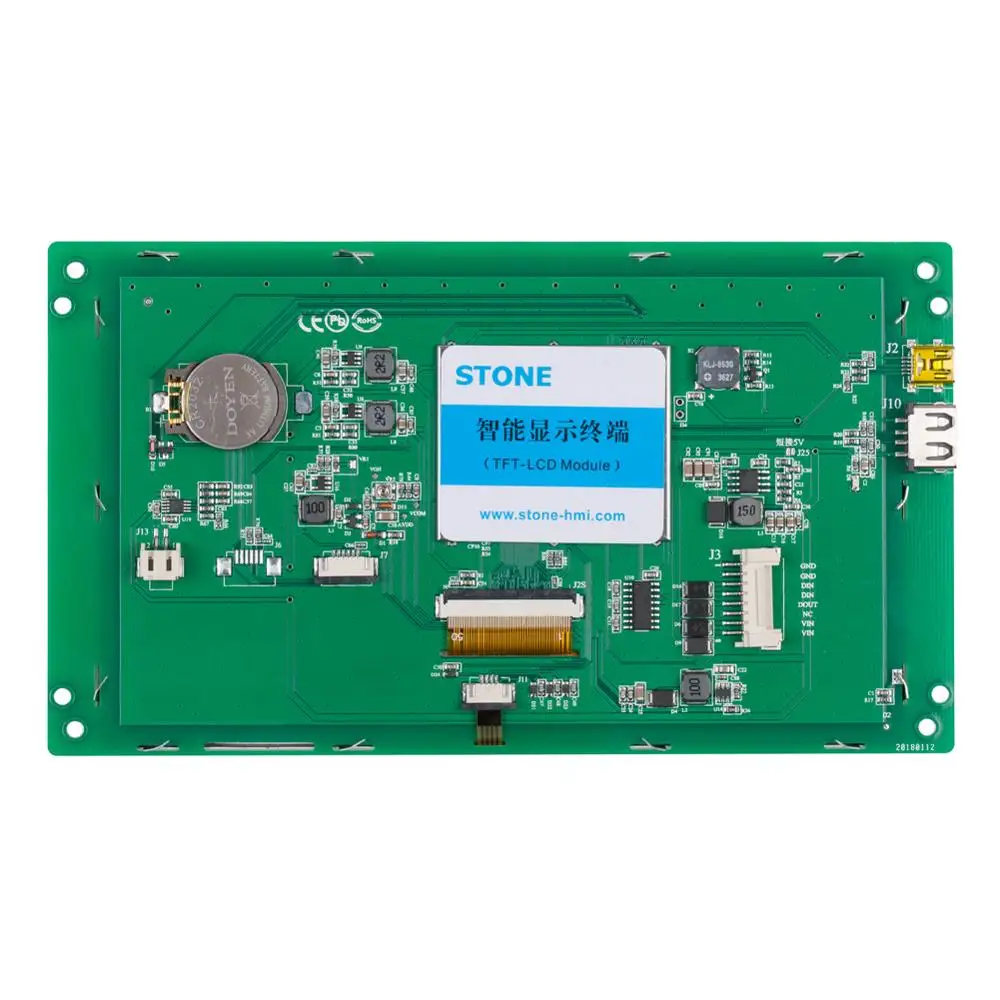

Intelligent TFT-LCD Module
Model
STWI070WT/N-01
7 Inch TFT LCD Display with Touch Screen+Controller Board for Elevator
The STWI070WT/N-01 has been conceived as TFT monitor & Touch controller. It includes processor, control program, driver, flash memory, RS232/RS422 / RS485/ TTL / LAN port, Wi-Fi / Bluetooth, touchscreen, power supply etc,so it is a whole display system based on the powerful & easy operating system, which can be controlled by Any MCU.
The STWI070WT/N-01 can be used to perform all basic functions, such as text display, image display, curve display as well as touch function, Video & Audio function etc. The User Interface can be more abundant and various. And the flash memory can store your data, configuration files, image file, font file, video file and audio file etc.
Physical Parameter
Size
7 inch
Resolution
800×RGB×480
Pixel Spacing
0.0642(W) × 0.1790(H) mm
Color
262,144 colors (18 bit)
Viewing Area
154.08(W) × 85.92(H) mm
Display Dimension
186.4mmx105.5mm
Overall Dimension
186.4mmx105.5mmx17.4mm
(Standard type)
186.4mmx105.5mmx23.8mm
(with Ethernet port)
Net Weight
300g
Display
Backlight Type
LED
Brightness
300cd/m2
(Brightness can be adjustable in 100 levels)
Contrast
500:1
Backlight life
30,000 hours
Viewing Angle
70°/70°/50°/70°(L/R/U/D)
TFT Panel
A Class Industry Panel
Touch Screen
4 Wire Resistance Touch /Capacitive Touch / Without Touch Screen
Screen Mode:
Digital
Processor
CPU
CortexA8
Refresh Rate
1G Hz
Max Frame rate
60 FPS
Memory
Flash Memory
Standard256MB, Extension 1GB or 2GB
Memory Amount for Image
According to the capability of the image, Suggest "PNG, BMP, JPG, SVG, GIF" format.
Interface
Serial Interface
RS232/ RS422/RS485/ TTL level
Ethernet interface
10M/100M (Optional)
Wireless interface
Wi-Fi/Bluetooth (Optional)
Project file downloading
USB2.0 portor U storage Disk
Power Supply
Rated voltage
+12V DC or +5V DC
Permissible voltage range
+7V DC...+28V DC or +5V DC
Max. permissible transients
+28V
Time between two transients
50 sec minimum
Internal Fuse
2A self-recovery fuse
Power consumption
3.0 W
Electrical Characteristics
Parameter
Condition
Min
Type
Max
Supply Current
VIN=12V
(Max brightness)
220mA
VIN=12V
(close brightness)
120mA
Baud Rate
115200 bps
Signal
Ambient Conditions
Max. permissible ambient temperature
Operation
Storage
-30℃~ +80℃
-30℃~ +80℃
Relative humidity
Operation
Storage
55℃,85%
60℃,90%
Shock loading
Operation
Storage
15 g/11 msec
25 g/6 msec
Vibration
Operation
Storage
0.035 mm (10 - 58 Hz)/ 1 g (58 - 500 Hz)
3.5 mm (5 - 8,5 Hz)/ 1 g (8.5 - 500 Hz)
Barometric pressure
Operation
Storage
706 to 1030 hPa
581 to 1030 hPa
Noise Immunity
Static discharge
(contact discharge/air discharge)
EN 61000-4-2
6 kV/8 kV
RF irradiation
EN 61000-4-3
10 V/m, 80% AM
1 kHz
Pulse modulation
ENV 50204
900 MHz ±5 MHz
10 V/meff., 50% ED, 200 Hz
RF conduction
EN 61000-4-6
150 kHz - 80 MHz
10 V, 80% AM, 1 kHz
Burst interference
Supply lines
Process data lines
Signal lines
EN 61000-4-4
2kV
2kV
1kV
Radio Interference
Radio interference level complying to
EN 55011
Class A
Support Device
UART Port
Support
RS232/ RS422/RS485/ TTL
Network Port
Support
Ethernet Port / Wi-Fi/Bluetooth
Flash Memory
Support
Standard256MB, Extend1GB or 2GB
Buzzer
Support
RTC
Support
USB port
Support
Online Download By USB Cable
U Storage Disk Interface
Support.
Offline Download or Copy User Data
Touch Screen
4 Wire Resistance / Capacitive
Vector Font
Standard TTF Format
Support PNG/JPG/BMP/SVG/GIF Format
Audio Interface
SupportWAV format
The length of single audio file is not limited, theoretically up to 4096 audio files, speaker power is 8 ohms 2 watts or 4 ohms 3 watts
Command Set
Unified Simplified Command Sets
