new style swimming pool water level sensor leakage detector with cheap price |

new style swimming pool water level sensor leakage detector with cheap price |

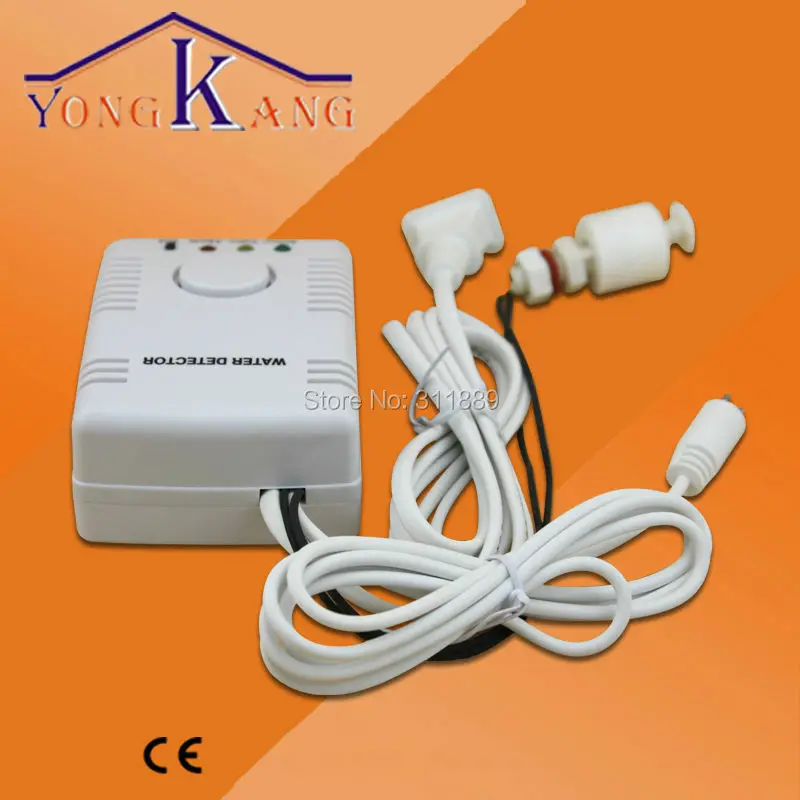

Item: water level detector with two probe

Smaller probe is placed on the desired high level of pool and detector will alarm if the probe contacts with water

Other probe is placed on the desired lower level of the pool and detector will alarm when the probe leaves water

Product Parameters:

Fault indication
With test function
Automatic reset
Power supply range: 110-240V AC, 12-24V DC
Static current:: ≤15mA
Alarm current: ≤200mA
Operating temperature: 0-60°C
Respond time: ≤5S
Alarm volume: >85dB
Adapts MPU control
Automatic reset
High stable sensor
Automatic error detecting function
Humidity: 80% RH (non-condensing)

ABS plastic housing

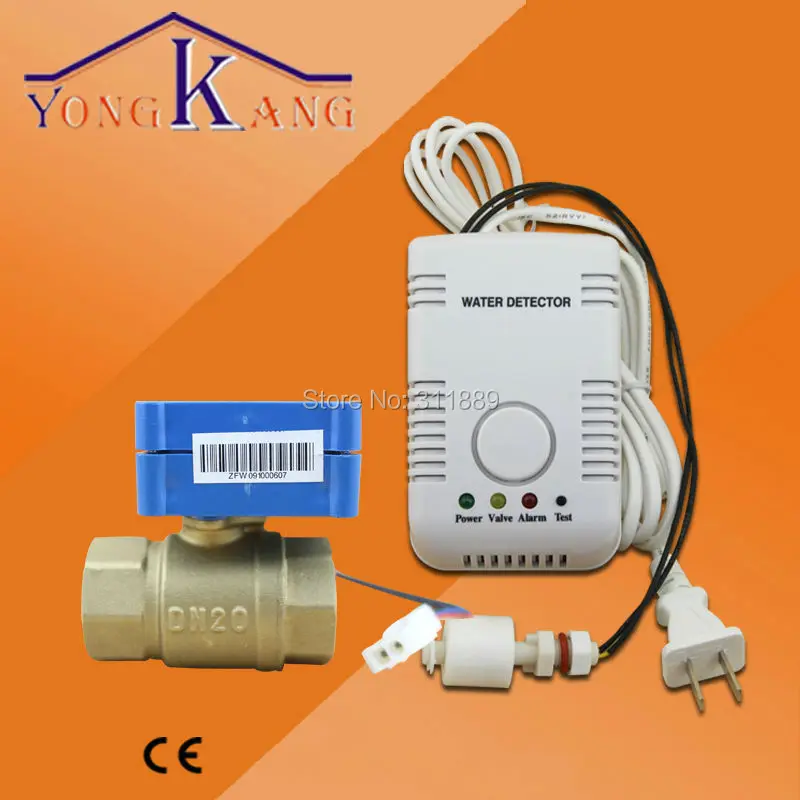

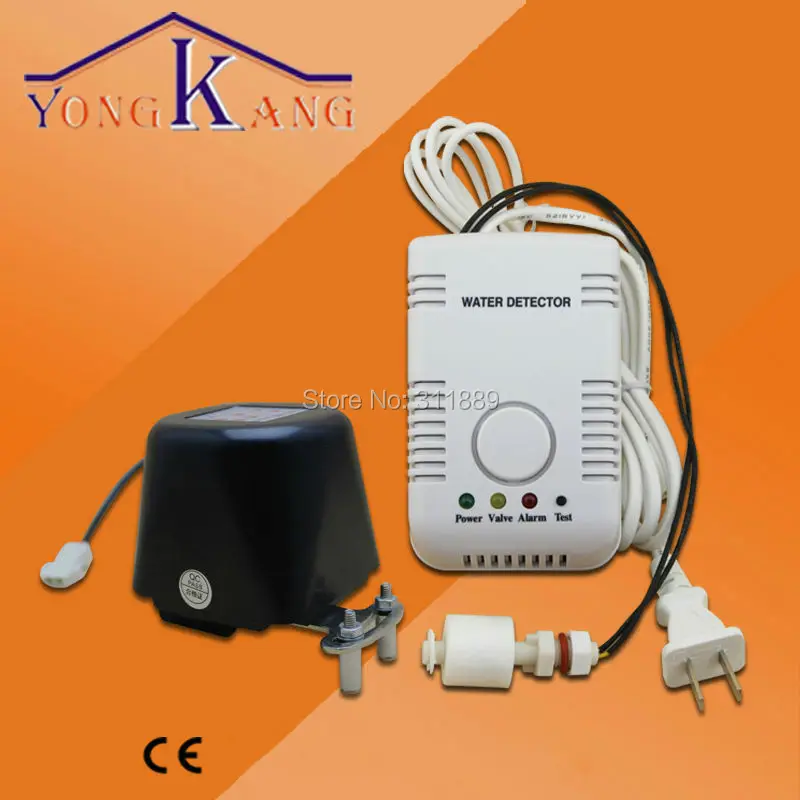

Optional shutoff valve

Networking method:  By wired: NO or NC (optional)

                                 By wireless: 315MHz/433MHz (2262 or 1527) (optional)

Installation Guide:

(1)use four nails to fasten the detector on the wall
(2)Hang the detector on the chassis
(3)Put the sensor port in the place where is likely to leak
(4)Connect the detector to the power supply

Where not to install
(1)Do not face it to oil smoke and steam of cooking range
(2)Do not install it at the airiness area
(3)Do not be obstructed by window curtain or cabinet
(4)Do not install it at the area with haevy vapor ,such as washing room
