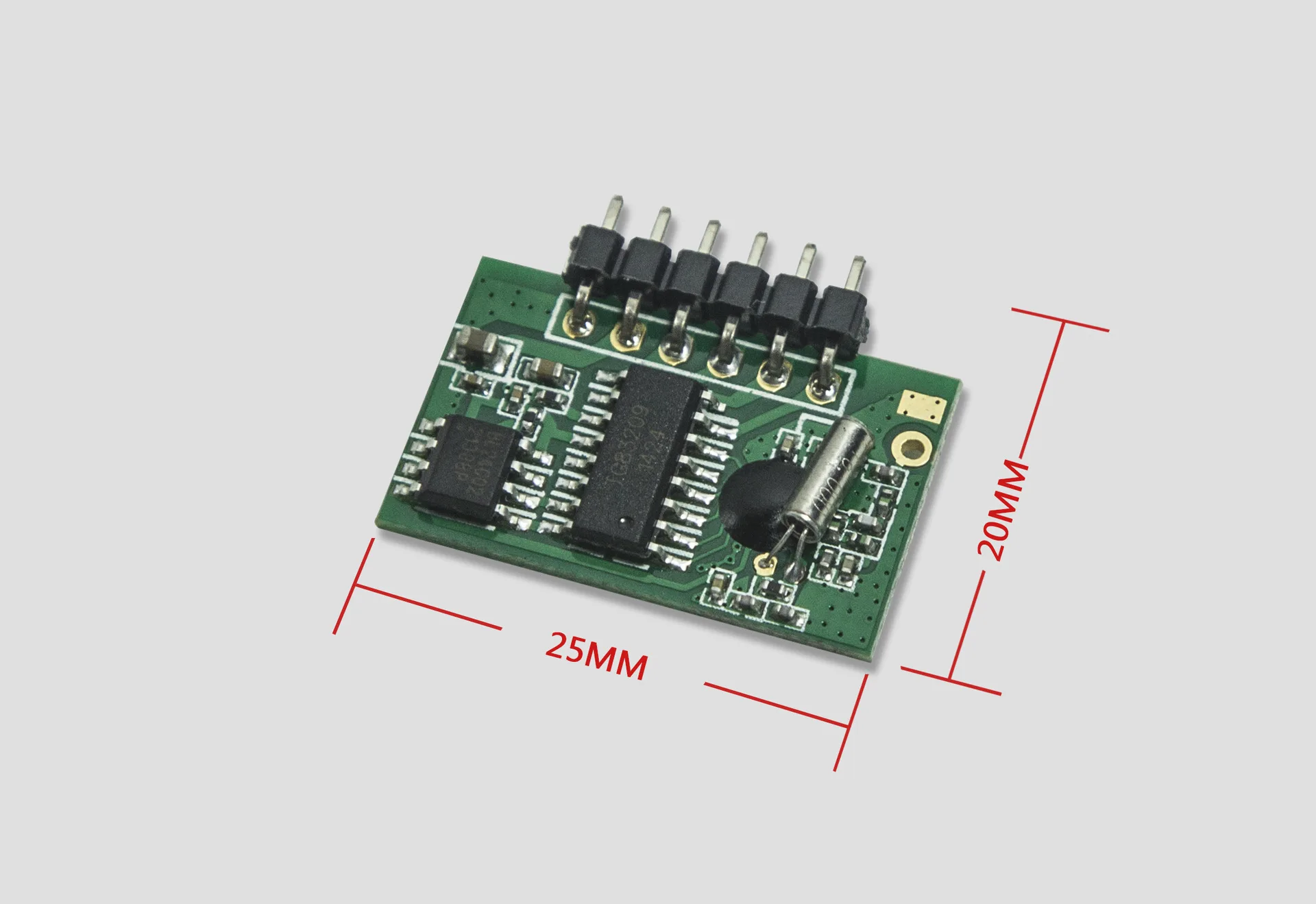

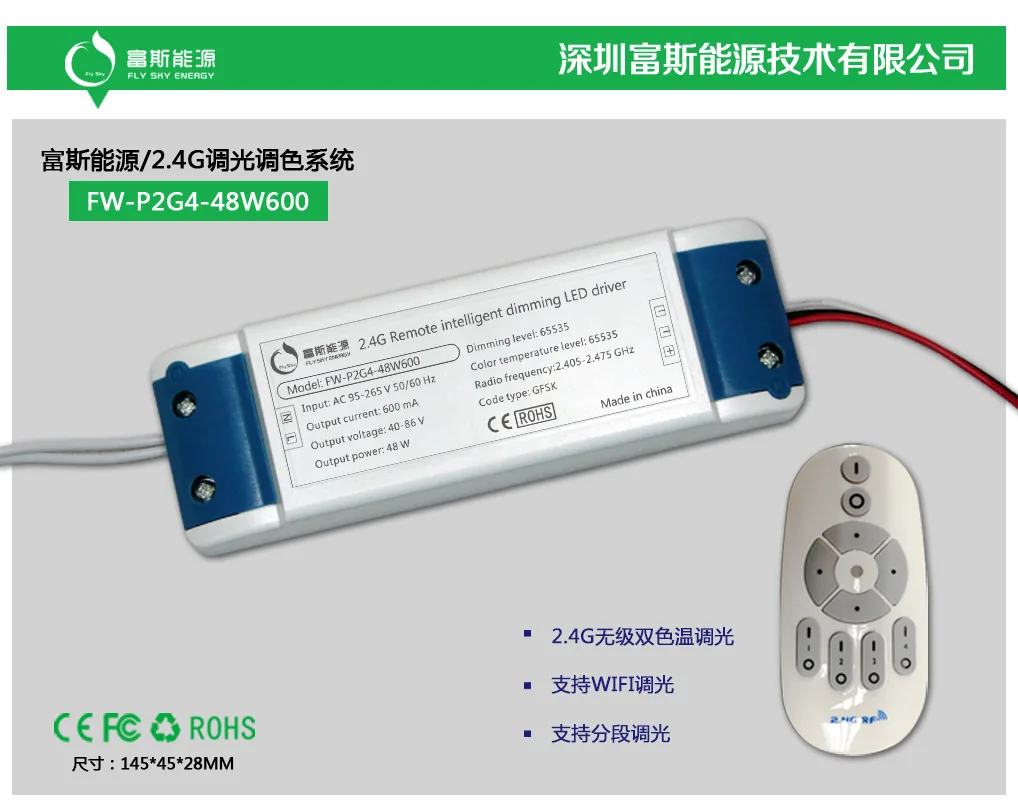

Taken the 48 w constant current constant voltage driver power supply, integrated 2.4 G wireless receiving control module, WiFi phones and wireless remote control stepless adjustable light color temperature function;

U realized by using the current dimming effect, support wall dimmer switch section

Taken the input voltage: 100-240 vac;

Taken the output dc voltage/current: 55-86 VDC / 570 ma.

Taken the rated output power: 36 to 48 w;

U size: 145 mm * 45 mm * 28 mm;

Taken the LED string and number: 18 to 24 series;

The product features

Painted with 2.4 G frequency hopping technique, fill 433 m remote control to improve the poor anti-jamming of, how many remote controller work together can also follow the alleged.

U using 2.4 G global free frequencies, you produce the lamps and lanterns of export more convenient, will not be restricted by any country.(433 m. 315 m band products are exported to some countries restricted)

U use 2.4 G remote control for 80 meters, there are obstacles for 30 to 40 meters, has a wall for 15 to 20 meters.(material is qualitative different, there are differences between the distance, the second infrared distance limit: 10 to 15 meters);

U is 2.4 G WIFI frequencies, this product support mobile control, computer control.(we provide free software, software installation)

U driven by constant current constant voltage isolation power supply, power will change with the light brightness, more efficient energy saving, environmental .Then use our driver no stroboscopic phenomenon LED lamps and lanterns, mobile phone, camera

Taken effect more clearly.

U add a night light function, home theater of artifact.

Painted a more humane, stepless dimming color temperature design: we put the brightness of 0% 100% can be divided into: 56000 grade, 3000 k to 6500 k color temperature can be divided into: 56000 level.

Adjust the more smooth, more exquisite.And you can according to the mood and atmosphere custom brightness and color temperature.

U have memory to store the light pattern function, lamps and lanterns is turned off the lights before automatic memory effect after shutdown mode, when the reboot automatic recovery;

Taken the custom combination: a remote control can be controlled separately at most four groups of leds, the number of the LED lights in the unlimited in each group.Response consistency is , more intimate and convenient;

Painted red the remote control downy light, the dark night also can be easily manipulated, and less electricity, durable.

The remote control specification parameters

The shell material: ABS transmission power: less than 10 mw

Processing: color printing and UV light oil product size: 110 * 56 * 22 mm

The remote control remote control voltage: 1.5 V * 2 AAA batteries net weight: 18 g

Standby power consumption: 10 ua

The keyboard
According to " open button (1)", all the lamps and lanterns is open;Long press " open button (1)", all lamps and lanterns into 100% neutral light, and can unite the dimming color;

According to "total key (2)", all the lamps and lanterns is close;Long press "total key (2)", all the lamps and lanterns into small night lamp mode, namely 3% brightness.

Press "(3) (4)" adjustable brightness, 10%, 100% brightness switch to each other: 10 levels.Single click, change, 10% for press, increased or decreased by 1%, the pine is stopped.

Pieces according to the "5 6" toning WenJian, cold white light - warm white light color temperature switch to each other: 10 levels.Single click, change, 10% for press, increased or decreased by 1%, the pine is stopped.

According to "grouping key open 7", open the corresponding lamps and lanterns, long press, corresponding to the lamps and lanterns in 100% neutral light;Loosen, then long press, into 100% cold white light;Loosen, long press again,

Into the warm white, 100% circulation in turn.Single press was "in" group key, corresponding lamps and lanterns is shut down, long press, corresponding to the lamps and lanterns into small night light mode.

Support manual wall switch control: electricity to remember to turn off the lights before mode for the first time.Immediately when the power is cut off again electrify, 100% neutral light;Repeat operation, 100% cold white light,

Repeat operation, warm white, 100% circulation in turn.

The code

Step 1: open the lamps and lanterns, continuous electricity more than 3 seconds;

Step 2: power again electrify immediately, the operating time is 3 seconds, the lamps and lanterns is turned .At the same time according to the corresponding

"Grouping key open" 2-5 seconds after the release.Such as lamps and lanterns extinguish immediately light up gradually, gradually to success.

Step 3: if no changes to code fails, repeated operation.

Note:

A: use the lamps and lanterns, the remote control lost, the circumstance such as how to use the batteries or damage to the lamps and lanterns?

Answer: can " the electric power - again electric operation will LED brightness control to the largest, color temperature adjustment to the middle level."Power - and then to electricity" operation, 100% cold white light,

"Power - electricity" again, warm white, 100% circulation in turn.

B: how do the overall adjustment all the lamps and lanterns, make the room lights brightness and color temperature?

Answer: long press " open button (1)" first four seconds, all lamps and lanterns into 100% neutral light, then press "(3) (4) adjust brightness", and "5 6" toning WenJian adjusted.

"Brightness" reduction to the lamp brightness to the lowest, can't turn off the lights.In turn off the lights, press the "brightness" can't turn the light

C: how to control the street lamp?

A: make sure you want to control the lamp for which group, click the corresponding "grouping" lamps and lanterns the remote control, and then press "(3) (4) adjust brightness", and "5 6" toning WenJian adjusted.

"Brightness" reduction to the lamp brightness to the lowest, can't turn off the lights.In turn off the lights, press the "brightness" can't turn the light
