Product Introduction

[ Word ] to introduce myself

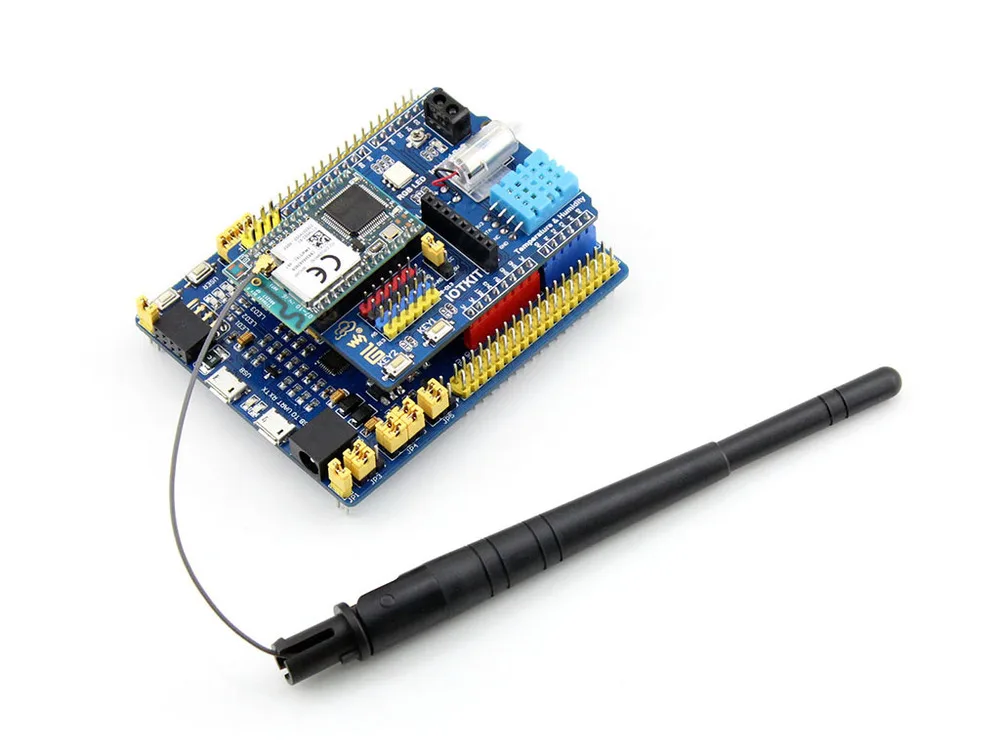

I was a cloud control peripheral development kit contains three main components , user-friendly controls to quickly build a prototype cloud .

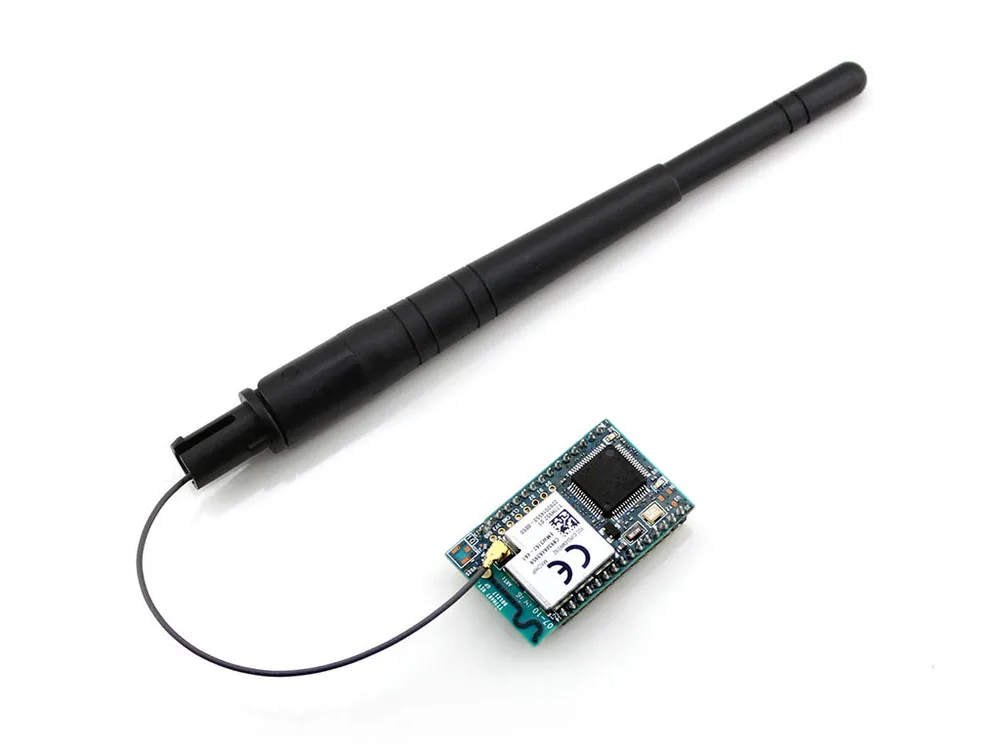

[ Introduction] EMW3162

Easy Link Smart networking support ( provided APP)With a shield : stronger anti-interference abilityOn-board PCB antenna can also be connected to an external antenna via IPEXThe firmware supports cloud services Cloud platform provides cloud control protocol manual , user develop their own applicationsCloud platform IOS, Android 's APP ( open source SDK), the mobile device via 3G, 4G or WIFI network remote control etc.
 Cloud platform Open API, users can maintain the way through HTTP binding relationship between the user and the equipment , data acquisition equipment , send control commands to the device , etc.Support Web Remote firmware updateProvides transparent serial transmission firmware
Provide mxchipWNet-DTU firmware serial transparent transmission can be set by MWToolBox software parameters , serial port baud rate range: 2400-921600 , support hardware flow controlSupport secondary development of software libraries
Provide mxchipWNet and mxchipWNet plus standard software libraries , users can be based on the development of embedded software library Wi-Fi applications on EMW3162

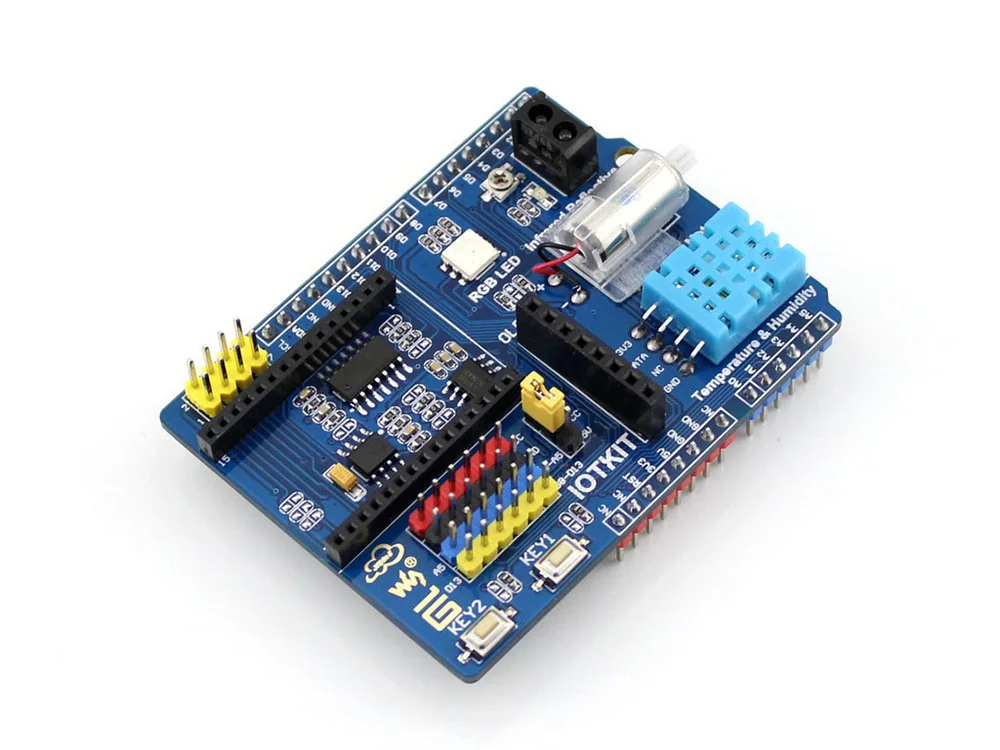

[ Introduction] IOTKIT

A-based standard interface design , compatible XNUCLEO, UNO PLUS, ST NUCLEO, A UNO R3 and A leonardo other development boardProvide WIFI interface, compatible marvell, Qualcomm, Broadcom and TI mainstream WIFI moduleOnboard peripherals commonly used sensors and common , user-friendly development and debuggingReserved 4Pin sensor interface , more user-friendly external sensing moduleProvide access to cloud services smart device development case , you can remote control via mobile phone APP Development Board

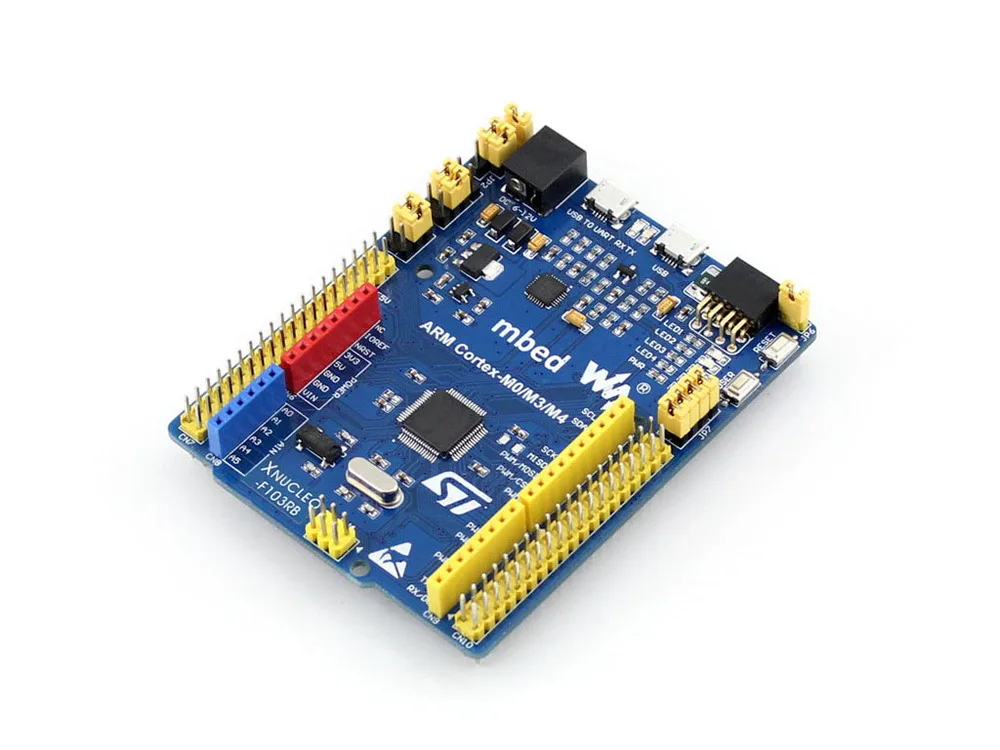

[ Introduction] XNUCLEO

Compatible NUCLEO-F103RB, based on the Cortex-M3 STM32F103RBT6Compatible with A, A expansion boards support a variety of access A huge ecosystem of more potential resourcesST Morpho provides extended pin , to make A I / O interface fewer defects , connecting peripheral devices to facilitate freedomSupport mbed, mbed SDK support and online tools to quickly build prototypes , shorten development cyclesWith mbed online resources , you can refer constantly updated , rich STM32 comprehensive library and a variety of packaged software HAL routinesIOTKIT Resources Introduction

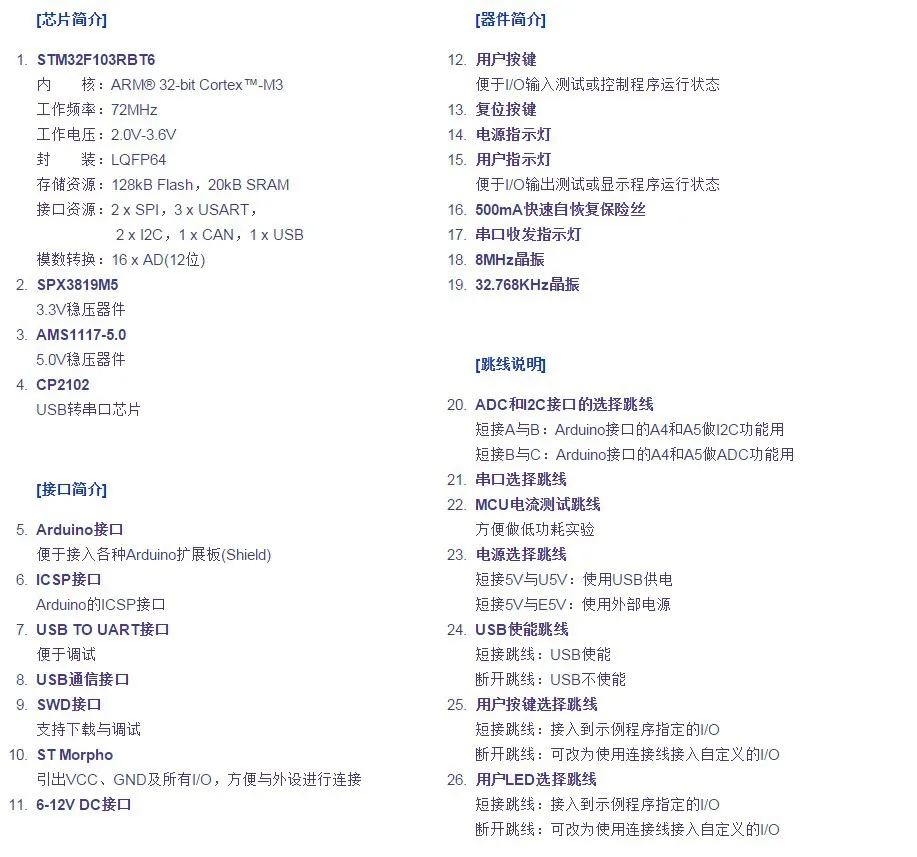

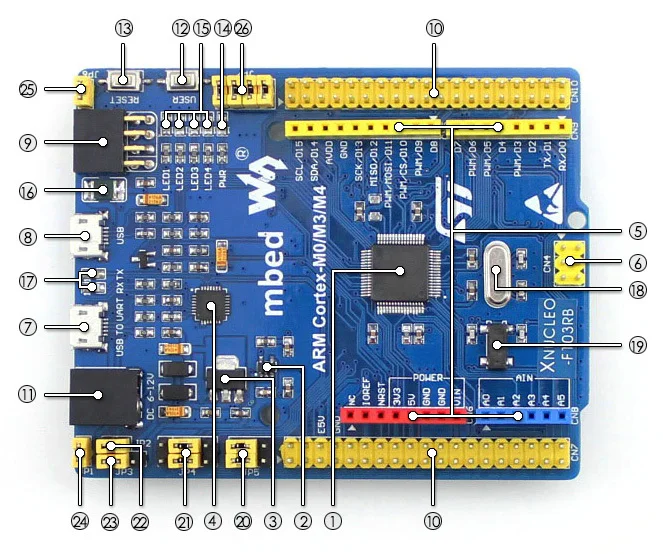

XNUCLEO-F103RB Resources Introduction



Product Image Product Information

Path: waveshare.net/wiki/IOTKIT
waveshare.net/wiki/XNUCLEO-F103RB

Detailed configurationEMW3162 x 1IOTKIT x 1XNUCLEO-F103RB x 1ST-LINK / V2 (mini) x 1USB cable type A Male Male micro switch x1 Warranty Information

Warranty 24 months.
