4.3 STONE Intelligent TFT LCD Module With Colorful Touch Screen & RS232 Port To Any MCU

STVI043WT-01

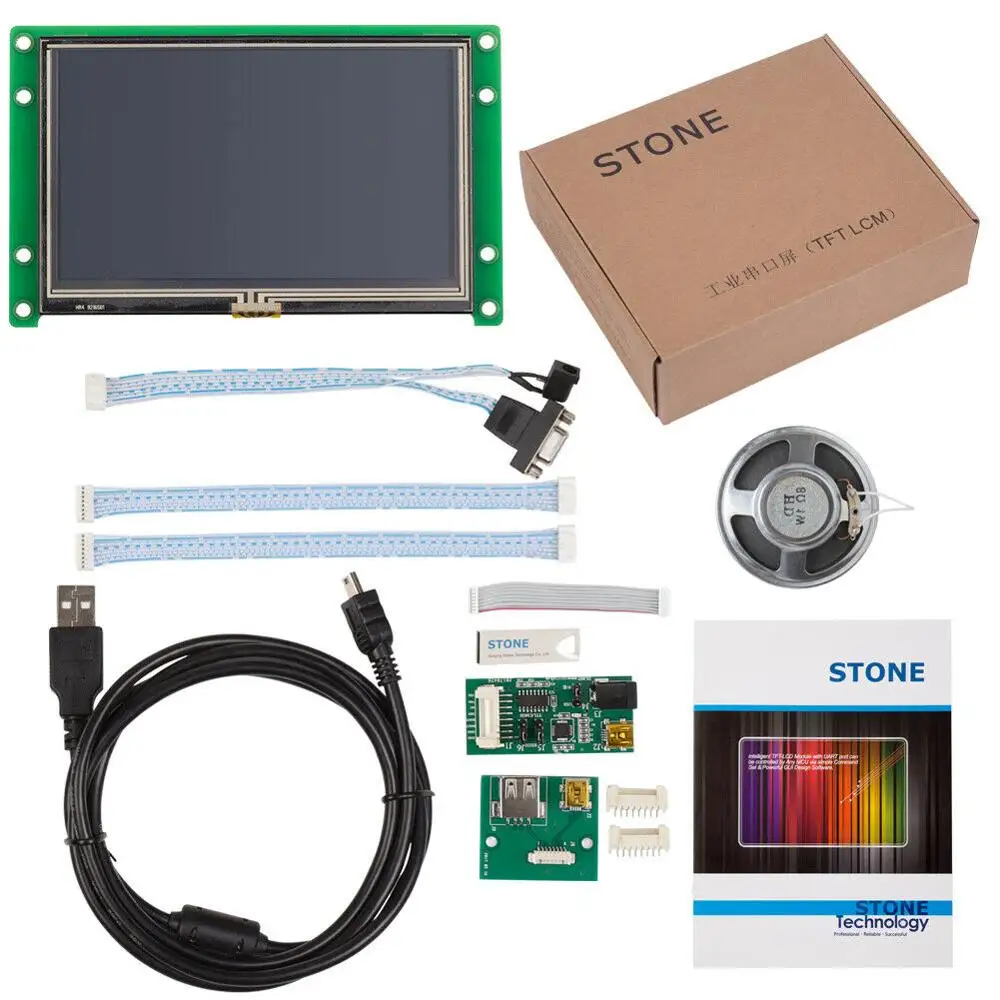

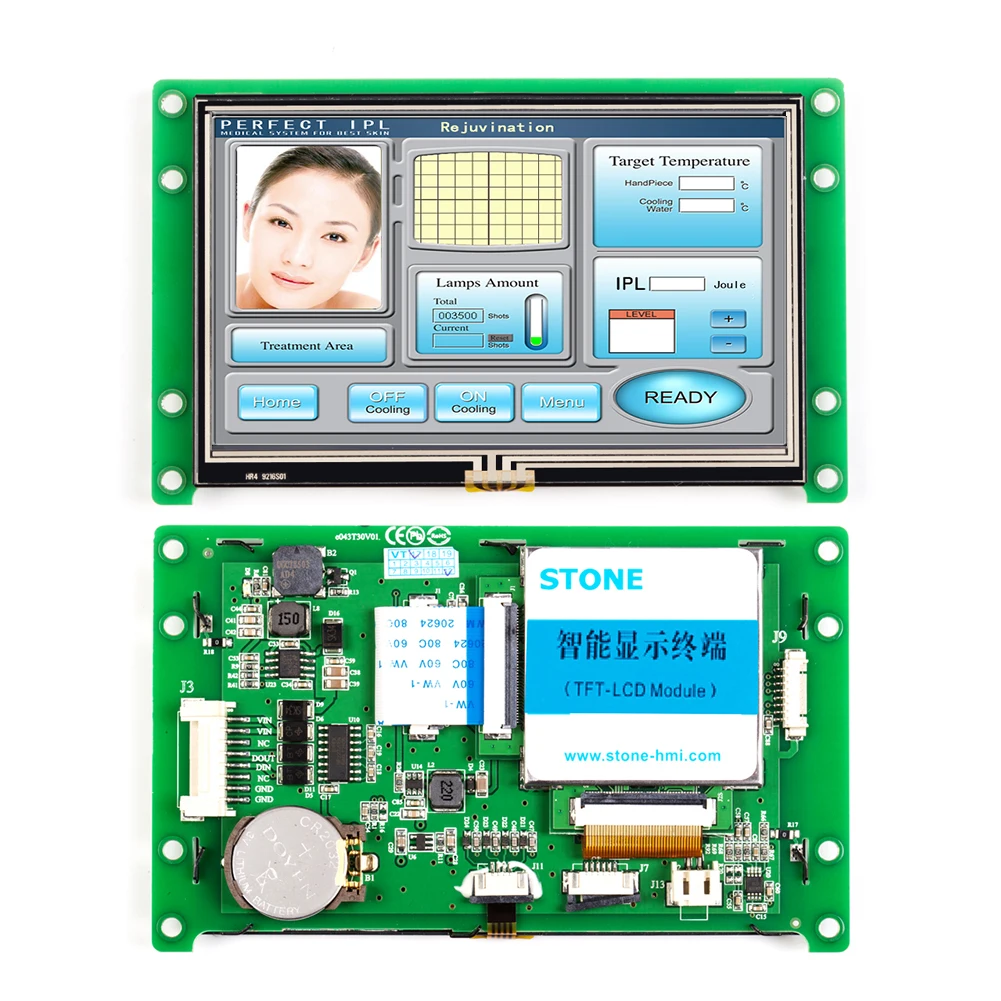

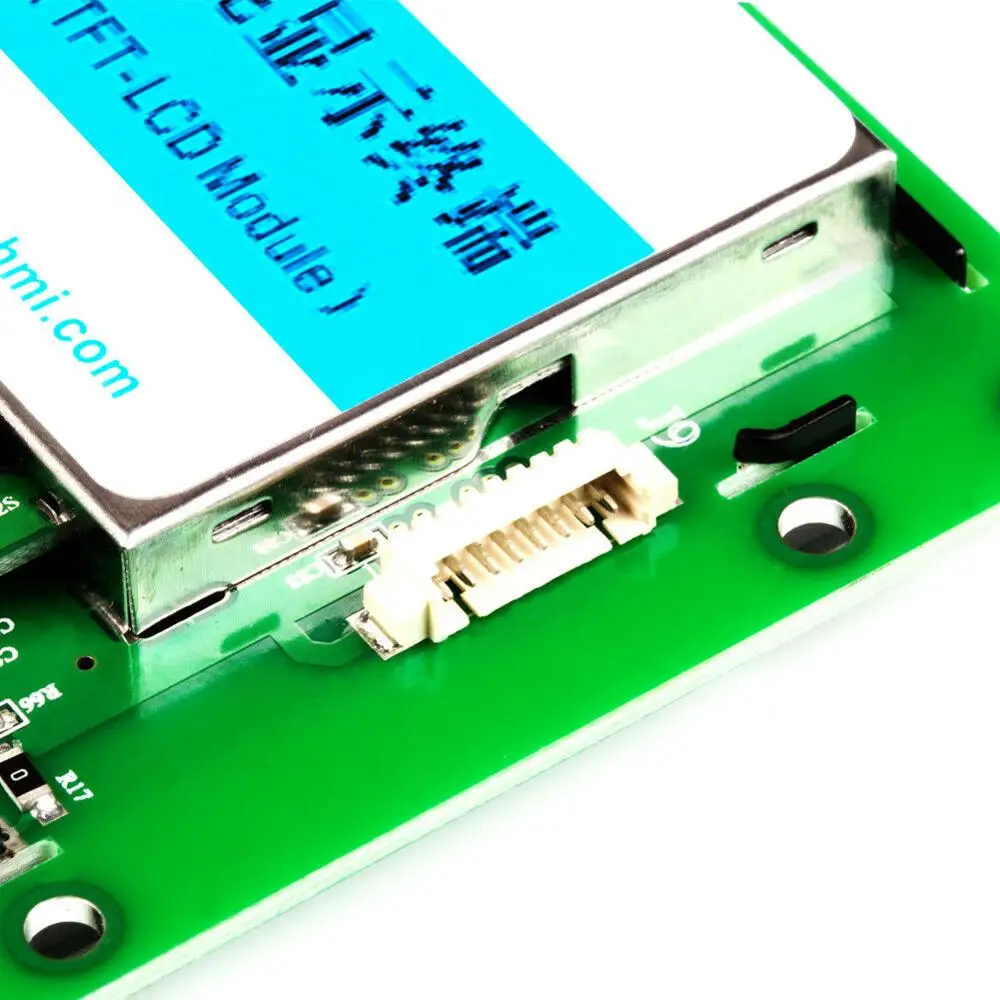

The STVI043WT-01 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.

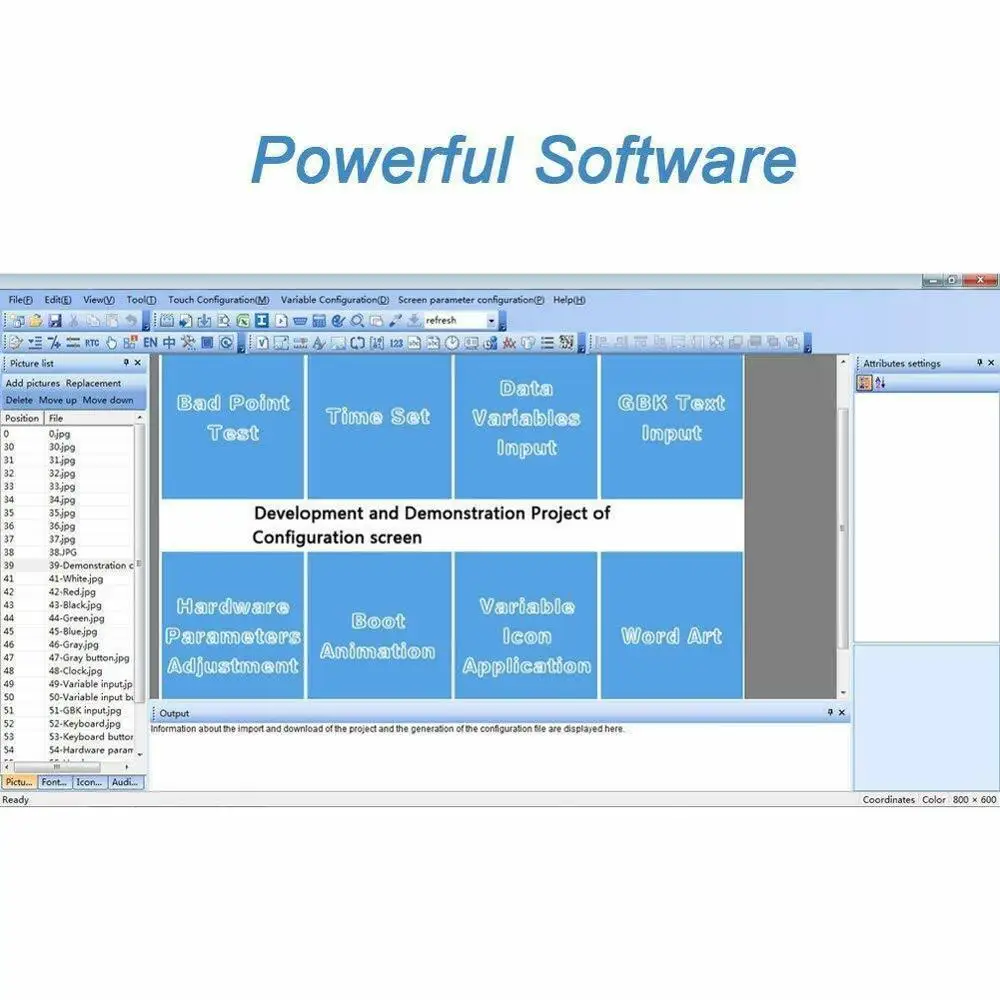

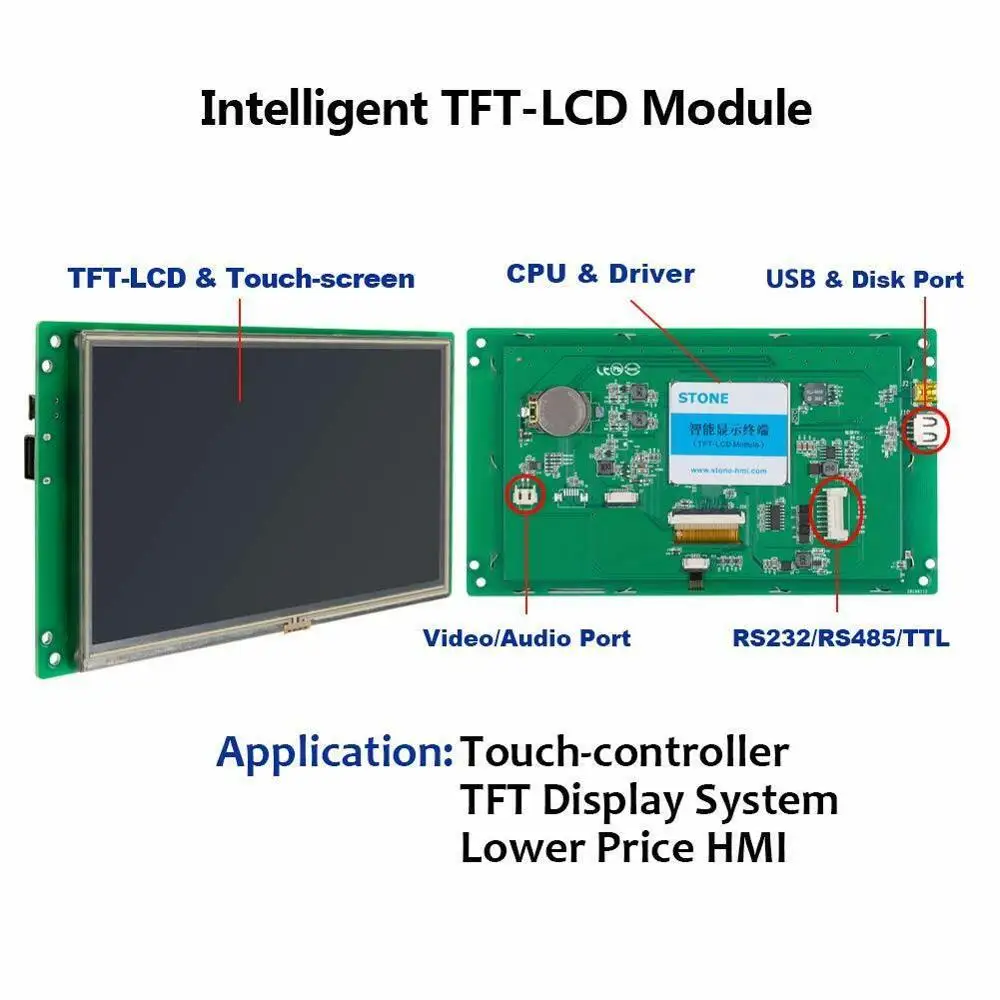

The STVI043WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers.

1.Design a group of individual Graphic User Interface!

2.Connection by RS232/RS485/TTL/Level Directly!

3.Write the C or C++language program for ANY MCU to control

the TFT-LCD Module via Simple & Powerful Hex Command Set!

Physical Parameter

 Model

STVI043WT-01

 Size (Inch)

 4.3"

 Resolution

 480×RGB×272

Color

65536 colors (16 bit)

 Viewing Area

 95 mm × 53.9 mm

Pixel Spacing

0.1905 mm × 0.0635 mm(H×V)

 Overall Dimension

 121.9mm×74.7mm×13.8mm(N)/15.4mm(T)

Net Weight

115 g(N)/ 155 g(T)

TFT Panel

A+ Class Industry Panel

Touch Screen

Industry Level 4 wire resistanceOr without touch screen is optional.

Backlight Parameter

Backlight Type

LED

 Brightness

 1000 cd/m2(Brightness can be adjustable in 100 levels.)

Contrast

500:1

Backlight life

50,000 hours

Viewing Angle

70°/ 70°/ 50°/ 70° (L/R/U/D)

 Working Temperature

 -20°C ~ +70°C

Working Humidity

55°C, 85%

Storage Temperature

-30°C ~ +85°C

Screen Mode

Digital

Performance Parameter

 CPU

 CortexM4

LCD Controller

CPLD EPM240

Refresh Rate

200MHz

 Picture Switching Speed

 19 ms/picture (53 pictures/s)

Flash Memory

Standard 128m, Extension 1GB

Memory Amount for picture

According to the capability of the image, Suggest "JPG" format

 Interface

 RS232/ USB Interface

Pictures downloading

USB2.0 (12Mbps) & U storage Disk downloading

 Voltage Range

 DC6.0V ~ 40V (typical value: 12V)

Power

0.8W

Test Report

MTBF

4,250,000H

Working Temperature

-20°C ~ +70°C

Air Humidity

60°C, 90%

Continuous Vibration Testing

10-55Hz, 1.5mm, 10G

Impact Acceleration Testing

6ms, 100G

ESD Testing

10KV

Radiation Reliability Testing

44W

Main Size of TFT LCD Module

 Size

 Resolution

3.5''

320*240; 320*480

4.3''

480*272

5''

 480*272; 640*480; 800*480

5.6''

 640*480

5.7''

 640*480

7''

 800*480; 800*600; 1024*600

8''

 800*600; 1024*768

9.7''

 1024*768

10.1''

 1024*600

10.4''

 800*600

12.1''

 1024*768

15.1''

 1024*768

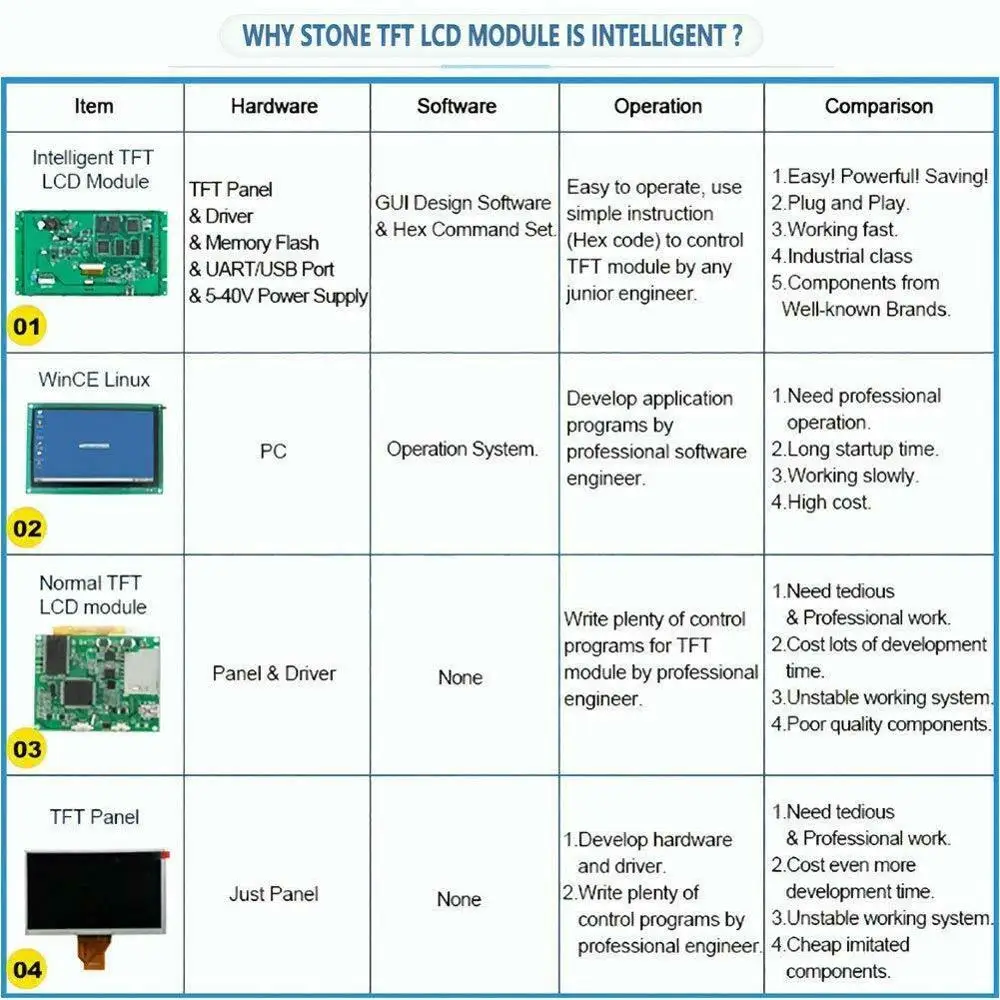

 WHY STONE TFT LCD MODULE IS INTELLIGENT?

Item

Hardware

Software

Operation

Comparison

TFT Panel &Driver &Memory Flash &UART/USB Port &5-40V Power Supply

GUI Design Software &Hex Command Set

Easy to operate,use simple instruction (Hex code)to control TFT module by any junior engineer.

1.Easy!Pwerfull!Saving! 2.Plug and Play.

3.Working fast.

4.Industrial class 5.Components from Well-known Brands.

PC

Operation System

Develop application programs by professional software engineer.

1.Need professional operation.

2.Long startup time.

3.Working slowly.

4.High cost.

Panel & Driver

None

Write plenty of control programs for TFT module by professional engineer.

1.Need tedious & Professional work.

2.Cost lots of development time. 3.Unstable working system.

4.Poor quality components.

Just panel

None

1.Develop hardware and driver.

2.Write programs by professional engineer.

1.Need tedious & Professional work.

2.Cost even more development time.  3.Unstable working system.

4.Cheap imitated components.

Beijing STONE Technology Co.,Ltd. is a leading manufacturer of HMI product (Intelligent TFT LCD Module and Industrial PC).Characterized with cutting-edge technology and reliable support for customers from over 80 countries, And having specialized experience in TFT LCD Module and industrial PC's R&D, manufacture and market for more than 14 years from 2004.We always following the STONE spirit of "Professional Reliable Successful" these years, and have achieved tremendous success in the global market due to leading technology, reliable service and price domination.

1.    Does your product include program software?
A:  Yes. The free graphic user interface software is included.

2.    How do you program the display?
A:  We don’t have to write any code for the display or program the driver. Our display set include CPU and memory, you can directly use .jpg file to generate a GUI and use it to send HEX command set to communicate with your micro control unit.

3.    What kind of interface does this display have?
A:  The display set is using UART serial port (RS232/RS485/TTL) to communicate with any kind of MCU unit by HEX command sets.

4.    Can the display play video/audio files?
A:  Yes. The basic display set have 128 MB memory space and you can storage any video/audio file in it. The display can play the files directly.

5.    Are you using resistive touch or capacitive touch display?
A:  We have resistive touch, capacitive touch and non-touch display available.

6.    What else do I need to use this display set?
A:  We provide the cable, converter, software and manual. You just need a PC with windows system, and a 12V DC power supply to work with the display.

7.    I don’t know how to design the GUI or communicate with my device. Where can I get help?
A:  We provide a specific English manual and development guide for you. You can get any knowledge required for the developing. You can also check our YouTube channel for the instruction video, or directly contact with our sales to get some assistance.

8.    What if the display was broken or failed?
A:  We provide 3 years unconditional warranty for our I-serial and A serial display, 1 year unconditional warranty for the C-serial display. You can get a free replacement if your display was damaged or failed.
