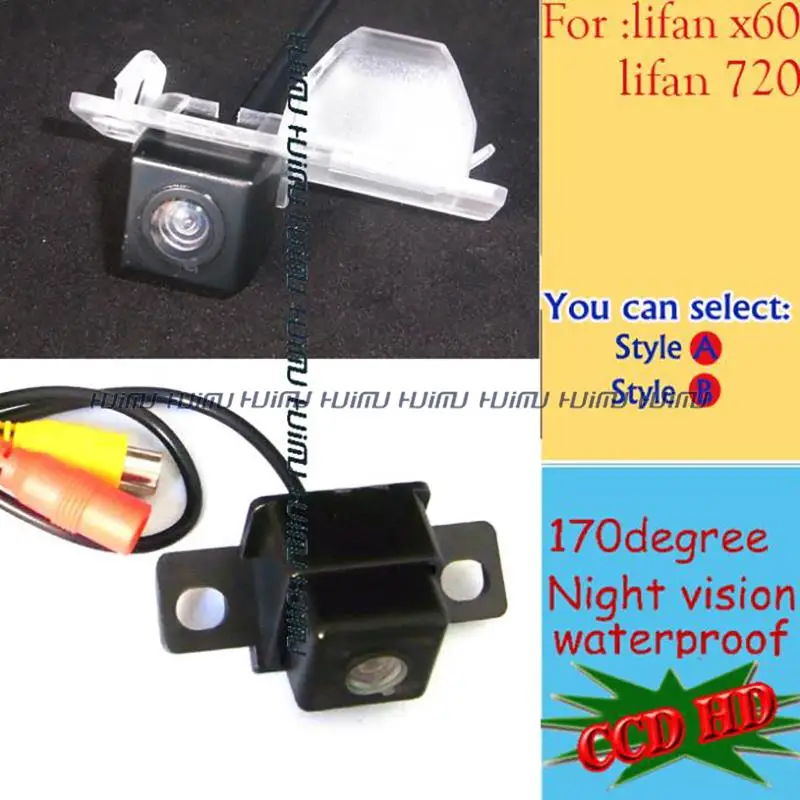

Wireless wire CCD car Rear reversing camera for sony ccd Lifan X60 720 licence plate light parking assist | Автомобили и

 (Kindly Note:  due to our company's products are constantly updating, when the chip upgrade, the guide line may be a little different ,we don't special notice it ,we will update quickly  our description same as the upgraded product . of course ,buyer can contact with seller and get the new message before you buy..)

Special Car Rear View reverse backup Camera for

Kar1:for X60

Kar2:for lifan 720

In different countries, car models can be differentiated



Please check your car original reserved camera position  size before you buy ,thanks. Maybe a few of the country's camera are different.



 Style1:for lifan x60







Style2:for Lifan720





The cable as below (6m AV cable as default)













for wireless Transmitter receiver shown

 1,when you connect normal monitor 4.3 /5" ,DVD wihtout trigger line ,please select this

2,when you connect portable GPS for  ,the plug is 2.5mm







IMPORTANT NOTE: if you will connect 7" monitor or your DVd with reversing trigger line.please have to buy wireless receiver with trigger line,and please have to pay for $1 ,CLICk here or below picture to pay for 1USD

the blue line is ACC reversing the priority line

Connection:

 Kindly answer your questions:

  All chips description below <1>below CCD camera's image shown CCD camera is high clear, better quality than the Colorful CMOS andCMD Dark nigh time:    NOTES: The Night vision is just in case of reversing lamp, the Picture comes from real recording Video With LED's camera effect

<2>for CCDSony camera's image shown

Shown effect night vision(actual shooting night effect,only rear reversing light source,but the shown effect is very clear, Almost no noise, it is the best camera.)

 Specification: Image Sensors                               1/3"Color CCD  (default)

1/3"for CCDSony  color

TV System NTSC/PAL(NTSC as default,If you want Pal system, please note it) Effective Pixels 720X480/720x576 728X582/728x512 Sensing Area (mm) 3.3 x 2.6 3.3 x 2.6 Resolution (TV Lines) 520 600 Minimum illumination 0.1 Lux / F1.2 <0.1 Lux / F1.2 with lED's 0.01Lux/F1.2 Horizontal Sync.Frequency 15.625 KHZ 15.625 KHZ Vertical Sync.Frequency 50 HZ 50 HZ Video Output 1.0Vp-P75 Ohm 1.0Vp-P75 Ohm AGC Auto Auto BLC Auto Auto Night Vision Yes Yes IP Rating IP67~68 ip67~68 S/N ratio Better than 48dB Better than 48dB Lens F=1.8 F=1.8 Lens Angle (Deg.) wide angle 170 (Diagonal angle) Current Consumption (mA) 85~115 Power Supply (DC V) 12V 12V Operating                           Temperature (Deg.C) -20~+75(RH95% Max.) -20~+75(RH95% Max.) Storage Temperatur(Deg.C)    -40~+85(RH95% Max.) -40~+85(RH95% Max.) Package: For wire camera 1 x car Camera
1x 6m video cable 1x power supply cable 1X user manual For wireless camera: 1x car camera 1x Transmitter 1x receiver 1x user manual     manuals compare

Product quality certification

How to install : o Take out your stock license plate light at the back of your car. o Fix the camera to where the stock license plate light was. o Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power o Connect the power of the camera to your car reverse lights - red wire to positive and black wire to negative. o Connect the video cable of the camera to the extension cord. o Connect the extension cord to your car monitor. o You will see the images when your car is in reverse shift.   Payment and shippment: We accept ESCROW payment(ESCOW support many payment way such as Credit card, West Union). only and ship to address provided by Alixpress address. If you need to change your address,please note to us first as we will only ship to your Alixpress address. Make sure your detail address and full name in Alixpress is absolutely correct We will ship to worldwide.
