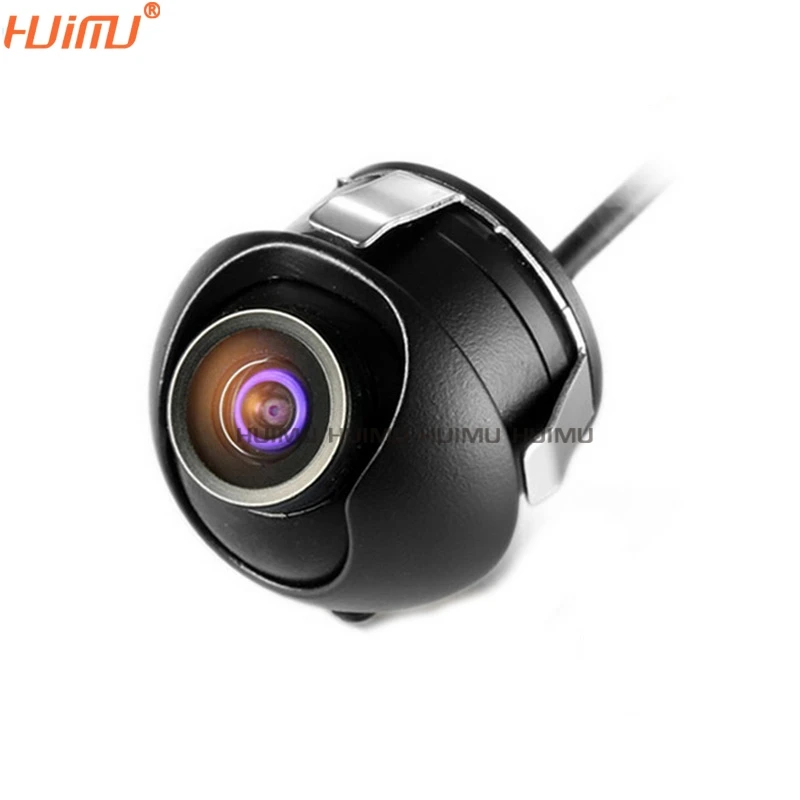

Легко устанавливаемая камера CCD 360 градусов с монитором заднего вида 4,3 дюйма, складывающимся TFT LCD видеоэкраном для обратной камеры.

Легко устанавливаемая камера CCD 360 градусов с монитором заднего вида 4 3 дюйма складывающимся TFT LCD видеоэкраном для обратной камеры.

 Hot sales

 this Camera (rear view /front view /side view ) fit all of car

 please read "Common problems and solutions" before you order,it is below

 Main feature:It can be 360 degree rotation

Special Car Rear View reverse backup Camera (rear view /front view /side view ) rear view camera with reference line as default (if you want  front and side view ,please leave message,thanks) for all class of  cars,It can be connect DVD AV plug (AV plug as default) and GPS 2.5mm plug(leave message)

 Main feature:It can be 360 degree rotation

Kindly note: (If you want to buy wireless camera ,please click below wilreless picture or here

please first you put the two product links  into "add to car" then to buy

GUide: select your product

wireless camera only include :camera ,wireless reciever and Transmitter,manual ,not include wire.

Note: CCD camera is high clear, better quality than the Colorful CMOS andCMD.

 we have seven colors for this camera,Black camera as default ,if you need other color ,please have to leave message.

Because the light,or monitor screen. individual product pictures and real color may be difference, it's normal phenomenon.please understand.thanks.

 the 7colors is available in China , only black color for USA sending,please learn,thanks

 compare with the power wire

  we select only 2mm high cost of enameled wire, in the case of high quality , it is very small and soft ,so it is very easy to insall and adjust the angle

see the below picure ,if we use wire (2) ,the a is difficult to adjust 90 ,because the position b is very narrow. another, our car rear-view mirror have no

enough of position.

 Installation as shown

Monitor 1,

(1) Can this camera install on rearview mirror recorder?

NO, it can't ,Usually it can connect TFT monitor, mirror monitor,RCA DVD ,but can't support any Driver recorder.

(2) Is the camera front /side or rear view?

the camera can be rear view /front view /side view . please buy it according the options

(3)the camera have 7 colors ,do we can select  the colors?

when the camera will be send from USA or Russion ,you can't select ,please buy according to the

when you slect shipping from China, you can select from the 7 colors .but have to leave message to us.

(4)about the video line, it is AV or AVIN(2.5mm) for portable?

AV is default,if you need AVIN ,please leave message follow your order,(only support Shipment from China )

(5).Why the image occurred jitter, splash screen, interference,unstable, Black and white  color when you  are reversing?

1) The image becomes black and white color just because you buy a wrong TV system. This camera built in NTSC system as default,

if your monitor is PAL system, it will be showed jitter , Black and white color.

Solution:

a. Please set up the GPS TV system as automatic firstly when using, then see whether it still can set the system.

 Because there are many monitor with 2 system in market, it can set. But some old-type GPS can't set. So please choose the right system to fit the camera.

b. Please must check the right cable connection installation.

c. If above solutions still can't deal, please ask your local professional car staff for help.

2) The image occurred jitter, splash screen, unstable just because the

voltage is lower than we suggest.

Solution:

Different place and using-situation will occurred some of the car output voltage is different. Car reversing is not powered by DC,

it will add a Pulse signal to disturb , so it will unstable .So we suggest you need check the voltage whether as 12V,or please add a delay to use.

(6)our car have video and power cable,Can you use it when I buy this camera?

Yes, it can, it support RCA plug. But we suggest you don't use youself cable, because the line may be aging and defined different .

7.How to install?

a. For universal camera, it installs through 2 screws and backrest or .it can fix near the location of license plate light.

b. For dedicated camera, it installs in license plate light directly. We suggest you install the camera in professional car modification and beauty shop

For wire camera

(this link only wire)
