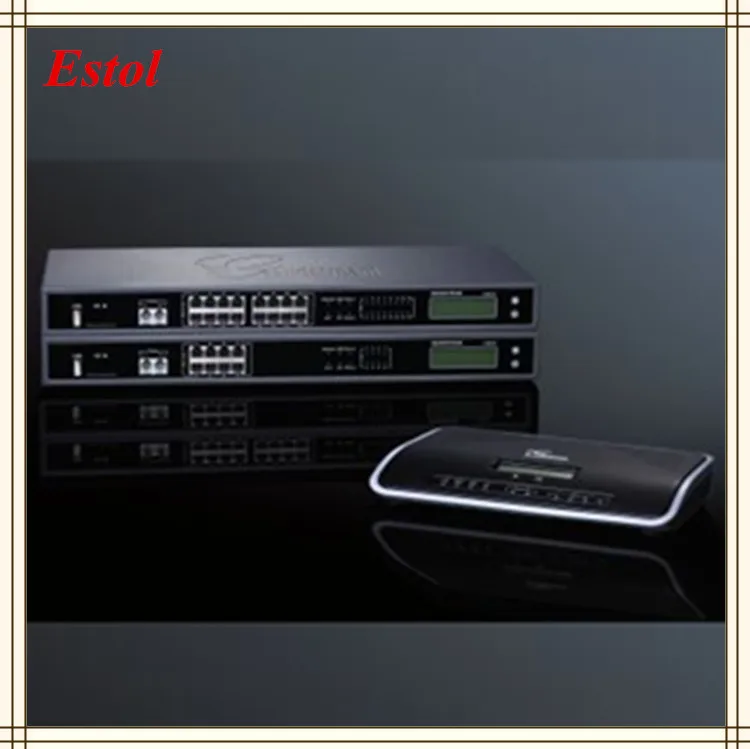

Grandstream UCM6100 IP PBX встроенный 2/4/8/16 FXO pstn линии СОТРУДНИЧЕСТВА с 500 SIP расширением



>English>French>German>Italian>Russian>Spanish>

500 IP Extensions

2 FXS and 2/4/8/18 FXO Ports

30/45/60/60 concurrent Calls

Related product



Declare: This product link is for UCM6102,if you need order UCM6104/8/16,please leave me a message after an order. Then I will revise the price and shipping cost for you before your make the payment. Price listed as bellow:

UCM6102 with 2 FXS and 2 FXO price@USD360/pc UCM6104 with 2 FXS and 4FXO price@USD480/pc UCM6108 with 2 FXS and 8 FXO price@USD880/pc UCM6116 with 2 FXS and 16 FXO price@USD1480/pc

Products Description

The UCM6100 series IP PBX is a full-featured, easy-to-manage IP PBX Appliance designed to bring enterprise-grade features to small-and-medium sized businesses (SMBs) without the need for licensing fees, costs per feature, or any recurring costs.   Powered by an advanced hardware platform with robust system resources, the UCM6100 series offers a highly versatile, turnkey solution for converged voice, video, data, and mobility applications, including fax and video surveillance.   Incorporating industry-leading features and performance, the UCM6100 series offers quick and easy setup and deployment using the web-browser user interface – which features auto-discovery of IP endpoints and zero-configuration provisioning. The secure and reliable UCM 6100 series delivers enterprise-grade features to SMBs with unrivaled reliability - all at an unprecedented price point. Integrated 2/4/8/16 PSTN trunk FXO ports, 2 analog telephone FXS ports, and up to 50 SIP trunk options Gigabit network port with integrated PoE, USB, SD; integrated NAT router with advanced QoS support (UCM6102 only) Supports up to 60 concurrent calls and up to 32 conference attendees Features Gigabit network port with integrated PoE, USB, SD; integrated NAT router with advanced QoS support (UCM6102 only) Supports a wide range of popular voice codecs (including G.711 A-law/U-law, G.722, G.723.1, G.726, G.729A/B, iLBC, GSM), video codec (including H.264, H.263, H263+), and Fax (T.38) Hardware DSP based 128ms-tail-length carrier-grade line echo cancellation (LEC) Supports up to 60 concurrent calls and up to 32 conference attendees Flexible dial plan, call routing, site peering, call recording Automated detection and provisioning of IP phones, video phones, ATA and other endpoints for easy deployment Hardware encryption accelerator to ensure strongest security protection using SRTP, TLS, and HTTPS Integrated 2/4/8/16 PSTN trunk FXO ports, 2 analog telephone FXS ports, and up to 50 SIP trunk options Specifications

Technical Specifications

UCM6102

UCM6104

UCM6108

UCM6116

INTERFACES

PSTN Line FXO Ports

2

4

8

16

Analog Telephone FXS Ports

2

2

2

2

Network Interfaces

Single or Dual (UCM6102 only) 10M/100M/1000M RJ45 Ethernet port(s) with integrated PoE Plus (IEEE 802.3at-2009)

Data Router

Yes

No

Peripheral Ports

USB, SD

LED Indicators

Power/Ready, Network, PSTN Line, USB, SD

LCD Display

128x32 graphic LCD with DOWN & OK button

Reset Switch

YES

VOICE/VIDEO CAPABILITIES

Voice-over-Packet Capabilities

LEC with NLP Packetized Voice Protocol Unit, 128ms-tail-length carrier grade Line Echo Cancellation,

Dynamic Jitter Buffer, Modem detection & auto-switch to G.711

Voice Compression & Fax

G.711 A-law/U-law, G.722, G.723.1 5.3K/6.3K, G.726, G.729A/B, iLBC, GSM; T.38

Video Compression

H.264, H.263, H263+

QoS

Layer 3 QoS.

SIGNALING & CONTROL

DTMF Method

In Audio, RFC2833 and SIP INFO

Provisioning Protocol & Plug-and-Play

TFTP/HTTP/HTTPS, auto-discovery & auto-provisioning of Grandstream IP endpoints

Network Protocols

TCP/UDP/IP, RTP/RTCP, ICMP, ARP/RARP, DNS, DDNS, DHCP, NTP, TFTP, SSH, HTTP/HTTPS, PPPoE, SIP (RFC3261), STUN, SRTP, TLS/SIP

Disconnect Methods

Call Progress Tone, Polarity Reversal, Hook Flash Timing, Loop Current Disconnect, Busy Tone

SECURITY

Media

SRTP, TLS, HTTPS, SSH, Syslog

PHYSICAL

Universal Power Supply

Output: 12VDC, 1.5A; Input: 100 ~ 240VAC, 50 ~ 60Hz

Environmental

Operating: 32 ~ 104ºF / 0 ~ 40ºC, 10 ~ 90% (non-condensing); Storage: 14 ~ 140ºF / -10 ~ 60ºC

Dimensions (L*W*H)

226mm(L)x 155mm(W)x 34.5mm(H)

440mm(L)x 185mm(W)x 44mm(H)

Mounting

Wall mount & Desktop (UCM6102/6104); Rack mount & Desktop (UCM6108/6116)

ADDITIONAL FEATURES

Caller ID

Bellcore/Telcordia, ETSI-FSK, ETSI-DTMF, SIN 227 – BT, NTT Japan (Pending)

Polarity Reversal/Wink

Yes, with enable/disable option upon call establishment and termination

Call Center

Multiple configurable call queues, automatic call distribution (ACD) based on agent skills/availability/busy level, in-queue announcement

Customizable Auto Attendant

Up to 5 layers of IVR (Interactive Voice Response)

Concurrent Calls

Up to 30 (UCM6102), 45 (UCM6104), or 60 (UCM6108/6116) simultaneous calls

Conference Bridges

Up to 3 (UCM6102/6104) or 6 (UCM6108/6116) password-protected conference bridges allowing up to 25 (UCM6102/6104) or 32 (UCM6108/6116) simultaneous PSTN or IP participants

Call Features

Call park, call forward, call transfer, DND, ring/hunt group, paging/intercom, etc.

COMPLIANCE

EMC

FCC: Part 15 (CFR 47) Class B, Part 68

CE: EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, TBR21, RoHS

A-TICK: AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AS/NZS 60950, AS/ACIF S002

Safety

ITU-T K.21(Basic Level); UL(Power Supply)
