Brand:Extension DiModel:



Product Type : Infrared automatic sensor taps wide voltage



Low cost automatic infrared sensor
( Sensor light box , faucets , urinal, red toilet , shower top )
Integrated control circuit board -

XNQ

-5001 Ultra-small size :29mm × 25mm × 17mm ( length × width × height ) , for a variety of facilities. Low power consumption:The average current is less than 40μ, taps less than 20μ, 4 -cell battery up to 2 to 3 years. Automatic sensing distance settings:According to the application environment can be set automatically sensing distance ( can also be set manually ) , and the distance is stable and reliable , anti- stray light ability. Low cost , strong function :A multi-purpose board ,Applicable Lightbox inductionWhile having faucets , urinal, red toilet , shower head function . Set the infrared transmitter and receiver, intelligent automatic water control, manual flushing , pulsed electromagnetic valve drive , stable and reliable. Seal housing , every mask and waterproof insert package:Easy circuit seal installation , the real integration. Product model .

XNQ

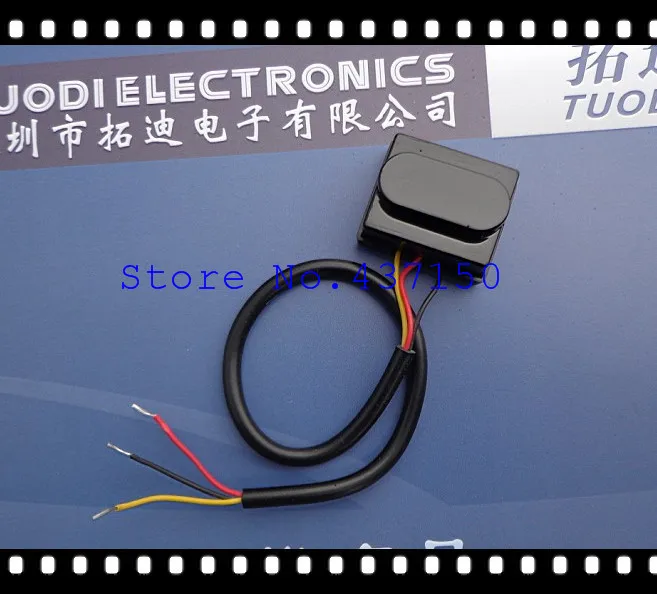

-5001 Functional Description Sensor module, high output, wide voltage Operating Voltage 5V-24VDC Operating temperature. -20 ° C ~ +50 ° C Quiescent Current <3uA Output Current 5mA Load capacity Driver transistor , microcontroller port Wiring Red positive , black negative , yellow output Output Mode Inductive output Light control range No Delay range Yuan Induction Active Induction angle 45 degree cone angle Sensing distance 10 ~ 150 CM Size 30 ( length ) * 25 ( W ) * 17.5 ( H) mm Related pictures:

XNQ

-5001
