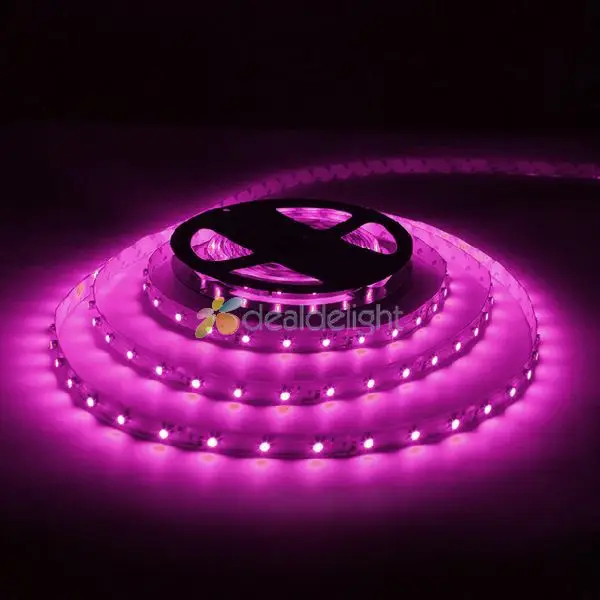

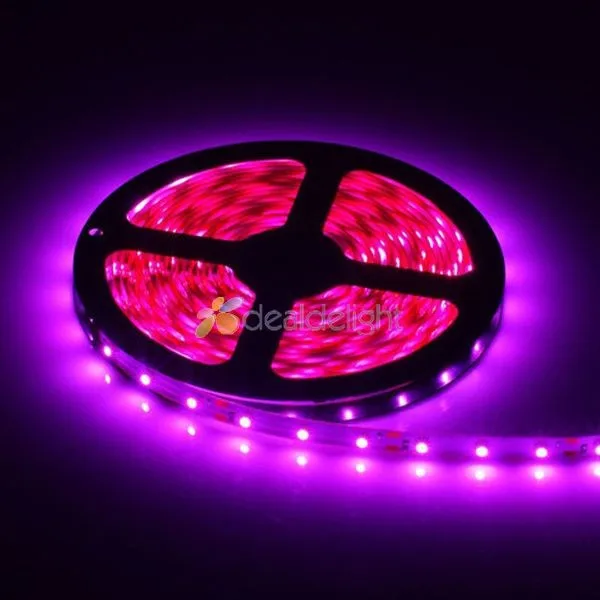

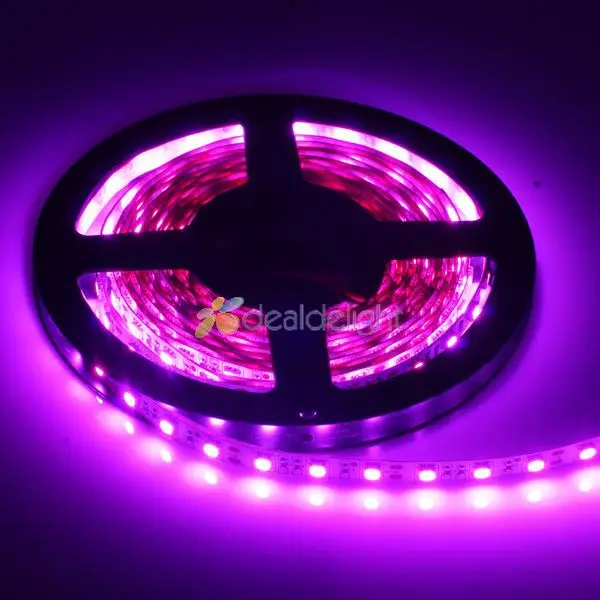

DC12V 5M/Lot 3528 SMD 60Led/m 300 Leds Non-Waterproof Flexible LED Strip Light Pink Color

    Features:     Superbright 3528 SMD top LED, high intensity and reliability.
Continuous length, packed with 5 meter per reel, each reel is a selling unit.
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Long life span 50,000+ hours
Flexible ribbon for curving around bends
Completely smooth and even light spread, solving the uneven luminous problem
Ultra-bright but running at low temperature
Self-adhesive back with 3M double side adhesive tape
Certification: CE & CCC
Low power consumption     Application:

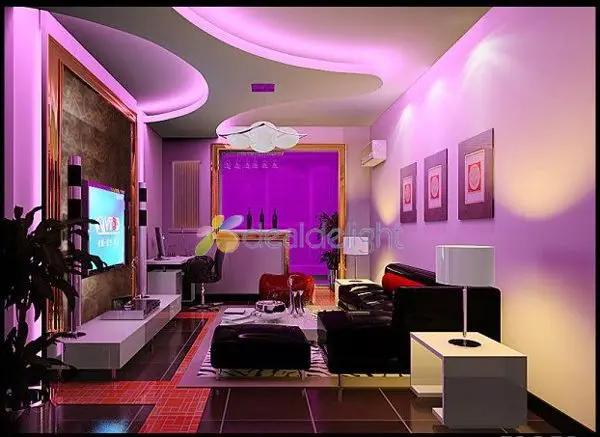

Widely used for home decoration use, hotels, clubs, shopping malls
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in Backlighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting     Specifications: LED Type: 3528 PLCC-2 SMT SMD LED (Non-Waterproof)
LED Quantity: 300 leds/5 Meter or 60 leds/Meter Color: Pink color Working Input Voltage: DC12V
Working Current: 2A /5 Meter Power Consumption: 24W /5 Meter Protection Rank: IP40(Non-Waterproof, indoor use only.) PCB Color: White Is Dimmable: Yes(dimmer required) Is Trimmable: Yes(cuttable every three LEDs) Drive Mode:Contant Voltage Beam Angle:120° Viewing Angle: adjustable by mounting position Working Tempreture:-20° to 50°
Size: L500cm (5M) x W0.8cm x T0.25cm
Package: 5 Meters / Reel Package size: 22 * 22 * 8cm
Package weight: 195g

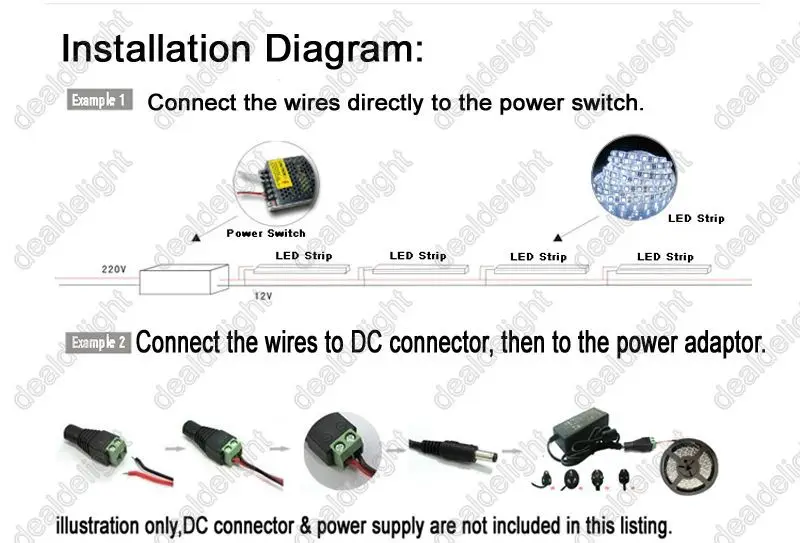

Cutting & Connection:

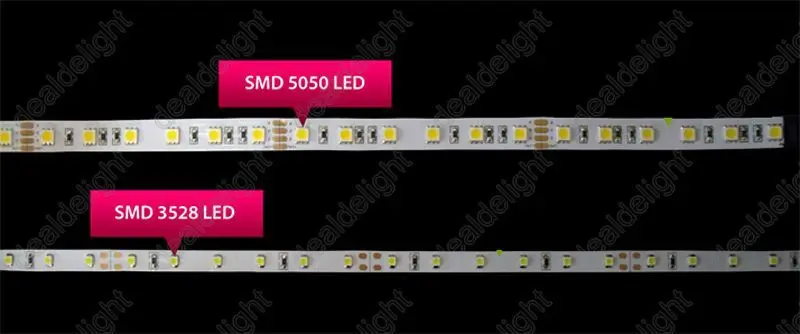

The difference between SMD3528 and SMD5050 LED Strips:

Currently there are 2 main types of LED strips one uses SMD3528 LED chips whilst the other uses SMD5050 LED chips. The difference between these is the sizes of the chip. The 5050 chip is 5.0mm x 5.0mm and the 3528 chip is 3.5mm by 2.8mm. Another noticeable difference is the width of the circuit board. The SMD3528 has an 8mm circuit board whilst the SMD5050 has a 10mm circuit board.

Despite the size of the 5050 being only slightly bigger it is x3 as bright as the 3528. This makes the 5050 version extremely popular when high brightness is required in a small space. Joy-deal supply both types and have healthy supply of stock at all times. We are a full LED solutions provider and will take the time to help you with your requirements no matter how inventive they may seem!

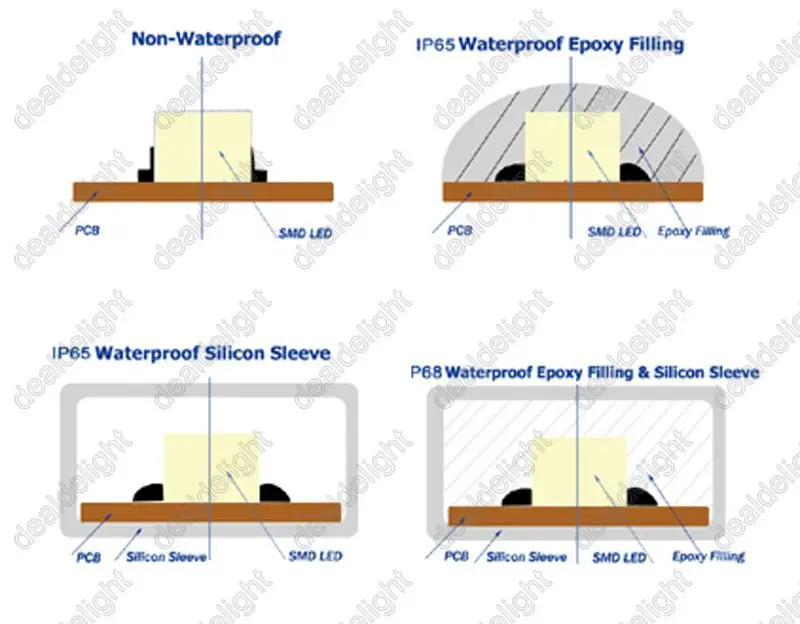

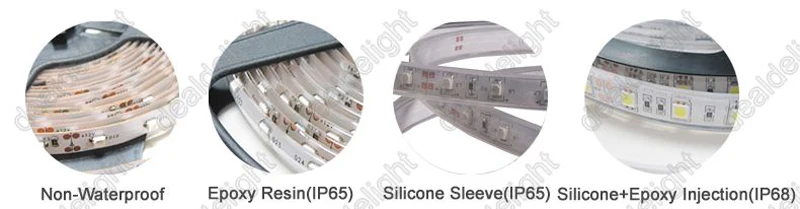

Difference between NON-IP, IP65, IP67 AND IP68 waterproof LED Strip:

Non-waterproof ------- Regular FLEX LED Strip: SMD LEDs are mounted directly on the surface of the flexible PCB(Printed Circuit Board), With 3M tape on the back, easy installation for indoor use. It has no resistance to liquid and should be installed in areas where water or other liquids cannot make contact with it.
Epoxy Resin covering(IP65) ------- LED strips dropped with Epoxy resin adhesive / PU gule to get water resistant coat on the surface, widely used indoor and outdoor. It is ideal for bar areas however it should not be used in areas with heavy waterfall. IP65 is extremely difficult to cut, solder and re-seal as the epoxy resin must first be scraped away carefully before being soldered.
Silicon tube waterproof(IP65) -------LED Strips encapsulated with a Silicone(or PVC)jacket. It can reach water-proof class IP64. Easy to access solder points to rejoin.We don’t recommend underwater usage but it is perfect for exterior environments. It is also easy to cut and re-seal as it comes with a mini sealing kit with every reel.
Silicon tube+epoxy(IP68) -------High IP standard, PVC/ silicone tube and sealed with silicone & PU, PVC & EPOXY inside. Widely used outdoor and under water. IP68 LED tape is ideal for use underwater. This is a very rigid strip that is suitable for water and underwater applications.





Safety and Maintenance Information:

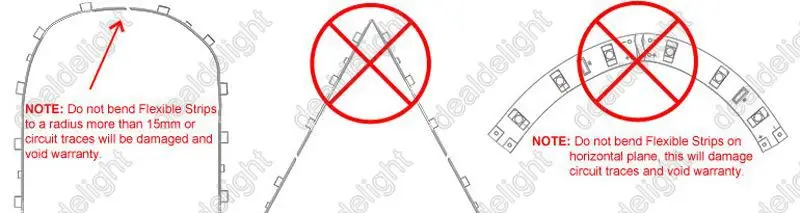

1. SMD LED ribbon itself and all its components may not be mechanically stressed.
2. Don't damage or destroy conducting paths on the circuit board while installation.
3. Make sure SMD LED ribbons are mounted to correct electrical polarity.
4. Parallel connection is highly recommended for its high safety.
5. Serial connection is not recommended because unbalanced voltage drop may damage SMD LED strips.
6. Insufficient and unstable power supply may cause flexible strip damage.
7. Don't install SMD LED ribbons directly on metallic or any other conductive surfaces.



Package/LOT Include:

1 x 5M 3528 SMD 300LEDs Pink Color Non-Waterproof LED Strip Light



Note: This item will be shipped within 2 days from the date of payment verification by registered China Post airmail with free tracking number so you can keep an eye on your order after delievery.

If you need more this kind items ,please contact us,Thanks very much!
