HOT new arrival free shipping Fotga DP3000 follow focus for DSLR 5D II III 7D 600D 15mm rod gear size optional high quality

Introduction

A follow focus is a focus control mechanism used in film and video cameras. It is ergonomic rather than strictly necessary; in other words it does not contribute to the basic functionality of a camera but instead allows the operator to be more efficient and precise. It is usually operated by a focus puller but some camera operators prefer to pull their own focus .

The mechanism works through a set of gears on the follow focus that are attached to teeth on the focus ring of the lens. These gears feed to a wheel which, when turned by a focus puller, will spin the teeth and thus the ring on the lens.


 This follow focus belongs to the new DP3000 series pubished by the FOTGA.It is with high quality,and light in weight.It is consisting of a improved gearbox,which promise no backlash or less backlash(<0.5mm).

 The gear on it can be detached and insalled in other side,which makes it suitable for both left-hand and right-hand photographer.

The white mark ring is made of magnet material.It can be detached or attached very easliy and quickly on matel-made follow focus.You can also buy additional mark ring.

There is a hasp on side,which can be used as a side scale point for locating your focus when you put the whole follow focus series on your shoulder and some higher place,where you are unable to see the top middle scale point.

Comaparing to most follow focus on the market,it takes advantage on the gear size.It can work with 3 different size gear to meet your different need with various lens:

M0.8-38T gear: 38x0.8mm pitch,diameter is approx.28mm (optional)
M0.8-43T gear: 43x0.8mm pitch,diameter is approx.31mm (optional)
M0.8-65T gear: 65x0.8mm pitch,diameter is approx.49mm (optional)

Only 1pcs gear included in this link,but you can choose the one you want.If we do not get any notification from you before shipping,we will ship the standard 43T.


Specifications:

Material: Metal and plastic
Zero backlash(<0.5mm).
Long-life precision engineered gearbox enables accurate and reliable focusing
Compatible with industry standard Follow Focus Whip or Crank.
Gear drive can be mounted from both side.(Works for both right-handed and left handed)
This set includes flexible gearbelt can be used with any zoom or prime lenses with a wide range of lens diamters(any size from 46 to 110mm)
Adjustable locking systems

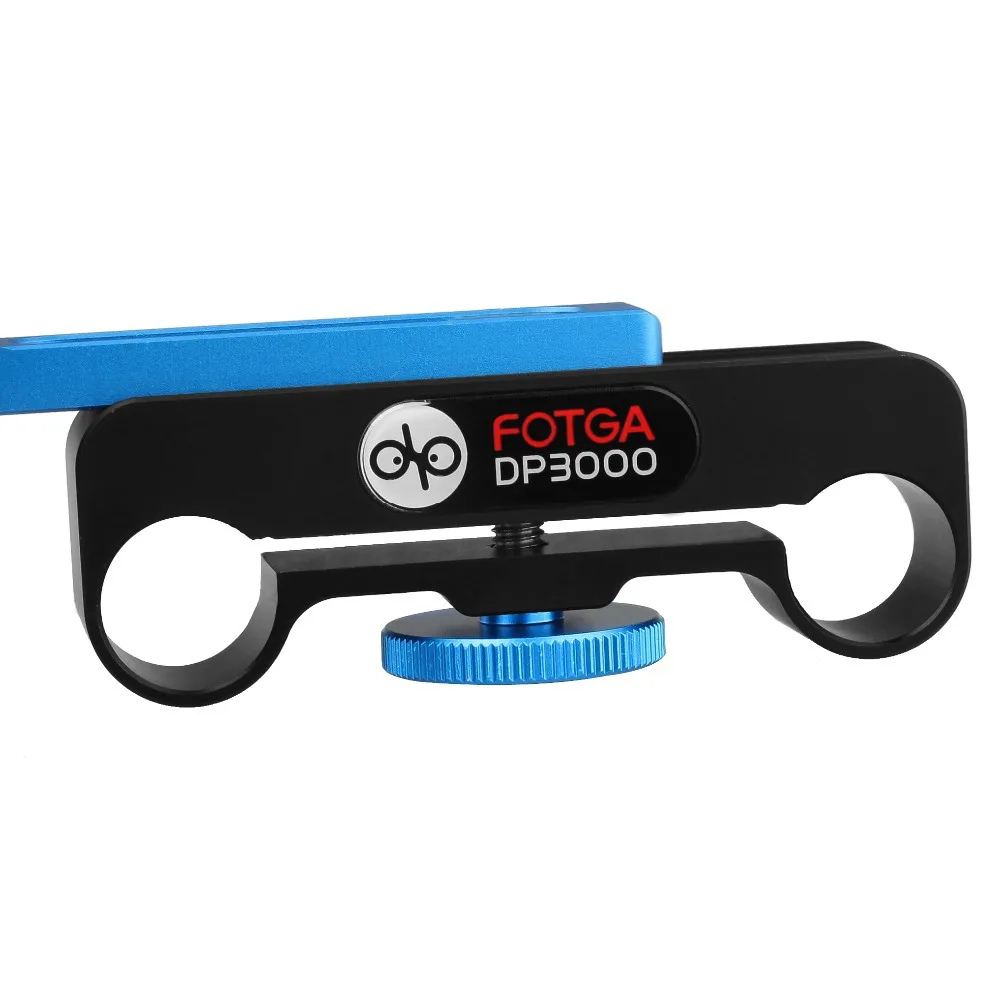

Mounts onto 15 mm Rod Support (60mm center to center difference).
MOD Drive Gear: Industry standard 0.8
Compatible with industry stand 15mm rods
Rail distance:60cm
Rail diameter: 15mm
net weight:228g

Suitable for:

All DSLR cameras,Vedio cameras

 Fotga DP3000 Follow focusx1
0.8mm matching gear belt x 1 (adjustable for 46mm-110mm)
Gear x 1

(Standard 43T gear will be included if we get no notification about the size of gear from you before shippment)
