Product Descriptions

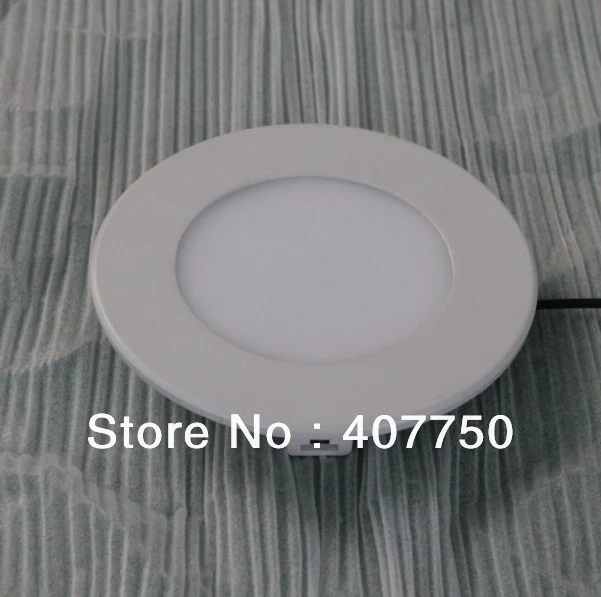

Product name  :SMD2835  12W led panel light
 Model No: GS-PL-2401
 Input voltage: AC85-265V  50-60HZ
 Output current ; 350mA-700mA
 Power Watt:3W/4W/6W/9W/ 12W /15W /18W
 Dimension :80*80mm/ 105*105mm/ 120*120mm/ 145*145mm /170*170mm/190*190mm

                      /225*225mm
 Cut hole:L155*W155mm/ Diametre 155mm
 LED quantity:60pcs SMD 2835
 Beam angle :  180degree
 Color:  white/cool white/warm white
 Life span:  >50000hrs
 Work temperature: -20~60 degrees
 Fixture material : Aluminium
 surface color : Sliver/Shining white / Brass /Matt white
 Beam color : red, blue, white, yellow, alternative
 Protection rate  IP20
 Certificate: CE&ROHS
 Lumen :1280lm
 Color temperature:  2700k-7000K
 Color Render Index :  75-90 Ra
 Power factor :  0.85-0.99
 Warranty: 2 years
Package:L180*W180*H50mm
 Weight:0.95KG

              Features:

 1)Super thin and efficient design
Unique extruded aluminum with very slim design (40mm thickness), lighting comes all around into light guide panel, more efficient heat dissipation, lowers the light decline efficiently. Ensure the lumen output maintenance factor above 80%, after using 35,000 hours.

2)High light efficient and energy saving
Bigger chip super Brightness SMD LED used as light source, the whole lamp with high intensity, and energy saved up to 50%.

3)Long Life Span
With top-quality SMD LED, and good heat dissipation, guarantee the life-span up to 5 years.
4)Top quality light effect
The whole panel with top quality light effect, instant start, no UV & heat radiation, no electric wave, no flickering, no humming, it’s an ideal green and environmental lighting.
5)Special heat
New inner high efficient (95%) heat protection system, the constant current driver can work under unstable voltage.
6)Environmental friend
Safe and durable, can be recycled utilization, no such hazard for lead or Mercury enter the environment.
7)High safety coefficient
The whole lamp is with high safety coefficient. With wide working voltage, low power consumption, and low heat dissipation, no potential safety hazard.
8)Double energy saving
We offer dimmable panel light for choice, you can dimmer you lamp with different requirement to achieve double energy saving. Our Panel goes smoothly while low brightness dimming without Blink.

  LED Panel Light Application:

1:Hotels

2:Conference/Meeting rooms

3:Factories&Offices

4:Commercial Purposes

5:Residential/Institution Buildings

6:Schools,Colleague&Universities

7:Hospitals and other places where energy saving and
 high color rendering index lighting are needed

 Installations
