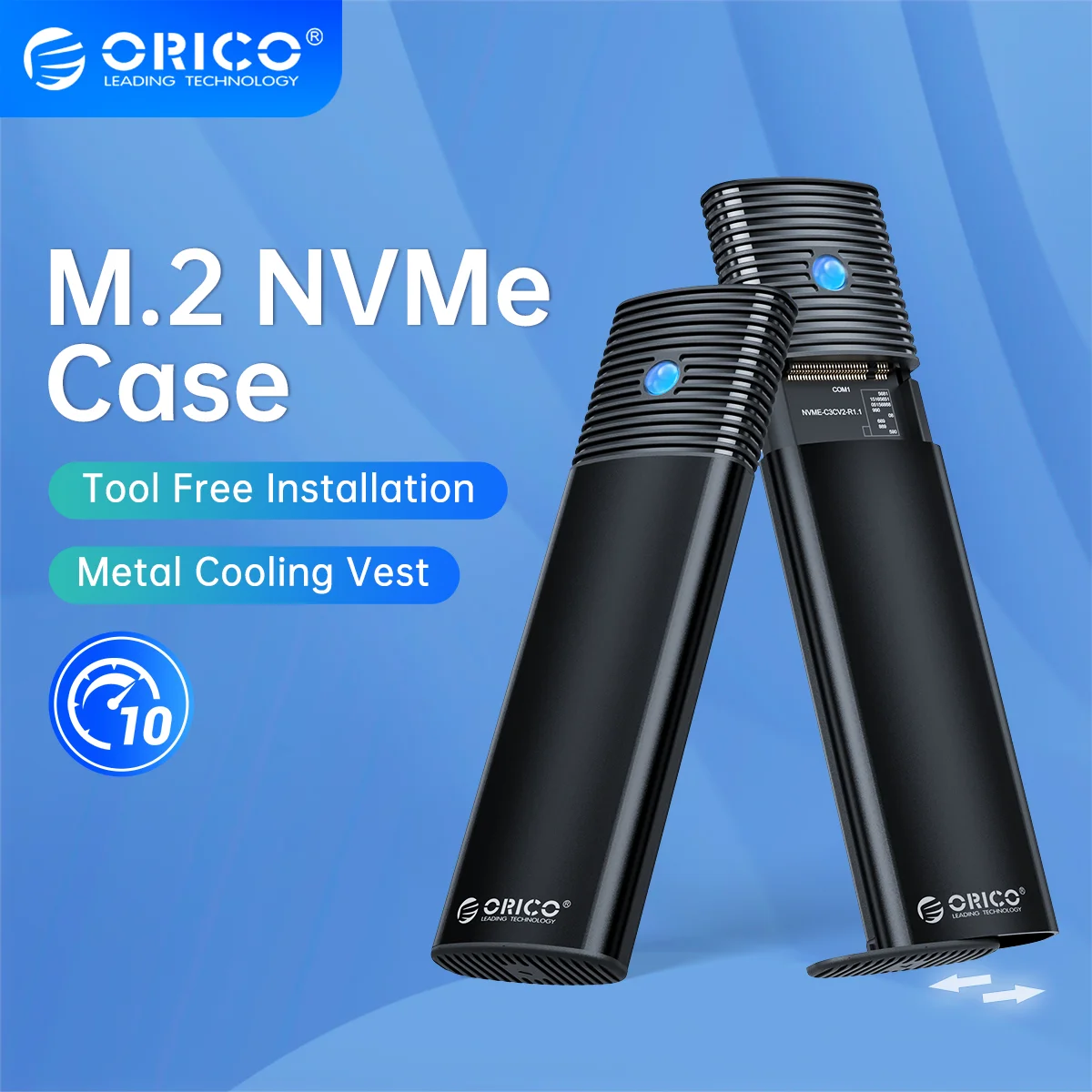

ORICO M2 SSD Enclosure NVMe NGFF 10Gbps PCIe Case Portable USB C 3.2 Gen2 Tool Free External Adapter with Metal Heat Sink |

ORICO M2 SSD Enclosure NVMe NGFF 10Gbps PCIe Case Portable USB C 3.2 Gen2 Tool Free External Adapter with Metal Heat Sink |

🔥 AliExpress Top 1 Selling M.2 NVME SATA SSD Case

🔥 Benefit: Buy 4 and get 4% off!

Note : Please confirm the interface and compatible protocols before purchase.

NVMe 10Gbps Model

Only support NVME PCI-E protocol M key / M&B Key SSD.(included cooling vest and thermal pad)

SATA 5Gbps Model

Only support NGFF SATA protocol B key / M&B Key SSD.(Not included cooling vest and thermal pad)

Dual Protocol SATA & NVMe Model

Support M Key(NVMe Protocol) / M&B Key (both NVME and SATA Protocol) SSD, not compatible with B Key SSD. (included cooling vest and thermal pad)

Why choose ORICO M.2 SSD enclosures?

ORICO has been focusing on electronic products for 13 years, with a mature industry chain and innovative ability to keep pace with the times. We pay great attention to product quality and continue to innovate, and 1-year after-sales service. The M.2 SSD Adapter offers the possibility to use the M.2 NVMe SSD as an external drive only through the USB port of a PC or laptop.

Features unique to ORICO:

Built-in Metal cooling vest,silicone thermal pad and aluminium body, heat dissipation is fast. (SATA 5Gbps Model is not included cooling vest and thermal pad).

Tool-free,Easy to assemble.Open and lock the case with one click to prevent SSD from slipping out.

Portable and durable, which is very suitable for driving. Internal SSD is firmly using rubber fastener, and it is not easy to pop up at will.

Support UASP, TRIM, SMART, 70% faster than conventional USB 3.1 read speed, 40% faster write speed, automatically identify errors, ensure file data security.

Compatibility SSD size:2230/2242/2260/2280. Compatible with multiple operating systems: Windows, Mac OS, Linux, Android.

If you're looking to transfer your computer's OS and/or files to a new M.2, you definitely need to consider using ORICO's M.2 NVMe SATA SSD Enclosure to get the job done quickly and smoothly.

Improve Heat Dissipation

Built-in Metal cooling vest,silicone thermal pad and aluminium body, heat dissipation is fast. (SATA 5Gbps Model is not included cooling vest and thermal pad).

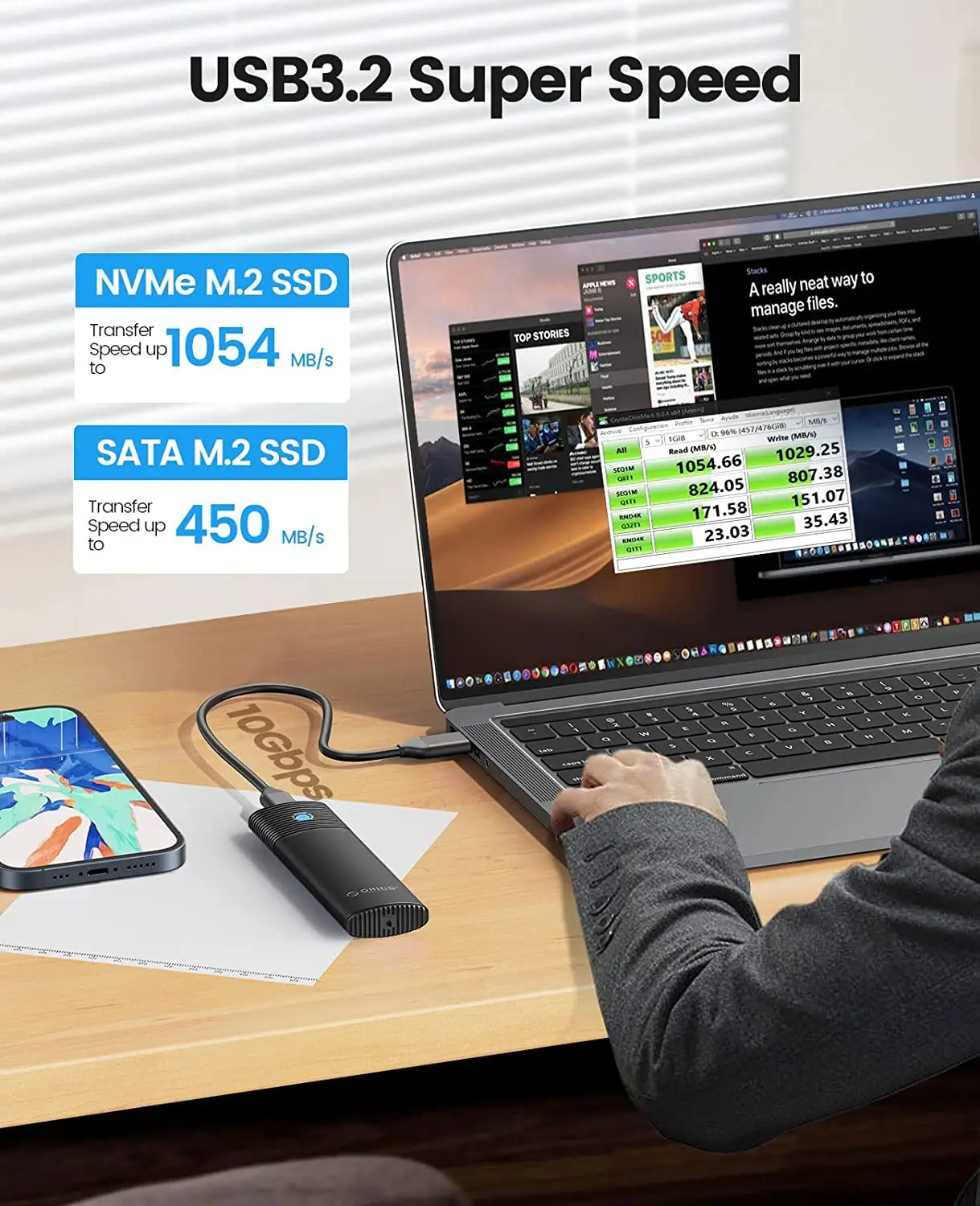

USB3.2 Super Speed

When using NVMe SSD, the transmission rate is 10Gbps and the read and write speed is 1000MB/s. When using M.2 SATA SSD, the transmission rate is 5Gbps, and the reading and writing speed is 450MB/s.

Acceleration Protection

Support UASP, TRIM, SMART, 70% faster than conventional USB 3.1 read speed, 40% faster write speed, automatically identify errors, ensure file data security.

Tool-free,Easy to assemble

Use a little rubber plug, No tools required,Slide the endcap to unlock.

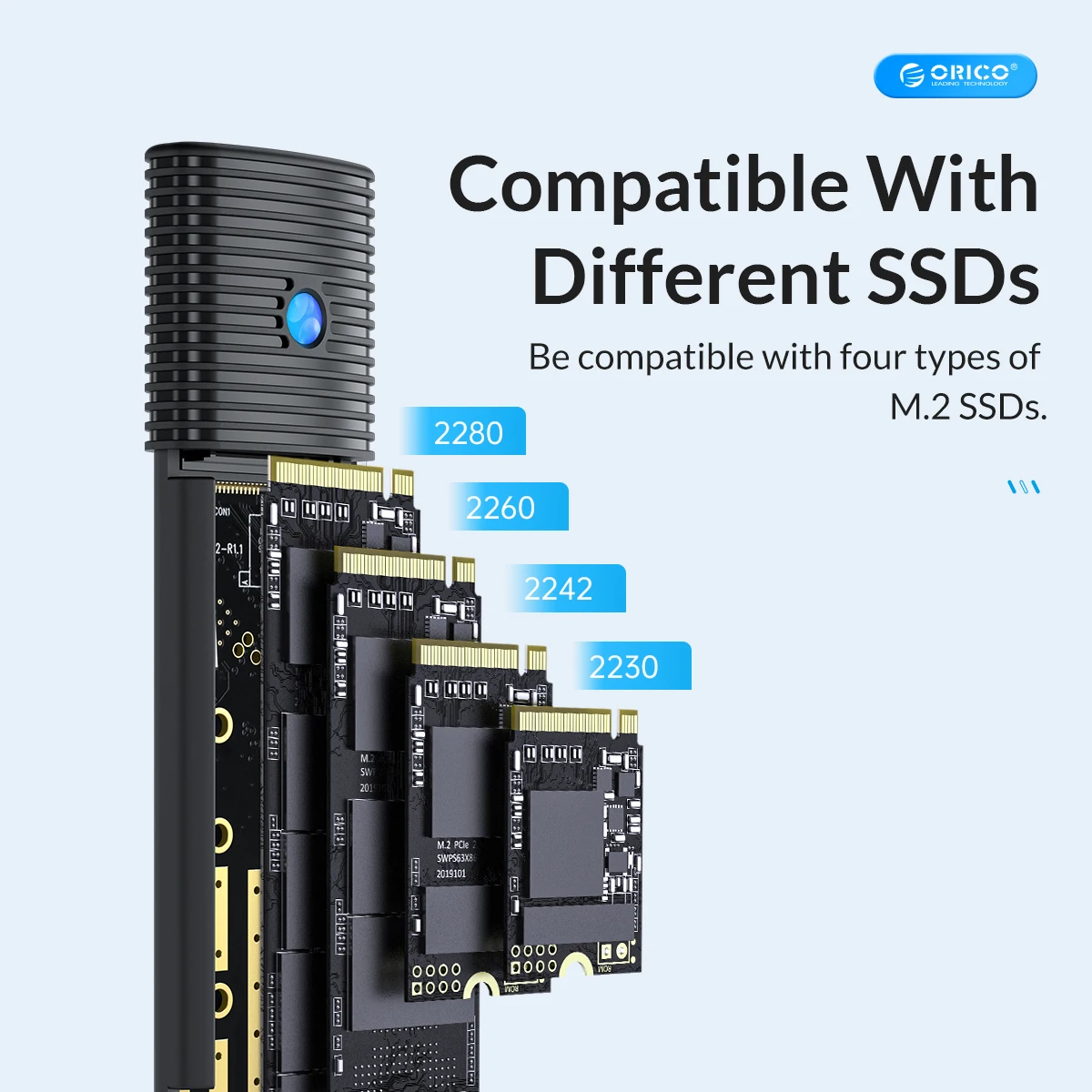

Compatible With Different SSDs

Compatibility SSD size:2230/2242/2260/2280.

Compatible with multiple operating systems

Windows, Mac OS, Linux, Android.Supports up to 4TB,Multi-color optional

Compact and Portable

This ultra-compact NVMe SATA case is both portable and durable, which is very suitable for driving. Internal SSD is firmly using rubber fastener, and it is not easy to pop up at will.

LED Indicator & 10Min Auto Sleep

With the auto indicator, you can get to know that the ssd enclosure is in working mode.(Light Always on: Standby/Sleep Mode.Light Flashing: Data transmitting)

Suitable for Gaming

Back up Data

Your External DatabasePackage Included:

1. M.2 SSD Enclosure*1

2. Package Box

3. Cable*1(with 30cm cable)

4. Cooling Vest*1(SATA 5Gbps Model is not included)

5. Thermal Pad*1(SATA 5Gbps Model is not included)

6. Silicone Screw*2

7. Instruction Book

Please Ntoe:

When you need to take out the SSD, please perform a safe removal operation on the device before disconnecting it from the device. Do not remove the NVMe M.2 enclosure and SSD forcibly to avoid data loss and hard drive damage.

When this SSD enclosure M.2 NVMe is copying data, do not forcibly disconnect the device to avoid file loss and hard drive damage.

Q:After installing SSD, the computer is not read by the enclosure?

A:1.Confirm whether the connection between the data cable and the product and equipment is in good contact, and whether the SSD is installed correctly.

   2.The new SSD needs to be partitioned and formatted for the first use, otherwise the device cannot recognize the SSD.

   3.Confirm whether the system supports large-capacity hard drives, WinXP 32-bit systems do not support hard drives above 2T.

   4.Confirm whether the hard disk format is consistent with the SSD format supported by the system. If not, please format the SSD into a hard disk format supported by the system.

Q:Why can't it write in Mac OS? But it can read and write normally under Windows.

A:Please confirm the format of your M.2 SSD. And Mac OS has to install NTFS reading software to read M.2 SSDs in NTFS format.

Q:Is there a sleep setting? Are there any interruptions in data transmission during sleep?

A:The M.2 enclosure will automatically hibernate after 10 minutes of computer inactivity. Once your computer has read them, it will not automatically sleep.

Q:Why is the speed not as fast as advertised?

A:The operating speed of the product is determined by the notebook, host performance,M.2 SSD performance, USB port type and so on. For the fastest read and write speeds, an NVMeSSD should be used, and the external enclosure for the M.2 SSD should be connected to a USB 3.1 GEN2 10G port.

Q:Why does it generate heat?

A:SSDs generate heat as they read and write at high speeds. The aluminum case of this product effectively transfers heat throughout the case, quickly releasing the high temperatures generated by NVMe SSDs when they are operating.

Q:What formats of disks do different systems support?

A:Hello. Windows:FAT32, exFAT, NTFS. MacOS:HFS+, APFS. Linux:EXT2, EXT3, EXT4, XFS, Btrfs. Android:FAT32, exFAT, NTFS, ext3, ext4(Requires a third-party application). iOS:APFS, FAT32(Requires a specific external storage device). BSD:UFS. Solaris:ZFS.
