Type-C LCD Display Battery Capacity Tester MAh MWh Digital Lithium Battery Power Detector Module 18650 Battery Tester

Features:

1: Small size, easy to carry.

2: Specially used to measure 18650 battery capacity.

3: The size of the discharge current can be switched and it is convenient to use.

4: The integration of charging and discharging eliminates the tedious operation of disassembling and assembling the battery to replace the charging and discharging of the device.

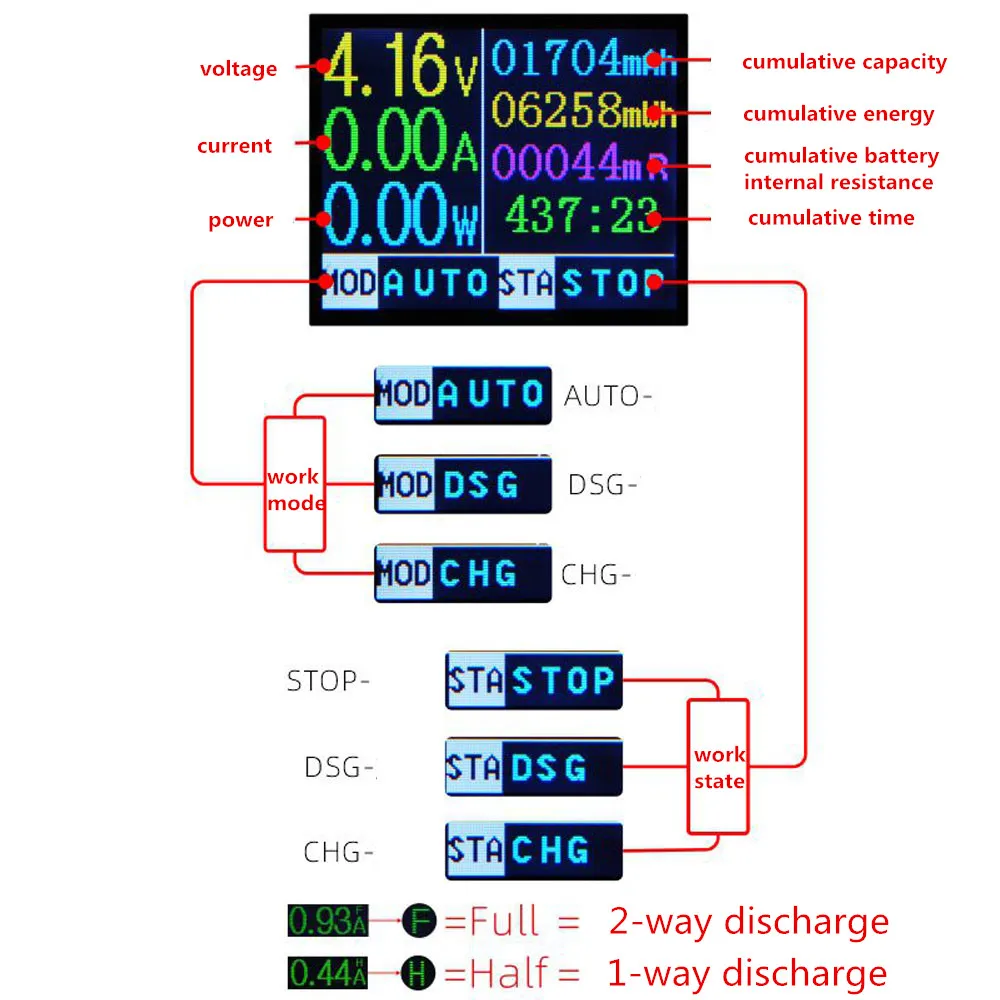

5: Stable performance, The 1.77-inch TFT display can simultaneously display information such as battery internal resistance, capacity, voltage, current, power, etc.

Specifications:

Working voltage: DC5V

Detection voltage: ≤DC5V

Capacity measurement range: 0~99999mAh

Energy measurement range: 0~99999mWh

Battery internal resistance measurement: support, measurement error is about 10%

Display real-time voltage: support

Display real-time current: support

Display real-time power: support

Log run time: support

Working mode indication: support

Current Status Indication: Supported

Simultaneous discharge: not supported (simultaneous discharge of 18650 battery Test① and external power supply Test② is not supported)

Discharge load: 10W 8ΩJ cement resistance × 2

Discharge current selection: ≈0.5A or ≈1A

Charging interface: Type-C

External discharge interface: Type-C

Preset discharge stop voltage: 3V (not adjustable)

Preset full stop voltage: 4.2V (not adjustable)

Data storage: The measurement data is not saved, and the accumulated data is automatically cleared when the power is turned off or when the working mode is switched

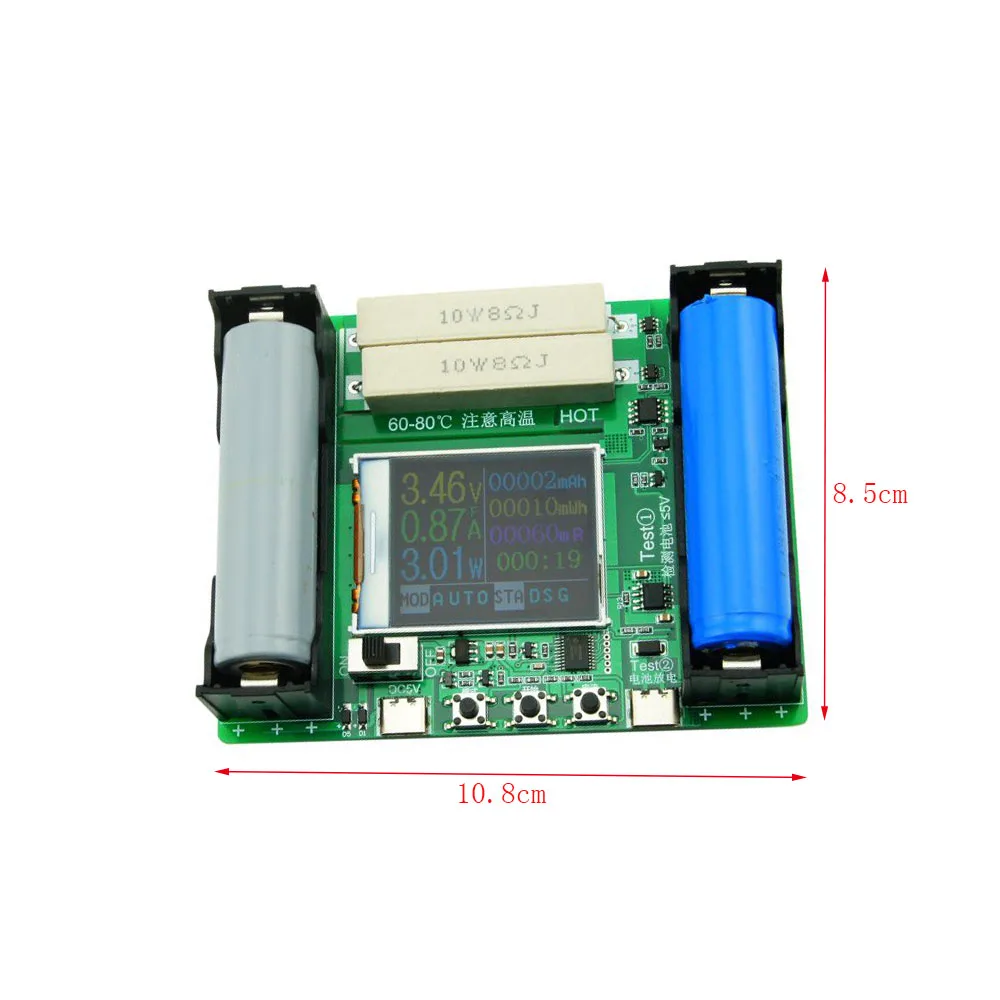

Product size: 108×85×24mm

Product weight: 80g

Charge and discharge time reference:

AUTO (automatic mode): The battery (discharged in advance) is charged ~ the default current is about 1A to discharge 1704mAh ~ it is fully charged again to trigger the program to stop, which takes 437 minutes and 23 seconds.

DSG (discharge mode): When the battery is fully charged, it uses a current of about 1A to discharge 1681mAh, which takes 118 minutes and 55 seconds.

CHG (Charging Mode): The capacity and energy are not measured during charging, only the time is recorded, which takes 164 minutes and 51 seconds.

Technical Parameter:

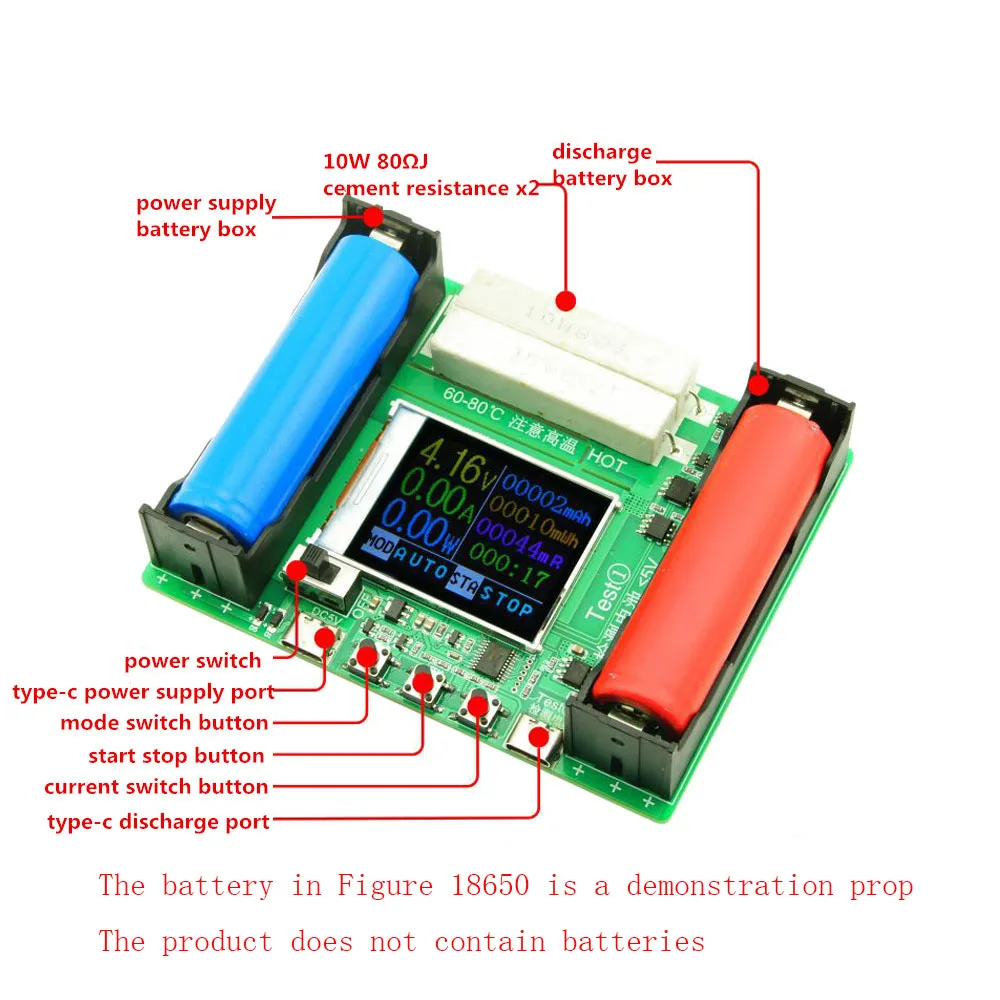

①Install the power supply 18650 battery and the 18650 battery to be tested;

②Use the Type-C data cable to connect the Type-C power supply port to the 5V power supply. The external power supply is used to charge the battery in the CHG state. If you only need to discharge the DSG, you can leave it unconnected;

③Select the mode, the default is AUTO automatic mode;

④Click the Start button to start the program;

⑤Wait for the process to end and the status indication to stop.

About power-off storage:

This product has no power-off storage function. Shutting down, restarting, and switching the working mode can cause the accumulated data to be cleared (as shown below).

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.

Package Included:

1x 18650 Battery Tester
