Мабучи SF-266SA небольшой 18-мм квадратный мотор с длинным валом постоянного тока 12V-24V 14500 об/мин мини-ротор двигателя 6 полюсов для складывания автомобильного зеркала заднего вида.

Мабучи SF-266SA небольшой 18-мм квадратный мотор с длинным валом постоянного тока 12V-24V 14500 об/мин мини-ротор двигателя 6 полюсов для складывания автомобильного зеркала заднего вида.

Tips: If you like our product and store, you can add favorite and follow us on the left.
For more similar and related product, can browse the category, or search in our store.

specification:

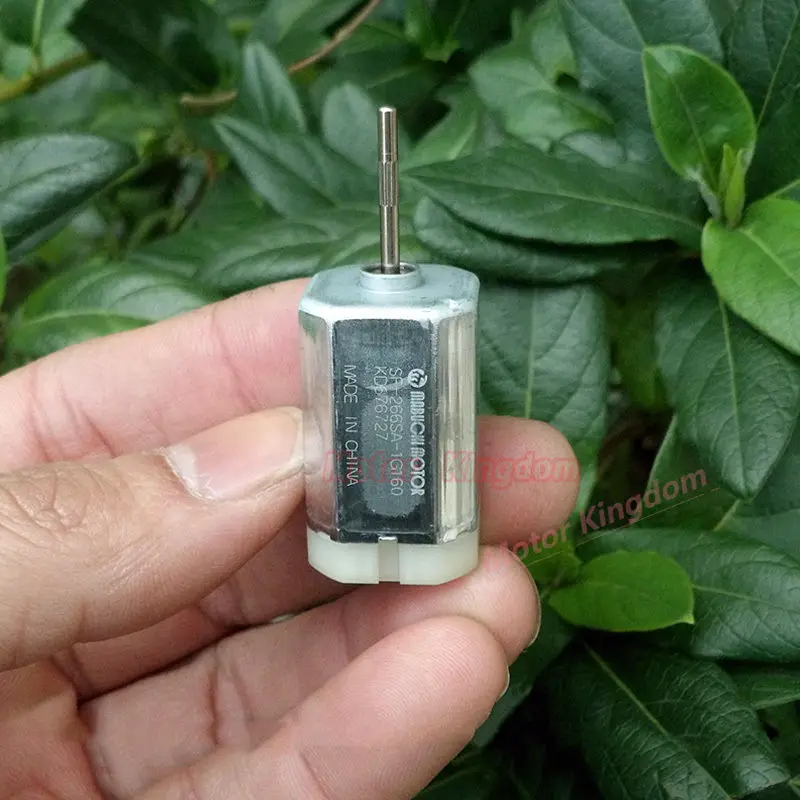

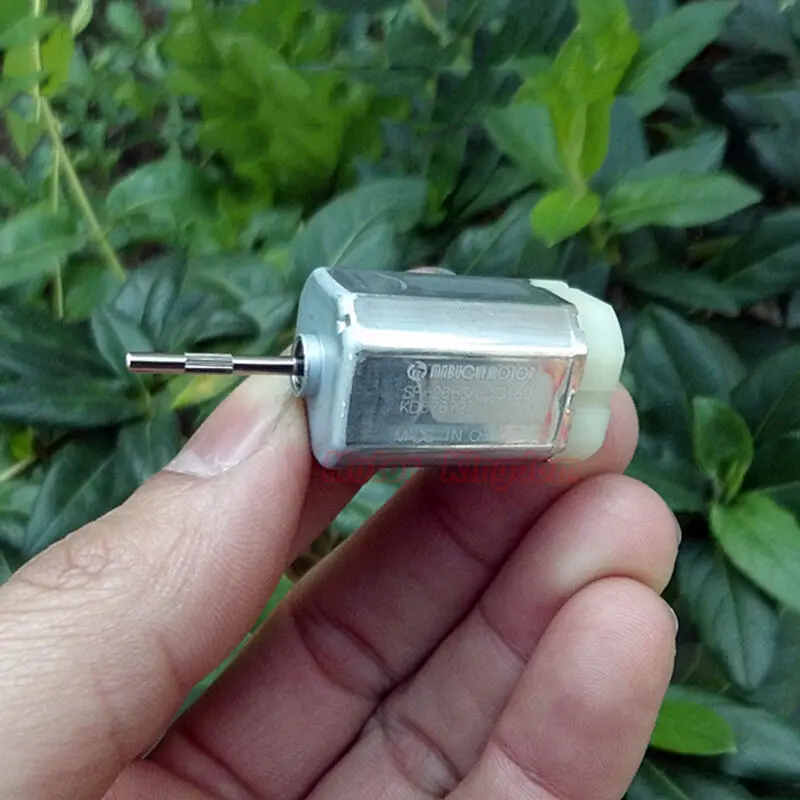

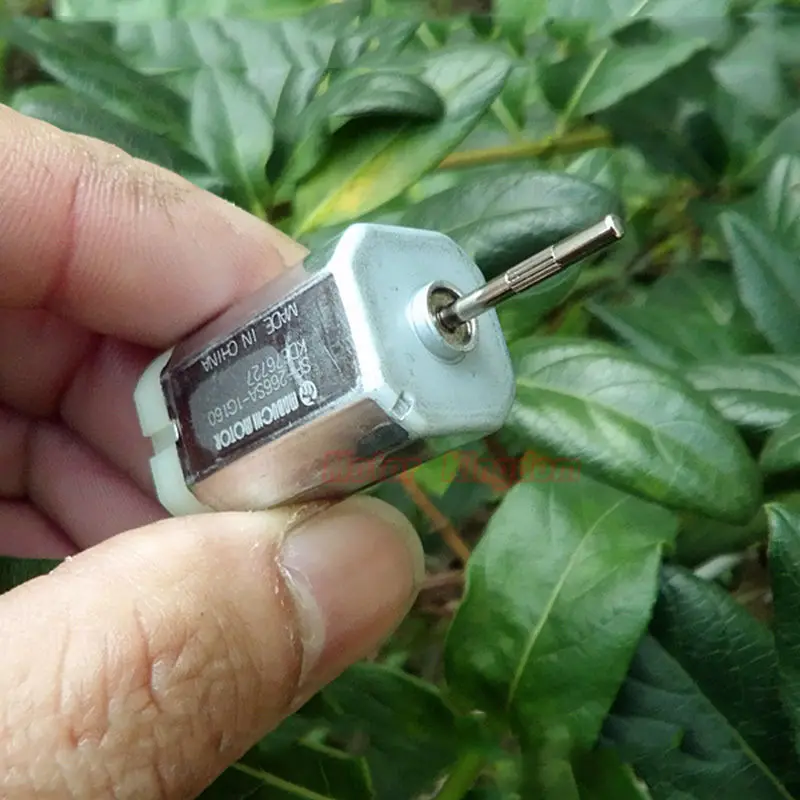

1.Brand new Mabuchi SF-266SA 18mm square motor

2.Rated voltage 13.5v,large toreque

3.Six-pole rotor,precious metal brush needle

4.Quiet motor and powerful torque

5.High quality miniature DC motor

6.Mainly used for automotive electronic equipment etc.

Motor parameters:

1.Brand: Mabuchi Motor

2.Model: SF-266SA-1G160

3.Motor size: 18.4*18.4mm(Square)

4.Motor length: 30.6mm (Not include output shaft)

5.Output shaft diameter: 2.0mm

6.Output shaft length: 18.5mm

7.Weight: 33g

8.Rated voltage: 13.5V

9.Suitable voltage: 12V-24V (@24V,easy heating)

10.Test data:

     Voltage: 12.0V  Current: 0.04A   Stall current: 1.17A  Speed: 7200RPM

     Voltage: 13.5V  Current: 0.04A   Stall current: 1.20A  Speed: 7900RPM

     Voltage: 15.0V  Current: 0.05A   Stall current: 1.60A  Speed: 9000RPM

     Voltage: 18.0V  Current: 0.07A   Stall current: 1.86A  Speed: 11000RPM

     Voltage: 24.0V  Current: 0.16A   Stall current: 2.30A  Speed: 14500RPM

11.Note: As for brushless DC motor, the working voltage is higher, the greater the power, the higher the speed, the torque is  greater, but the current is larger, relatively easy to heat, please buyers friends to decide the working voltage according to their own environment.
