12л/мин 30л/мин DC 12/24V Электрический погружной насос Дизельное топливо Вода Масло Автомобильный лагерь Рыба Алюминиевый сплав Перекачка.

12л/мин 30л/мин DC 12/24V Электрический погружной насос Дизельное топливо Вода Масло Автомобильный лагерь Рыба Алюминиевый сплав Перекачка.

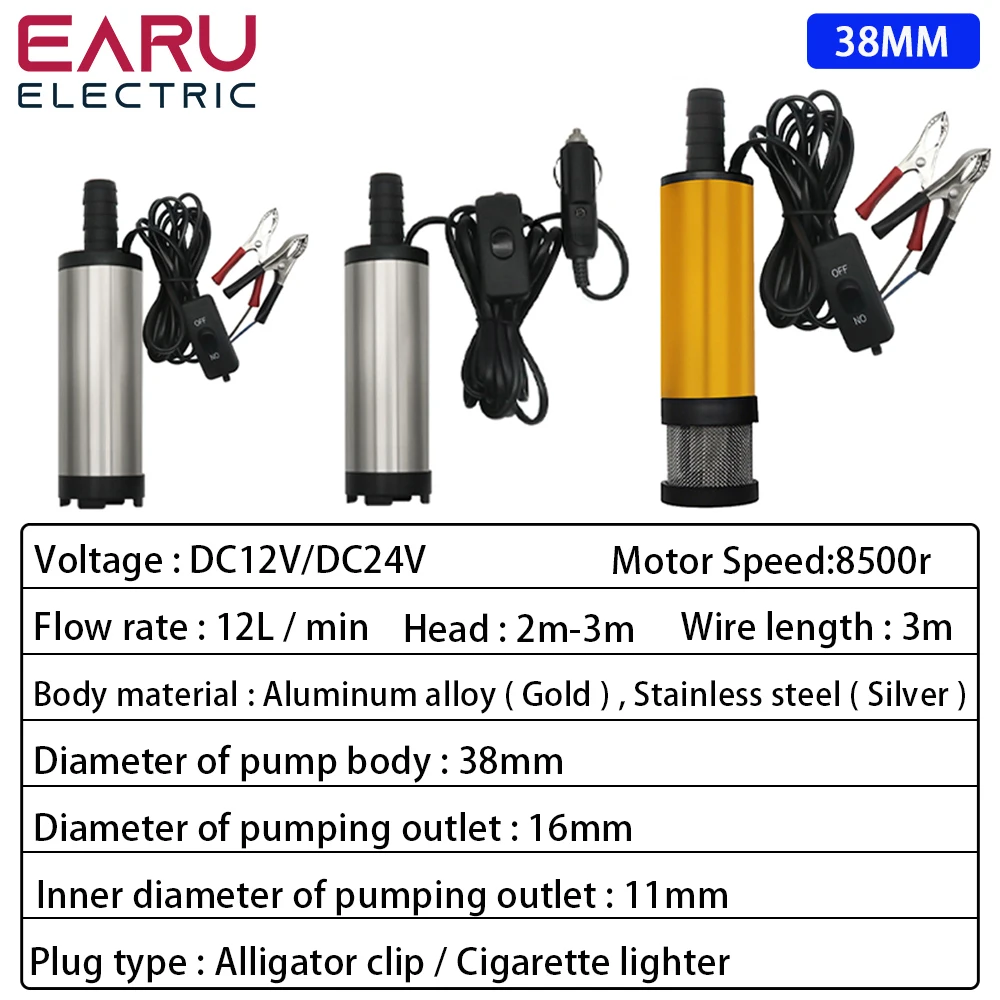

Specification:

38mm

12V 1.8A   24V 0.8A

Voltage :12V/24V(DC)    Electric current:2A

Wire length :3m

Flow rate: 12L/min         Head: 2-3m

Outlet diameter: 16mm    Slive Speed:4500r/min   Gold Speed: 8500r/min

Silver material: stainless steel      Gold section material: aluminum alloy

Application: diesel, water, kerosene

51mm

12V 1.8A   24V 0.8A

Voltage :12V/24V(DC)     Gold Electric current:7A

Gold Wire length :5m       Slive Wire length :3m

Flow rate: 30L/min     Head: 3m

Outlet diameter: 19mm   Speed: 8500r/min

Silver material: stainless steel      Gold section material: aluminum alloy

Application: diesel, water, kerosene

Inner diameter of  5M Steel Wire Tube: 20mm

Description:

12V/24V portable submersible diesel oil pump has stable performance.Fully sealed device, insulation status.This product is small in size.Light weight, easy to install and carry.The wire is 3/5 meters long, the pump mouth diameter is 16/19 mm, and the pipe is self-supplied.

This product is widely used in refueling of automobiles, construction machinery, construction machinery, generators and agricultural machinery. It can also be used for changing water in fish tanks

1. The pump adopts DC12V 24V DC motor with low noise and fast speed.

2. The pump has good sealing performance and adopts multi-channel sealing to ensure no leakage and prolong service life.

3. The pump adopts stainless steel shell, increasing the thickness of the shell, making the shell more solid, not easy to deformation, but also can prevent the shell rust, rot and turbidity.

4. The bottom filter of the oil pump is equipped with stainless steel filter net to make the diesel oil (or water) more clean.The bottom filter is equipped with threaded interface for easy disassembly, maintenance and replacement.Can achieve the purpose of reuse.

5.There is a midway switch on the power line of the pump for easy operation.

6. The oil output of the oil pump is 38mm:12L/min. 51mm30L/min

7. The pump should be taken out of the oil (or water) in time after it is well used.

8. When pumping oil, the pump should first connect the self-provided oil hose, and then put the pump into clean oil (or water) as a whole.

9. Provide your own oil outlet hose.

Note:

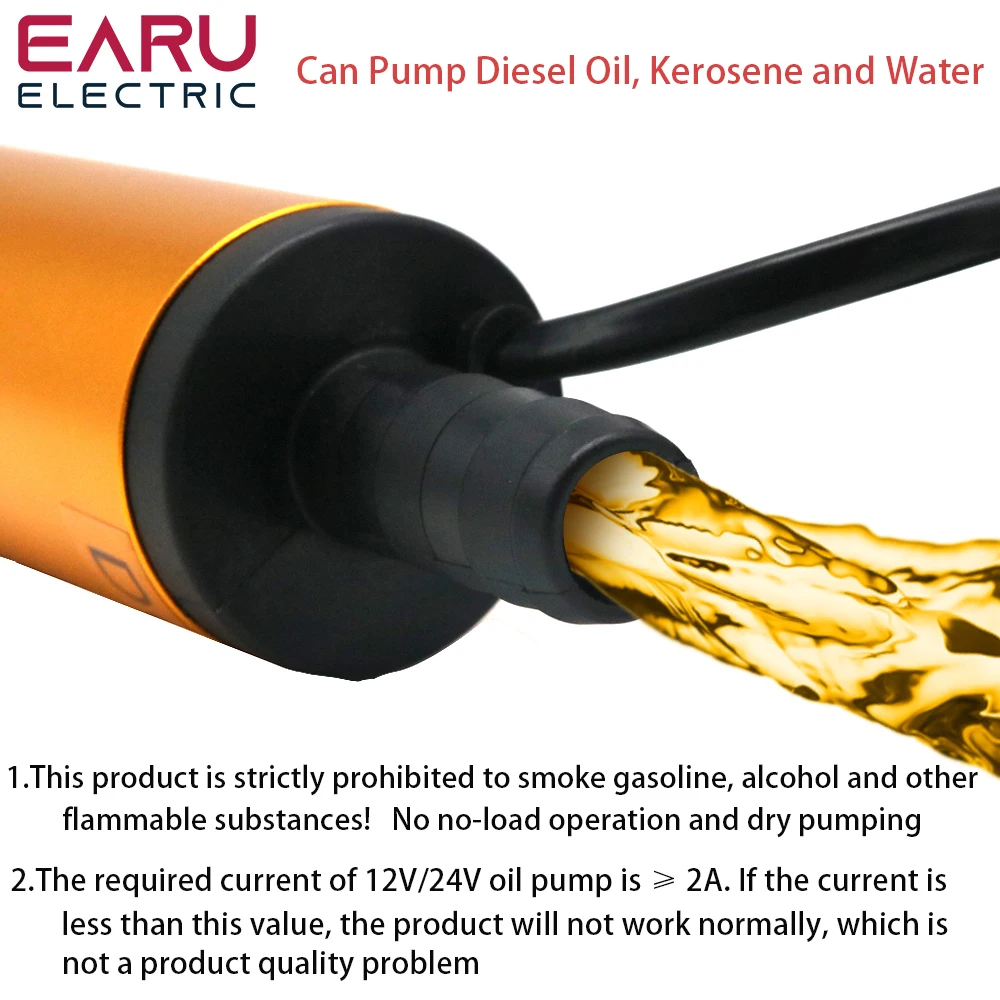

1.The pump is strictly prohibited from pumping gasoline, alcohol and other flammable substances!Can not empty load operation and dry pumping.

2.38 The required current of the pump is ≥ 2A. If the current is less than this value, the product will not work normally, which is not a product quality problem

3. Confirm whether the voltage of the power supply is consistent with the voltage marked on the oil pump.

4.The voltage tolerance is ±5%, and pay attention to the positive and negative poles.

Withstand temperature: 50℃ or less at normal temperature

5.About color difference and size error:Due to the problem of light and the difference of measurement methods, it may have a small error. Please consider and understand. thank you.
