Мини1300 Плюс 5В/1.5А анализатор антенны HF VHF UHF 0.1-1300МГц частотомер SWR-метр 0.1-1999 с ЖК-экраном.

Brand NameFGHGFOriginMainland ChinaCertificationNONEMeasurement unitpiece/piecesEach pack1

Unavailable in

Description



Portable vector network analyzer (reflectometer) MINI1300 0.1 -1300 MHz is designed to measure the matching characteristics of passive and active radio devices (antennas, cables, filters, attenuators, amplifiers, etc.).
The device allows you to measure the parameters of the complex reflection coefficient, standing wave ratio (SWR), impedance, admittance, magnitude, phase, loss and distance to fault in the cable.

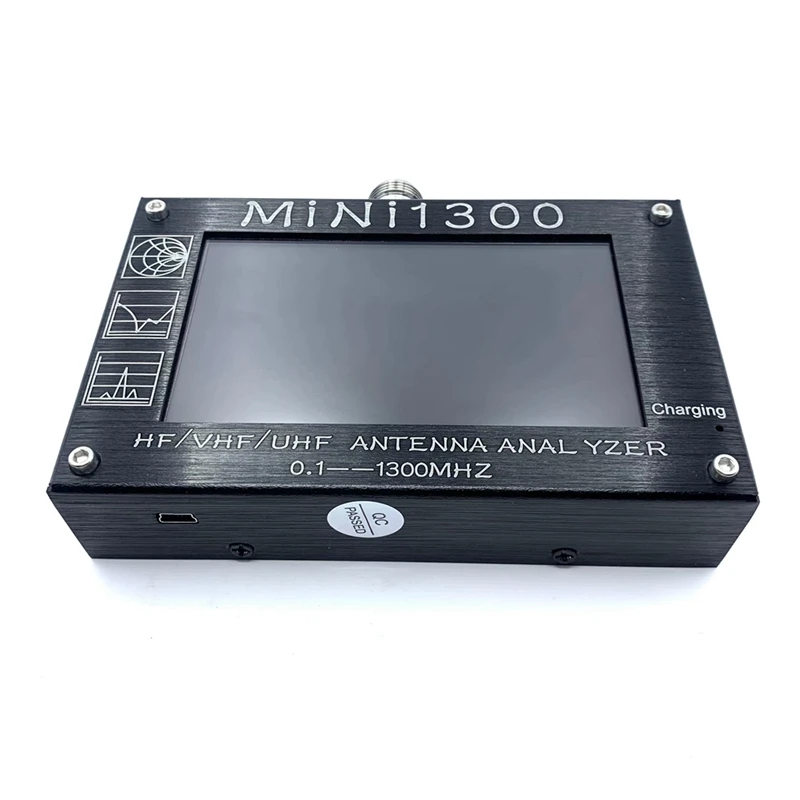

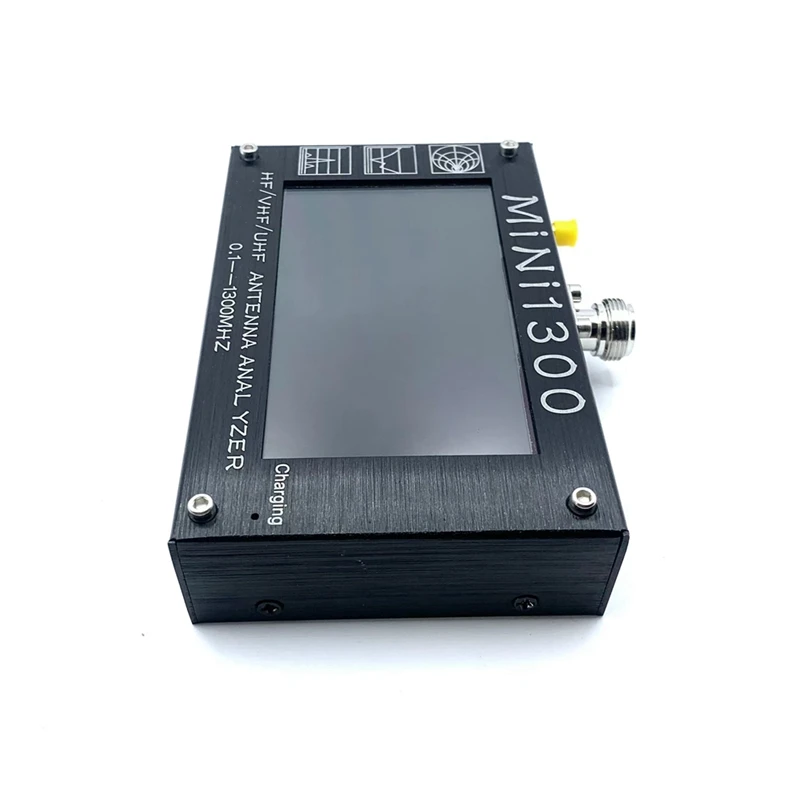

Vector network analyzer MINI1300 is made in a durable aluminum casing in the form of mobile autonomous instrument and is primarily intended to work directly on the object, as with low weight and compact dimensions has a low energy consumption.
The analyzer will be especially useful to companies working in telecommunications, engaged in the installation and maintenance of antennas, in the amplification of cellular communication, etc. With it, service centers and repair crews can carry out RF analysis cable and antenna when carrying out commissioning or repair work. In addition, the device is perfect for workshops, radio amateurs, educational institutions and laboratories.
The device has a 4.3inch color resistive screen to display the measurement results and control the device.

Frequency Range: 0.1-1300MHz
HF/VHF/UHF continuous coverage
In/Out Impedance: 50
Measurement Parameters: SWR, R, +Jx, -Jx, Z , Returnloss
Measurement Mode: Single point measurement, Scanning (Frequency ), and TDR Mode
SWR Measurement Range: 1.0-1999(Single Point Mode), 1.0-20.0 (Scan Mode)
Display Modes: Numerical display, curve display, simith chart

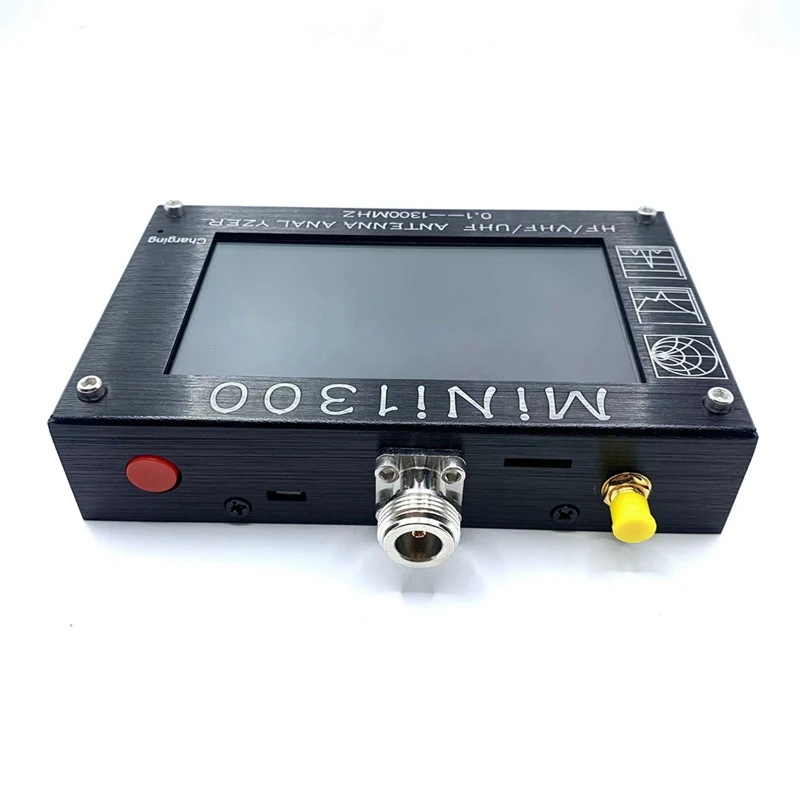

Connector Type: UHF N-type connector
SMA OPEN-SHORT-LOAD Calibration Kit x 1
LCD size: 480x272, 4.3inch TFT LCD display
Touch Screen Type: Capacitive
All capacitive touch screen on the display - no buttons are needed
Power Source: USB or Internal Li-ion battery
Built-in Li-ion charging circuitry and DC-DC booster
Maximum charging current: 5V/1.5A
External Storage Method: TF card
Dimensions: 133 x 85 x 29 mm (Not including prominent ports)
N.W.: 550g
type:Antenna Analyzer
color:Black
Material:Metal + Plastic

Package Contents:
1 x Antenna Analyzer set

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.







---
