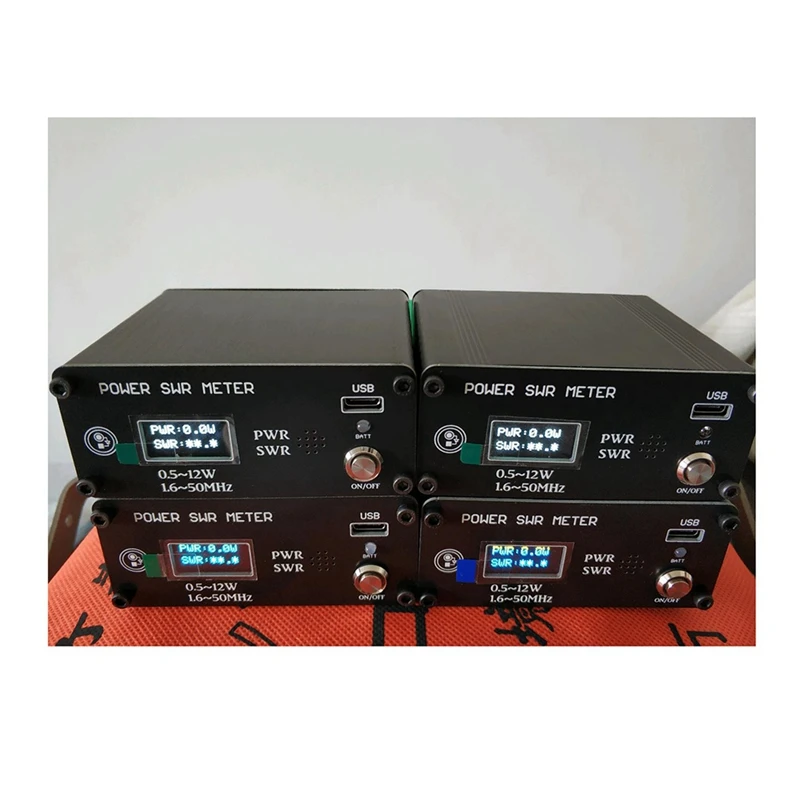

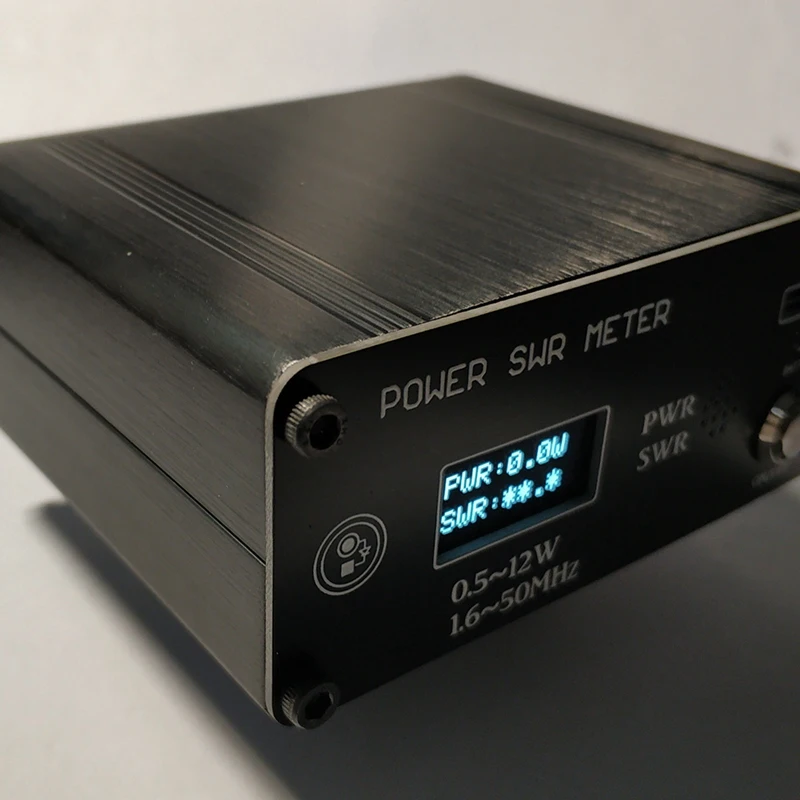

Promotion! 0.5-12W 1.6-50Mhz SWR Power Meter Shortwave PWR SWR Meter OLED12864 For QRP USDX MCHF SDR Radio

Application: Open source project based on G8GYW; Power measurement and standing wave measurement
After booting, it will show the display version information as well as the battery voltage information
After 2s, it will display power and standing wave measurement interface
Red light will be on when it is charging; when it is fully charged, the red light will be off

Features:
- Frequency range: 1.6-50MHz
- Power range: 0.5-12W
- Power Measurement Accuracy: Better than ± 5% (at 22°C)
- Standing wave range: 1.0-19.9
- Insertion loss: Less than 0.15dB
- Instrument standing wave: Less than 1.02 at 50 Ω
- Charging interface: type-C
- Built-in battery: 800mAh
Material: Metal + Plastic
colour: black

Package Contents:
1 x Power SWR Meter
1 x Type-C Data Cable

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

---
