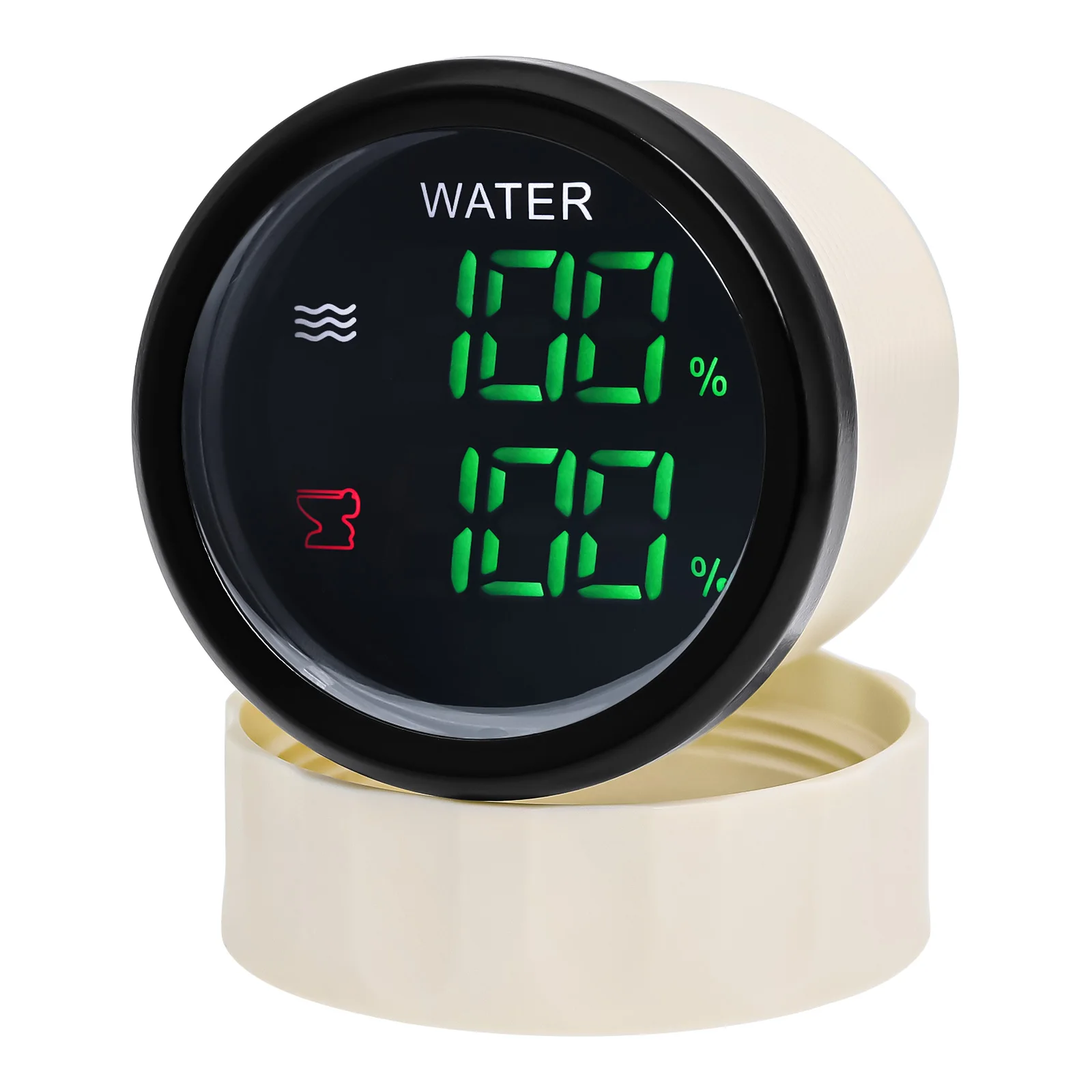

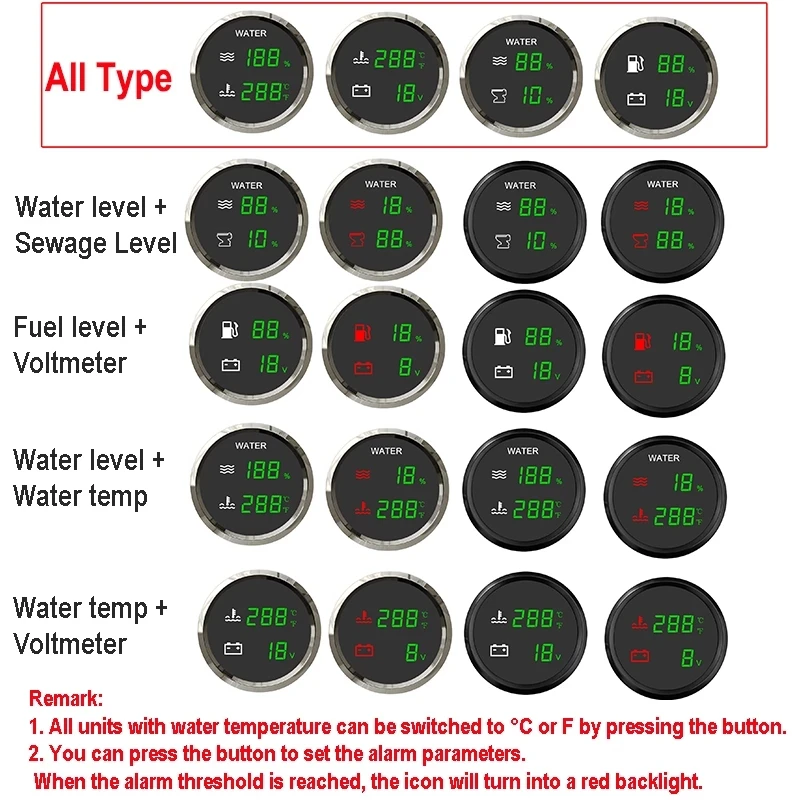

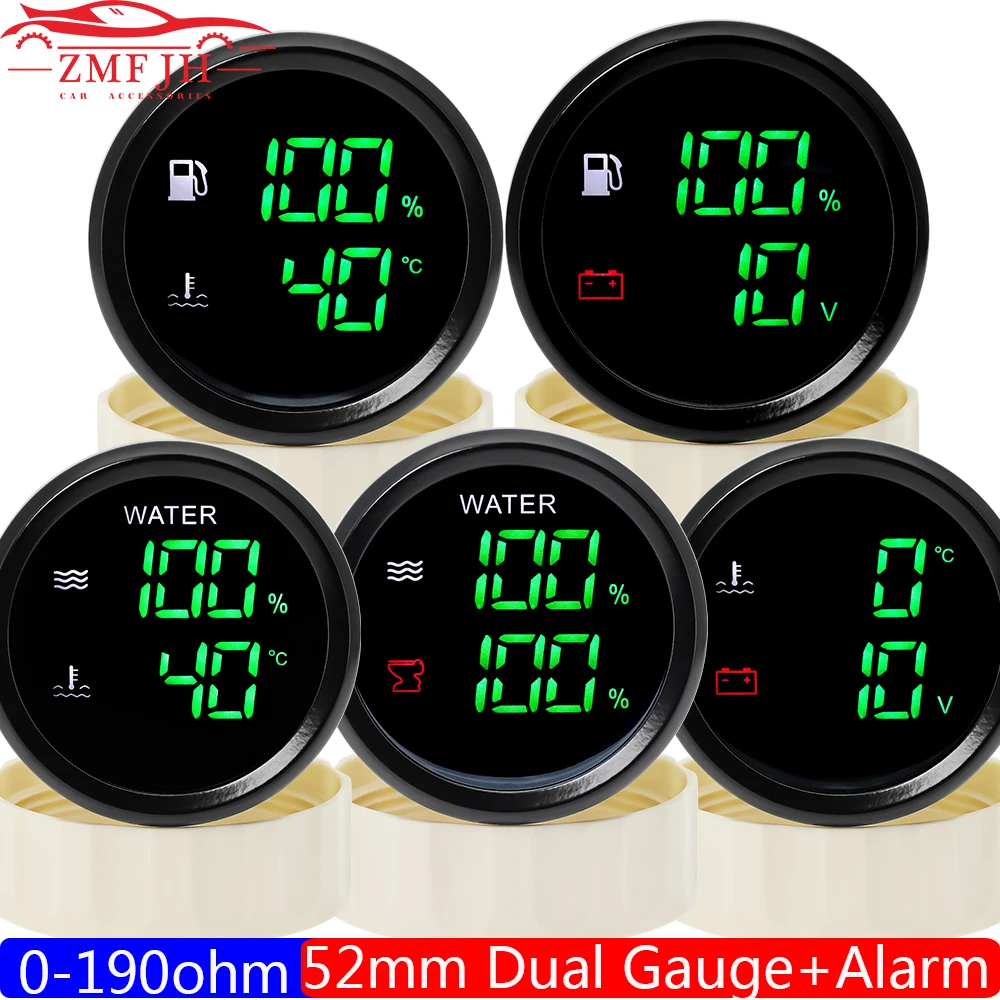

2022 New 52mm Universal 2 in 1 Dual Gauge
Application: Marine Boats/Truck/Bus/Motor Home/Hot Rod/Generators
About the Gauge Reading
The device works, with a little delay (about 20 - 80 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank.
Feature:
- 52mm diameter Two in One Gauge show with easy installation
- Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor
0-190Ω, 0-180Ω, 10-180Ω, 240-33Ω, 240-30Ω
- High Resolution View under sunshine
- Installation Diameter: 52mm (2inch)
- Reverse polarity protection and anti-fogging performance
- Working Voltage:12V/24V
- Working temperatures: - 40 to 85°C
- IP66 Waterproof
INSTALLATION GUIDE
1. Cut an Φ52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16"). behind the panel.
2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)
3. Connect cables according to the diagram/label.
Setting Menu:"Unit" "R 1" "R 2"
1.Hold & Press the button, Power On Gauge, the LED screen will show Switch Show
Unit, R1, R2
2.Unit
Fuel Gauge, Water Level, HTG Sewage Level: %
Water temperature: ℃ or ℉
3.R1---Configure Top Row Signal Range
Press Button to switch 000 ~006
For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting
Setting Menu:"Unit" "R 1" "R 2"
1.Hold & Press the button, Power On Gauge, the LED screen will show Switch Show
Unit, R1, R2
2.Unit
Fuel Gauge, Water Level, HTG Sewage Level: %
Water temperature: ℃ or ℉
3.R1---Configure Top Row Signal Range
Press Button to switch 000 ~006
For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting
4.R2---Configure Top Row Signal Range
Press Button to switch 000 ~006.
For example, LED will show "002" , which means 10~180ohm, then release the button and wait digital flash to complete to save setting

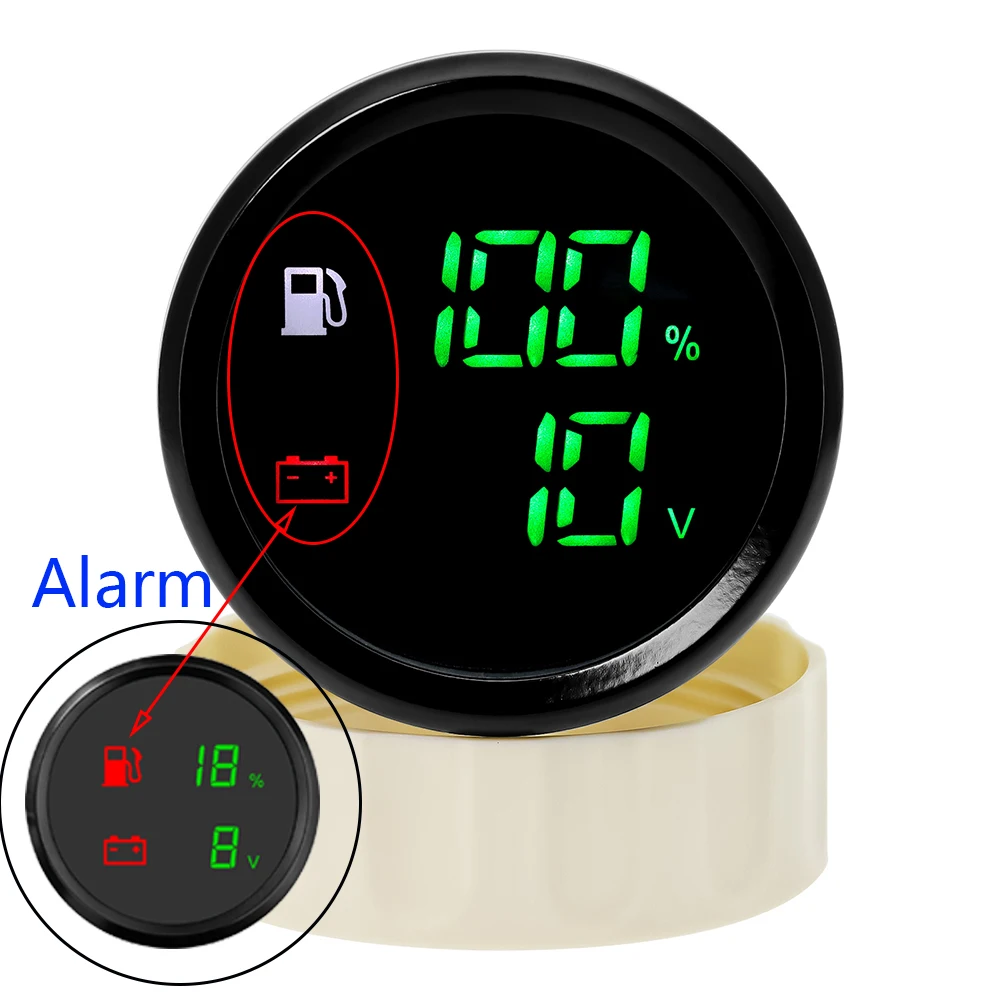

Alarm Set about Gauge:
Fuel Level Gauge:≤20%
Water level Gauge: ≤20%
HTG Sewage Level Gauge: ≥80%
Voltmeter: <10.8V
Water Temperature Gauge: 98±2℃
Package:
1PCS Gauge+Manual+Cable
