2*60Wamplifier MP3-декодер доска Bluetooth 5 0 автомобильный MP3-плеер TF USB рекордер аудио модуль

2*60Wamplifier MP3-декодер доска Bluetooth 5 0 автомобильный MP3-плеер TF USB рекордер аудио модуль

Feature:

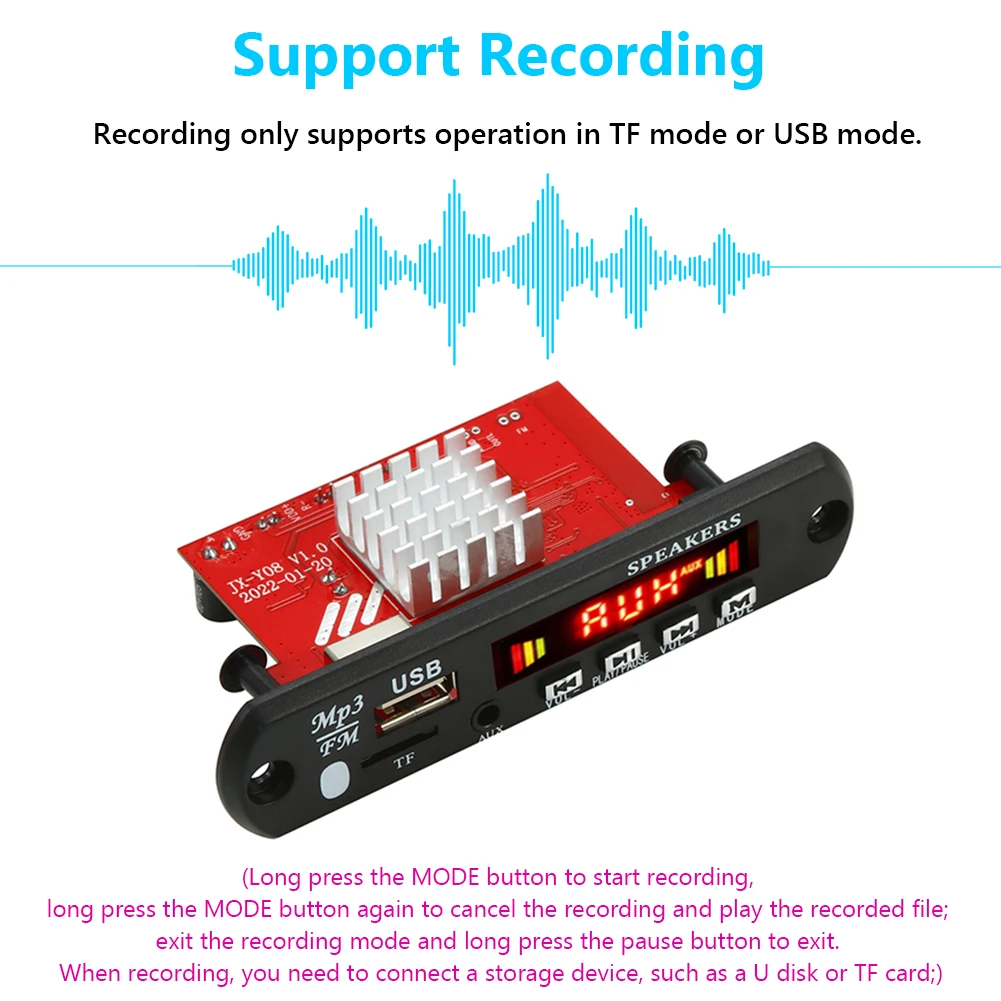

1. Function: Bluetooth-compatible version 5.0. Support calling (long press the pause button to answer the call when there is an incoming call). Recording only supports operation in TF mode or USB mode. (Long press the MODE button to start recording, long press the MODE button again to cancel the recording and play the recorded file; exit the recording mode and long press the pause button to exit. When recording, you need to connect a storage device, such as a U disk or TF card;). Support power-off memory. The power supply voltage supports DC 8V-24V, and the current is between 1-4A. Can be directly connected to speakers, with power amplifier and decoding functions.
2. Supported song formats: MP3/WMA/WAV/APE/FLAC.

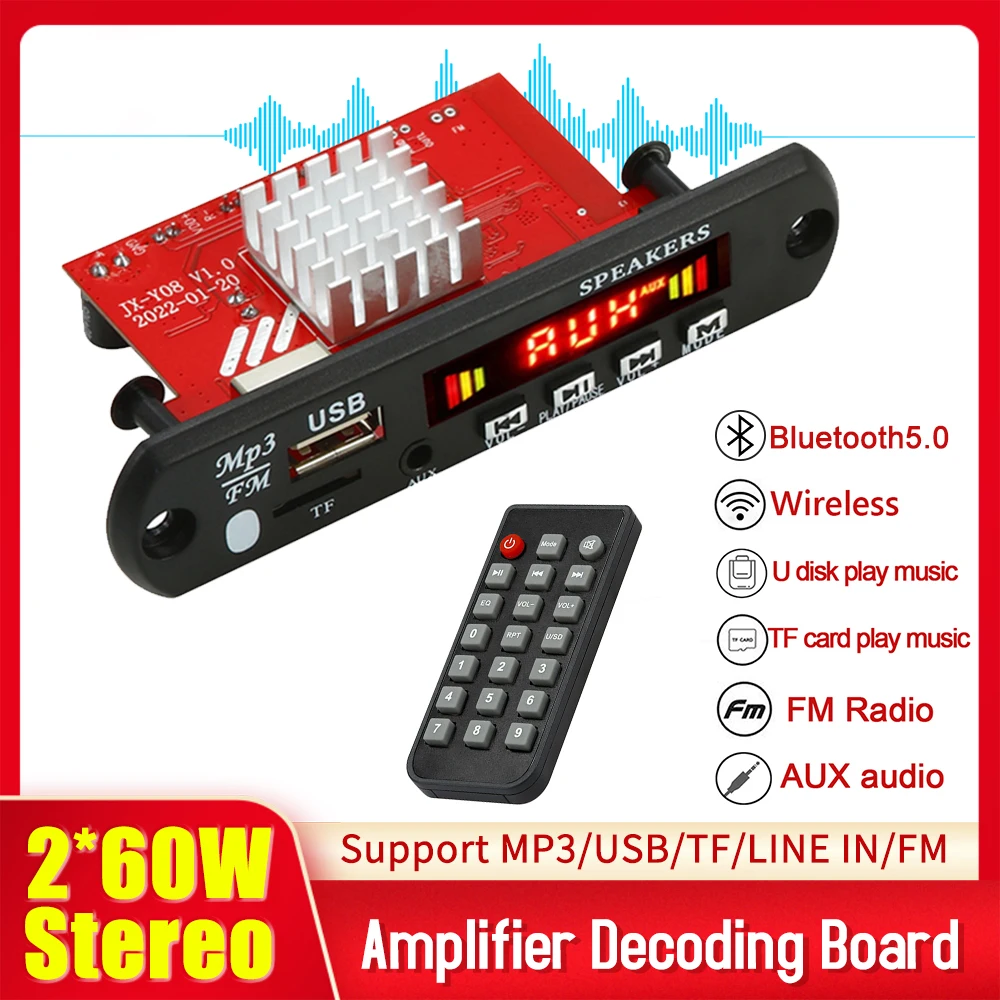

3. Main functions: MP3/USB/TF/LINE IN/FM/BLUETOOTH-compatible/remote control.
4. Power: The power is 120W, the product has a power amplifier, supports balanced output, and the stereo power is 2*60W.
5. Support folder selection and playback: When there is a folder in the device and there are songs in the folder during USB or TF playback, press the previous button or the next button twice to select the folder to play songs, and the screen will display F001-F00 accordingly, and so on, if there are several folders, several F00s will be displayed.
Specification:
Origin: Mainland China
Certification: CE
Audio Format Support: mp3,WAV,WMA,APE,FLAC
External Memory: Yes
Balanced Out: Yes
Screen: Yes
Model Number: Decoder board
Function: FM Radio,Voice Recorder
Package: Yes
Supports Recording Function: Yes
Bluetooth-compatible: Yes
Name: Bluetooth-compatible decoder board with color screen
Model: Y08
Color: Black
Power supply: 8V-24V
Power: 2*60W stereo
Audio output: ≥530mA
Signal-to-noise ratio: ≥70dB
Frequency response: 80Hz-15KHz
Distortion: ≤0.2%
Separation: ≥45dB
Storage temperature: -20 degrees Celsius - 50 degrees Celsius
Radio frequency range: 87.5-108MHz
FM automatic search sensitivity: 25-30dB
Product power consumption: ≤150mA

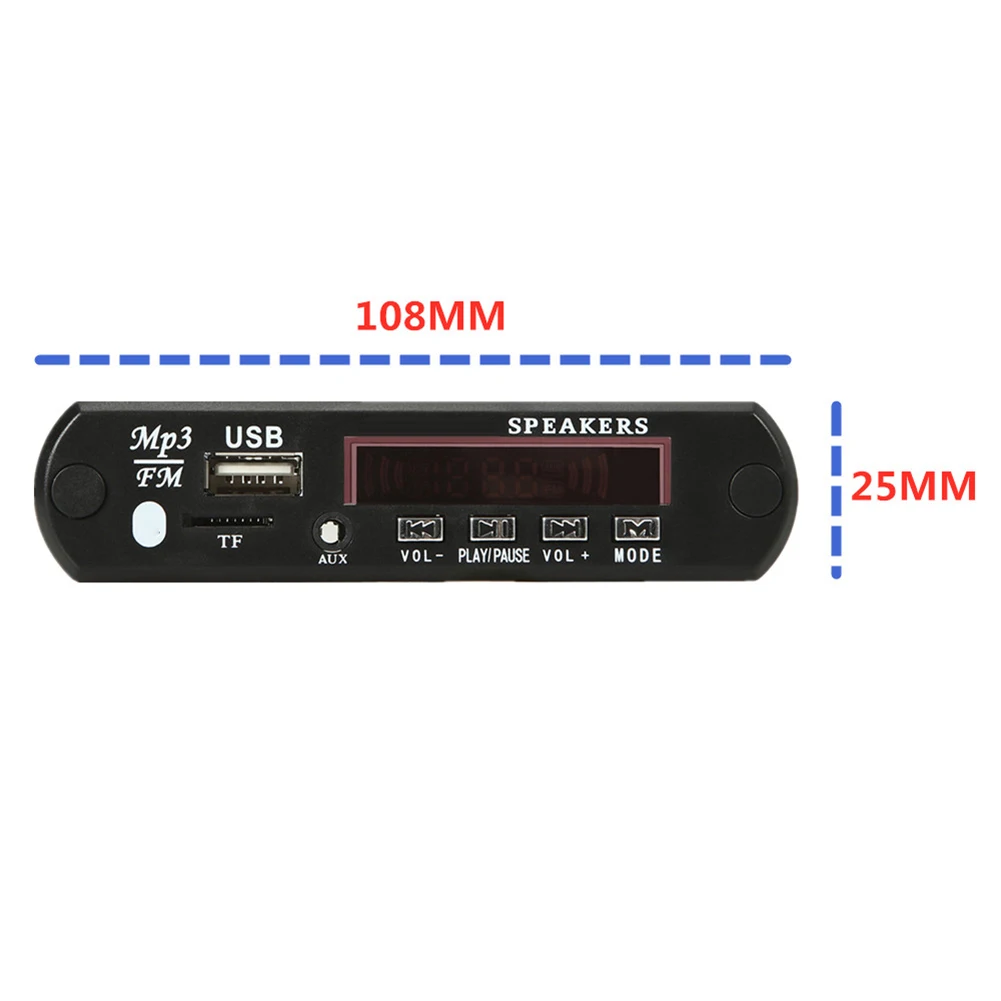

Size: 108x25mm/4.25x0.98in
Weight: 60g

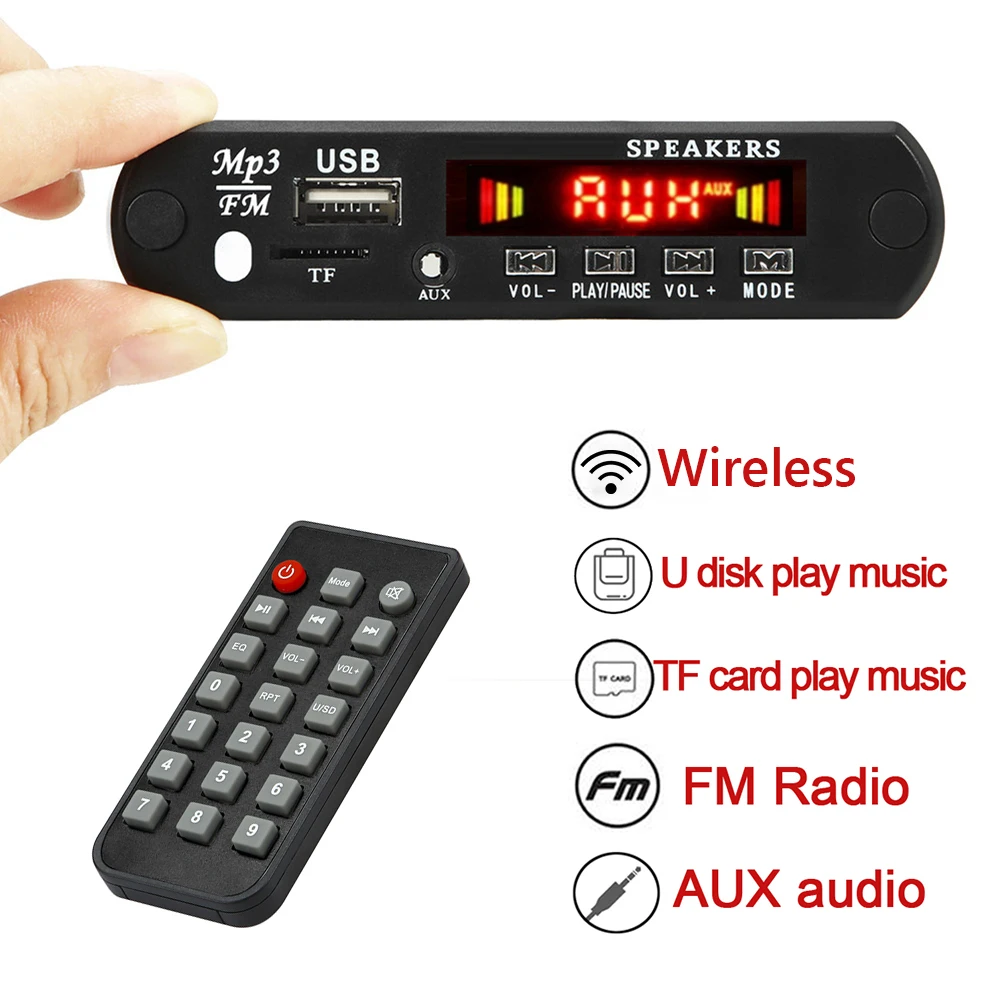

Button function description:
"PREV/VOL-" long press the decrease volume button; in USB/TF/Bluetooth-compatible/radio mode, short press to previous song/previous station
"PLAY/PAU" in USB/TF/Bluetooth-compatible mode is short press to play/pause; long press is mode switch
"NEXT/VOL+" long press the increase volume button; in USB/TF/Bluetooth-compatible/radio mode, short press for next song/next station
"MODE" is the mode switch, a total of 5 modes (Bluetooth-compatible-TF-USB-FM-AUX).

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 X Decoder Board
3 X 2P Power Cords
1 X 1P Radio Antenna
