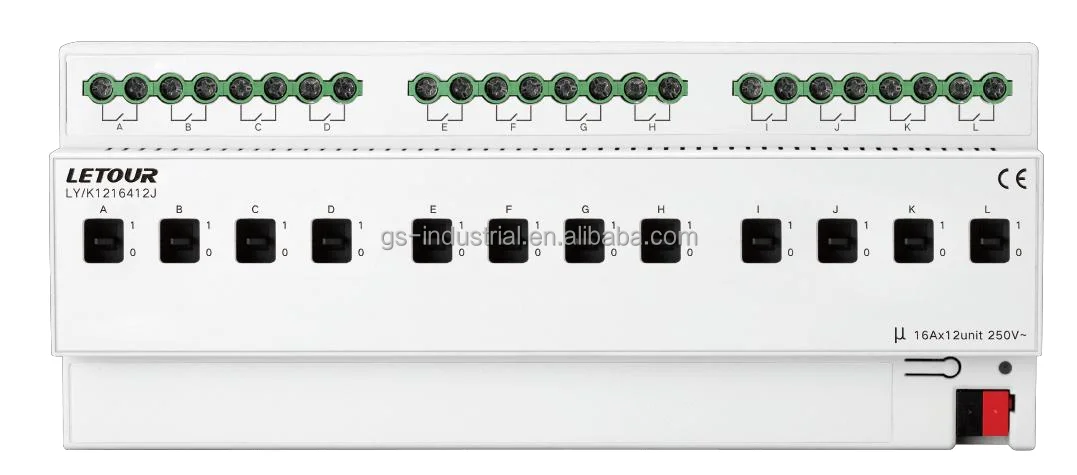

KNX/EIB 12-channel 20A smart light switch module Smart Hotel System KNX Home | Automation Robot

Brand NameVieruodisOriginMainland ChinaCertificationCEMeasurement unitpiece/piecesEach pack1Place of OriginFujian, ChinaBrand NameLETOURModel NumberLY/K1220412JCondition100%new61 723,20 ₽-5%61 723,20 ₽-5%58 637,04 ₽58 637,04 ₽Add to CartBuy now58 637,04 ₽loaderDescriptionDear, you can purchase directly, if you need to consult product information, welcome to add my WHATSAPP (+8615616438600） #detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#a8aaac;font-family:Roboto;font-size:24px;color:#000;background-color:#b1b0b0;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px;border-collapse:collapse}#detail_decorate_root .magic-2{min-height:28px;padding:5px 10px;width:161px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-3{min-height:28px;padding:5px 10px;width:544px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-4{width:750px}#detail_decorate_root .magic-5{width:446px}#detail_decorate_root .magic-6{overflow:hidden;width:446px;height:214px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:2px;margin-left:-3px;width:446px;height:196.7038068709378px}#detail_decorate_root .magic-8{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-9{box-sizing:border-box;margin:0;padding:0;color:#2e3033;font-family:Arial,'Microsoft YaHei','\\5FAE软雅黑','\\5B8B体','Malgun Gothic',Meiryo,sans-serif;font-size:14px;font-style:normal;font-variant:normal;font-weight:normal;letter-spacing:normal;line-height:14px;orphans:auto;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:auto;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff}#detail_decorate_root .magic-10{box-sizing:border-box;margin:0 0 10px;padding:0;list-style:none}#detail_decorate_root .magic-11{box-sizing:border-box;margin:0;padding:0;font-size:14px;color:#666;line-height:20px}#detail_decorate_root .magic-12{white-space:normal}#detail_decorate_root .magic-13{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-14{width:750px;height:330.7799442896936px;overflow:hidden;margin-bottom:10px}#detail_decorate_root .magic-15{position:relative;left:0;top:0;width:750px;height:330.7799442896936px}#detail_decorate_root .magic-16{width:750px;height:466.24423963133637px;overflow:hidden;margin-bottom:10px}#detail_decorate_root .magic-17{position:relative;left:0;top:0;width:750px;height:466.24423963133637px}#detail_decorate_root .magic-18{width:750px;height:577.9009126466754px;overflow:hidden;margin-bottom:10px}#detail_decorate_root .magic-19{position:relative;left:0;top:0;width:750px;height:577.9009126466754px}#detail_decorate_root .magic-20{width:750px;height:380.859375px;overflow:hidden;margin-bottom:10px}#detail_decorate_root .magic-21{position:relative;left:0;top:0;width:750px;height:380.859375px}#detail_decorate_root .magic-22{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-23{vertical-align:top}#detail_decorate_root .magic-24{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-25{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-26{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-27{overflow:hidden;width:247.33333333333334px;height:160.03921568627456px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-28{margin-top:0;margin-left:0;width:247px;height:160px}#detail_decorate_root .magic-29{overflow:hidden;width:247.33333333333334px;height:159.21457489878546px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-30{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:247px;height:164px}#detail_decorate_root .magic-32{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-33{color:#333;font-family:"Helvetica Neue",Helvetica,Arial,sans-serif,宋体;font-size:14px;font-style:normal;font-variant-ligatures:normal;font-variant-caps:normal;font-weight:400;letter-spacing:normal;orphans:2;text-align:start;text-indent:0;text-transform:none;white-space:normal;widows:2;word-spacing:0;-webkit-text-stroke-width:0;background-color:#fff;text-decoration-style:initial;text-decoration-color:initial;display:inline !important;float:none}#detail_decorate_root .magic-34{white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-35{overflow:hidden;width:446px;height:351.77560079840316px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:527px;height:351px}#detail_decorate_root .magic-37{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-38{overflow:hidden;width:446px;height:347.5038554216867px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:744px;height:347px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:476.85589519650654px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:476.85589519650654px}#detail_decorate_root .magic-42{overflow:hidden;width:373px;height:197.21114864864867px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:373.00000000000006px;height:197.21114864864867px}#detail_decorate_root .magic-44{overflow:hidden;width:373px;height:197.21114864864867px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:421.7081850533808px;height:237px}#detail_decorate_root .magic-46{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap} Product Description Product Name KNX protocol 12 channel 20A switch module Installation Method Standard DIN-Rail Mounting Function Can be used to control 12-way 20A light switch Product Dimensions  216x90x64mm



Product performance description

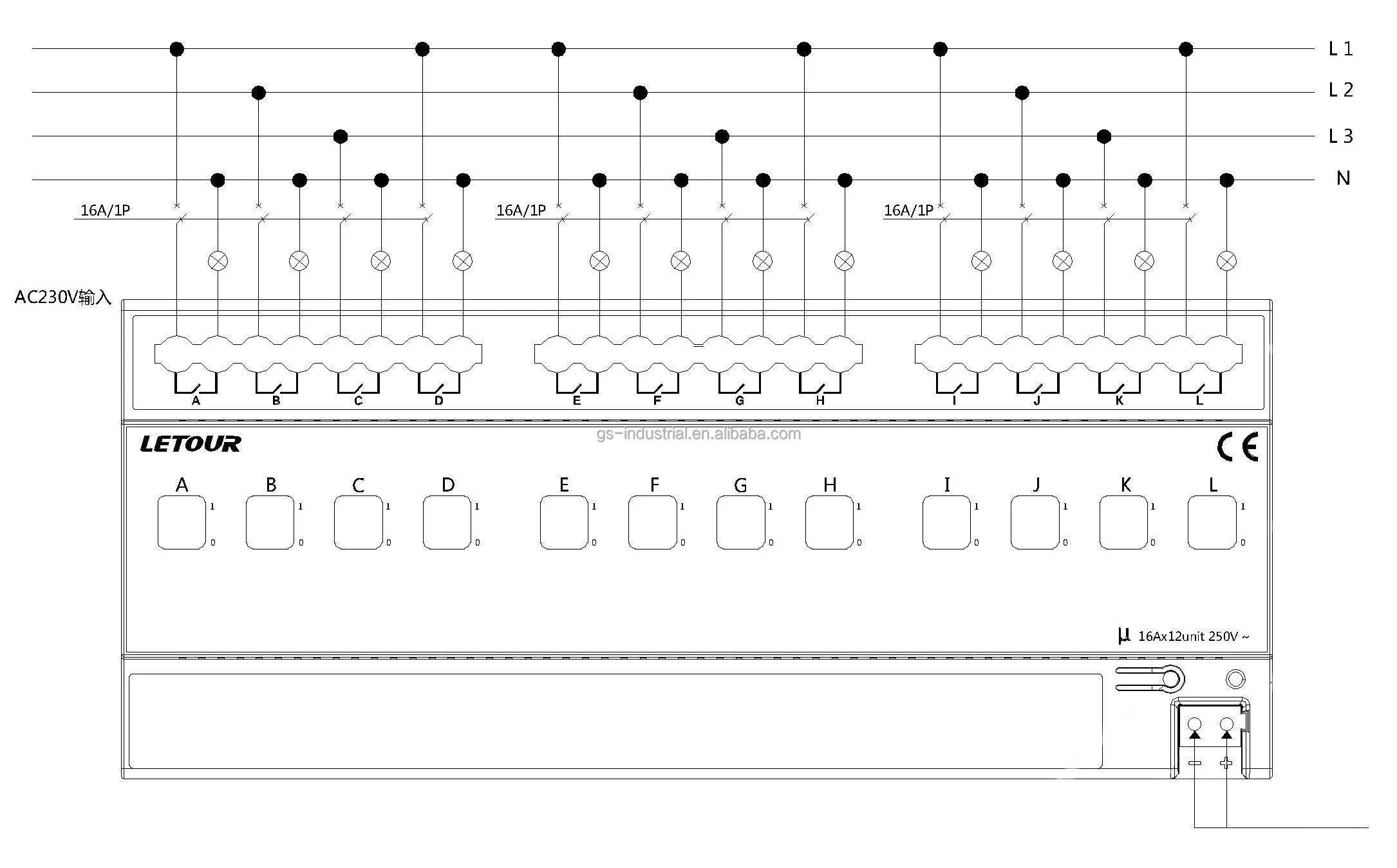

Parameters: Working voltage: 21-30V DC Working current: <12mA Standby power: <360mW Number of channels: 12 channels Rated current: 230VAC (50/60HZ) 20A/channel Working temperature: -5℃-45℃ Working humidity: 10%~95% Installation method: standard 35mm DIN rail installation Function: 50A magnetic latching relay, 20A high power output. With manual mechanical switch operation function, delay switch, selection control, full off and full off, corridor lighting functions. Scenarios, logic, automation functions   Details Images KNX home and building control technology is one of the most advanced bus control technologies in the development of modern intelligent buildings, and it is also the application hotspot of "low carbon, environmental protection, green and energy saving" advocated at present.After 30 years of development and application practice, KNX has become a leader in the international market with its many advantages such as technology maturity, system integrity and application reliability.More and more manufacturers and users choose to develop, produce and use KNX. At present, many large-scale public buildings and well-known villa projects in China have chosen KNX. Stability      The global market share of public construction projects is the highest; EIB is guided by the market technology, Reliability always comes first, it has been successfully used in European countries for more than 25 years, There are hundreds of thousands of successful projects around the world. Safety      KNX switch is a low-voltage bus power supply, weak current control strong current, Safe and reliable Openness     The only worldwide open standard for home and building control (international, European, China, USA); for home and building automation; nearly 450 Manufacturers provide fully compatible products. Product Usage



What is KNX?      KNX is the abbreviation of KONNEX. In May 1999, the three major European bus protocols EIB,BATIBUS and EHSA merged to
form the KONNEX Association and proposed the KNX protocol.The protocol is based on EIB, taking into account the physical layer
specifications of BATIBUS and EHSA , And absorb the advantages of the configuration mode in BATIBUS and EHSA, providing family,The complete solution for building automation.



     KNX bus technology is applied in the intelligent lighting control system, and the software and hardware of the system are selected and designed respectively. In recent years, the application of products based on KNX technology has grown rapidly in China. Many large public facilities, such as Beijing International Airport T3 Terminal, Shanghai Pudong Airport and Shanghai World Expo Park, all use KNX technology. And the application of KNX in China has a trend of developing towards civil housing. There are also more and more domestic companies joining in the use of KNX technology, and even the development of KNX products. Company Introduction Shanghai GoldSu industrial Co.Ltd. is a technology enterprise engaged in the research and development, manufacturing and sales of AI smart switches, lighting, business scenarios, smart homes, smart buildings, and smart life products. The company has strong technical strength and is a member of KNX international manufacturing, KNX international certified engineer training center, China's top ten smart lighting, and China's top ten smart home brands. Our Services & Strength Shanghai GoldSu industrial Co.Ltd is committed to creating a technology-based living experience for consumers to enjoy a better quality of life, providing system solutions and products for intelligent control, energy management, efficient operation, energy saving and emission reduction, and commercial scenarios for commercial and residential buildings, and providing green and quality living. make due contributions. FAQ Q1:Can I have a sample order?
yes,we are willing to offer trial sample order to you for quality test.
Q2:What is the delivery time ?
1.sample order aboout 1~3 working days.
2.General order about 15~25 working days .
3.Bull order about 25~45 working days .
Q3:When will shipping the order ?
We will shipping them whthin 1~2days after paymet .
Q4:What is your payment method ?
We accept payment of T/T westerm union and L/C paypal.
Q5:How long is your warranty ?
We provide 2 years warranty after the shippingdate.
Q6:Where is your factory ?
Our company and factory are in XiaMen.China.
welcome to visit our factory.

---
