design feature

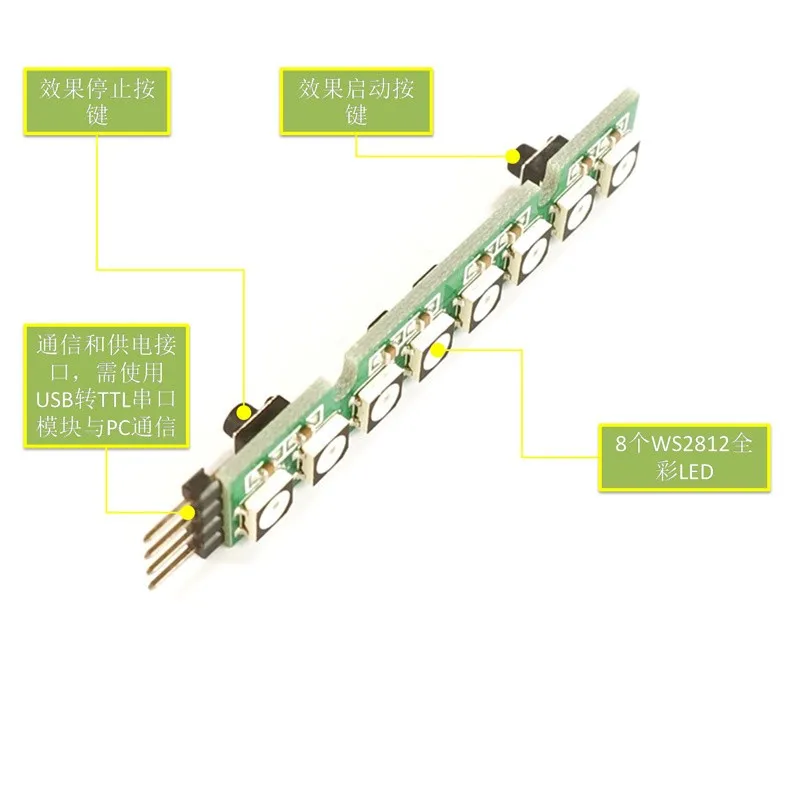

The module integrates a microcontroller controller and 8 WS2812 full-color LEDs. The microcontroller has a built-in program. You only need to design the effect of the flowing water you want to achieve as a picture, and download the effect to the microcontroller through the host computer software. No need to program the microcontroller code. .

The module can cascade more WS2812 LEDs.

parameter list:

No. Parameter Value Remarks

1 LED model WS2812B

2 LED package 5050

3 Module size 6cmxlcm LEDs evenly distributed

4 Working voltage 4.5V~5・5V DC

5 A single LED current <60ma, the brighter the more current required

6 The power of a single LED is <0.3W, the brighter it is, the more power it consumes

7 Module power <2.4W

8 Operating temperature -40 °C-85 °C

9 Cascading more LEDs can be spliced into a maximum of 1024 LEDs

10 The maximum width of the renderings is 40 pixels

11 Rendering size <2560 bytes

12 Effect repetitions up to 255

13 Communication with PC TTL serial port

14 Communication tool with PC USB to TTL serial port module

15 Key functions Start, stop
