MCDFL Large Needle Wall Clock Mechanism I Shaft Movement Quartz DIY Watch Base Clockwork Motor Machine Long Timepiece Parts 227S

This is a big bonus of high torque “I” shaft clock mechanism from MCDFL. Designed for large long clock hands, you can pick out the correct size that fits your favorite clocks running at no additional charge, save an expensive clock and your old clock is now running again in your house with wonderful memories. You too can be an a clock make and create your own giant clocks.

Specifications:

Model Number: 227S I Shaft BlueBox
Certification: CE & RoHS
Material: Plastic, Brass, Metal
Colors: Black & Transparent Blue
Motion: Sweep Silent Movement
Crystal Oscillator: 32.768kHZ

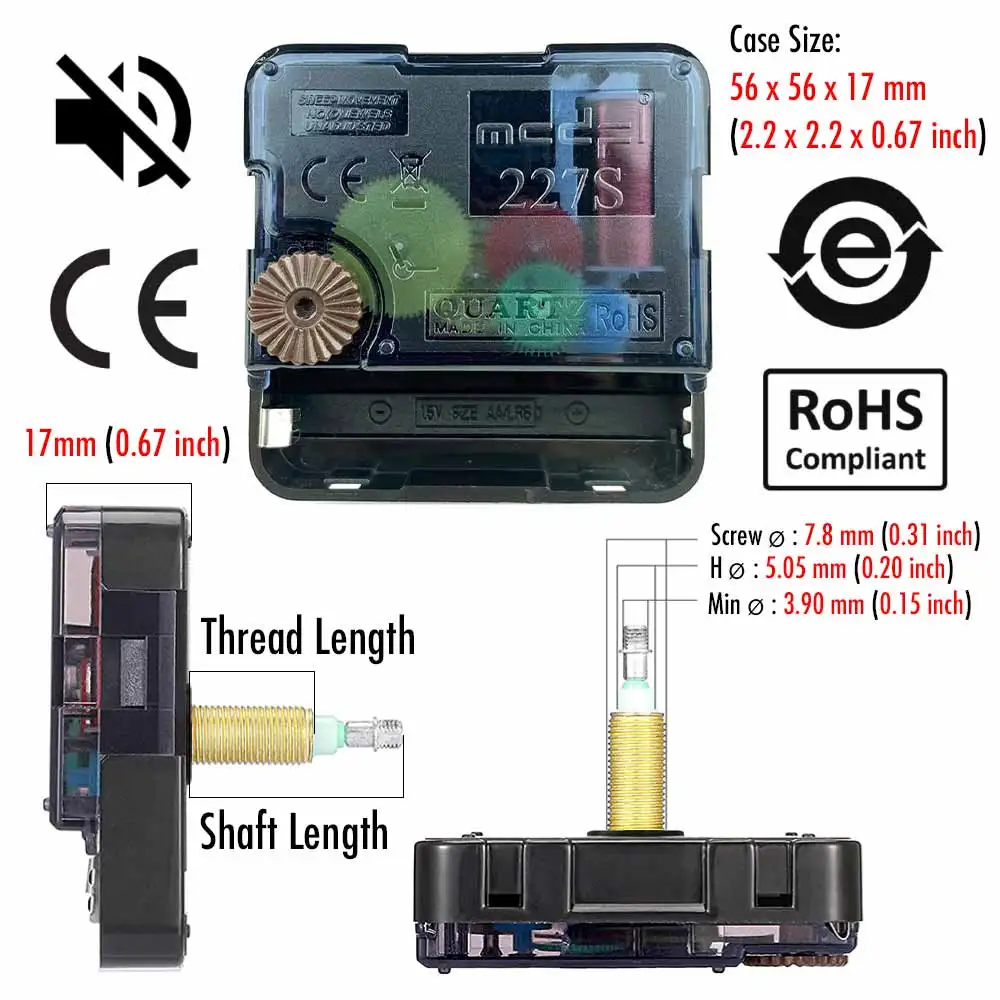

Case Dimensions: Approx. 56 x 56 x 16 mm (2.2 x 2.2 x 0.63 inch)
Time Keeping Accuracy: ±1 sec/day at 1.5V, 23℃
Operating Temperature Range: -10℃~ 50℃ (14℉~122℉ )
Operating Voltage: DC 1.3V~1.7V
Average Operating Current: ≦230μA at 1.5V
Output Torque of Minute Hand: 36 gf·cm over/at 1.5V
Battery Type: 1.5V AA size (IEC R6) Carbon Battery 1 piece (Not Included)

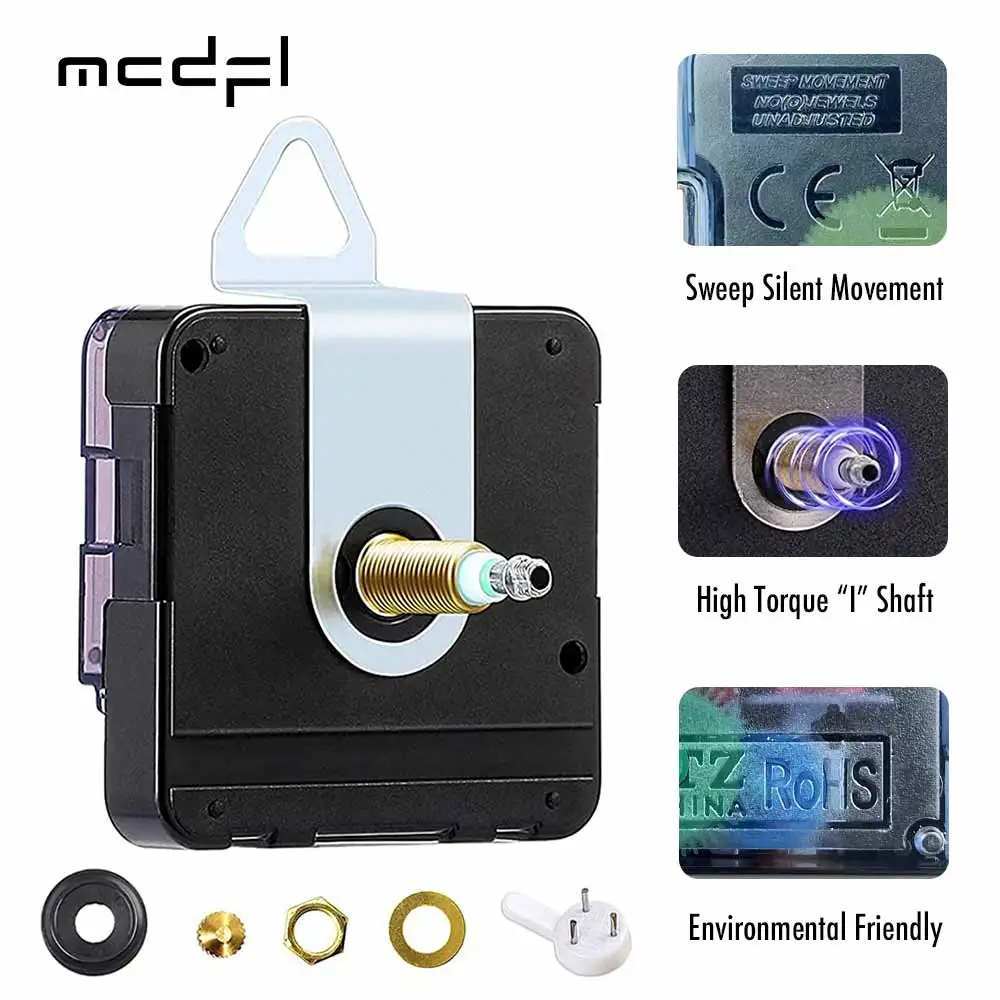

Package Included:

1 x High Torque I Shaft Silent Clock Movement
1 x Minute Hand Fixing Nut
1 X Plastic Washer
1 X Brass Washer
1 X Brass Nut
1 x Metal Hook
1 x Mounting Hook

We Have 6 Different Shaft Length of High Torque “I” Shaft Sweep Clock Mechanism

If you want to replace your old clock movement, please carefully measure the shaft length and thread length. We have 6 different shaft lengths and suitable for various different thickness of clock dials.

Shaft Length: 19 mm (0.75 inch)
Thread Length: 6 mm (0.24 inch)
Suitable for: 1 - 3 mm (0.04 - 0.12 inch) thickness clock dial

Shaft Length: 21 mm (0.83 inch)
Thread Length: 9 mm (0.35 inch)
Suitable for: 2 - 6 mm (0.08 - 0.24 inch) thickness clock dial

Shaft Length: 23 mm (0.91 inch)
Thread Length: 11 mm (0.43 inch)
Suitable for: 4 - 8 mm (0.16 - 0.31 inch) thickness clock dial

Shaft Length: 26 mm (1.02 inch)
Thread Length: 15 mm (0.59 inch)
Suitable for: 8 - 12 mm (0.31 - 0.47 inch) thickness clock dial

Shaft Length: 31 mm (1.22 inch)
Thread Length: 21 mm (0.83 inch)
Suitable for: 14 - 18 mm (0.55 - 0.71 inch) thickness clock dial

Shaft Length: 36 mm (1.42 inch)
Thread Length: 23 mm (0.91 inch)
Suitable for: 16 - 20 mm (0.63 - 0.79 inch) thickness clock dial

Shaft Length and Thread length is different

Please make sure that you understand correctly and make the correct choice carefully before purchase.

About Shaft Diameter

Thread Diameter: 7.8 mm (0.31 inch)
Hour Hand Shaft Diameter: 5.05 mm (0.20 inch)
Minute Hand Shaft Diameter: 3.90 mm (0.15 inch)

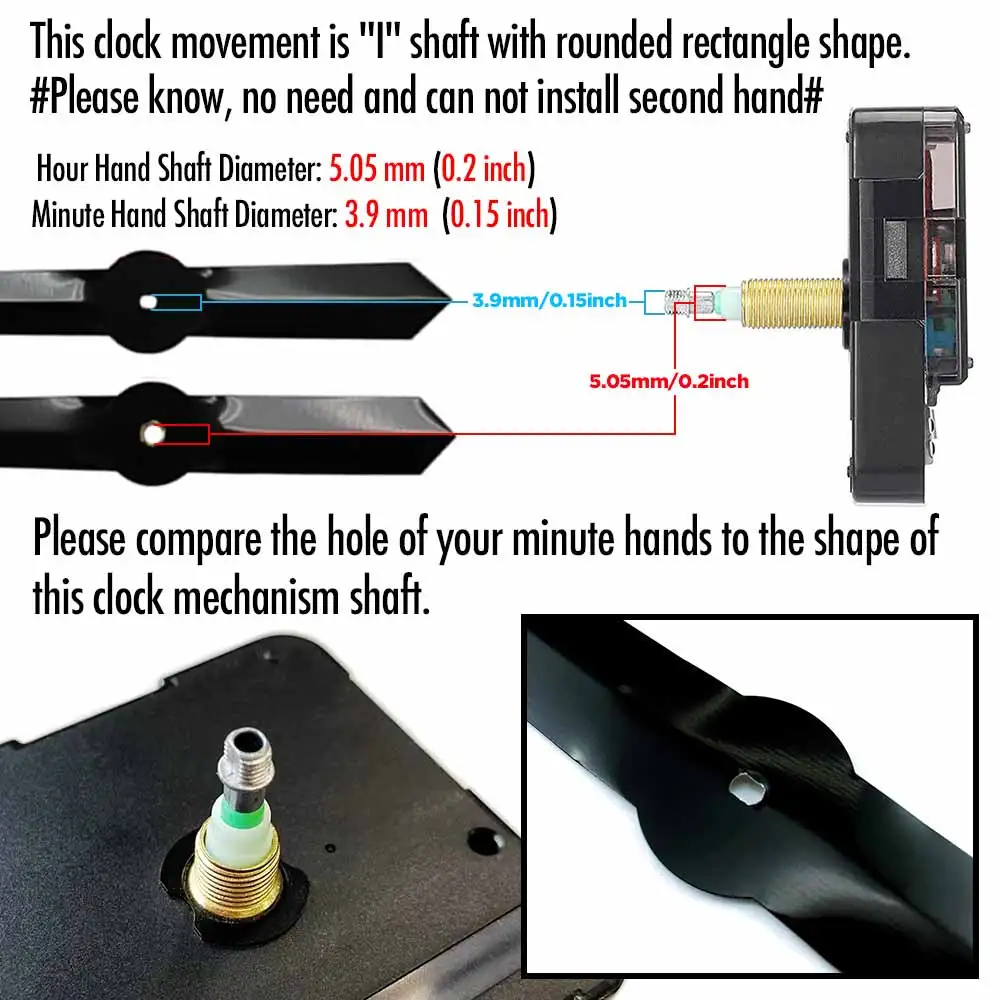

High Torque "I" Shaft Clock Movement

Please compare the hole of your minute hands to the shape of this clock mechanism shaft.
This clock movement is "I" shaft with rounded rectangle shape.
#Please know, no need and can not install the second hand#

If you need clock hands to work with, please click on the link below ⬇️ ⬇️

Designed for Large Long Clock Hands

I shaft Clock Mechanism, drive large long clock hands (10cm/3.9inch to 45cm/17.7inch). Good for repairing, replacing or making a clock by yourself, serving as good replacements for large and thick clock frames.

Accurate Time Keeping Sweep Silent Clock Mechanism

Features high precision and high torque clock mechanism, which ensures watchmaker's accuracy and dependability; Sweep motion with non ticking sound and provide you with a quiet environment.

Simple Style Clock Movement

It can match to diverse colors, patterns, shapes clock panel, it will not stand out, good movement will work well. Simple design, easy to use. You too can be a clock maker, perfect for clock replacement, repairing all kinds of clocks, or making your own customized clock project.

Good Clock Replacement

We have 6 different shaft length clock mechanism for you to choose. This kit is good size replacement both in terms of the shaft and the size of the hands. It can be a replacement for your broken clock.

Wide Application

You are enable to use it to repair, replace or make a clock; Applicable to large 3d wall clock, cross-stitch, three-dimensional embroidery, craft clock, frameless draw clock, etc.

Why Choose MCDFL Clock Movement?

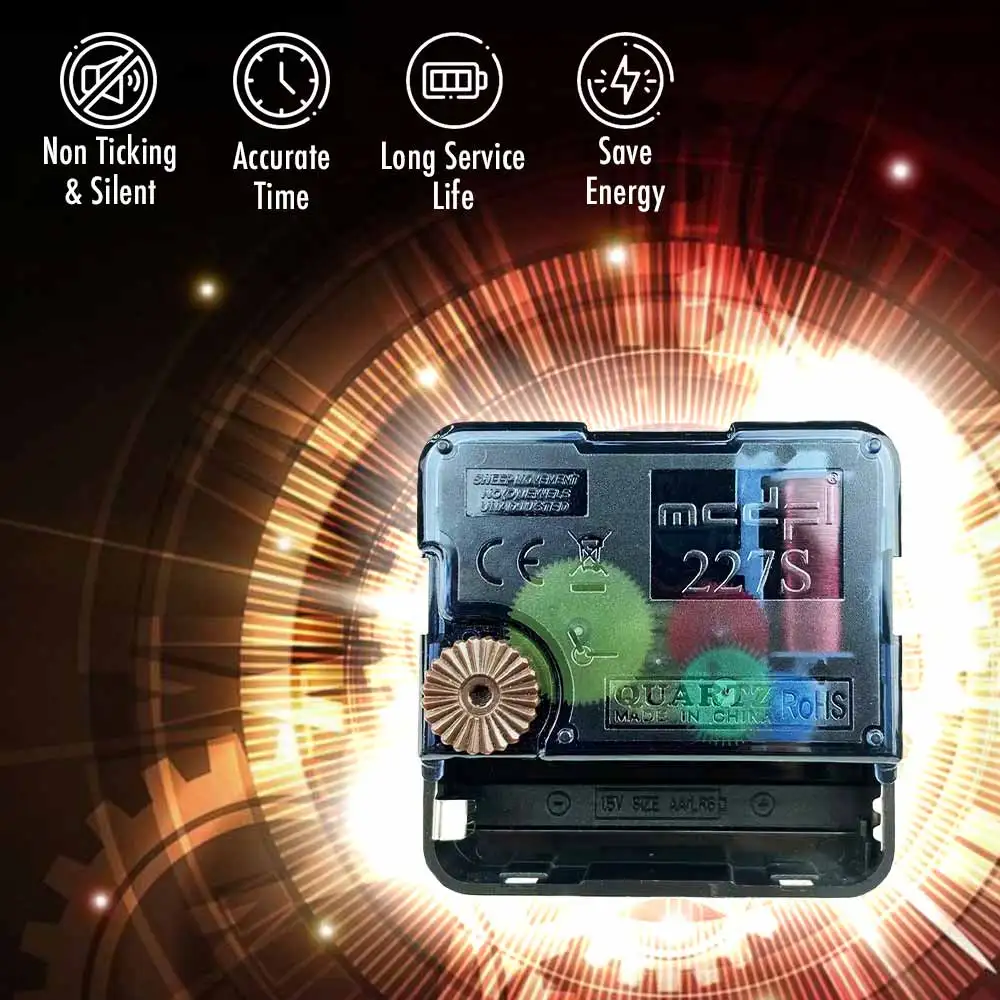

Non ticking & silent, accurate time, long service life, save energy.
We have all you needs of high torque I shaft silent clock movement.
You can pick out your suitable shaft length, high precision clock mechanism to keep your favorite clocks running again.
With MCDFL high torque I shaft silent clock mechanism that provides a quick and easy fix for your clock, great gift choice for clock makers. Perfect DIY clock parts accessories. You always have a better choice from us.

Installation Steps

1. Place metal hook over shaft.
2. Place plastic washer over shaft.
3. Insert shaft through clock face.
4. Place dial plate brass washer over shaft.
5. Attach dial fixing brass hex nut.
6. Gently press hour hand onto shaft at 12:00 position.
7. Place minute hand over shaft at 12:00 position.
8. Gently screw minute nut in place.

Kindly Note:

- Check the shaft length and thread length carefully before purchase.
- Be careful not to bend the hands with too much pressure.
- Do not tighten the brass hex nut too tight.
- Tighten the minute hand fixing nut, make sure there is no gap.
- Press hard to get all clock hands in place.
- Keep clock hands parallel with each other.
- Please do not use alkaline battery and rechargeable battery, or they will damage the clock movement.

About Battery

Battery Type: 1.5V AA size (IEC R6) Carbon Battery 1 piece (Not Included)

Please DO NOT USE alkaline battery, rechargeable battery, a battery more than 1.5V or a high electric current battery.
The best option is a carbon battery or a low electric current battery (less than 500 ma)

Why we should use carbon battery or low electric current batteries on most of home clocks?
Most of clocks only need very low electric current, especially for quartz clock for home. If use a high electric current battery such as a rechargeable battery, it may damage the clock movement, cause inaccurate time, or even burn out the clock movement, affecting the service life.

How to Get the Right Replacement

Measure the thread length of your old clock mechanism, refer to our pictures, compare the thread length of our 6 movements and choose the one with the closest thread length.
If you are still not sure which one is right for you. Feel free to contact us, take photos of the shaft parts and the size of your clock hands, we will help you.
