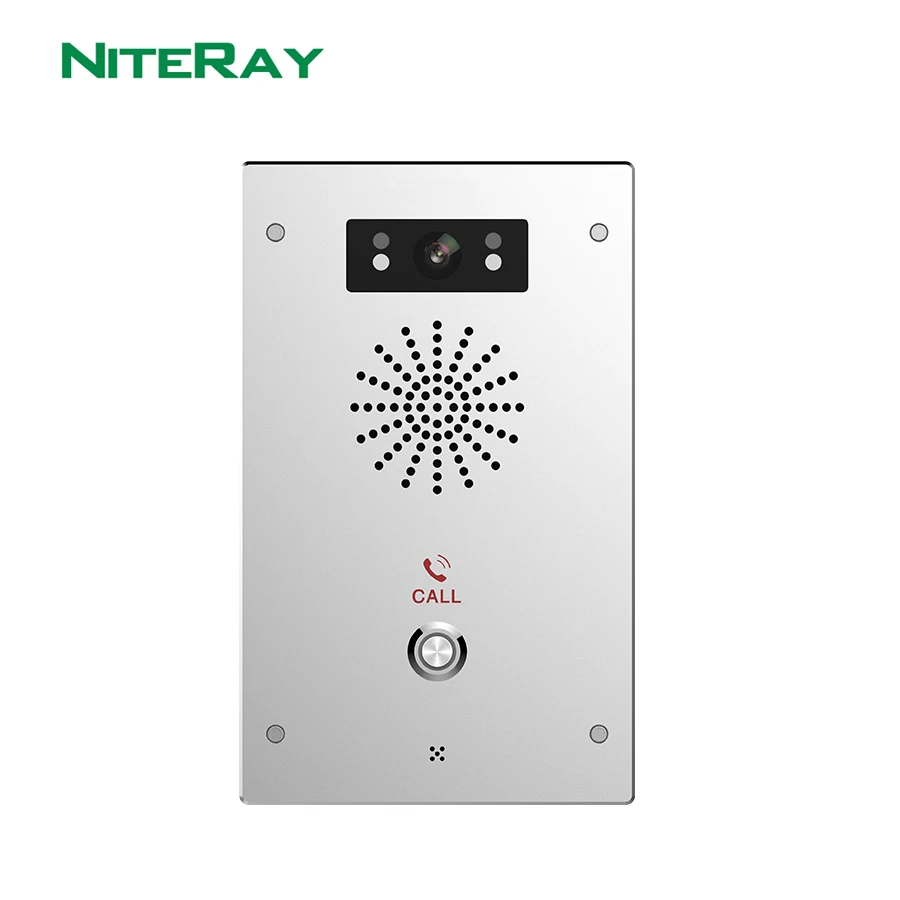

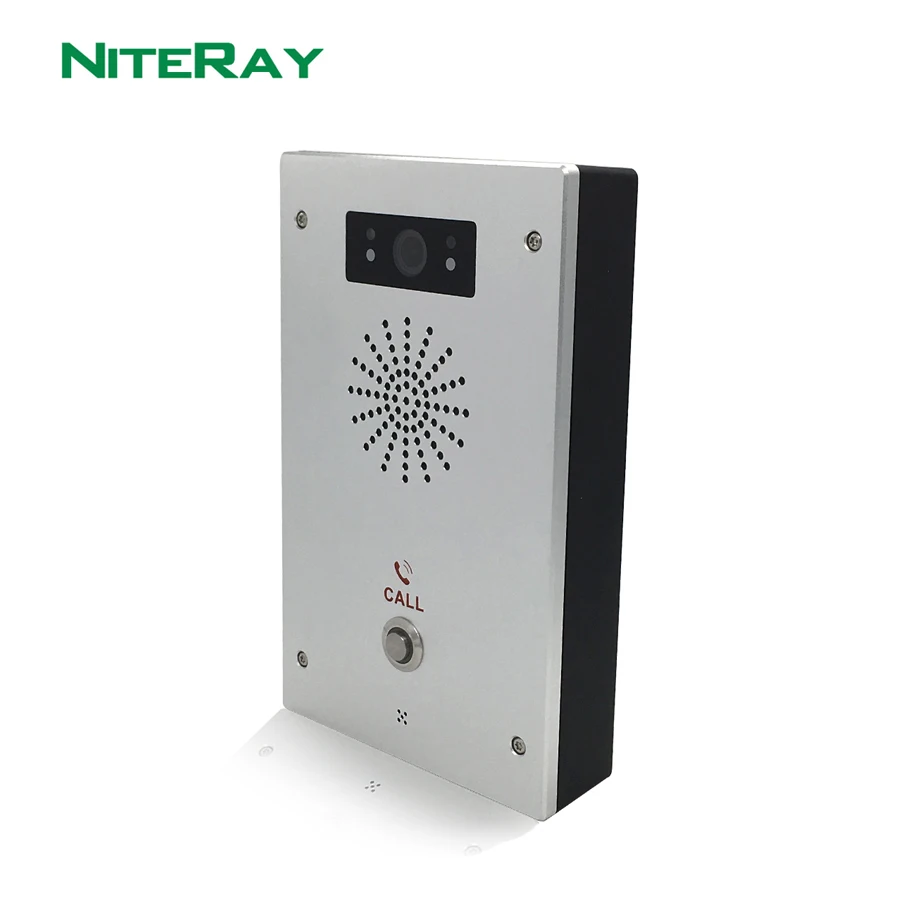

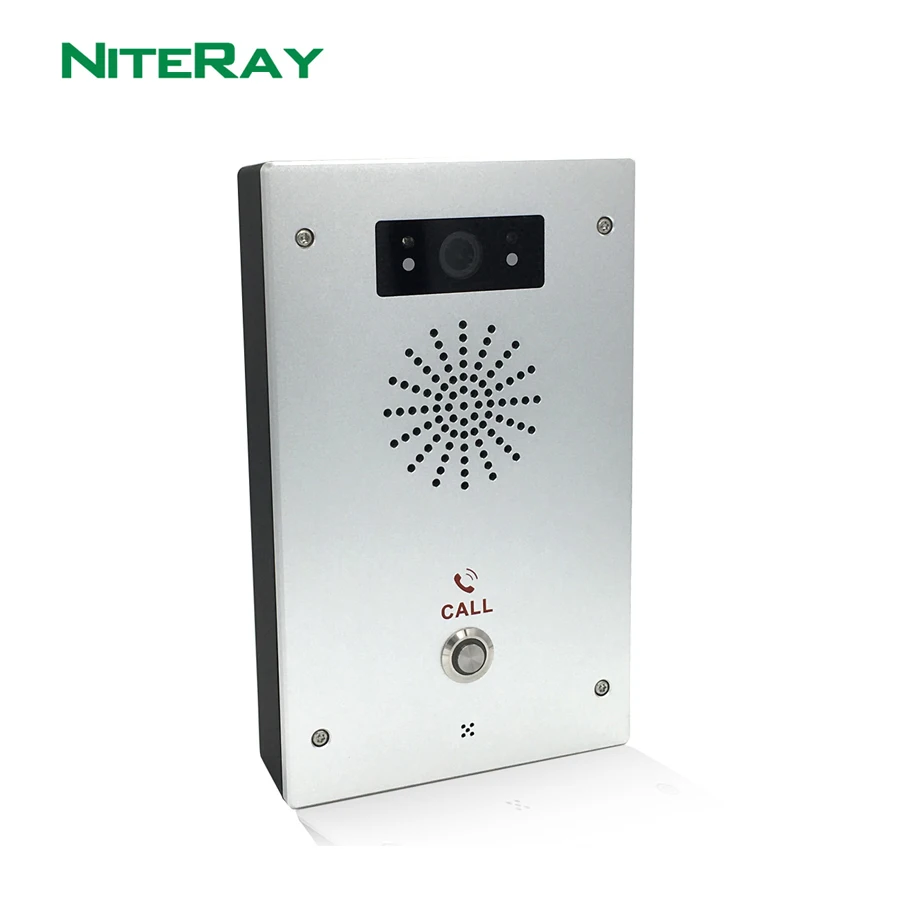

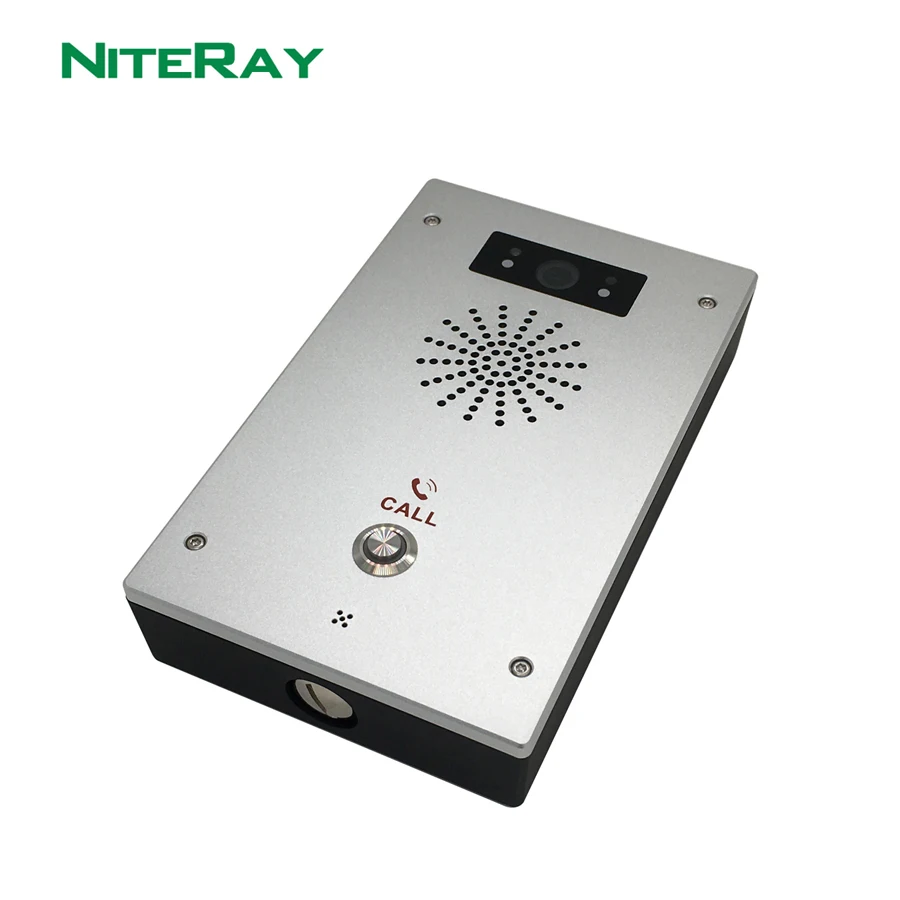

Q514 SIP Video Intercom

The Q514 SIP Video Intercom is designed for outdoor scenes with high reliability, HD Audio/Video, and IP65/IK10 protection grade. It combines security, audio/video intercom and broadcasting functionalities and offer the best communication solution for users.

Highlights

Built-in HD camera with infrared night vision, adopt H.264 codec

HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller (AEC)

IP65 waterproof and dustproof

IK10 anti-collision with robust die-cast aluminum frame

Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time

-40°C to 70°C wide range temperature adaptability

Built-in 2 short-in detect port and 2 short-out control port

Support online management and upgrade

Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.

HD Audio

Built-in 3W Speaker with High HD Audio Quality and Nice Background Noise Reduction

HD Video

Press the "Call" button to make a call with full duplex video.

Provide you the infrared night vision with built-in 720P HD camera

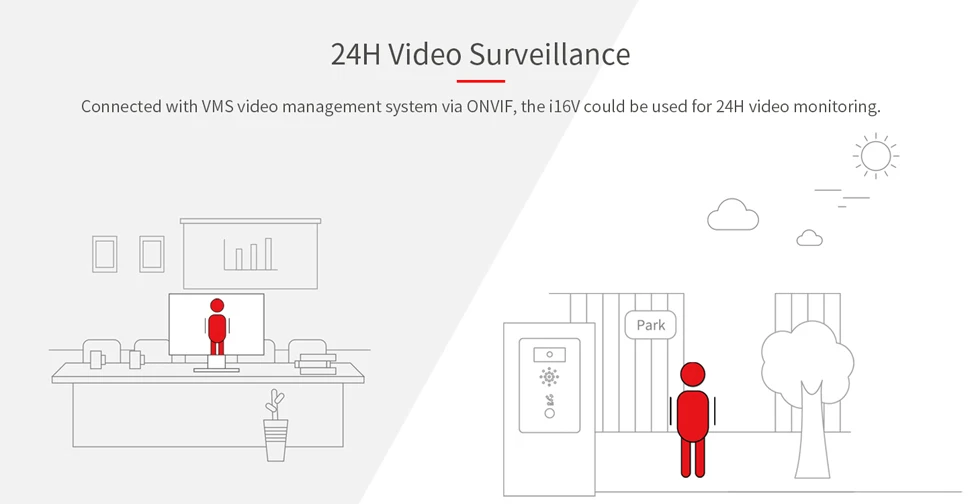

24H Video Surveillance

Connected with VMS video management system via ONVIF,the i16V could be used for 24H video monitoring

Multi-Protection Design

With the design of the waterproof and dustproof grade IP65,the anti-collision standard IK10 and the wide temperature range from -40℃ to 70℃,Q514 can satisfy the special demands in various industries.

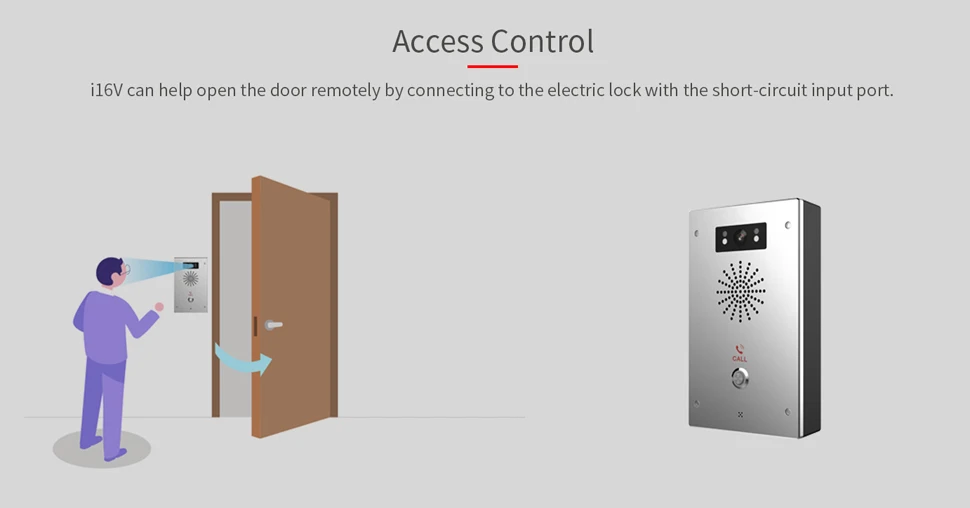

Access Control

Q514 can help open the door remotely by connecting to the electric lock with the short-circuit input port

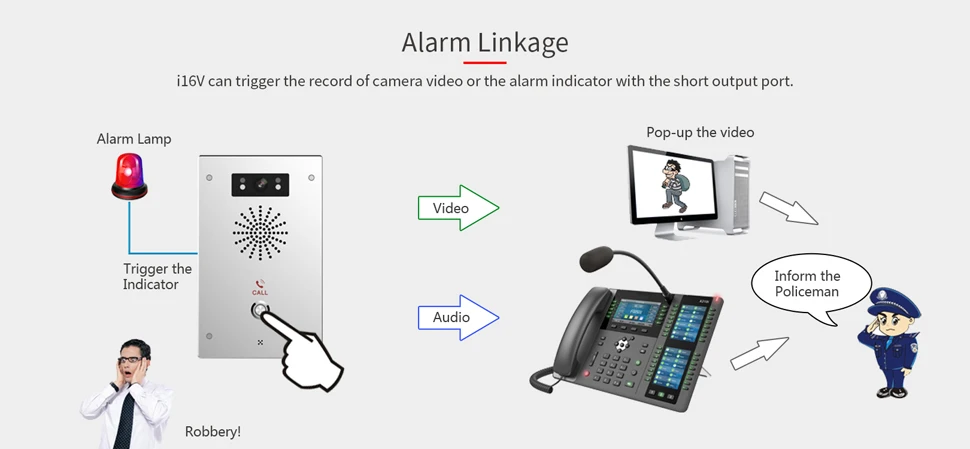

Alarm Linkage

Q514 can trigger the record of camera video or the alarm indicator with the short output port

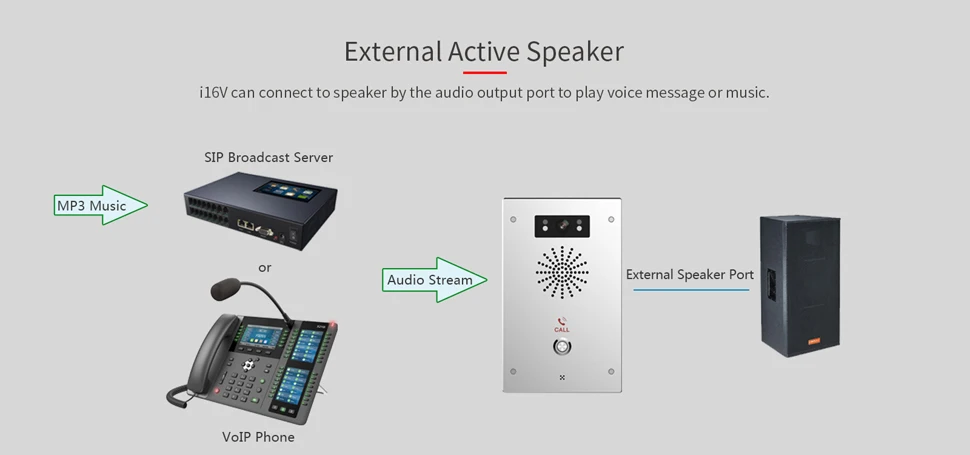

External Active Speaker

Q514 can connect to speaker by the audio output port to play voice message or music

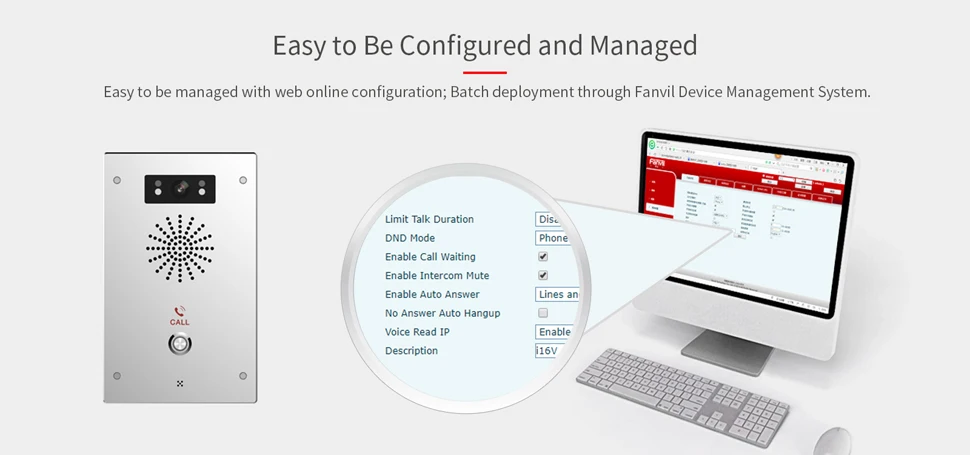

Easy to Be Configured and Managed

Easy to be managed with web online configuration

Application Scenarios

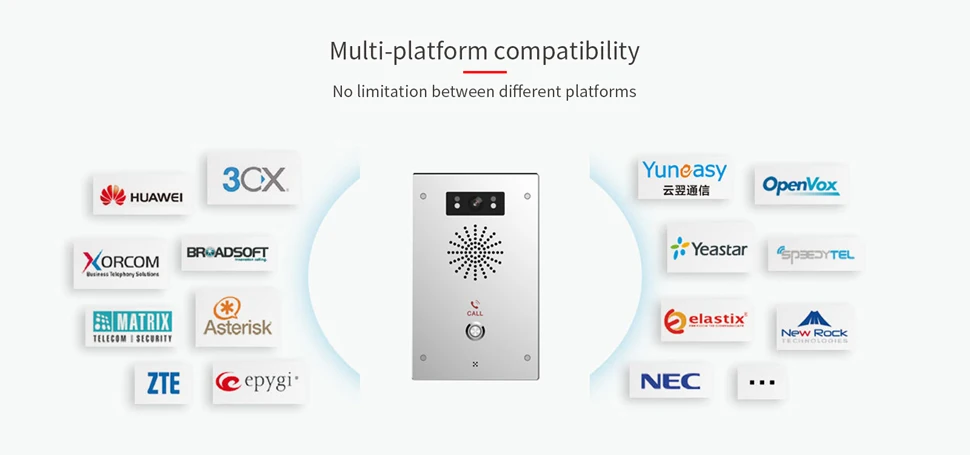

Multi-platform compatibility

No limitation between different platforms

Datasheet:

Generic

Audio

2 SIP Lines

Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB

Full-duplex handsfree(HF)

Wideband Codec: G.722

Intelligent DSS Keys (Speed Dial/intercom etc)

Full-duplex Acoustic Echo Canceller (AEC, 96ms tail-length

Auto answer

Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/

Intercom function

Background Noise Estimation (BNE)

Industrial Standard: IP65&IK10, CE/FCC

Packet Loss Concealment (PLC)

Dynamic Adaptive litter Buffer up to 300ms

Intercom Function

DTMF: In-band, Out of Band DTMF (RFC2833) / SIP INFO

Dynamic multicast function

Support ONVIF

Deployment & Maintenance

Support customized DSS Keys

Auto-Provisioning

Network Time Synchronization

Web Management Portal

Action URL / Active URI

Web-based Packet Dump

Configuration Import and Export

Video

Firmware Upgrade

Sensor: 1/2.7” color CMOS

Syslog

2 Megapixels

Video codec: H.264

Physical Specifications

Resolution: main stream 1280×720@25fps

1 DSS button (speed dial button)

Substream 704×576(D1)@25fps

1 RJ45 port

Viewing angle: 112° (H), 84° (V)

1 audio output interface

Minimum illumination: 0.1Lux, support infrared illumination

1 recording output interface

2 short circuit input interface

Networking

2 relays: MAX DC30V/2A, AC125V/0.5A

10/100Mbps

Active switching output: 12V/500mA DC(only 1 relay support)

IP Configuration: Static / DHCP / PPPoE

2 indoor magnetic switch

Network access authority authentication: 802.1x

1 tamper alarm switch

VPN: L2TP / OpenVPN

Power: DC12V/1A or PoE

Housing material: aluminum alloy shell

Protocols

Protection level:IP65 and IK10

SIP2.0 over UDP/TCP/TLS

Installation: Wall-mounting

RTP/RTCP/SRTP

Working temperature: -40 ~ 70°C

STUN

Storage temperature: -40 ~ 70°C

DHCP/LLDP/PPPoE/802.1x

Relative humidity: 10% - 90%

L2TP /FTP/TFTP/HTTP/HTTPS/SNTP

Equipment Dimension: 195x120x34mm

OpenVPN

Packing Dimension: 260x165x62mm

TR-069

Outer CTN Dimension: 348x328x280mm(10 PCS)
