Ancel Car Spark Plug Tester Ignition System Tester 220V 110V Automotive Diagnostic Tool Double Hole Analyzer Spark Plug Analyzer

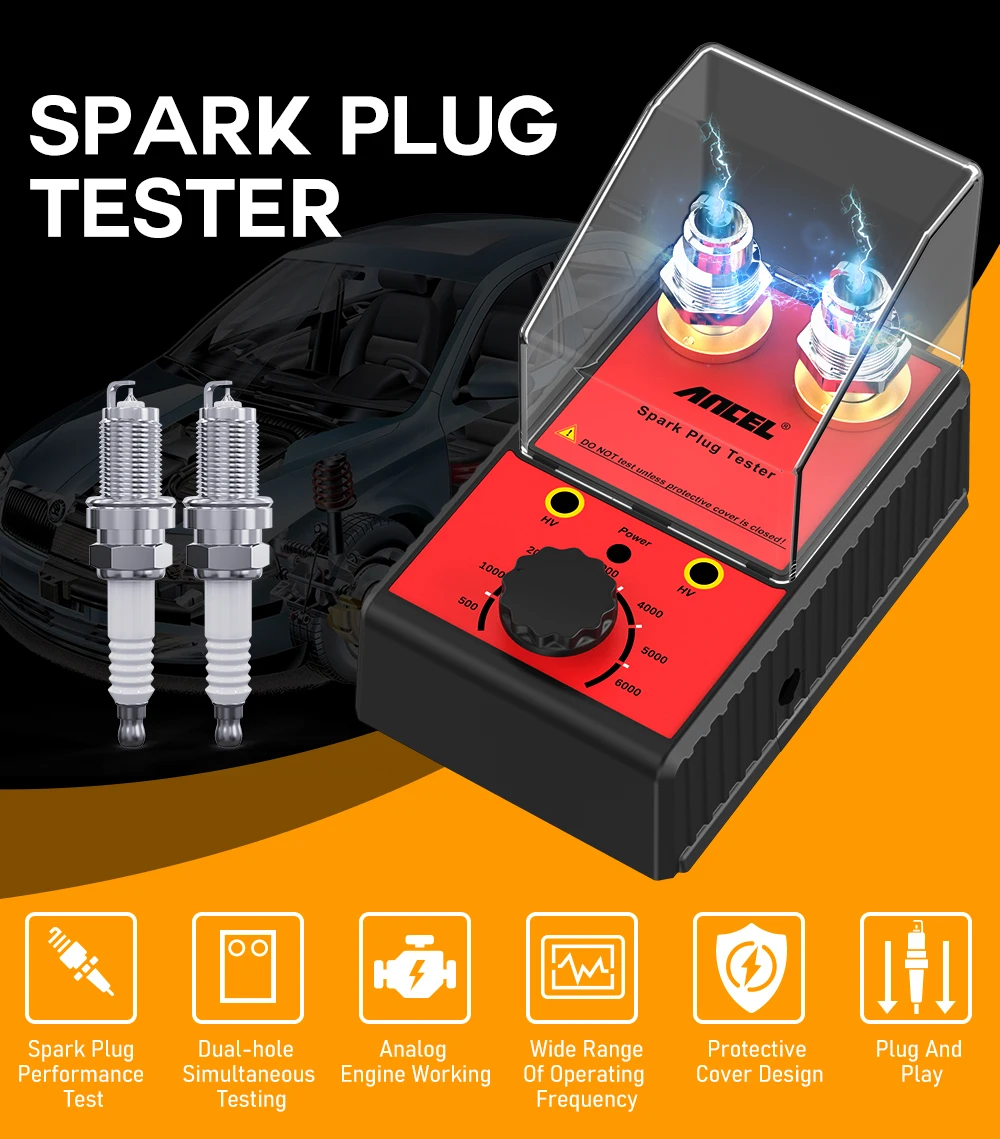

ANCEL Car Spark Plug Tester is for testing the performance and strength of spark plugs. The product simulates actual engine conditions and works up to 6000rpm. It is compatible with all spark plug tests for crankshaft engines and motorcycles on the market. It can also test two holes at the same time and is designed with a protective cover to ensure the safe operation of maintenance personnel during the test.

Car Spark Plug Tester Feature :

🚩 Dual Hole Testing& Time Saving

The ANCEL Car Spark Plug Tester is able to dual-hole simultaneous testing as well as analog engine working, which is much more efficient and time-saving.

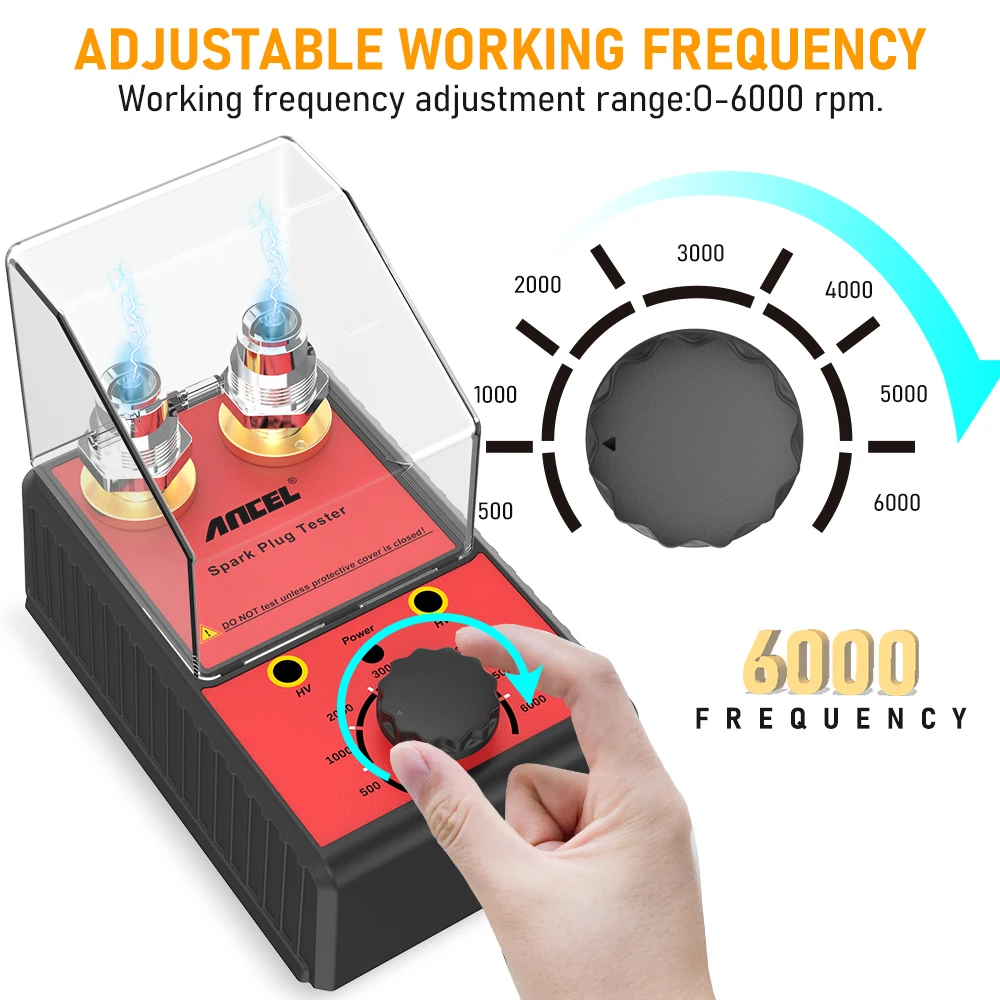

🚩 0 to 6000rpm Operating Frequency

The ANCEL Car Spark Plug Tester is designed with adjustable working frequency, the range can reach 0 to 6000rpm. Can be adjusted as you required.

🚩 Widely Application

12V Gasoline vehicles car spark plugs, 100V-240V input voltage .

🚩 Easy operation Plug And Play

Easy operation, plug and play. Come with indicator light, the status of the spark plug can be displayed more intuitively.

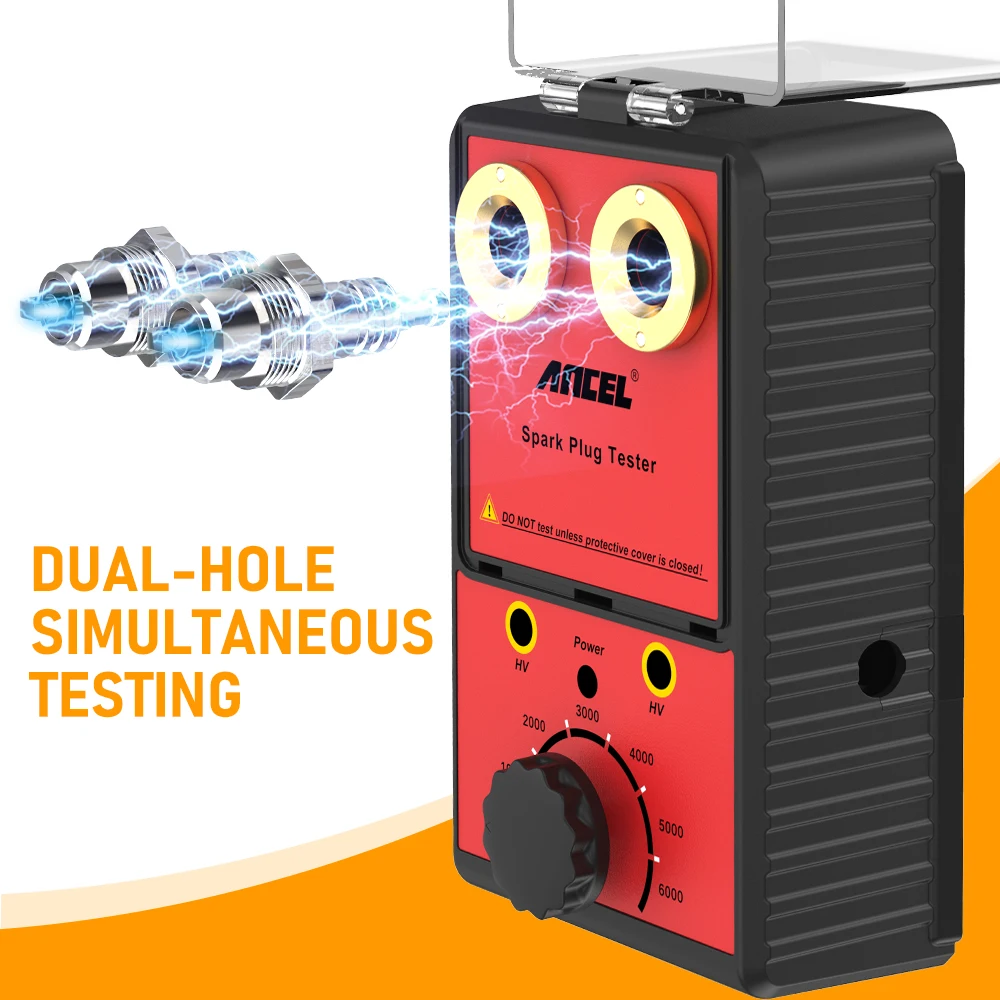

Dual Hole Testing & Time-Saving

ANCEL Car Spark Plug Tester is able to dual-hole simultaneous testing as well as analog engine working, which is much more efficient and time-saving.

Note:

1.Please Turn Off Power before you place spark plug.
2.The Spark Plug Tester is a high-voltage detector, so do not touch spark plug with hand at work to avoid danger.
3.Support 12V Gasoline vehicles car spark plugs only.

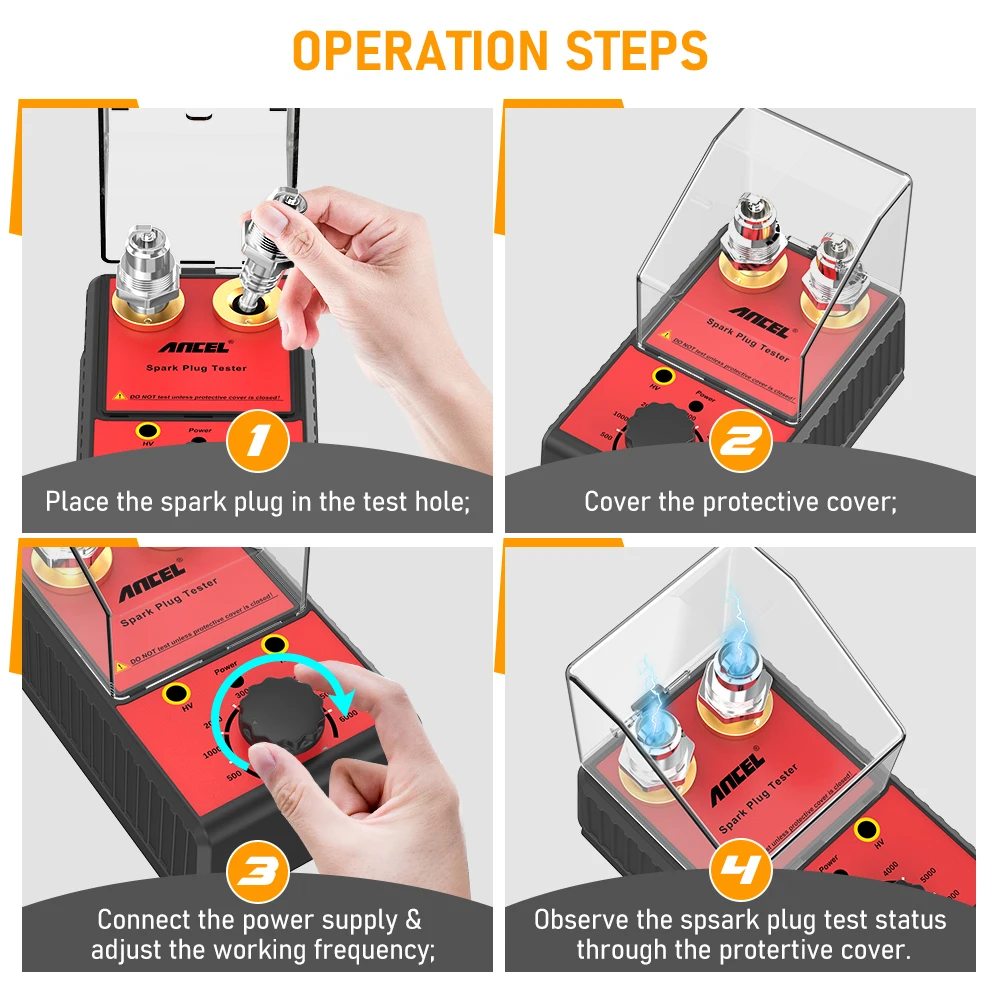

Easy to use,Operation steps

Product Usage:

1.Place the Spark Plug into tester hole 1 or 2; If you want to compare the new spark plug and old one, place new spark plug into hole 1 and the old on into hole 2.
2.Connect to power supply.
3.Turn the key switch 4 clockwise to turn on tester, indicator 3 will light up, tester is now working at 1000rpm/min.
4.Again turn the key switch 4 clockwise,you can adjust the working frequency between 1000rpm to 6000rpm/min.
The higher the frequency, the stronger the spark strength.
Note:This link is for 110V/220V power supply US Plug，If you need to buy 110V/220V EU PLUG, please note the information of shipping EU PLUG when you take the order or contact the seller to buy.Thank you.

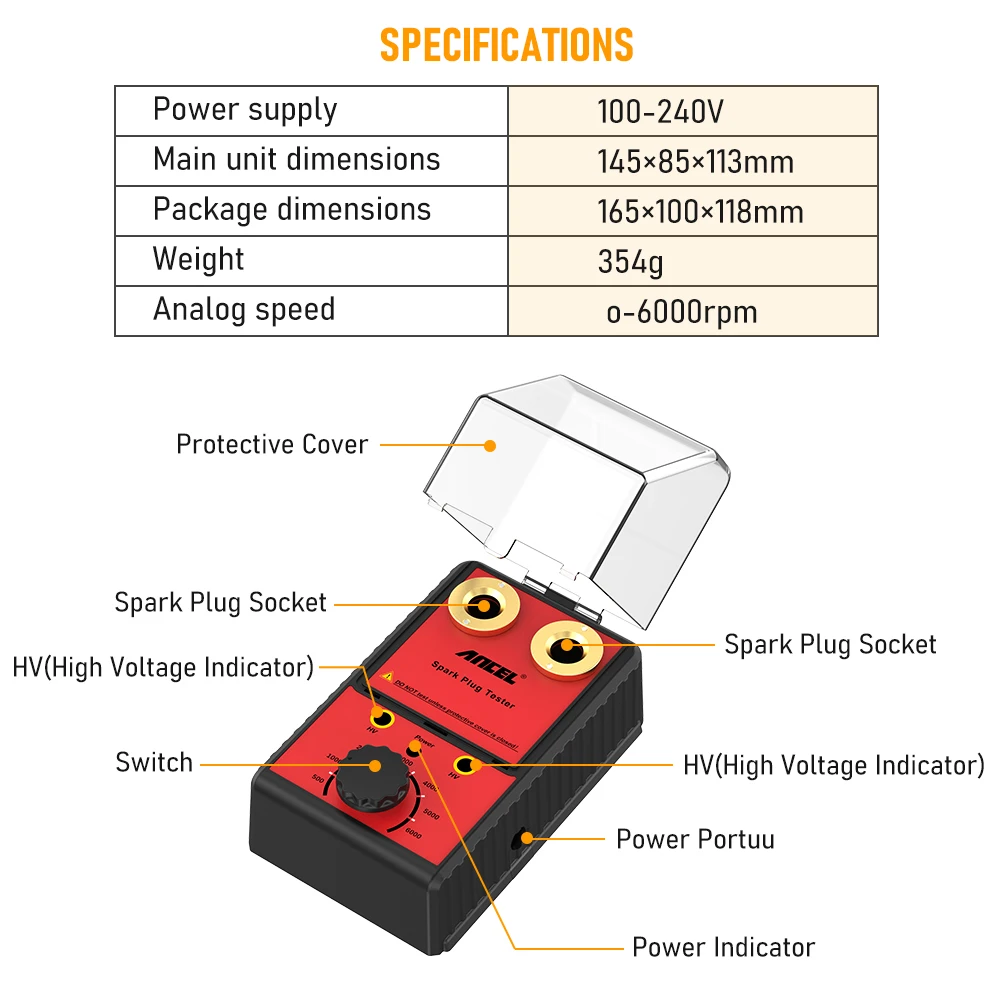

Specifications:

✔️Mold:spark plug tester
✔️Input: 100~240V AC (Note:This link is for US Plug，If you need to buy EU PLUG, please note the information of shipping EU PLUG when you take the order or contact the seller to buy.）
✔️Length of external: 1m
✔️Host size: 145*90*114mm
✔️power supply: Power Adapter
✔️Power Adapter: Output 12V 1A DC
✔️Suitable for 12V driven gasoline car spark plugs
✔️Usage: Test car spark plug performance and ignition intensity

Package included

1* ANCEL Car Spark Plug Tester main unit
1* Packing box
1* User manual
1* Power supply connector (US Plug)
