Avidsen 104251 104250 OLD 104257 114253 Брелок для управления воротами 100400 104505 100500 400600 Фиксированный код 433,92 МГц Клонирование.

Avidsen 104251 104250 OLD 104257 114253 Брелок для управления воротами 100400 104505 100500 400600 Фиксированный код 433 92 МГц Клонирование.

Kindly note

Our remote is the COMPATIBLE / REPLACEMENT /CLONE remote , not the original one .

please make sure your remote / system can be used before buying .

As a general guide, if the remote you currently use is one of the remotes pictured in the ad then this remote will be compatible with your motor.

if you are not so sure , please contact us without hesitate

Description

Rolling code AVIDSEN /Fixed code AVIDSEN
1.Type of programming: Programming with the receiver/clone
2.Number of channels: 4
3. Code: rolling code/fixed code
4. Frequency: 433.92MHz
5.Woring Range: 10-50 m (open space)
6.Power supply: 12V 27A
7.Remote come with Battery !!!

Security of use: dynamic code provides a high level of security, non-copyable code.
Disclaimer:Your Old remote must be same as the advertisement , new remote do not compatible with other remotes .

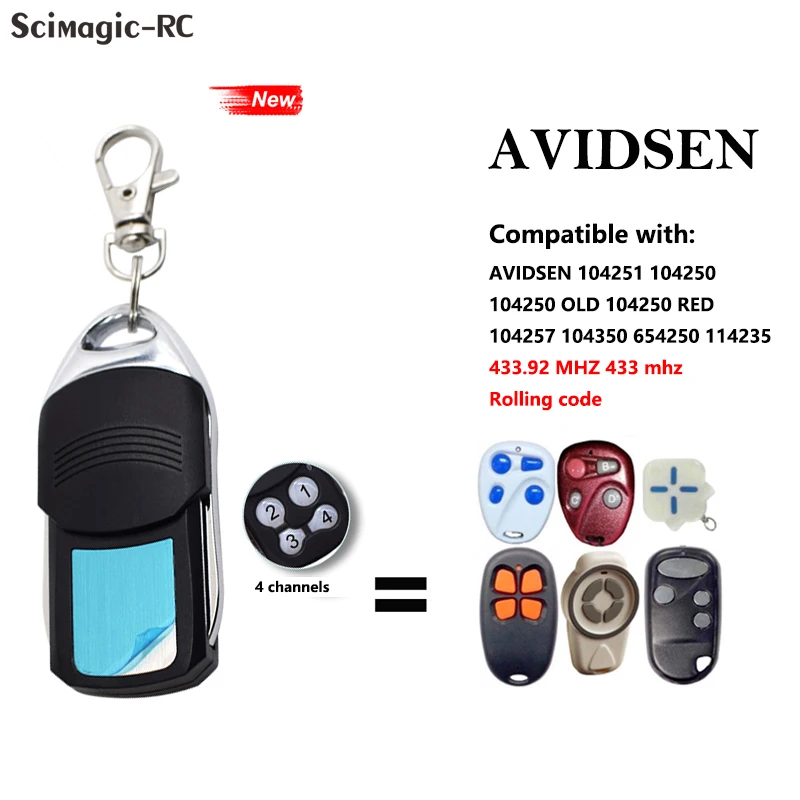

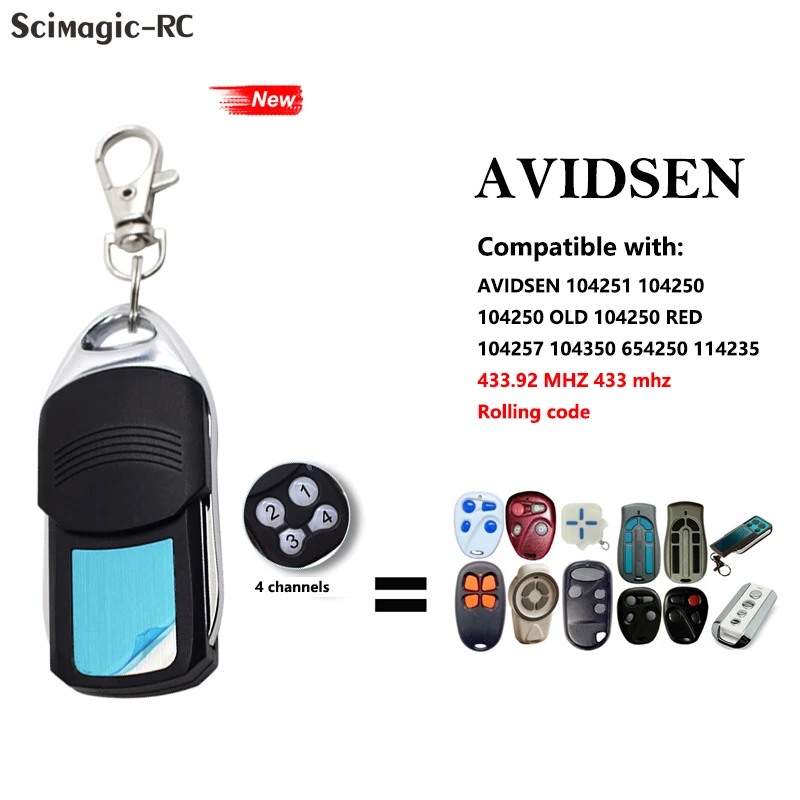

Rolling Code Compatible With

AVIDSEN 114253
AVIDSEN 104250
AVIDSEN 104251
AVIDSEN 104250 OLD
AVIDSEN 104250 RED
AVIDSEN104257
AVIDSEN 104350
AVIDSEN 654250
AVIDSEN 114235
433.92MHz rolling code

Fixed Code Compatible With

AVIDSEN 100400
AVIDSEN 104505
AVIDSEN 100550
AVIDSEN 400600
AVIDSEN 100951
AVIDSEN 100955
100601 MICROMARK MM23164
433.92MHz fixed code

programming

AVIDSEN Rolling Code
1. Open the casing of your receiver. It is located next to your motor.
2. On the receiver circuit board, press the programming button (PGM). The LED light of the receiver illuminates. Let the button go.
3. In the next 10 seconds, press a button on your new remote control. Let it go.Wait 10 seconds.Your new remote control is programmed.

AVIDSEN Fixed Code
Face to face copy your original remote control

Step:1:Clear the history code from duplicator

1:Press button A and B continuously until LED flash 3 times
2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash
3.Release button “A”,finish code clearance.

Step 2,Copy code from original transmitter

1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash
3. Release both buttons,finish code copy,copy other button in same way.
Button A= Lock button
Button B=unlock button

Include:

1 x Remote Control
1 x Battery
1 x Keychain
1 x English Manua
